servo punch press

Main Features: 1) This series of press frames are welded by steel plates, small deformation, good rigidity. 2) This series of machines adopts pneumatic friction clutch-brake combination, long service life, low noise, stable transmission. The six surfaces of the guide rail, precision is high, can prolong the life of die, die height adjustment is convenient and reliable, with emergency stop, inching, single and continuous operation specification. 3) Optional: PLC electrical control system, air cushion, photoelectric safety protection device. Advantages: 1) Crankshaft can stop at any point during operation, Highest safety; 2) High precision; long life; low noise; Easy access to…

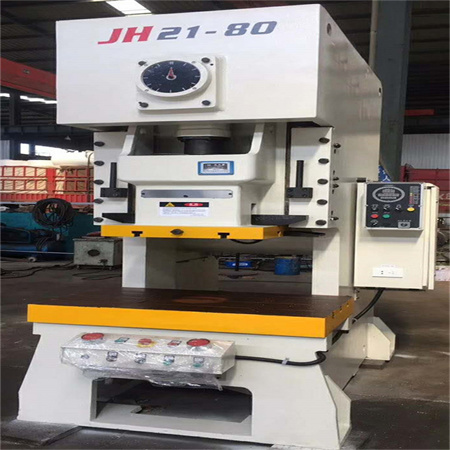

Products Description 25 Tons Hydraulic Power Press Punching Machines are stronger and more feature packed than any gap frame press on the market today. More steel in the c-section of the frame reduces what is known as angular deflection under full stamping loads. Larger flywheel, higher energy rating point ABDC, connecting rods and ball screws. New cast slide body with digital die height indicator and large flanged upper die adapter plate. Slide guides are taper wedge design like our straight side presses to assure long die life during production runs. The JH21- 200 ton GEN-2 (left) shows our standard I-PRESS…

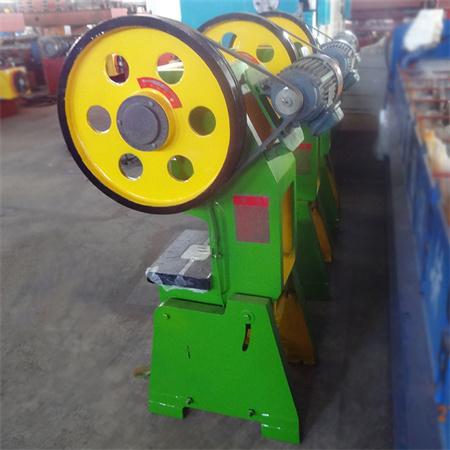

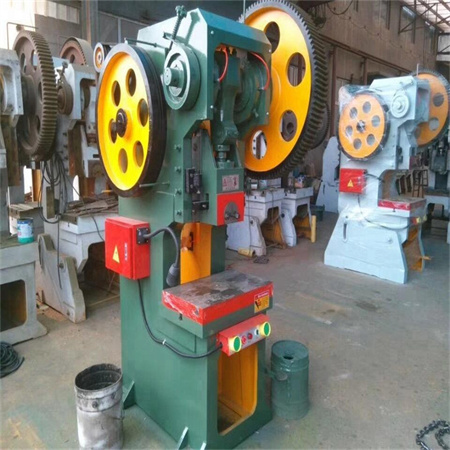

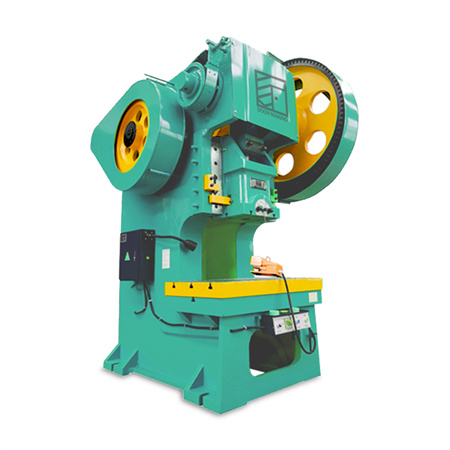

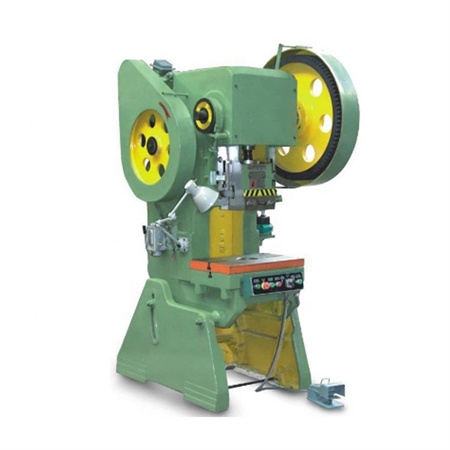

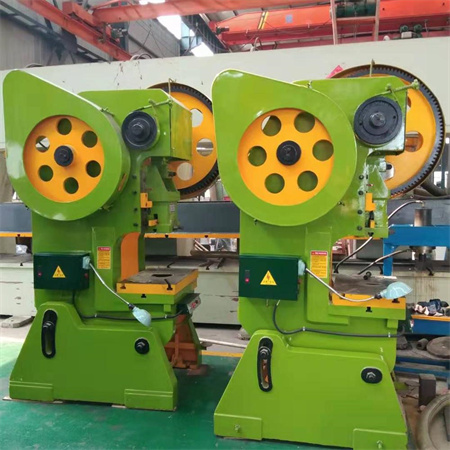

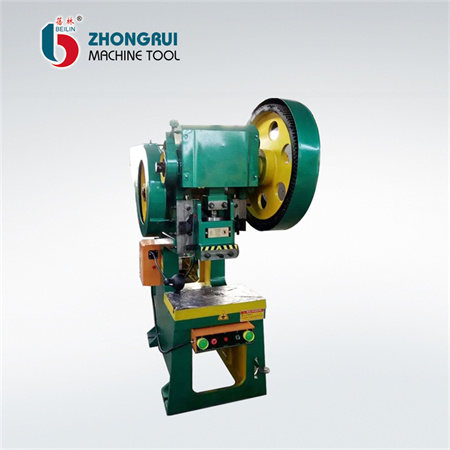

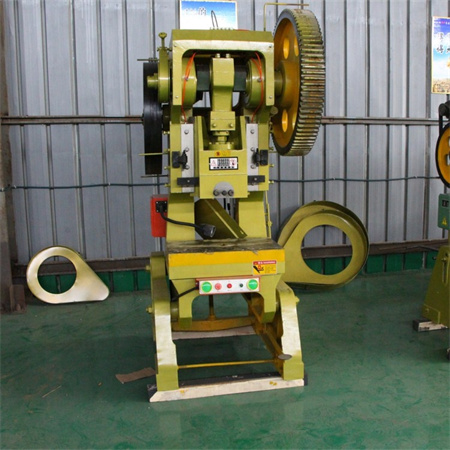

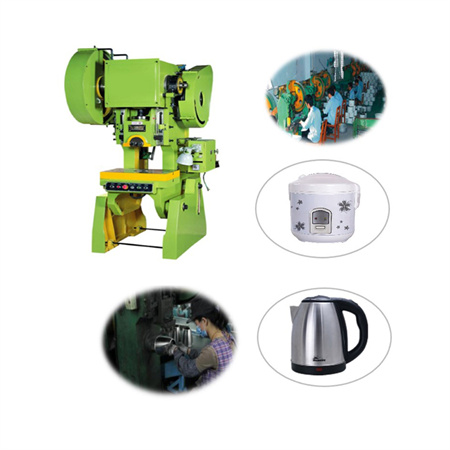

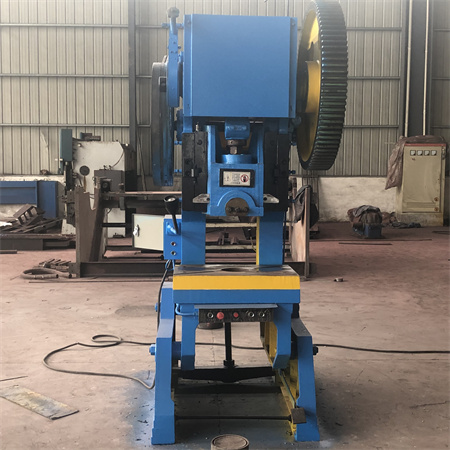

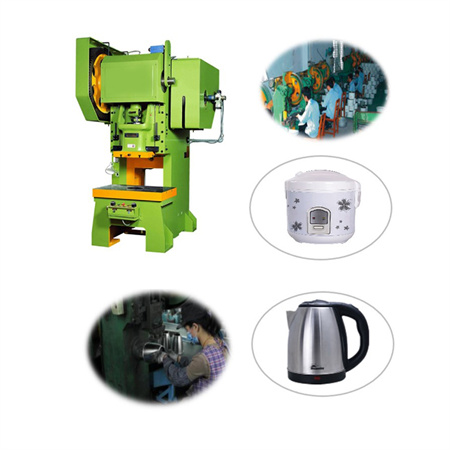

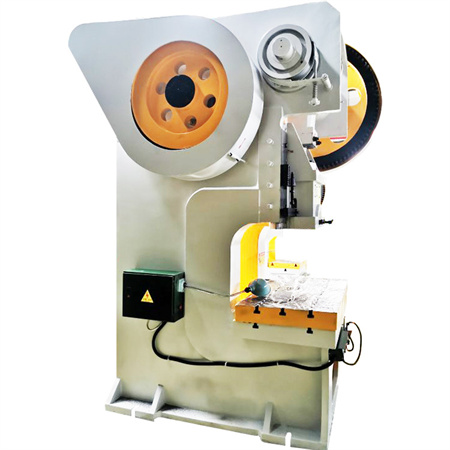

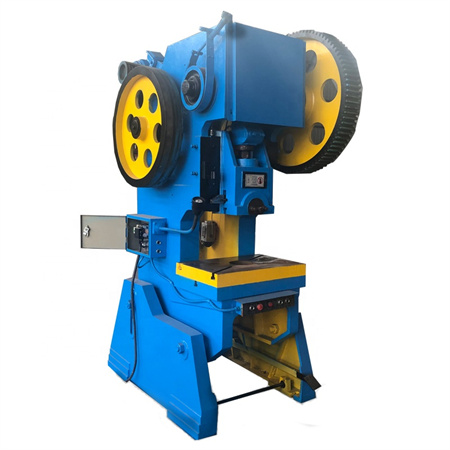

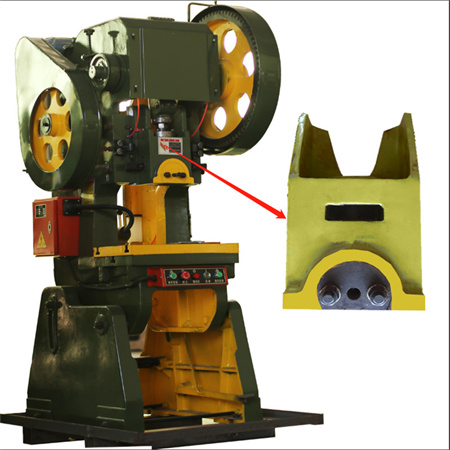

Main Features: 1.  J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process. 2.  C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application. 3.  The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production. 4.  Crank shaft is made of special alloy steel machined to close accuracy and fitted in…

Product Description J23 Series Pneumatic High Speed Sheet Metal Punching Press Machine Perforating Machine 1. steel welding body, good stiffness, more stable accuracy. 2. Crankshaft longitudinal, compact structure, beautiful appearance. 3. Mold height to achieve electric adjustment, digital display adjustment height. 4. Slider with rectangular hexahedron extended rail, with bronze lining, high precision guide. 5.Brake with modular pneumatic friction clutch, smooth connection, action sensitive. 6. Press the collapse of the insurance, to ensure the safety of the whole overload. 7. Slider with lifting balance cylinder, to achieve the balance of the slider link. Model Nominal Pressure(kn) Slipper Stoke(mm) Slipper Stoke…
