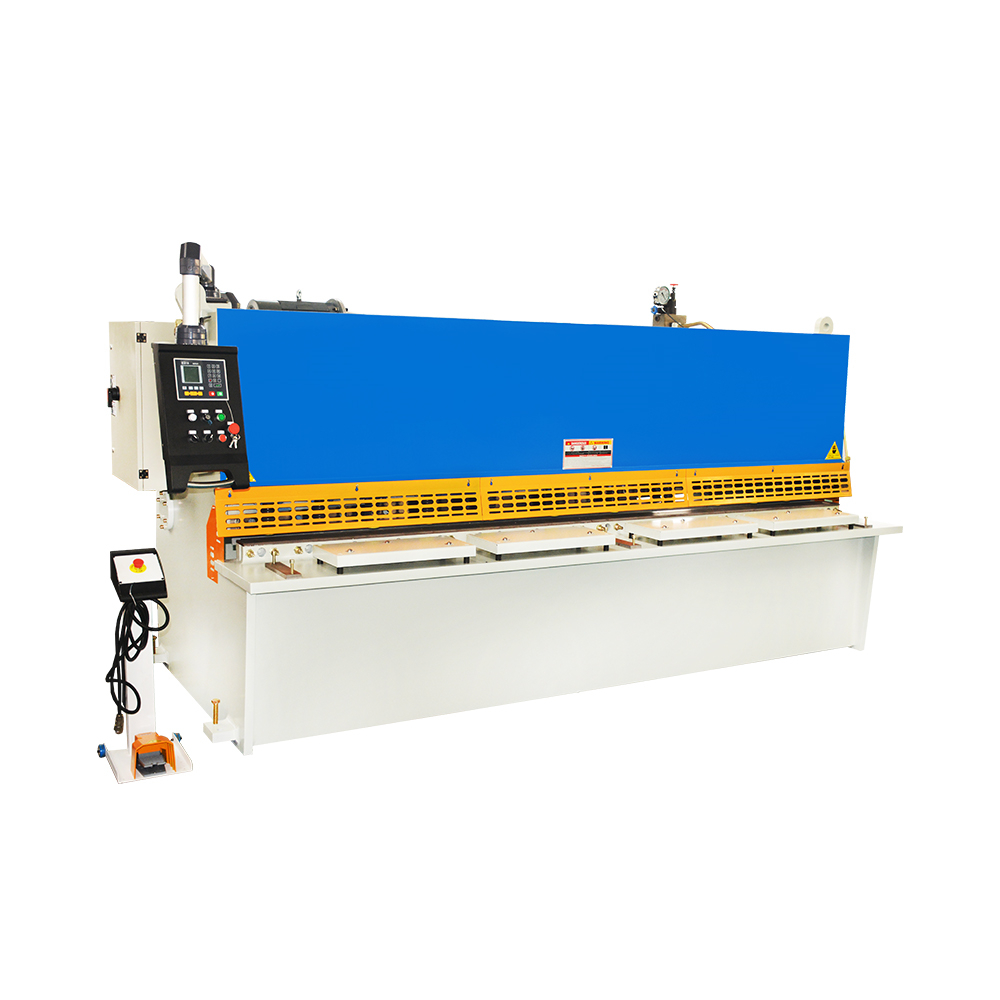

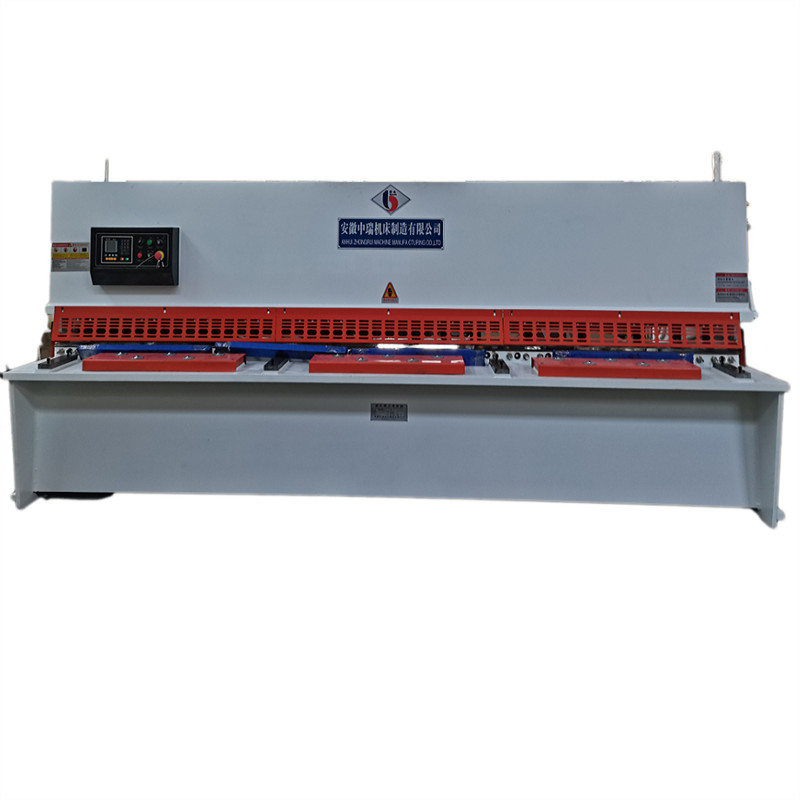

QC12Y/K Series Swing Beam Hydraulic Shearing Machine
RAYMAX swing beam shearing machine adopts steel plate welding structure, which eliminates stress during vibration, and has good rigidity and stability. It has segmented cutting function, light alignment function, motorized back gauge, digital display.

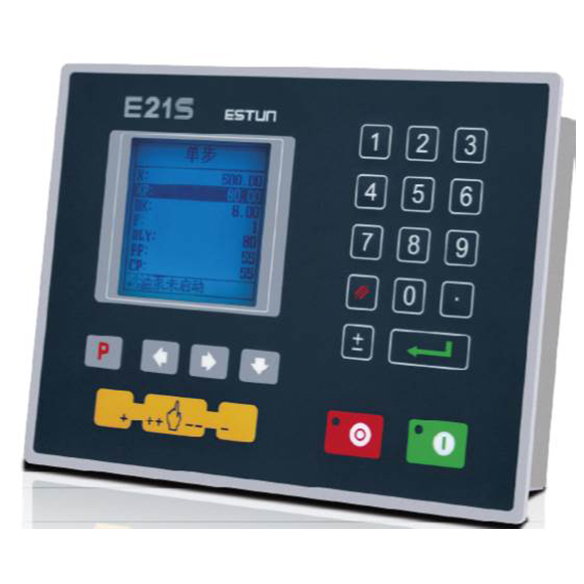

E21S Control System
1. Backgauge control.
2. Control for general AC motor
3. Intelligent positioning
4. Double programmable digital output, stock counter
5. Program memory of up to 40 programs
6. Up to 25 steps per programs
7. One side positioning, Retract function
8. One key backup/restore of parameters
9. mm/inch, Chinese/English
ES10 CNC Control System
- 7-inch TFT real color touch screen
- Menu programming interface
- Programmable cutting function
- Automatic calculation of cutting length
- Automatic correction of backgauge
- Backgauge is controlled by servo motor
- Automatically calculate blade clearance
- Automatically calculate cutting angle
- Support multi languag
DAC310 (DELEM) CNC Control System
- Bright LCD 128 x 64 display
- Backgauge control
- Gap control
- Stroke length limitation
- Actual and Programmed position visualization
- Stock counter
- Programmable up to 100 steps
- Panel-based housing
- Servo control / inverter / 2-speed
- AC control Motor and Pump
QC12K shearing machine is equipped with Germany Siemens motor and American Sunny oil pump. The advantage is low noise, stable work, long work life.
QC12K shearing machine is adopts the Germany Rexroth valve group. The advantage is external leakage is blocked, the internal leakage is easy to control and long work life.
QC12K shearing machine is equipped with plate pressing mechanism. The pressing head presses down to compress the plate when cutting plate.
QC12K shearing machine is equipped with steel ball transmission structure, which can saves the operator's effort in feeding material and increase the efficiency.
Taiwan ball screw and linear guide can ensure the precision of the movement of backgauge.
QC12K shearing machine is equipped with Schneider electrics which are safe and reliable, strong anti-interference ability.
Open door power off switch: The machine will stop immediately once worker opens the door electric cabinet Guardrail
QC12K series shearing machine adopts guardrail to prevent the operator from accidentally operating and pinching, and also avoiding work injuries during cutting errors.
Adjust the cutting blade gap by motor according to the thickness of plate, which can get better cutting performace.
Laser Light Alignment (optional): The laser light alignment device will help you positioning the cutting line quickly. This is convenient and time-saving.
Pneumatic Backguage (optional): The tool holder swings up and down, the adjustment of the back gauge is driven a motor. When setting in control system, the backage can reach forward and backward.
|Type||Cutting thickness (mm)||cutting length(mm)||Throat Depth(mm)||Back-gauge range(mm)||Main Power (KW)||Dimension(mm)|
- Max. Cutting Width (mm): 6000
- Max. Cutting Thickness (mm): 16 mm
- Automatic Level: Fully Automatic
- Shearing Angle: 0.5-2.0
- Blade Length (mm): 6700 mm
- Backgauge Travel (mm): 10 - 900 mm
- Throat Depth (mm): 120 mm
- Condition: New
- Brand Name: RAYMAX
- Power (kW): 37 kW
- Weight (KG): 15000 KG
- Place of Origin: Anhui, China
- Voltage: 380/220/415/440/600V
- Dimension(L*W*H): 6700*2150*2900mm
- Year: 2021
- Warranty: 1 Year
- Key Selling Points: Automatic
- Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction works
- Showroom Location: United States, Viet Nam, Pakistan, India, Thailand, Japan
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Pump
- After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
- After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
- Local Service Location: Egypt, Viet Nam, Philippines, India, Thailand, Japan
- Certification: CE
