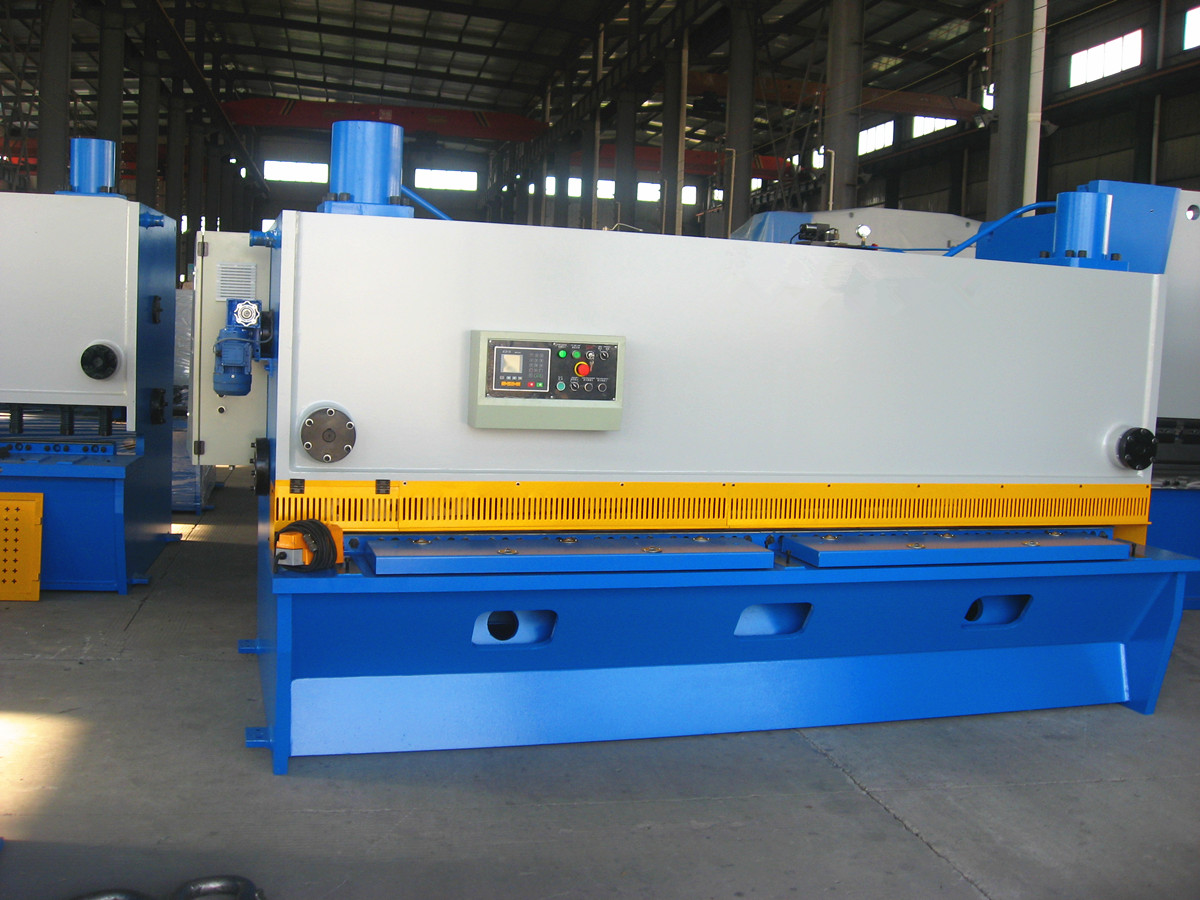

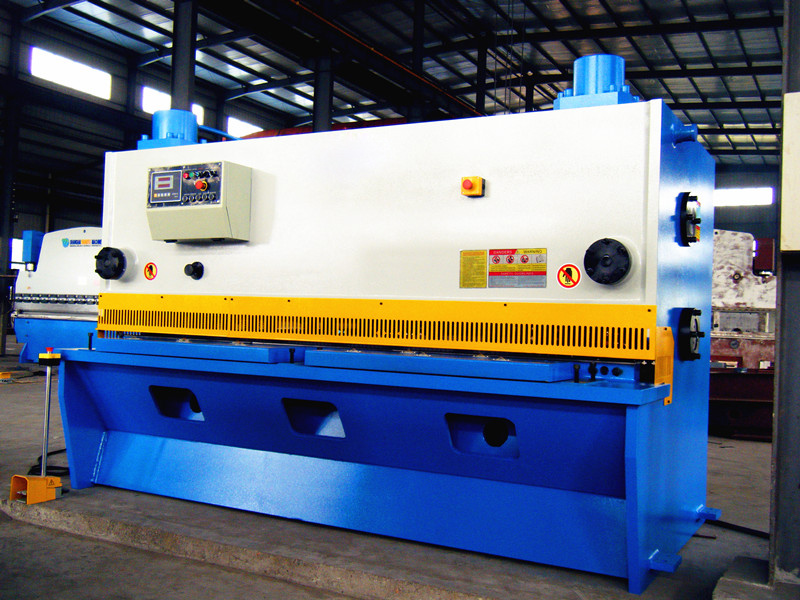

Aluminium Cutting Machine Hydraulic Guillotine Shearing Machine Pendulum Plate Shears

Features

1. The second generation of shear.
2. Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3. Advanced integrated hydraulic system with and excellent reliabitity quality.
4. Rapidly,accurately and conveniently adjusting the blade clearance by motor
5. The adjustable rake angle can minimize plate deformation.
6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7. Shearing in sections, shadow-line cutting.
8. Counter for the motorized back gauge.
9. Back support device (optional).

PRODUCT SPECIFICATIONS

No	Item	Data
1	Model	QC11Y-6*3200
2	Cutting thickness	6mm
3	cutting length	3200mm
4	shearing angle	0.5-1.50
5	number of stroke	12
6	backgauge	20-600mm
7	throat depth	145mm
8	Motor power	7.5kw

FAQ

Q: Are you trading company or manufacturer ?

A: We are professional manufactutrer.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-40 days if the goods are not in stock.

Q: What is your terms of payment ?

A: Payment 30% T/T in advance ,70%balance before shippment.

Q: Guarantee period

A: Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions is caused by customers' incorrect operation, we will provide spare parts at cost price. We can also offer flexible extended warranties according to the actual situation

Q: After-sales services

A: Our engineer can go to your factory for installation and show operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.

Details

• Max. Cutting Width (mm): 3200
• Max. Cutting Thickness (mm): 16 mm
• Automatic Level: Semi-automatic
• Blade Length (mm): 3300 mm
• Throat Depth (mm): 250 mm
• Condition: New
• Power (kW): 15 kW
• Weight (KG): 8000 KG
• Place of Origin: China
• Warranty: 2 years
• Key Selling Points: Competitive Price
• Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant
• Showroom Location: None
• Marketing Type: New Product 2020
• Machinery Test Report: Not Available
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Bearing, Motor, Pump, Gear, Gearbox
• Product name: Shearing machine
• cutting thickness: 6mm
• cutting length: 3200mm
• shearing angle: 1.30
• number of stroke: 12
• backgauge: 20-600mm
• throat depth: 145mm
• motor power: 7.5kw
• After-sales Service Provided: Free spare parts, Online support, Video technical support
• After Warranty Service: Video technical support, Online support, Spare parts
