Features:

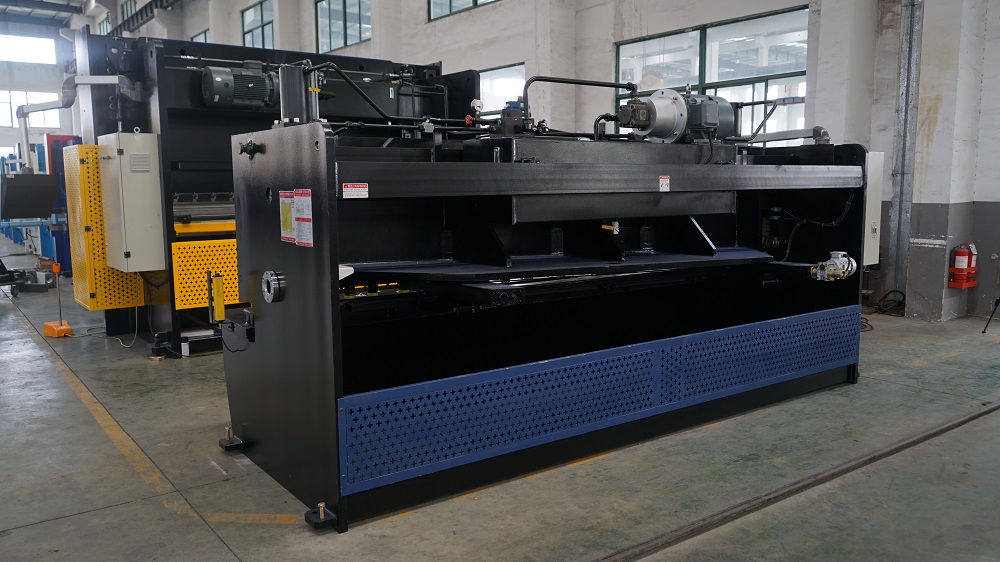

6x3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine
1. The machine adopts full steel weking structure,heating to eliminate stress,with high strength and good rigidity.

2. The German large floor boring and milling machine is used to make recision machining with one time processing method to ensure the machining precision.

3. Advanced integrated hydraulic system with and excellent reliabitity quality.

4. Rapidly,accurately and conveniently adjusting the blade clearance by motor

5. The adjustable rake angle can minimize plate deformation.

6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.

7. Shearing in sections,shadow-line cutting.

8. Counter for the motorized back gauge.

9. Back support device (optional).

6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine

Details Images

Standard Configuration
1.ControllerEstun E21S Controller
2.Hydraulic SystemBosch Rexroth From Germany
Hydraulic system:
--Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch -Rexroth,Germany.
--All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
--Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
--The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
3.Main MotorSiemens From Germany
4.Main ElectricsSCHNEIDER from France
Electrical system and the safety interlock:
--Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability
--Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate
--Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
5.Seal RingNOK From Japan
6.Pipe ConnectorEMB From Germany
7.Ball SrewHiwin From Taiwan
8.Limit SwitchSCHNEIDER from France
9.PumpSunny From USA
10.Foot SwitchKarcon From South Korea

Controller : ESTUN E21s From China

●HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming

●Backgauge control:Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.

●Cut Stroke: Built-shearing time relay, simple operation, cost savings

●Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons

●Blade gap: encoder feedback, time display blade gap size, simple operation

●Having a key parameter backup and restore functionality, you can always restore the parameters as required, reducing maintenance costs

●All keys on the panel are micro-switches, through EMC, high temperature, vibration and other rigorous testing to ensure
product stability and service life.

●CE certified to meet the needs of overseas markets.

6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine

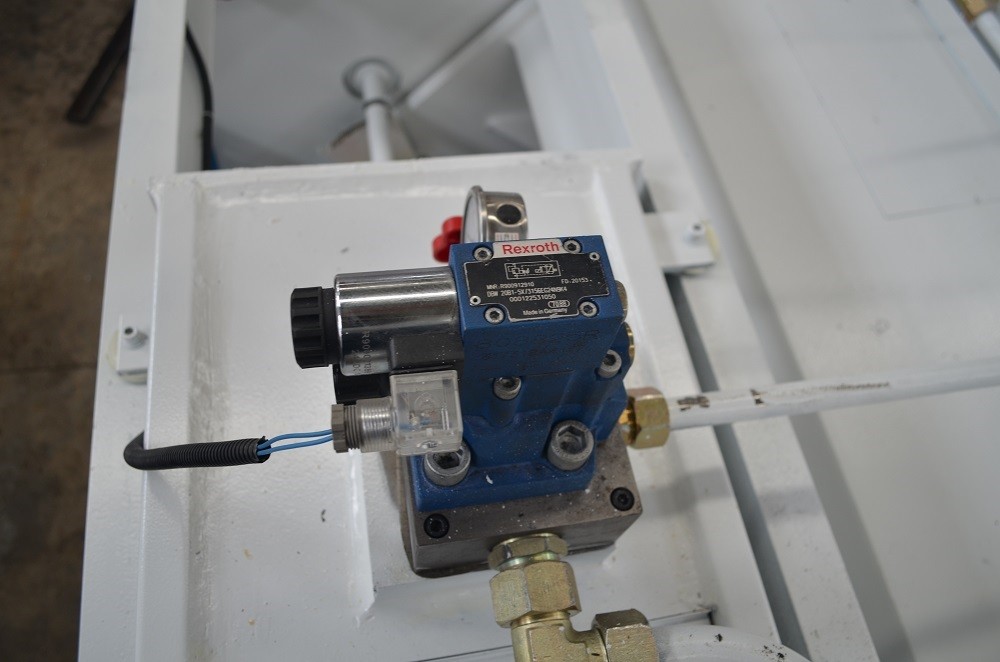

Hydraulic System --BOSCH Rexroth from Germany

●Hydraulic system is from Bosch -Rexroth,Germany.

●Adopt integrated hydraulic control system, more reliable and easy for maintenance.

●Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity

●Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

●The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine

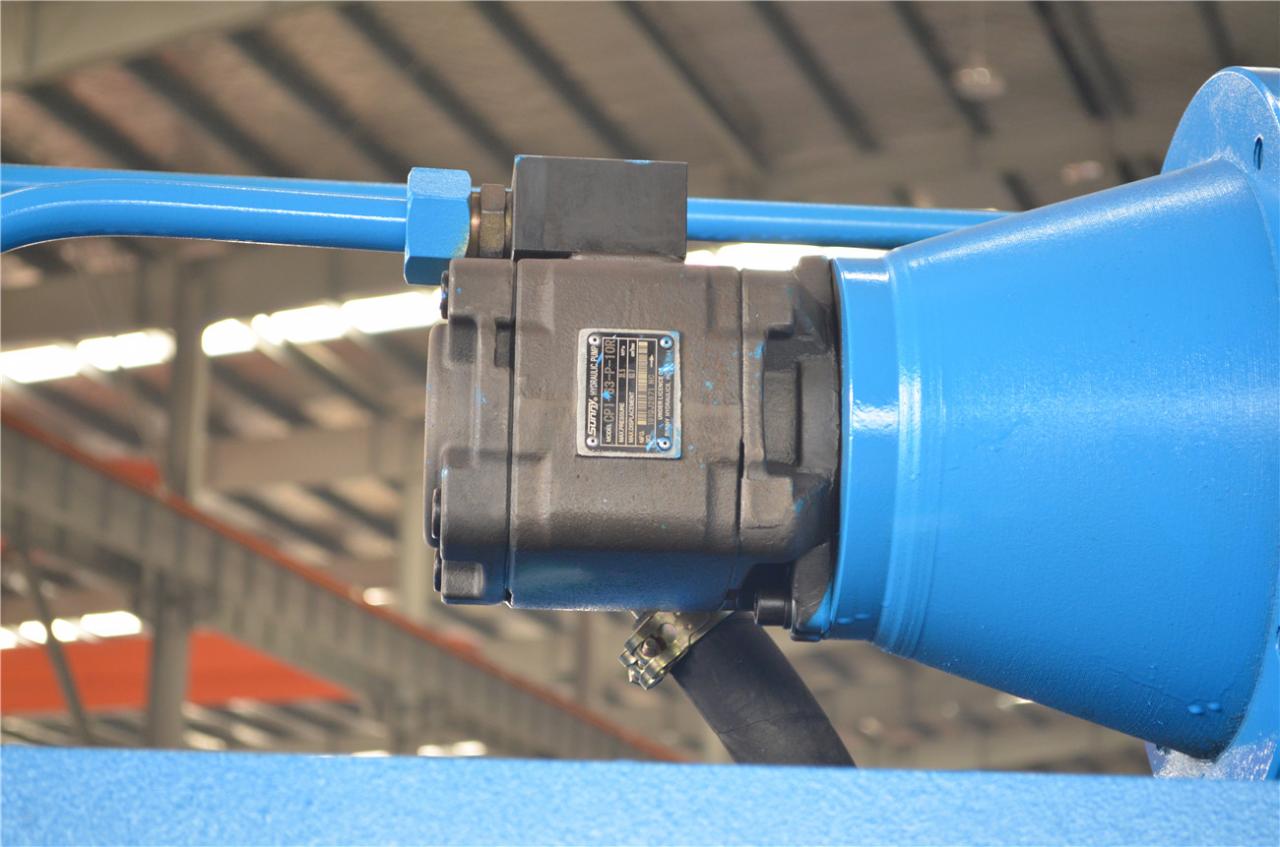

Sunny Pump

American world famous brand for hydraulic pump. It performs well and provides great power for the whole system.Using Sunny pump ensures the pump service life and lower working noise.

6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine

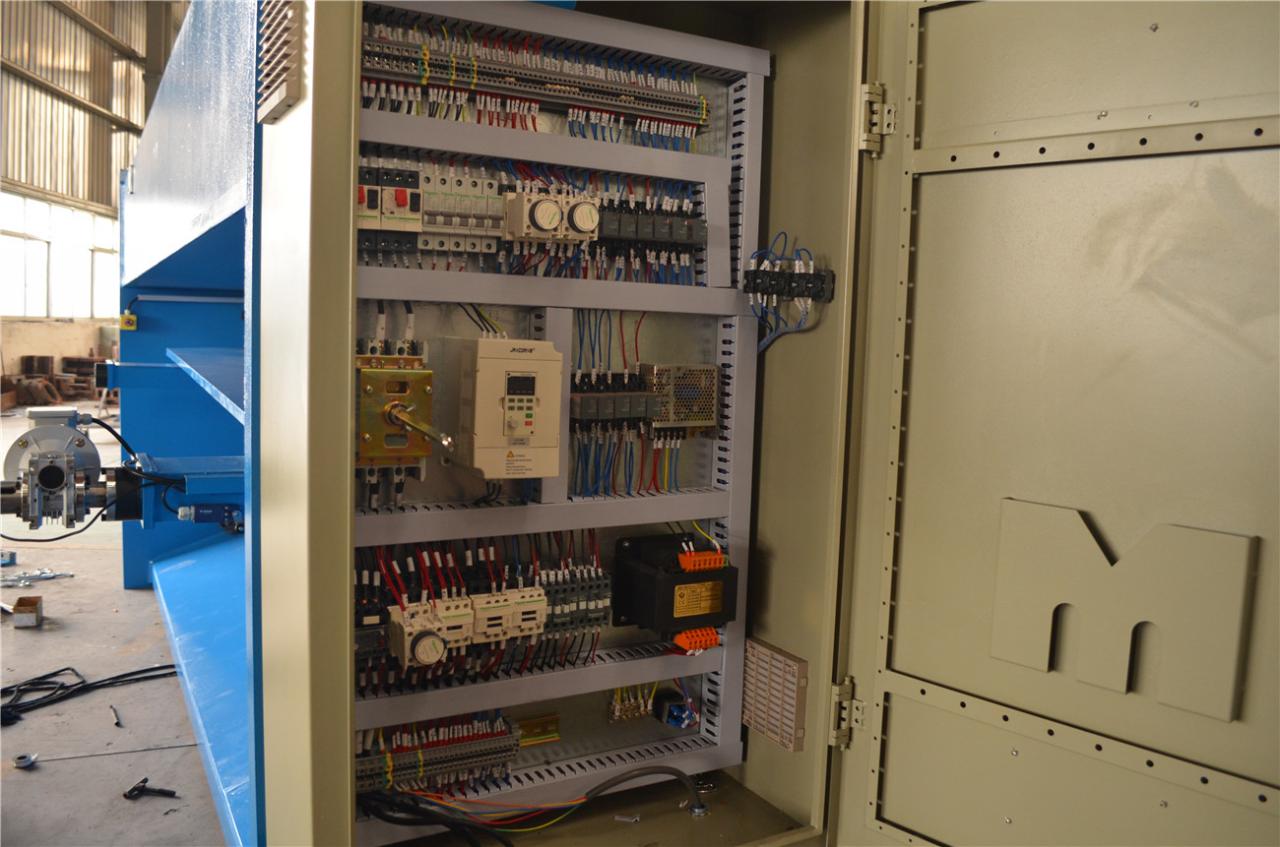

Electric from France Schneider

France Schneider electrics with high stability. It can perform well even the electricity is not stable.And customers can easily get the replacement anywhere in the world.

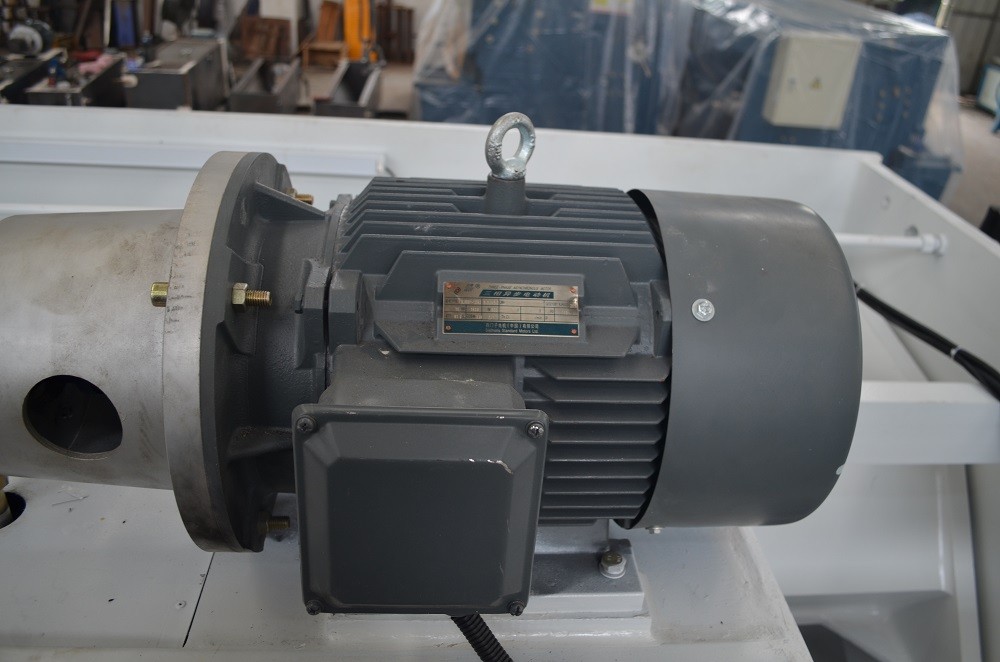

6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing MachineMain Motor Siemens From Germany

German famous brand motor improves the service  life  of the machine and keeps the machine working in a lower noise environment.

6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine

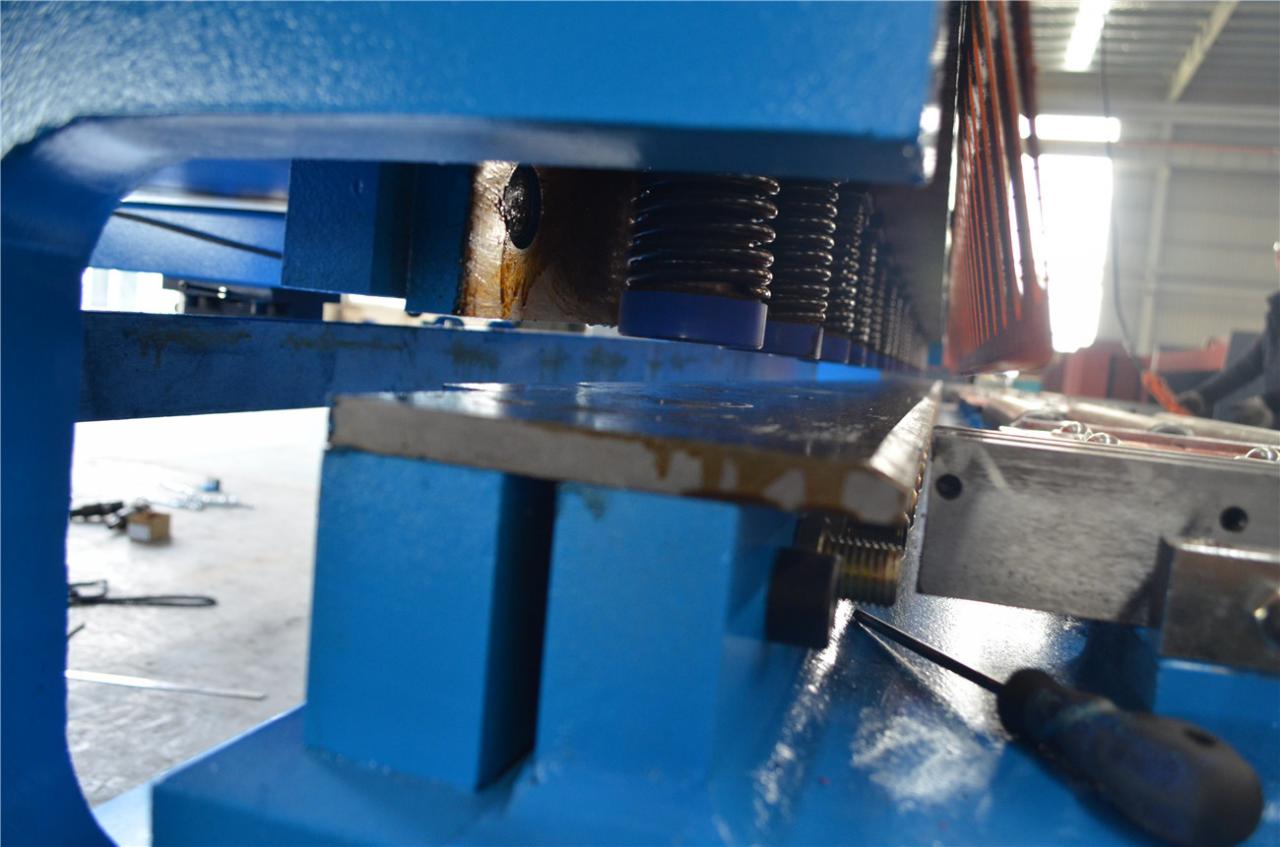

Built-in Spring Pressure Cylinder

Its lower end equipped with special material gasket, sparately control the pressure ,avoiding aluminium alloy or other softer materials being imprinted.

6*3200mm Guillotine Shears Metal Shear Hydraulic Iron Sheet Cutting Shearing Machine

Front Positioning Verticality Regulator

Front positioning device, setting verticality and positioning device on the left-most front support, guranteeing the cutting precision, easy operation, pratical and efficient.

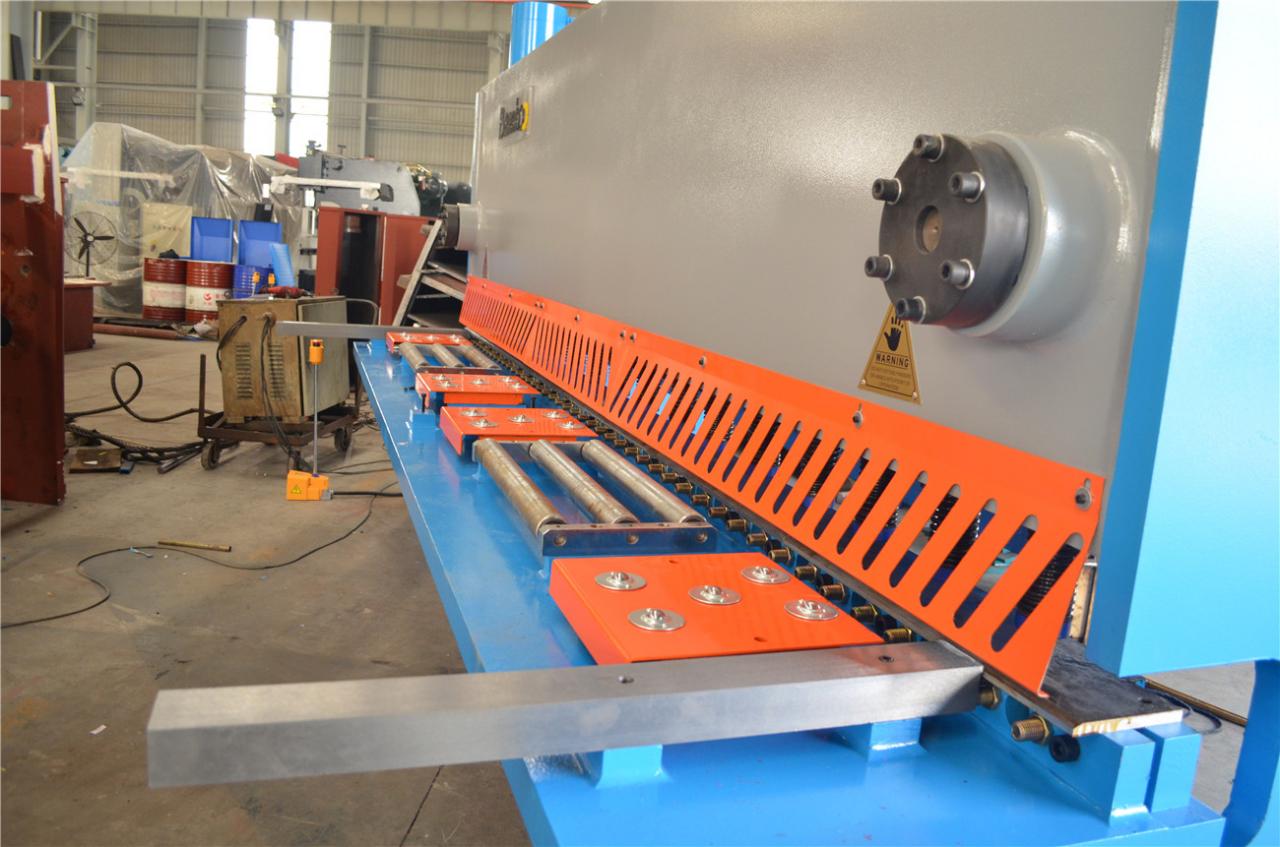

Workbench Rolling Steel Ball

Rolling steel ball of workbench can reduce friction, protect the workpiece surface.

ModelMild Steel
(450Mpa)
Cutting Length(mm)Depth Of Throat(mm)Back Gauge Range(mm)Rake Angle AdjustmentStrokes Per
Minute
Main MotorL×W×H(mm)Weight(t)
4×200042000806000.5°~2°145.52600×1680×17503.8
4×250042500806000.5°~2°145.53100×1750×17654.5
6×250062500807500.5°~1°30′147.53100×1725×19005.3
6×320063200807500.5°~1°30′127.53935×1840×19956.5
6×400064000807500.5°~1°30′107.54650×1840×21008.5
6×500065000807500.5°~1°30′87.55650×2185×238010.5
6×600066000807500.5°~1°30′87.56650×2260×238015.2
8×250086000807500.5°~1°30′147.53135×1840×20756
8×320083200807500.5°~1°30′127.53850×1990×20506.8
8×400084000807500.5°~1°30′107.54650×2030×20759
8×500085000807500.5°~2°7155650×2050×240012.5
8×6000860001007500.5°~2°7156805×2115×271519.8
10×25001025001007500.5°~2°30′10153195×1915×22058
10×32001032001007500.5°~2°30′8153895×1900×22358.8
10×40001040001007500.5°~2°30′6154695×1970×22709.15
10×50001050001007500.5°~2°30′5155700×2115×271516
10×60001060001007500.5°~2°30′5156905×2115×280022
12×25001225001007500.5°~2°30′10153195×2000×22108.3
12×32001232001007500.5°~2°30′8153895×2050×22409.2
12×40001240001007500.5°~2°30′5154710×2110×245013
12×50001250001007500.5°~2°30′5305750×2115×280020
12×60001260001007500.5°~2°30′5307150×2300×310029
16×25001625001007500.5°~2°30′8153215×1970×23408.7
16×32001632001007500.5°~2°30′7153915×1970×245511
16×40001640001007500.5°~2°30′6154715×2010×259015
16×50001650001007500.5°~3°5306000×2300×300023
16×6000166000807500.5°~3°5377250×2400×310036
20×25002025001007500.5°~3°6223235×2020×246510.5
20×32002032001207500.5°~3°5304150×2065×275518
20×40002040001207500.5°~3°4304955×2125×288521
20×50002050001207500.5°~3°4376000×2300×305029</td >
25×25002525001207500.5°~3.5°5373465×2130×271015
25×32002532001207500.5°~3.5°5374120×2200×300021
25×40002540001207500.5°~3.5°4374950×2200×315026
30×25003025001207500.5°~3.5°4373465×2170×277016
30×32003032001207501°~3.5°3454200×2300×320023
40×25004025001807501°~4°4453770×2550×340029
40×32004032001807501°~4°4553770×2550×340029

FAQ

1: How can I choose the most suitable machines ?

A: Please tell me your specifications, we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing, we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines, such as press brake, shearing machine, notching machine, power press, plasma cutting machine, laser cutting machine etc.

3: Where is our factory located? How can I visit there?

A : Our factory is located in Maanshan City, Anhui Province, China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .

5: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )

Details

  • Max. Cutting Width (mm): 3200
  • Max. Cutting Thickness (mm): 6 mm
  • Automatic Level: Fully Automatic
  • Blade Length (mm): 3300 mm
  • Backgauge Travel (mm): 1 - 400 mm
  • Throat Depth (mm): 130 mm
  • Condition: New
  • Power (kW): 5.5 kW
  • Weight (KG): 5100 KG
  • Place of Origin: Anhui, China
  • Voltage: 380V/220v
  • Year: 2020
  • Warranty: 1 Year
  • Key Selling Points: Automatic
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Advertising Company
  • Showroom Location: Egypt, Canada, Argentina, South Korea, Colombia, Algeria, Kazakhstan, Ukraine
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Pump
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Egypt, Canada, Spain, Malaysia
  • Certification: CE ISO
