Hydraulic Hole Punching Machine, Q35y Hydraulic Ironworker Machine

Main Features:

Introduction to the structure and properties:

Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. RAYMAX hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries.

Equipment's working environment:

1 Power supply:3Ph AC 220V/380/415 ± 10%, 50/60 HZ, optional to site.

2 ambient temperature:-10 ℃ ~ 45 ℃
Hydraulic Hole Punching Machine, Q35y Hydraulic Ironworker Machine

Main functions:

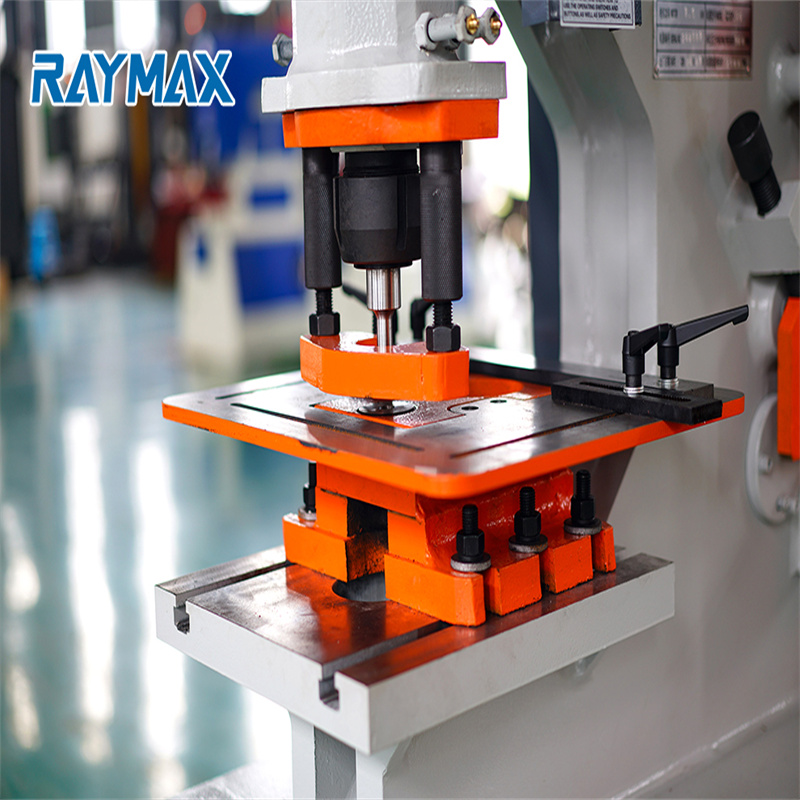

1) Punching:

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large
channel punching. Large viewing window on stripper swing away design for ease of operation. large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.

2) Shearing:

Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round / square bar, channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting. Large 15″squaring arm with inlaid scale. Special anti-distorted blade for quality cutting. Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.

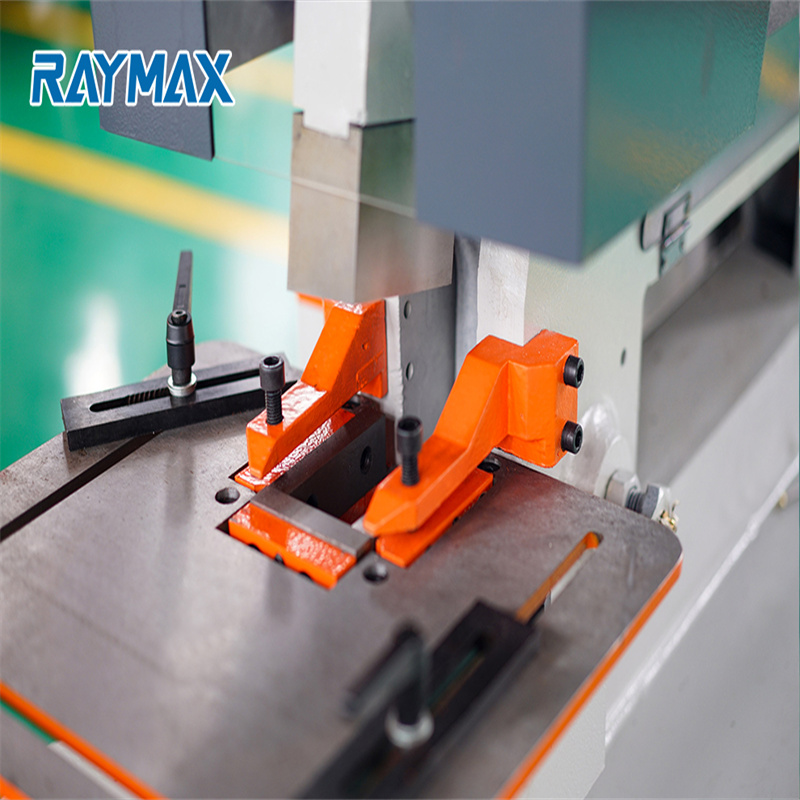

3) Notching:

Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for
precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an over sized table with material stops. This section of the machine can also be outfitted with the optional vee notcher. Good Performance hydraulic hole punching machine , Q35y Hydraulic Iron Worker

4) Bending:

Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function.
Hydraulic Hole Punching Machine, Q35y Hydraulic Ironworker Machine

Main Components list:

1, Main motor: Siemens

2, Hydraulic valves and pump: Huader, Beijing, China best. Bosch optional.

2, Electrics: SCHNEIDER

4, Sealing: NOK, Japan

5, Tools: All heating treatment

Details

  • CNC or Not: CNC
  • Condition: New
  • Nominal Force (kN): 250
  • Power Source: Hydraulic
  • Year: 2021
  • Voltage: 415V/380V/220V Optional
  • Dimension(L*W*H): 2900*1200*2600
  • Motor Power (kW): 4
  • Weight (T): 1.6
  • Key Selling Points: Competitive Price
  • Warranty: 5 years
  • Showroom Location: India, Nigeria, Germany, UAE, Mexico, France, Romania, Egypt, Morocco, Spain, Japan, South Korea, Malaysia, Colombia, Thailand, Tajikistan, Brazil, Sri Lanka, Saudi Arabia, Chile, Kyrgyzstan, Peru, Bangladesh, Kazakhstan
  • Applicable Industries: Restaurant, Farms, Home Use, Manufacturing Plant, Energy & Mining, Food & Beverage Shops, Garment Shops, Retail, Building Material Shops, Printing Shops, Hotels, Food & Beverage Factory
  • Product name: Q35Y-25 Hydraulic Ironworker Machine For Punch And Shear
  • ramming strength: 120
  • slide stroke: 80
  • throat opening depth: 400
  • punch holes thickness: 25
  • biggest punch holes diameter: 35
  • main electrical machine power: 11
  • may cut the biggest thickness of slab: 25
  • After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
  • After Warranty Service: Video technical support, Field maintenance and repair service, Spare parts, Online support
  • Certification: CE ISO
