Hydraulic Sheet Metal Steel Ironworker Shear Machine Punching Machine

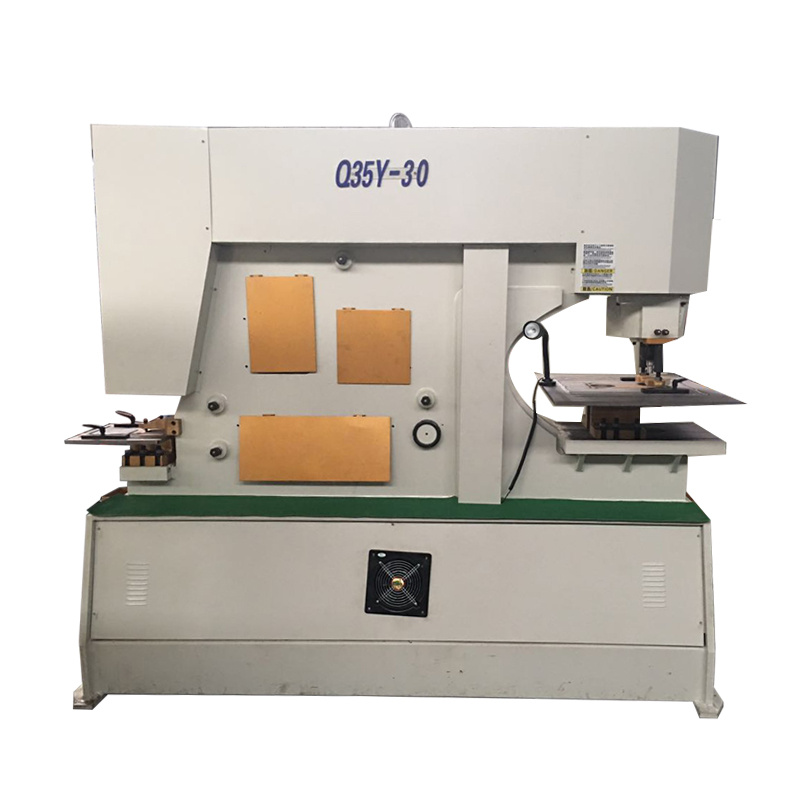

Hydraulic ironworker machine

Q35Y series hydraulic ironworker adopt hydraulic driving system. Ironworker can cut punch all kinds of holes. Various metal plates, square bar, angle steel, round iron, flat bars, profiled bars, channel steel and joist steel can be cutted, punched and notched on the machines.

Accessories List

* A set of hole punching die
* A set of angle steel blade
* A set of channel blade
* A set of shearing plate blade
* A set of notching blade

Shearing Station

a. Round & square bar shearing: there are multiple holes for a varity of sizes. Adjustable hold down device is convenient forshearing various sizes of round and square bar, channel, joist, etc.
b. Flat bar shearing: large 15" squraing arm with inlaid scale as standard equipment. Special anti-disorted blade for quality cutting. Lower blade has four usage edges. There is screw allow for gap adjust no shim needed.
c. Angle iron shearing: the angle iron shear has the ability to cut angle iron at 45 degrees & 90 degrees withe diamond shaped blade. e.g. This gives the operator the ability to make a picture frame corner for perfect welds.d. Diamond shaped blade for quality cuts that is minimal material wast. Easily adjustable hold-down device for accurate plate cutting.
Hydraulic Sheet Metal Steel Ironworker Shear Machine Punching Machine
Punching Station

a. Large viewing window on stripper.
b. Swing-away design for easy operation.
c. Available unique style allows for large angle iron punching and large channel punching.
d. Quick change coupling nut and sleeve for rapid replacement change
e. Large two pieces gauging table with rules and stop as standard equipment.

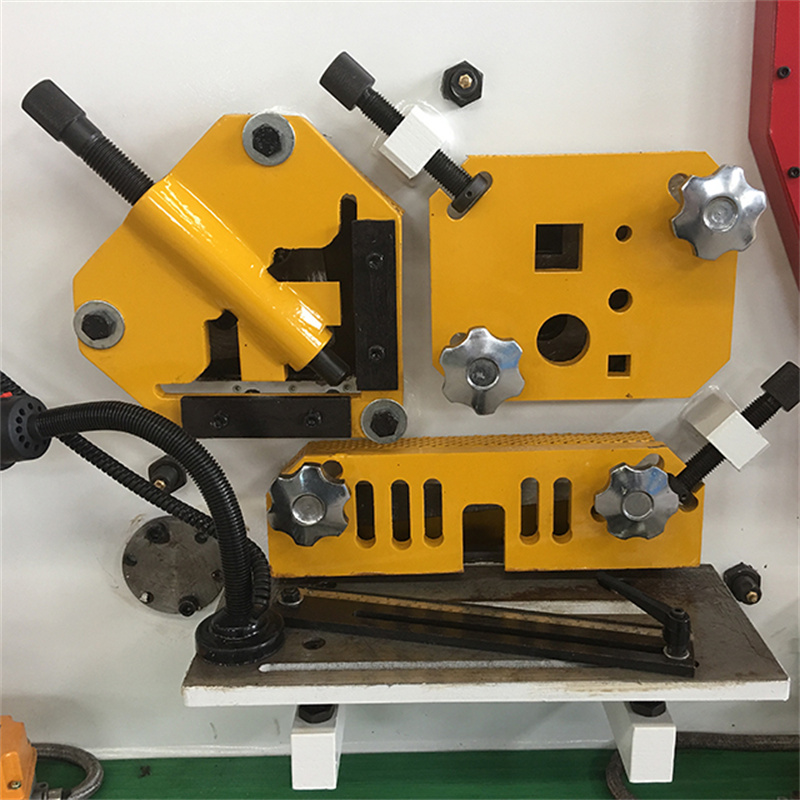

Notching Station

a. Unique design for unsurpassed cutting of angle and flat bar.
b. Electrical interlock safety guard and three gauging stops for precise positioning.
c. with ventilated device for good visibility.
d. The notching station also has an oversized table with material stops.
Hydraulic Sheet Metal Steel Ironworker Shear Machine Punching Machine 3

Machine specifications

Processing Capacity (KN)7501100140017002000
Material Tensile Strength (Mpa)≤450≤450≤450≤450≤450
Flat ShearingMax. Shearing Capacity
(thickness* width (mm)
Bar ShearingSquare Bar(mm)5050556065
Round Bar (mm)5060657075
C-channel (mm)160×5200×9280×11300×11320×12
I-beam (mm)160×6200×9280×10300×10320×10
Angle shearing90° shearing (mm)140×12160×14180×16180×8200×20
45° shearing (mm)50x560x660x680x880x10
Hole PunchingMax. Punching Capacity (diameter* thickness) (mm)Φ30*20Φ35*25Φ38*26Φ40*35Φ40*40
Motor (KW)5.57.5111518.5


  • CNC or Not: Normal
  • Condition: New
  • Nominal Force (kN): 600
  • Power Source: Hydraulic
  • Year: 2021
  • Voltage: 220
  • Dimension(L*W*H): 1650x600x1700
  • Motor Power (kW): 7.5
  • Weight (T): 1.6
  • Key Selling Points: High Productivity
  • Warranty: 2 years
  • Showroom Location: None
  • Applicable Industries: Manufacturing Plant, Construction works , Machinery Repair Shops, Building Material Shops
  • size: 3600x900x1500mm
  • Name: sheet metal press brake bending machine
  • Certification: ce
  • After-sales Service Provided: Free spare parts
  • After Warranty Service: Online support
