Industrial 4kw 3015 Cnc Metal Sheet Fiber Laser Cutting Machine

Product Overview

1500*300 Working Area Fiber Laser Cutting Machine With Enclosed Cover+ Single Table

The machine is welded with a high-intensity overall sheet,and after high temperauture annealing, the machine can be used for 20 years without any deformation. With imported precision gear and rack, linear guide rail and transmission, the machine tool is of high precision, high efficiency and stability. Equipped with advanced wireless handheld terminal, the machine can be operated with remote control. The equipment adopts the laser special matching system, high performance servo motor driver, this shorten the standy time and impove the work efficiency more than 30%, is the integration of penumatic, photoelectric, numerical control and other advanced technologies as one of the high-tech products.


1. 1500*300mm Working Area

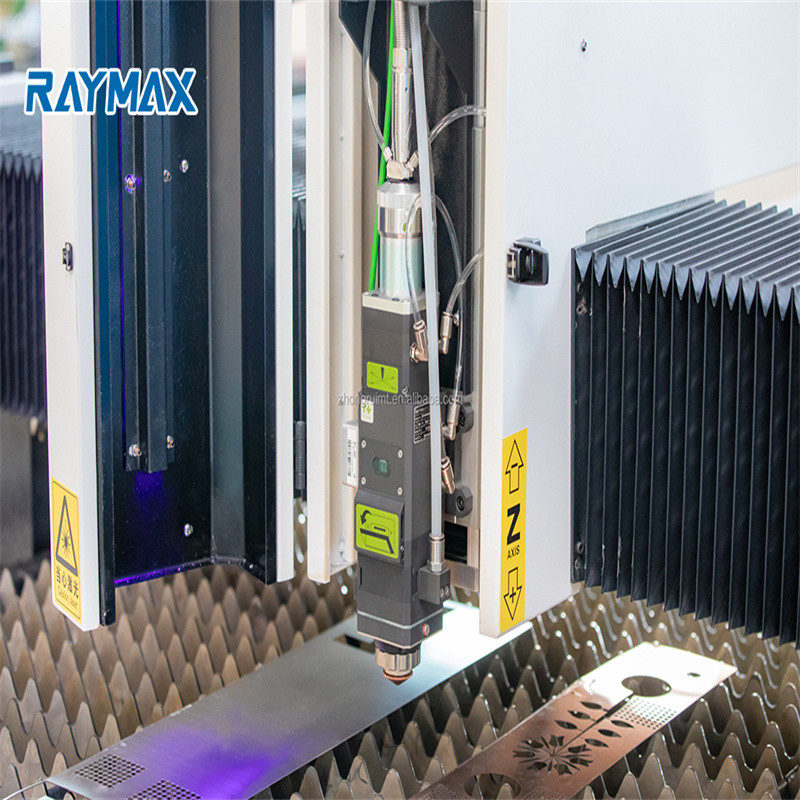

2. Raytools Autofocus Laser Cutting Head
3. Japan Yaskawa Servo Motor And Driver
X axis ---Japan Yaskawa 850W*1
Y axis ---Japan Yaskawa 18000w*2,
Z axis ---Japan Pansonic 400W*1
4. TAIWAN YYC Rack Gear With Double Driver
5. TAIWAN HIWIN Guide Rail
6. France Motovario Reducer

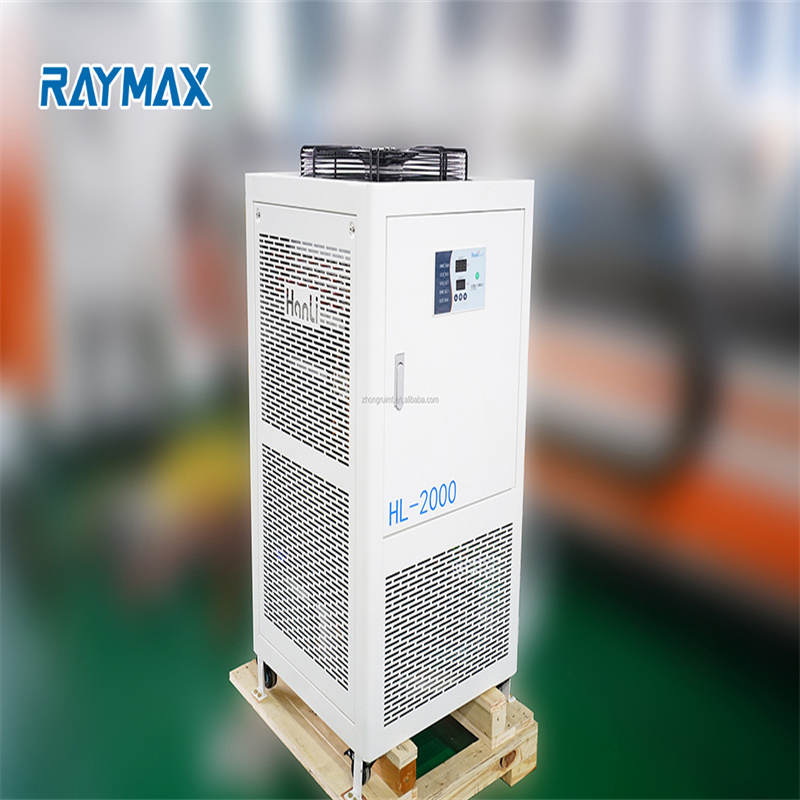

7. S&A Water Chiller
8. Cypcut FSCUT Control System.
9. Raycus/IPG Laser Source
10. France Schneider Electrical Part
11. Japanese SMC Pneumatic Components
12. IPAD Computer
13. Segmented Rectangular Tube Welded Machine Bed
14. 3rd Generation Aviation Aluminum Gantry
15. Foot-----stable, will not move after working for a long time
16. Enclosed cover
17. Air Compressor+oil filter+dryer+tank
18. Stabilizer


X axis stroke1500mm
Y axis stroke3000mm
Z axis stroke300mm
X/Y axis positioning accuracy±0.01mm
X/Y axis maximum speed of movement160m/min
Operating weight7920kg
X/Y maximum acceleration1.8G
Y axis motor power8.5KW
Y axis motor power1.8KW
Z axis motor power0.4KW
Work platform exchange time15-17s

Product Advantages

Dual PC one is formonitor ,one is for controller panel

The ultra-clear picture quality has higher color reproduction and better performance, enabling ultra-clear pictures in every monitored place. Dual cameras allow users to clearly see the processing process while operating the interface, which is convenient for use

Pneumatic exchange platform connection

Compared with the electric exchange platform, the pneumatic exchange platform can adjust its stability, prevent collision, ensure the stability and speed of the exchange, and can complete the exchange within 15 seconds.

Segmented Rectangular Tube Welded Bed

20-year service lifePlate Welding Heavy Work Bed Annealed And Heat Treated Plate welding heavy work bed, no deformation in 20 years, suitable for ultra-high power 10,000-watt laser. The increase in weight is very beneficial to the laser cutting machine cutting speed.

Innovative Four Slings Working Bed For reducing damage to the work bed during laser working, RAYMAX Innovated the new work bed by adding four slings, and the life span of the fiber laser cutting machine work bed will be doubled.

Monitoring system

Monitored Control System In the processing process, each dead corner area can be monitored at any time, the process can be controlled.

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Independent cabinet with Constant temperature device

With the air conditioner to cooling the inside electric cabinet temperature

Upper smoking system

After customer feedback and summary of practical experience, we adopted the upper smoke to fundamentally solve the problem of smoke exhaust of the sealed cabinet machine

Axial fan exhaust system

1. The structure is morereasonable
2. The performance has been greatly improved, the full pressure effectis 89.5%
3. Noise farmland, the noise (compare with level A) is reduced by6dB
4. Anti-corrosion axial fan, it is safer to transport waste. Gantry milling milling center This is our Milling Center, all of our machine frame is made by ourselves,which can make precision and the production time,most important we can control the quality.

Machine Application

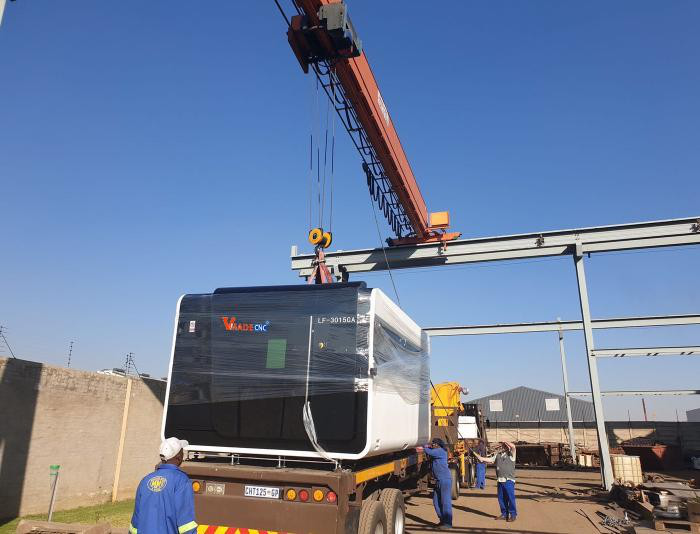

Package and shipping


  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500*3000mm
  • Cutting Speed: 160m/min
  • Graphic Format Supported: AI, PLT, DXF
  • Cutting Thickness: 0-40mm according different power
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: Cypcut
  • Laser Source Brand: IPG/Raycus
  • Laser Head Brand: Raytools/Precitec
  • Servo Motor Brand: Japanese Yaskawa
  • Guiderail Brand: HIWIN/APEX
  • Control System Brand: CypCut
  • Weight (KG): 7920 KG
  • Key Selling Points: Long Service Life
  • Warranty: 3 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Motor, Laser Source
  • Working area: 1500*3000mm
  • Laser Source: Raycus IPG
  • Laser power: 1kw-12000w
  • X, Y and Z axis stroke:: 3025mm, 1525mm, 300mm
  • Y axis motor power: 1800w
  • X/Y axis moving speed: 160m/min
  • Guide Rail Brand:: Hiwin/APEX
  • Reducer Brand: France Motovariao
  • Optional Part: Rotary/Exchange Table/Voltage stabilizer/transformer
  • X/Y axis positioning accuracy: ±0.01mm
  • Certification: ce, ISO
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Germany, Australia
  • Showroom Location: Germany, Australia
  • Marketing Type: Hot Laser Cutting Machine
