Configuration:

1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not deform after long time using.

2. Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.

3. X, Y axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis are transmitting by high accuracy rolling ball screw.

4. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.

5. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development, built-in process, ensure high-quality cutting effect.

6. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.

7. Dual air path control, equipped with Japan SMC intelligent gas unit, automatic pressure regulation, air exchange, pressure detection, more simple to use.

8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on every point.

9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

ModelFC1325FC1530FC1540FC1560
working size(X&Y) (mm)1300*2500mm1500*3000mm1500*4000mm1500*6000mm
Laser mediumFiber laser
Laser power800w, 1000w, 1500w, 2000w (Optiona)
cutting thicknessAccording to the material and power
0.1minimum Route Width0.1
repeat precision±0.05
Aiming PositioningRed Dots
Wave Length1080mm
Power supply220-380V、50HZ

Features

1. Adopt heavy duty structure, CNC machinery center processing and forming, high strength and good stability;

2. More stronger cast iron stand to keep the machine working more stable;

3. Configure with high accuracy THK linear rail, high accuracy helical gear rack transmitting,more stability,higher precision;

4. Restart from power off, auto feeding, restoration, continue processing at break point. Support 9 coordinate setting, user friendly design;

5. Configured with SUDA 3 in 1 control system, quickcalculation, strong anti-interference ability;

6. Equipped with industrial camera,the probe is clear. High positioning precision;

7. Standard configured with 380V 5.5KW high speed water cooling spindle motor, high power high efficiency;

8. Independent control cabinet, stronger power and weak power separate, maintenance easily;

9. Be compatible with many CAD/CAM software like Type3/Artcam/Castmate/Probe/UG/Artgrave etc;

10. Standard with industrial matrix vacuum system;

11. Configure with manual oil lubrication system. Equipment maintenance is more convenient and quick.

Main Parts

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

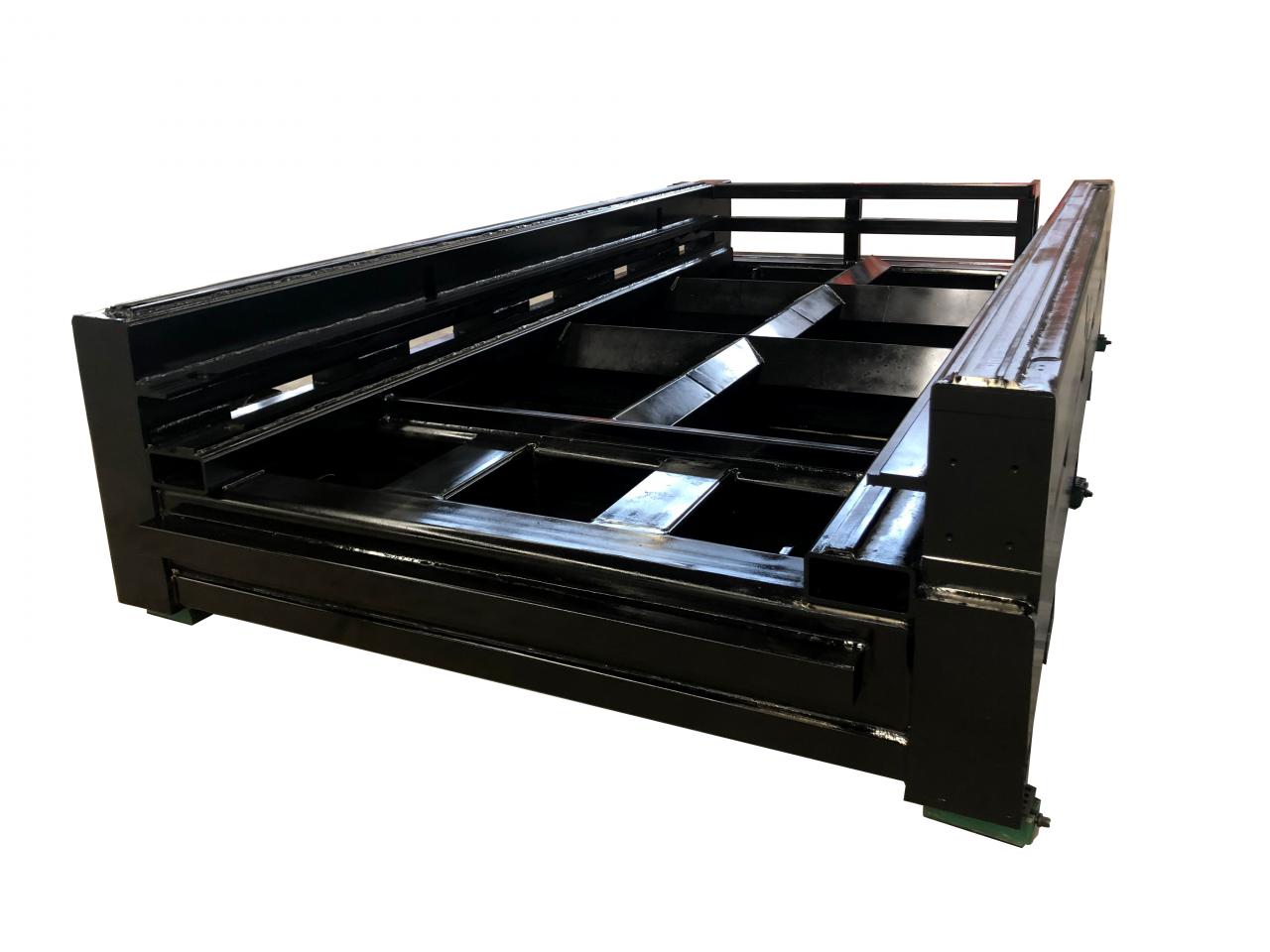

Machine Structure

The machine structure adopts industrial heavy steel structure, under heat treatment, suffer lower temperature tempering and annealing, won't deform after long time use. the machine base is very stable when the processing.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

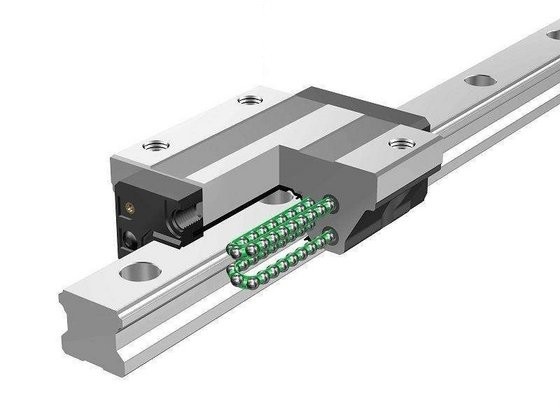

Japan THK Linear Rail and Block

The machine adopts the best linear and block rail from Japan. We have the feedback from our client that its block even can use over 10 years and can't break.The usage lifespan and the product quality definitely can be ensured.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

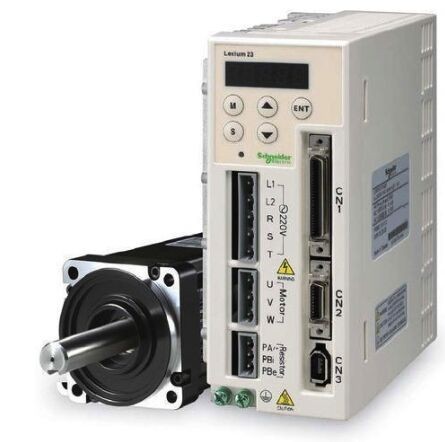

France Schneider Servo System

The fiber laser machine adopts the imported servo system from France including servo motor and servo driver, The Y axis two servo motor power are 2KW, The X axis servo power is 2KW power, The Z axis servo motor power is 0.4KW power.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

CYPCUT Control System

The best control system in fiber laser machine industry,
It is suitably applied to high power fiber laser machine and can support the rotary device, exchange table and automatic focus cutting head.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

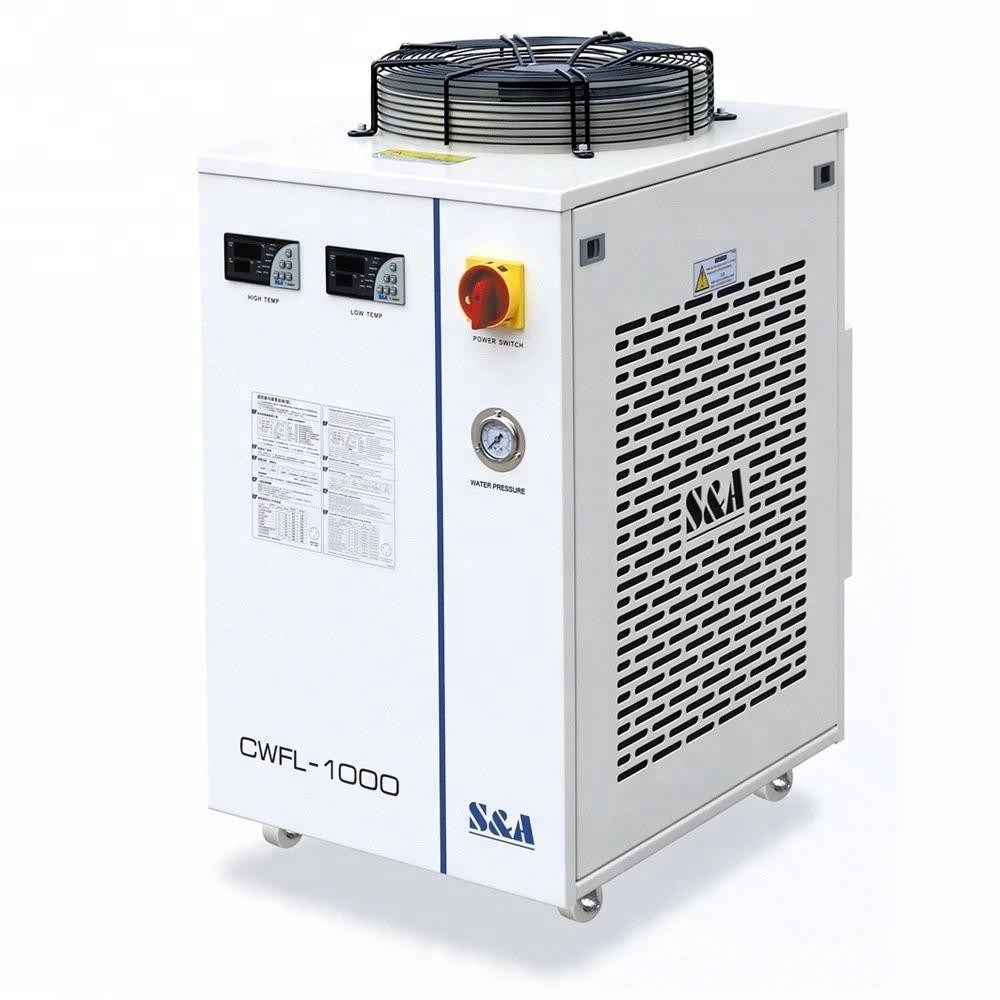

S & A Chiller

Focus on the research and development of industrial cold machine, independent research and development of core parts strictly implement ISO production management system, With excellent quality and leading research retrength, S &A has become a leding enterprise in the domestic industrial refrigeration industry.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

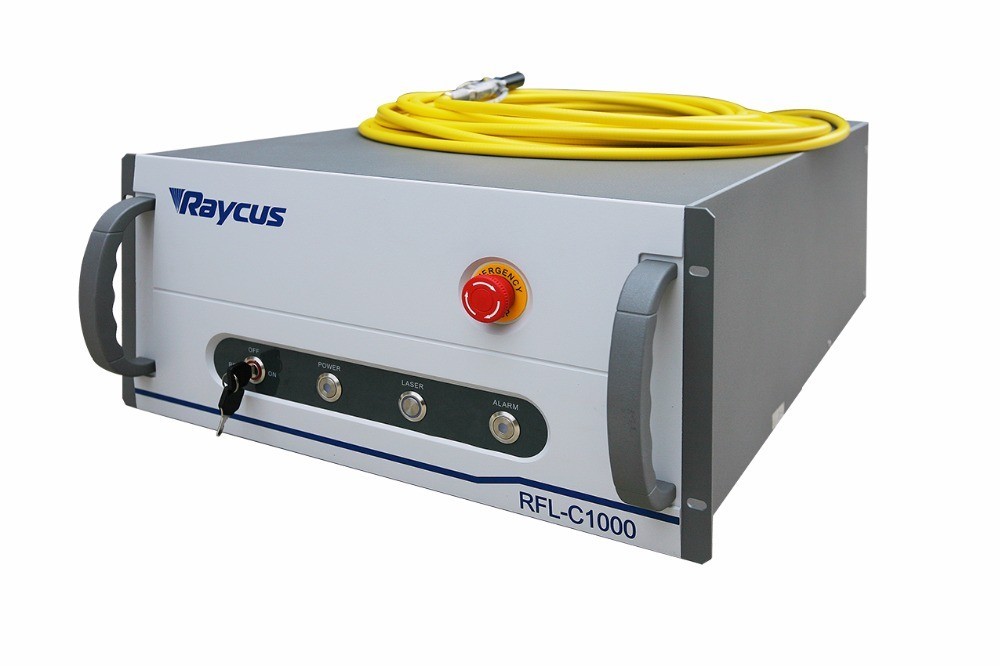

Raycus Laser Source

Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost,(The USA IPG Laser source is optional)

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

Japan Shimpo Servo Reducer

Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials,After many refinements,it has small size in installation but high precision function.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

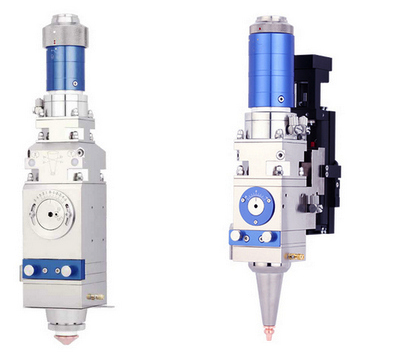

WSX Fiber Laser Cutting Head

Our fiber laser machine 1000 watt install the WSX NO:1 manual focus cutting head.

The machine also can optional the NC30 automatic focus cutting head, Fast perforation (especially the thick materials), The plate is not easy to heat, Does not affect the cutting head following.

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

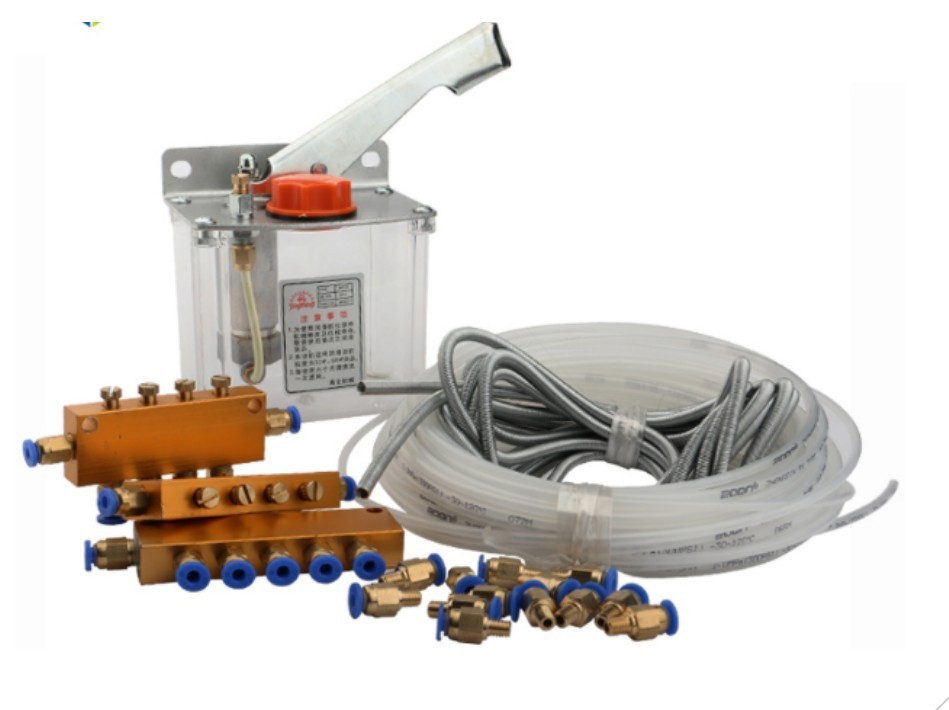

Oil Lubrication System

This machine accessory is applied to lubricate the machine rail and block in order that it runs smoothly and fast, improving the working efficiency.

 Application&Sample

China Industrial Metal Aluminum 1kw 2kw Sheet Metal Fiber Laser Cutting Machine

Details

  • Application: LASER CUTTING, laser cutting
  • Applicable Material: Metal, aluminum Cooper carbon stainless steel
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1300*2500mm
  • Cutting Speed: 20m/min
  • Graphic Format Supported: AI, PLT, DXF, Dwg
  • Cutting Thickness: depending on the materials
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Schneider AC servo system
  • Place of Origin: Anhui, China
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: WSX
  • Servo Motor Brand: Schneider
  • Guiderail Brand: THK
  • Control System Brand: Cypcut
  • Weight (KG): 2900 KG
  • Key Selling Points: High Safety Level
  • Optical Lens Brand: Wavelength
  • Warranty: 1 Year
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Gear, Engine, PLC, laser power
  • Mode of Operation: continuous wave
  • Configuration: 3-axis
  • Products handled: Sheet Metal and Tube
  • Feature: Water-cooled
  • Product name: FC1325 FC1530
  • Laser power: 1000W
  • Laser source: Raycus (optional IPG)
  • Servo motor: France Schneider
  • Laser head: WSX /Raytools
  • Positioning Accuracy: 0.05 Mm
  • Linear rail: Japan THK
  • Reducer: Japan Shimpo reducer
  • Working area: 3000*1500mm
