Heavy Duty Industry Metal Cutting Fiber Laser Cutting Machine

Main function

Fiber laser cutting works by focusing the power of a high-power laser onto the surface of the material to be cut. The energy in the laser beam is absorbed into the surface of material, and the energy of the laser is converted into heat, which melts or vaporizes the material.

Additionally, gas is focused or blown into the cutting region to expel or blow away the molten metal and vapor from the cutting path.

Choosing a Fiber laser cutting system will provide a number of advantages over traditional CO2 lasers. Because of their high quality beam, Fiber lasers will allow you to cut, engrave and mark a wide range of metallic materials.

Our range of Fiber machines can be specified in a variety of power outputs ranging from 500W and up - which will provide you with a machine capability of cutting sheet metals such as 12 mm thick stainless steel depending on the machine power.
Heavy Duty Industry Metal Cutting Fiber Laser Cutting Machine

Technical parameter

NOItemValueUnit
1Max. working area (length×width)3000×1500mm
2X axis cutting length1550mm
3Y axis cutting width3050mm
4Z axis Lifting Distance120mm
5X/Y axis positioning accuracy0.05mm/m
6X,Y-axis repeated positioning accuracy±0.02mm
7Maximum speed90m/min
8Working Max. Acceleration Speed0.5G
9Total power protection gradeIP54

Heavy Duty Industry Metal Cutting Fiber Laser Cutting Machine

Our Service

Pre-sales Service

1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.

After-sales Service

1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .

FAQ

How about your machine quality? We are worry about the quality.

RE: RAYMAX company is a mature brand in CHINA, through our many years research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 50 countries where there are metal plate industry, there are Brillante machines. And where there are our machines, there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1. RAYMAX always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales, So always, our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

Details

  • Application: LASER CUTTING, Metal sheet cutting
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: 40m/min
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
  • Cutting Thickness: 10mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Place of Origin: Anhui, China
  • Brand Name: RAYMAX
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: Raytools

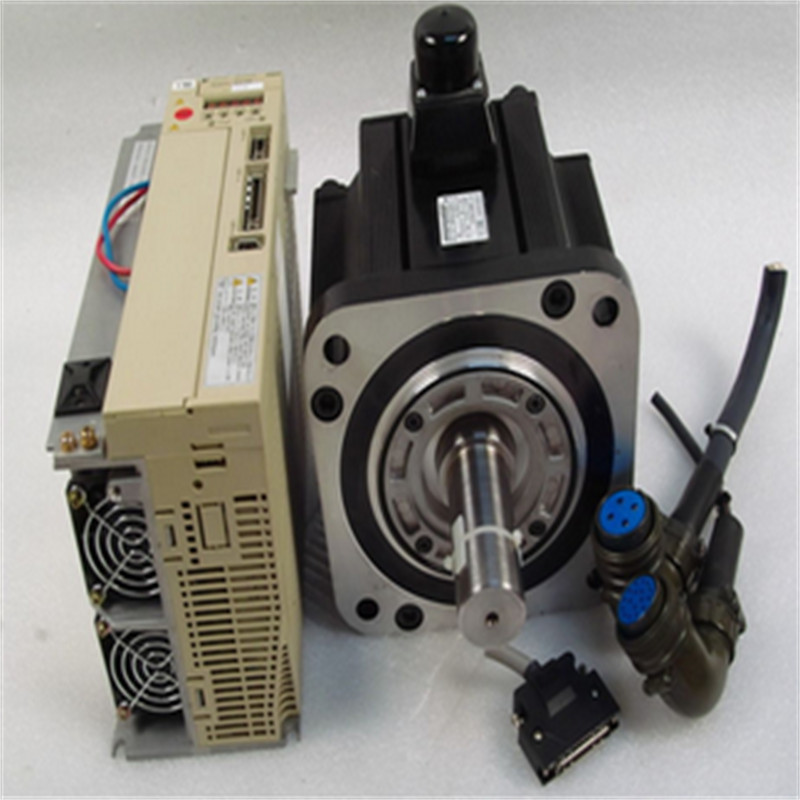

  • Servo Motor Brand: Panasonic
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 5000 KG
  • Key Selling Points: Competitive Price
  • Optical Lens Brand: Wavelength
  • Warranty: 3 years
  • Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Pressure vessel, Motor, Bearing, Pump, Engine
  • After-sales Service Provided: Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
  • Product name: 500w-6000w factory price cnc fiber laser cutting machine
  • Cutting material: Metal Stainless Steel Carbon Steel Aluminum
  • Screen: LCD
  • Cutting speed: 0-8000mm/min
  • Cutting length: according to requirement
  • Cutting thickness: 0-20mm
  • Motor: YASKAWA
  • Laser head: Lasermech
  • Certification: ce, ISO, Sgs
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Egypt, United States, Viet Nam, Indonesia, Spain, Morocco
  • Showroom Location: Egypt, United States, Viet Nam, Indonesia, Spain, South Korea
