1. CNC Laser Cutting Machine Machine frame: We predicted the direction and magnitude of welding deformation in advance. Before formal welding, we adjust the parts to the position of fixed welding by spot welding (the opposite direction of deformation). In this way, the frame reaches our ideal index through shrinkage deformation after welding is completed
2. Overall tempering of the bed---Eliminate internal stress and increase strength
1) The use of quenching treatment reduces the internal stress of the casting, thereby preventing cold cracking and hot cracking.
2) Lower melting point, small solidification temperature range, good fluidity, small solidification shrinkage, Has good casting properties, low comprehensive mechanical properties, compressive strength is 3-4 times higher than tensile strength.The residual stress of the casting is small, and the shock absorption is good, which is about 10 times higher than that of steel.
3. Large CNC Gantry Milling Machining for machining body, Fiber laser cutter machine adopting a mobile gantry structure, it can maintain good stability and shock resistance for a long time; the beam as a whole has been professionally manufactured by a large professional enterprise, secondary aging treatment, and precision machining of a large gantry milling machine. It guarantees the rigidity, stability and dynamic performance of the machine. The equipment has high precision, good rigidity and stable operation.
Q1: I know nothing about laser cutting machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material, thickness and working size.
Q2: When I recieved sheet metal laser cutting machine, but I don’t know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 120m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
Q4: If some problems happen to stainless steel laser cutter machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q5: About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the cnc fiber laser cutting machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
Q6: What’s package, will it protect the products?
A: Nude Packing for big parts after plastic film covering. The small parts packed into wooden cases which is suitable for
Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your worksite as per your requirement .
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500x3000mm
- Cutting Speed: 120m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
- Cutting Thickness: 0.5-12mm
- CNC or Not: Yes
- Cooling Mode: Air Cooling
- Control Software: Cypcut

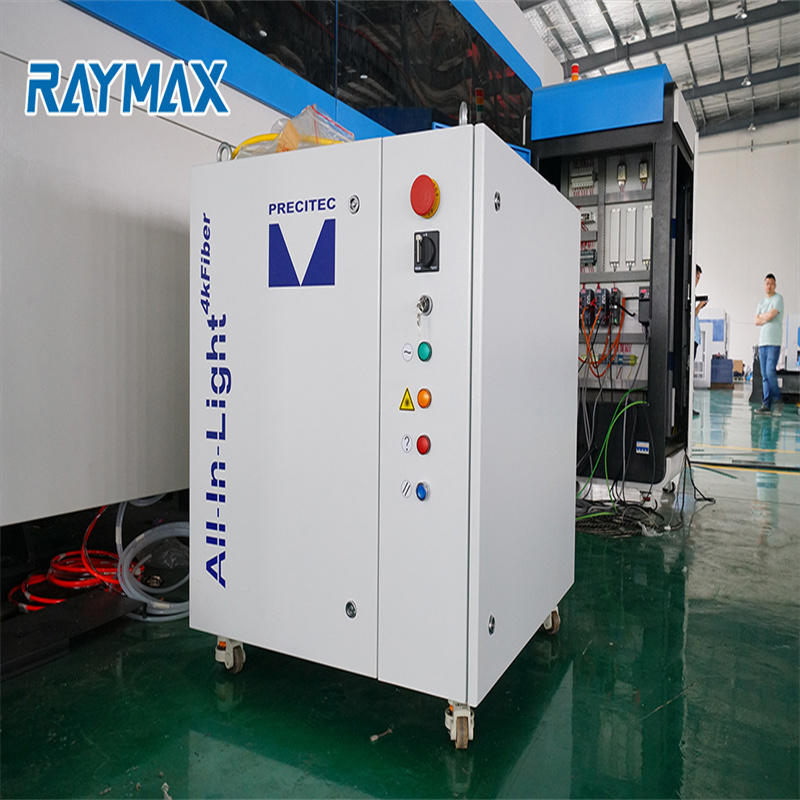

- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools
- Servo Motor Brand: Schneider
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 5000 KG
- Key Selling Points: Competitive Price
- Optical Lens Brand: II-VI
- Warranty: 3 years
- Applicable Industries: Manufacturing Plant
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Motor, Bearing, Pump, Gearbox, Engine
- Mode of Operation: continuous wave
- Configuration: 4-axis
- Products handled: Sheet Metal
- Feature: Water-cooled
- Item: 1000w fiber laser cutting machine
- Name: Laser cutting machine for metal sheet
- Color: Optional
- Key word: Laser cutting machine
- Laser power: 500W / 1000W / 2000W / 3000W
- Certification: ce
- After-sales Service Provided: Online support
- Showroom Location: Egypt
