When it comes to metal fabrication it often seems like the majority of technology has been around for decades with some minor changes and updates. While some technology will always produce a great cut and be a good choice for a metal fabrication shop, there is a constantly evolving world of technology. In recent years fiber laser cutting has grown in popularity amongst metal fabricators. There are many reasons for this but to truly understand why it has become so popular it is important to understand what fiber laser cutting is and what differences it brings to the table. When compared with other methods of metal fabrication, fiber laser cutting is a pretty new technology. RAYMAX provides a helpful description of how fiber laser cutting works, “Fiber lasers, on the other hand, employ solid-state diodes to pump molecules that are captured in an optical active double clad fiber with an ytterbium-doped core. The pumped light excites the core, and the light exits the module via a transport optical fiber that carries the beam to the focusing head where cutting takes place. The need for laser gas is eliminated as all collisions between molecules take place within the optical fiber, which in turn requires far less energy — about one-third that of a comparable CO2 laser. And because less heat is generated, the size of the chiller is proportionally reduced. In general, overall energy consumption is 70% less than a CO2 laser performing the same task.”
When it comes to the use of fiber lasers for cutting, efficiency is the name of the game. Not only is it more energy efficient but it expedites the cutting process. By expediting and streamlining the cutting process, it costs far less to produce a cut or part which ultimately improves your business’ profitability and enhances the return on your investment in a new CNC cutting system.
Fiber lasers have grown in popularity so significantly because they can be used in a wide range of industries for a variety of materials. CNC fiber laser cutting can be used on materials such as mild steel, stainless steel, aluminum, brass, copper, titanium, ceramics, graphite, composites, silicon, coated and plated metals, opaque plastics, and more! Fiber laser cutting is precise, efficient, low maintenance, and easy to on-board in any facility.
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality;
2) High cutting speed: Cutting speed is more than 20m/min;
3) Stable running: Adopting the top world import fiber lasers, stable peformance, key parts can reach 100,000 hours;
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency;
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
6) Easy operations: fiber line transmission, no adjustment of optical path;
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
|Cooling mode||Water cooling and protection system|
|Resetting positioning accuracy||±0.01mm|
|Compatible Software||CorelDraw/AutoCAD/Photoshop/AI …|
|Whole machine size||4500*2200*1500mm|
|Max traveling speed||110m/min|
|Driver system power||Y=750W; X=750W; Z=400W|
|Support graphic format||LXD/.DXF/.PLT/.AI/.Gerber/.DWG ….|
|Transmit system||Dual Rack & Pinion type|
|Option:||Rotary attachment for column materials|
Electronic appliances, subway accessories, confidential accessories, automobiles, ships, metallurgical equipment, household appliances, crafts, gifts, tools, processing, decoration, advertising, metal processing, etc
1. Purchase Service
RAYMAX LASER have a specialized and efficiency working team.If you are new on the laser machine, we will give you specialized suggestion of whole work .
2. Shipping Service
RAYMAX LASER have a specialized and independent department which just for arranging shipping for buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
3. Installation Service
Installation Services are available with all RAYMAX LASER Company machines.We will dispatch technician to The Buyer's factory to installation and preparation of machines.
4. Clients Training Service
RAYMAX Laser advises the buyer could send own technician come to our factory to learn how to operate machines. RAYMAX LASER Company technician will teach and train the learners hand byhand till he can operate machine by himself.
5. After Sales Service
RAYMAX LASER machines guarantee time is two years, except consumables parts;
1. How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking? What kind of materials mainly? Cutting/engraving, Max thickness for cutting? How big working area you need?
2. How long can delivery the machine ?
Common machine can be delivered within 3~7 days. Customade machine need 12~14 days.
3. If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.Our technical can assist you to install machine and give you free training after you receive machine.
4. If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
5. Will the machine will send to my door?
1) Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2) For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6. Can I buy spare parts from your company if I have spare parts in the future?
Yes, please. Our company supply spare parts for all of our machine.
7. Give me reasons to chose your company ?
1) Professional factory with competitive price;

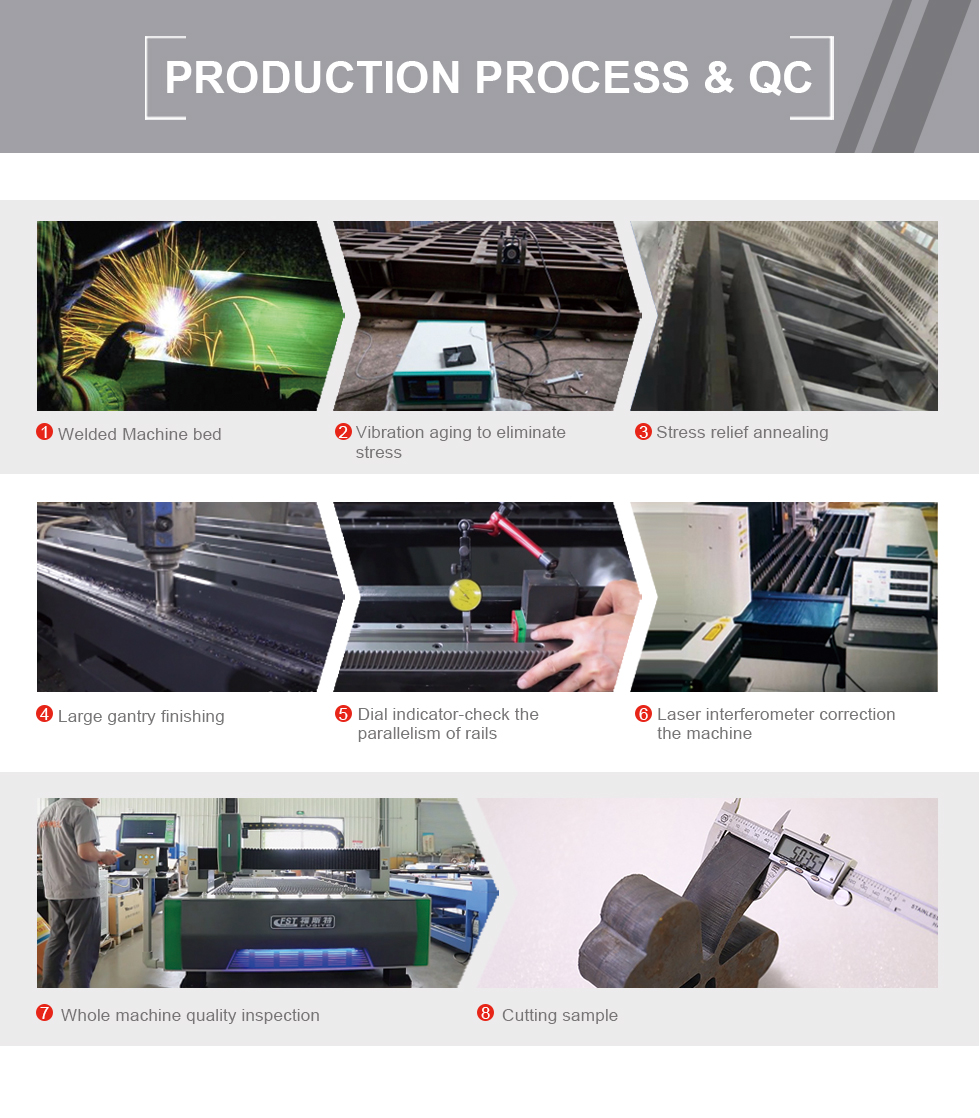

2) High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine
3) Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4) Strict implementation of after-sales warranty.
5) The important is that you will receive the Corresponding goods after you do payment.
8. How we pay you?
Please talk with us firstly. After we confirm the machine and optional part, spare parts for order with each other, we will give you the link to orde.
- Application: LASER CUTTING
- Applicable Material: Metal, aluminum
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500x3000mm
- Cutting Speed: 110m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

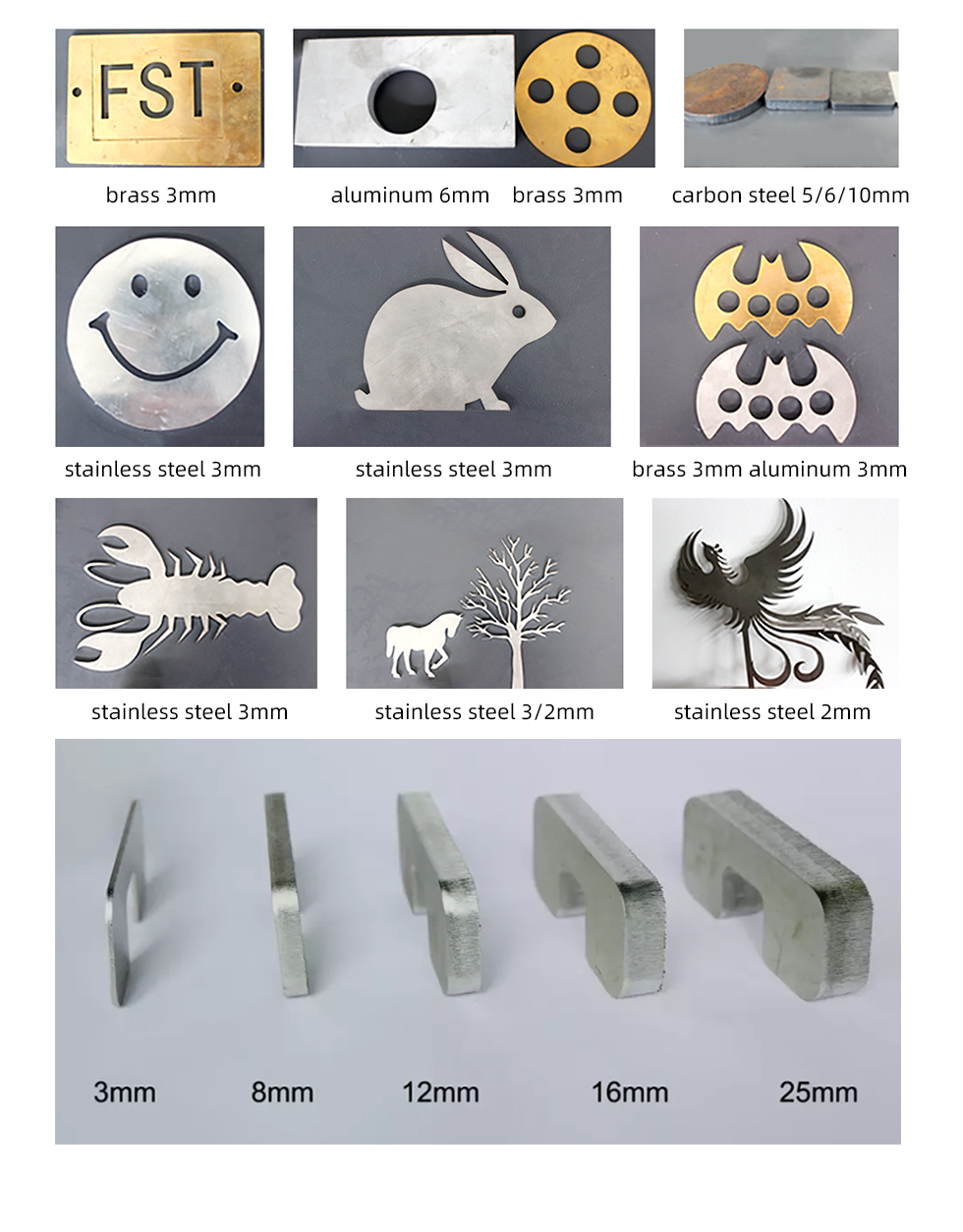

- Cutting Thickness: 0-30mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: CYPCUT
- Laser Source Brand: RAYCUS

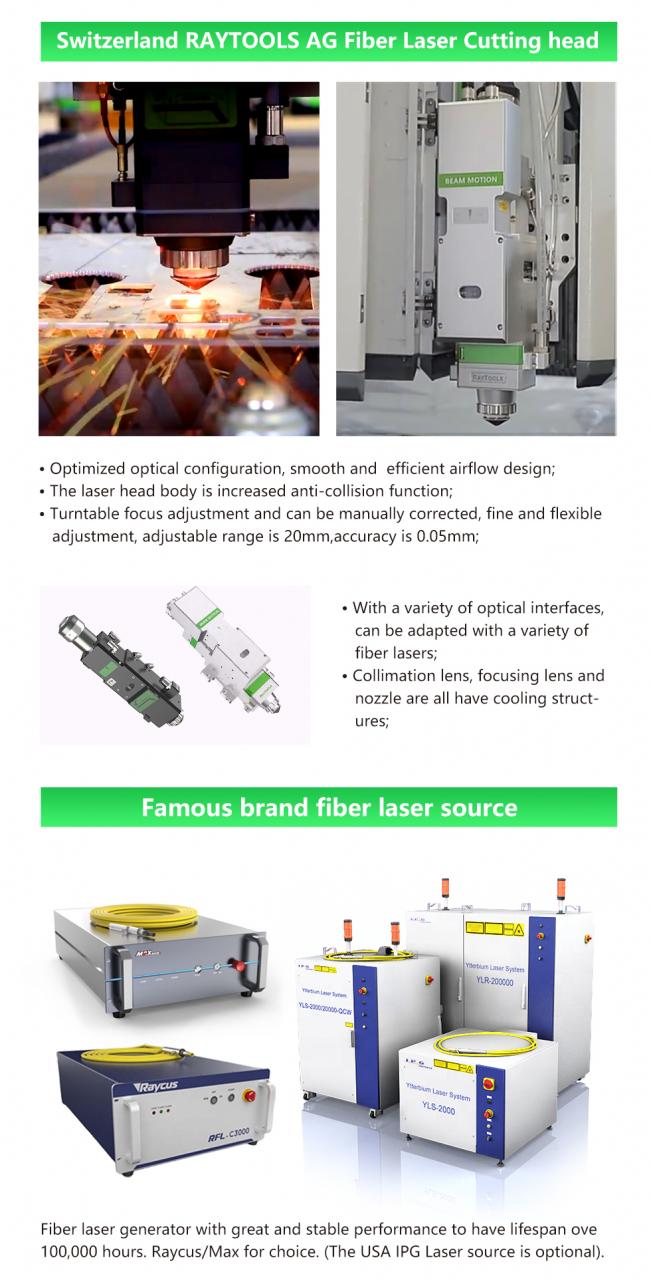

- Laser Head Brand: Raytools

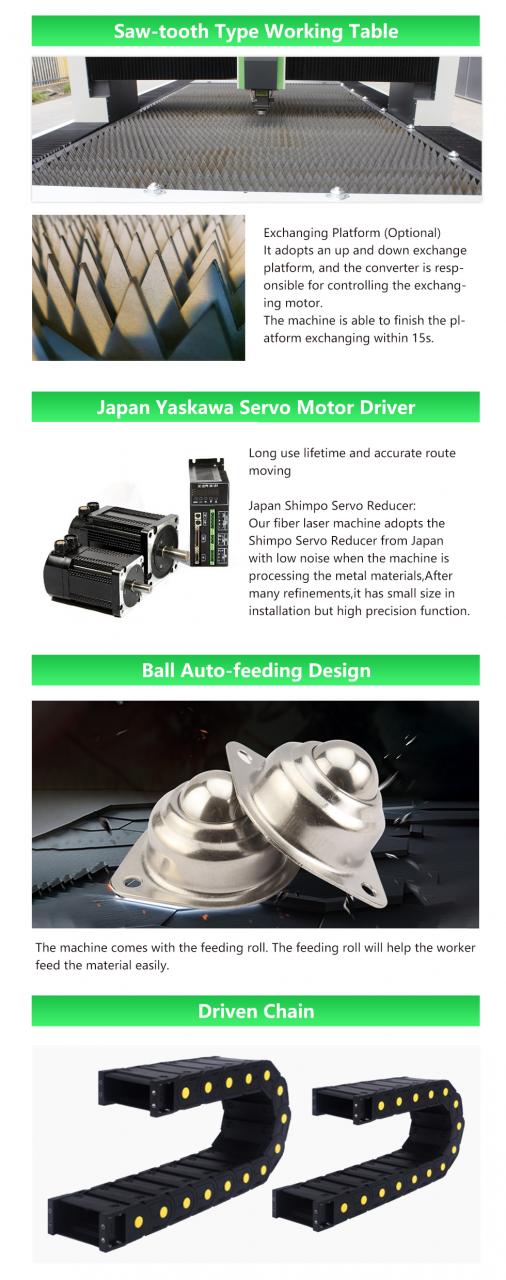

- Servo Motor Brand: Yaskawa
- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 3200 KG
- Key Selling Points: Energy saving
- Optical Lens Brand: II-VI
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: laser source
- Product name: 12mm iron aluminum laser cutting machine
- Keyword: 3kw fiber laser cutting machine
- Laser power: 3000W
- Cutting materials: Stainless Steel Pipe
- Processing area: 1500mm*3000mm
- Fiber power: Raycus 500W/1000w/1500w/2000w/3000w
- Cooling mode: Water cooling and protection system
- Compatible Software: CorelDraw/AutoCAD/Photoshop/AI ...
- Support graphic format: LXD/.DXF/.PLT/.AI/.Gerber/.DWG ....
- Transmit system: Dual Rack & Pinion type
