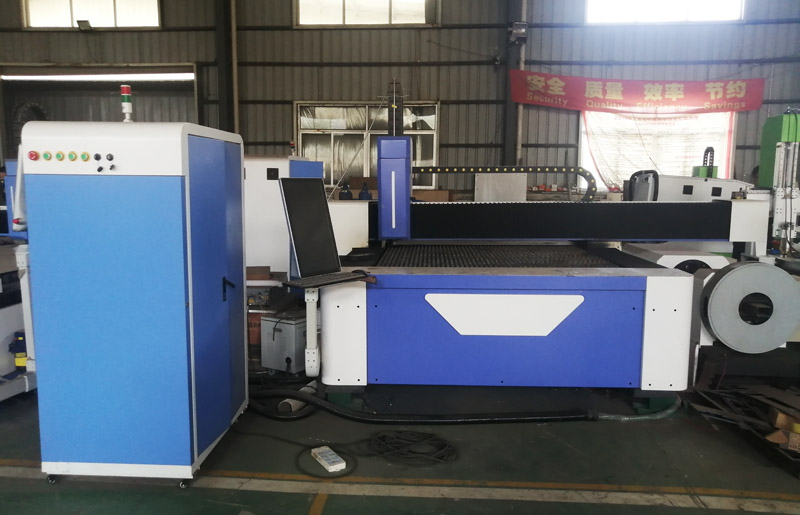

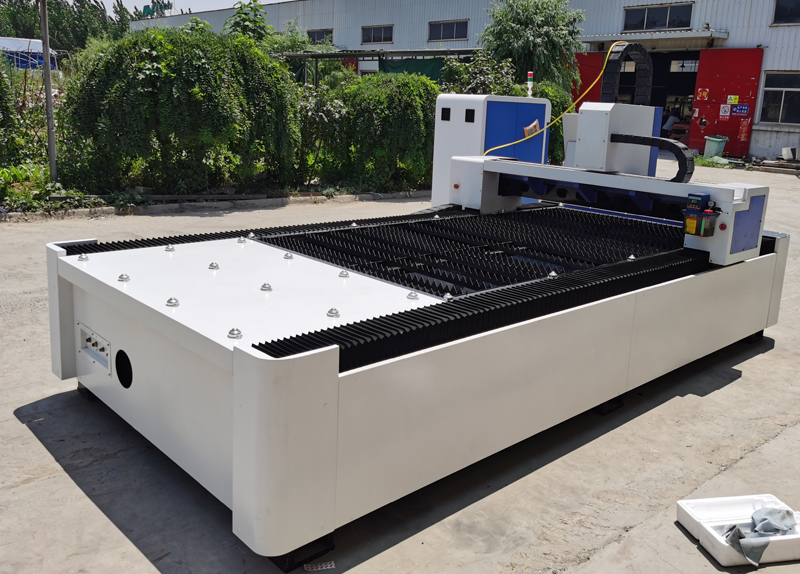

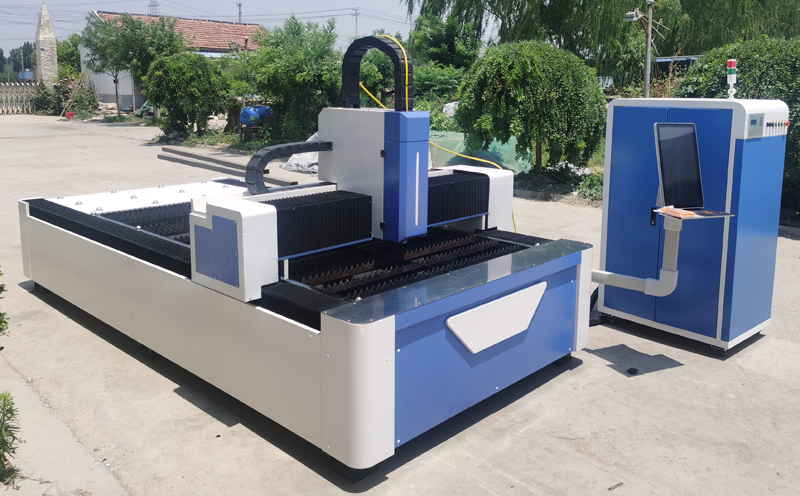

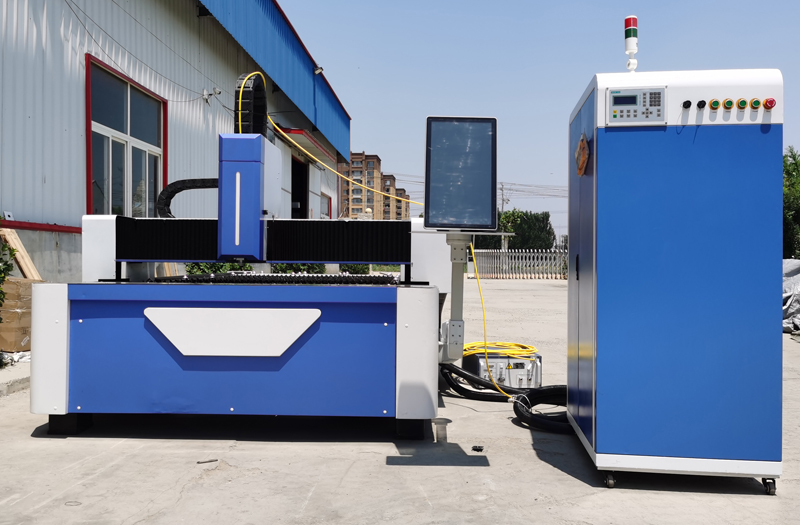

8mm 10mm Carbon Steel Laser Cutter 1530 4020 Cnc Fiber Laser Cutting Machine

Product Description

Today, when it comes to cutting metal there's actually over 100 different types of metals you could process. Depending on what industry you are in you probably have at least one or more types of metal you need to laser cut. FIBER or GAS (commonly CO2) laser represent the two most common processes for processing metal whether it be ferrous or non-ferrous metals. YAG or crystal laser technology has been used in the past primarily for thick metal cutting, but it is more expensive and offers a significantly shorter service life compared to CO2 and fiber laser processing.

The majority of sheet metal cutting applications - especially under 5mm - are primarily processed using fiber cutting systems. Alternatively, the downside and upside with CO2 is that it is really only able to process stainless steel, but it can also process organic materials like wood, acrylic, leather, fabric, stone, etc.

Fiber laser beams offer a metal friendly wavelength that metal absorbs more efficiently. The smaller spot size and excellent beam profile make it ideal for cutting most any metals. Most notably, compared to CO2, fiber has a straight line speed that's 2-3x faster when cutting thin sheet metal at 5mm or less.

As far as operating costs, fiber needs only about 1/3 the operating power compared to CO2. Also, fiber offers lower down time, less ongoing maintenance translates to increased productivity.

For this reason fiber has been quickly displacing the traditional CO2 laser in most metal cutting applications.

Model	3015A	4020A	6025A	8025A
Working area	3000mm x 1500mm	4000mm x2000mm	6000mm x 2500mm	8000mm x 2500mm
Laser Power	1000W-4000W(optional)
Fiber Laser Source	Raycus/IPG
Max.acceleration	1.2G
Max.move speed	120/min
Positioning accuracy	0.03mm
Voltage	380V/3PH or 220V/3PH
repeated positioning accuracy	0.02mm
Warranty Time	3 Years

Detailed Images

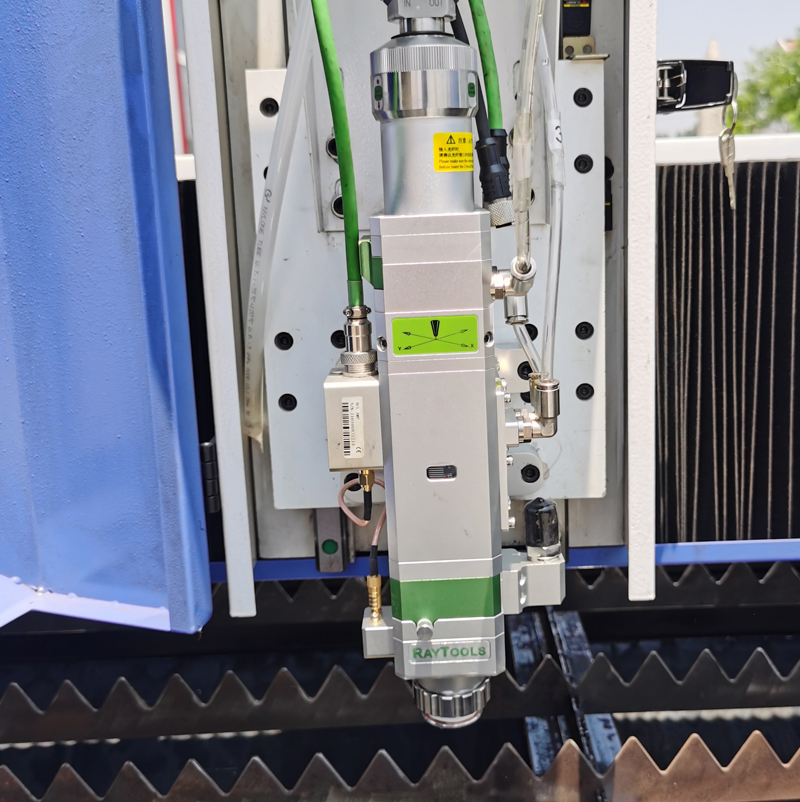

Swiss Raytools Laser Head: Imported from Swiss. Famous brand and stable performance

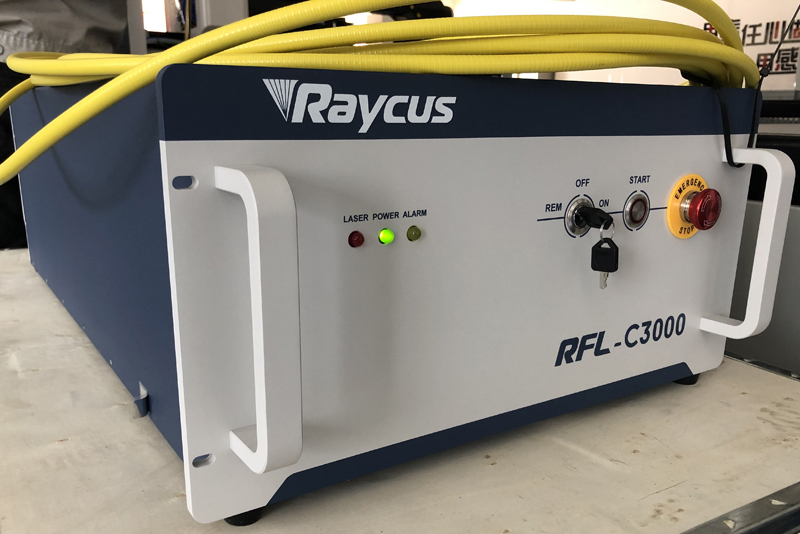

Raycus Laser Source: Famous brand laser generator. We also have IPG/JPT/Max for your optional

Touch Screen monitor: Integrated, intelligent, high speed, high precision man-machine interface, easy to use, easy to operate.

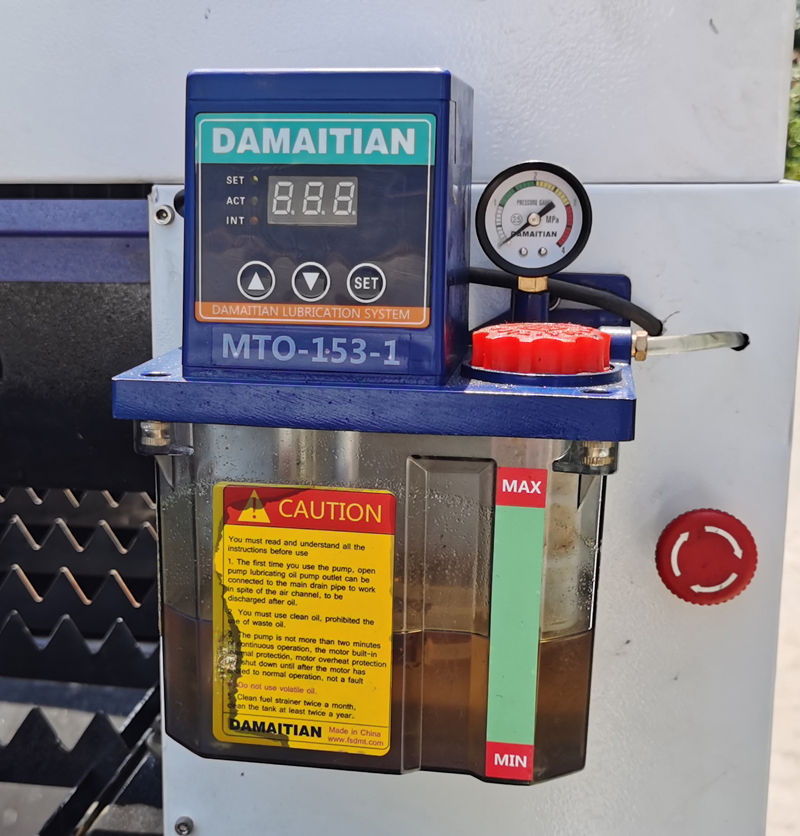

Auto lubrication system: Good quality oil pump for oil rack and guide rail to prolong machine service life

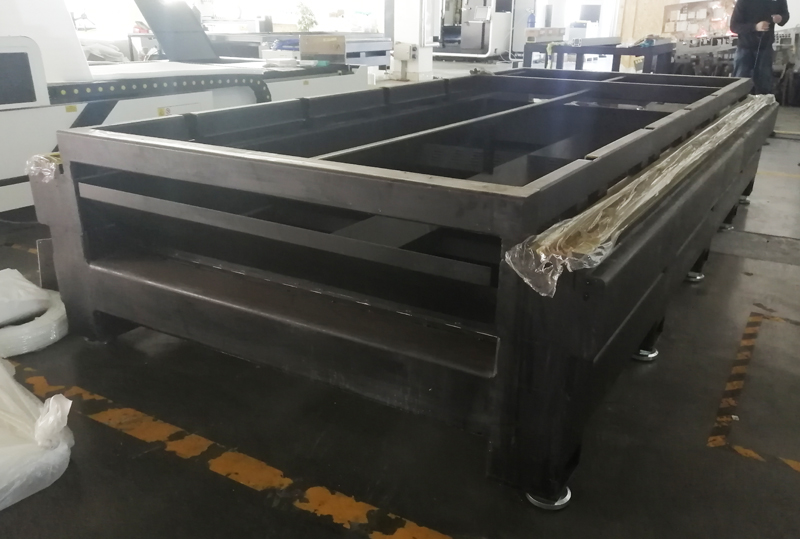

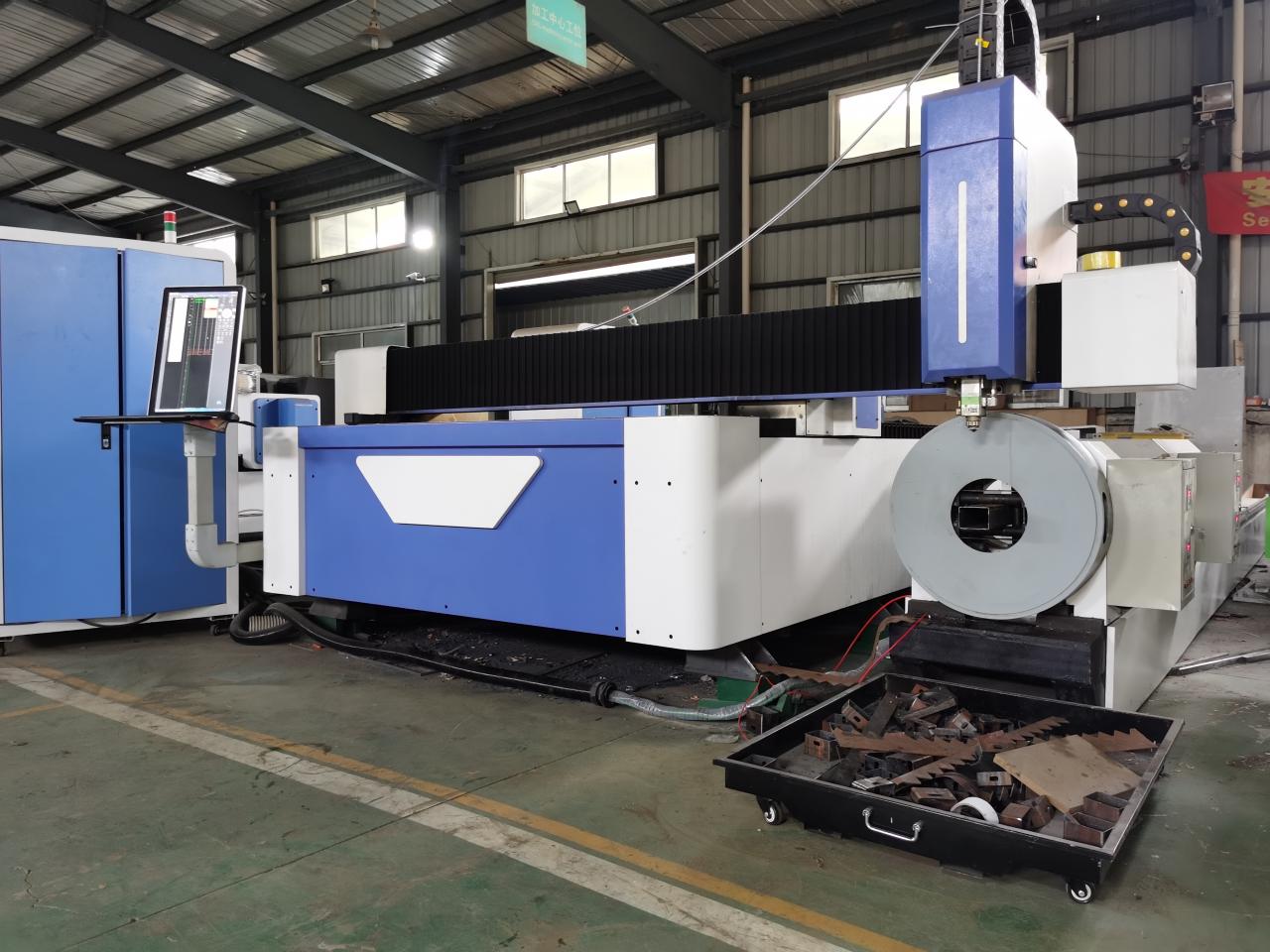

Machine body: Professional fiber laser cutting machine body,ensure machine can work high precision

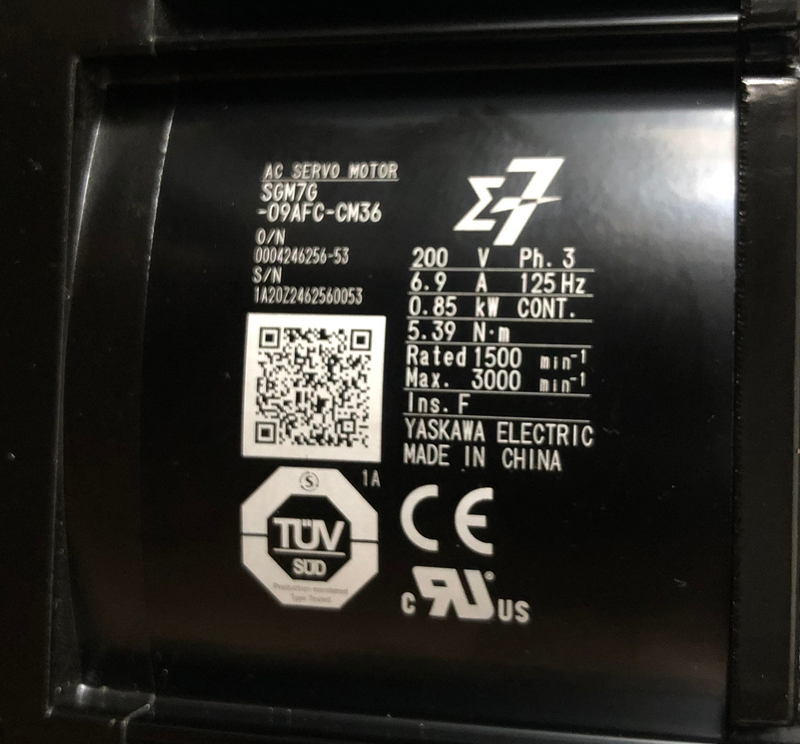

Servo motors: Japan YASKAWA AC servo motors and drivers

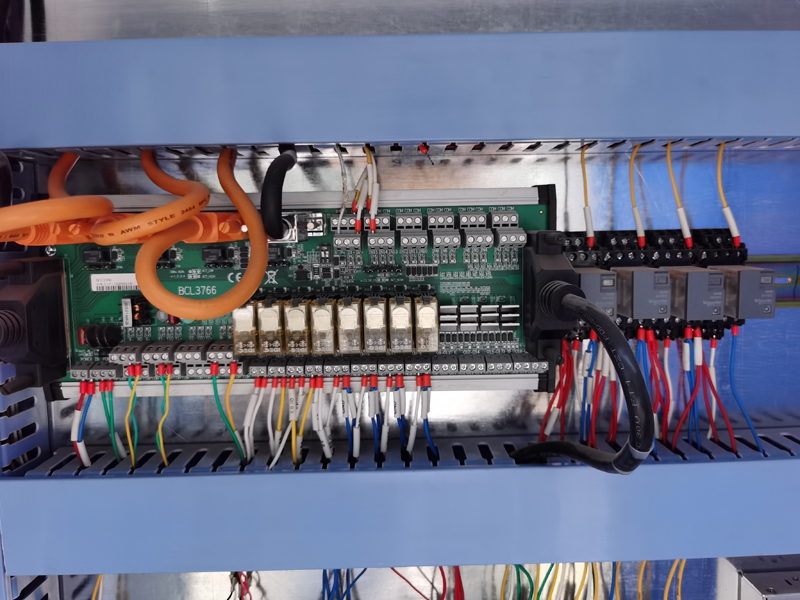

Shanghai Cypcut control system: Famous brand, more intelligent

Application

The Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all OK

Our Services & Strength

1. 24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.

2. We will provide free training, free maintenance, free technical upgrading,

3. We accept the ODM, OEM

4. Oversea agents wanted, if any interest, pls let me know.

FAQ

Q1: How can I trust your company and your products?

The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q2. If machine have any problem after I ordered it, what could I do?

Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.

Q3. Can I visit your factory?

Yes! We greatly welcome customers to visit our own factory!

Q4. How much power machine suitable me?

Pls tell us what will be your mainly work with the fiber laser cutting machine. Such as materials and max thickness,then we will recommend you with best suitable power.

Q4. Warranty period?

1 year.

Details

• Application: LASER CUTTING
• Applicable Material: Glass, Metal, Plastic, Plywood, Crystal
• Condition: New
• Laser Type: Fiber Laser
• Cutting Area: 1500*3000mm/4000*2000mm/6000*2000mm
• Cutting Speed: 80m/min
• Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
• Cutting Thickness: 0-30mm
• CNC or Not: Yes
• Cooling Mode: WATER COOLING
• Control Software: AutoCAD
• Laser Source Brand: RAYCUS
• Laser Head Brand: Raytools
• Servo Motor Brand: DELTA
• Guiderail Brand: HIWIN
• Control System Brand: Cypcut
• Weight (KG): 5000 KG
• Key Selling Points: High Safety Level
• Optical Lens Brand: Wavelength
• Warranty: 2 years
• Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Advertising Company
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
• Mode of Operation: Pulsed
• Configuration: 3-axis
• Products handled: Sheet Metal and Tube
• Feature: Water-cooled
• Product name: Fiber Laser Metal Cutting Machine
• Laser power: 1000W / 2000W / 3000W/4000W/6000W
• Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
• Laser source: Raycus IPG
• Max cutting speed: 700mm/min
• Laser head: Swiss Raytools
• Transmission: HIWIN Guide Rails
• Working Voltage: 380V 3 PHASE 50hz/60hz
• Working area: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
• Control system: Shanghai Cypcut Control System
