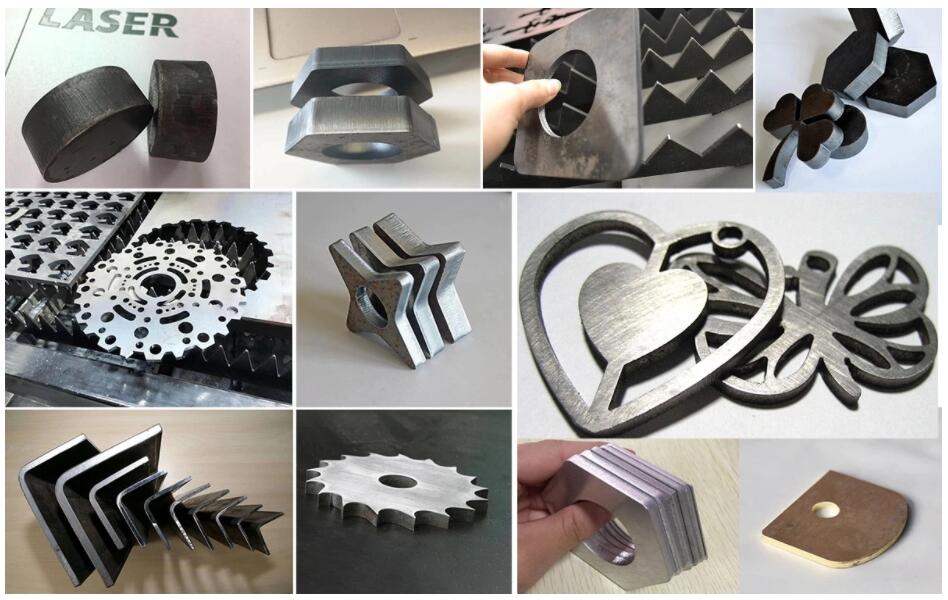

Metal Laser Cutting Machine integrates optical, mechanical and electrical in one, which adopts laser technology, computer control technology and high-performance CNC laser power system to process all kinds of metal sheet at high speed, high accurate and high efficiently cutting. Its products have smooth edge, small kerf width and little heat effect. It can cut the shape of circle,triangle, octagonal etc on metal sheet or pipe.
|Input voltage||380V±10% 50/60Hz, 3 phase|
|Laser beam quality||<0.373mrad|

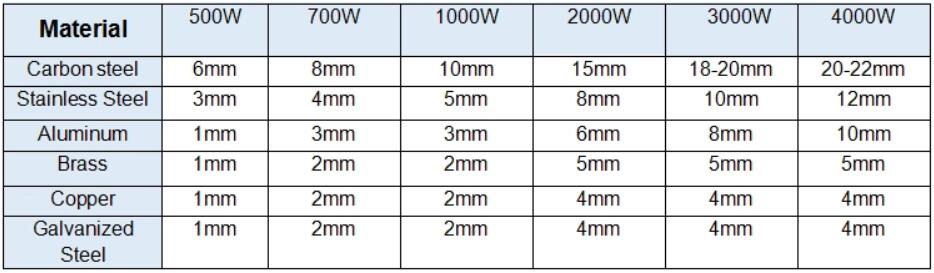

|Max. Cutting thickness||12mm mild steel, 8mm S.steel|
|Min. Cutting line width||≤0.15 mm|
|Max. Cutting speed||21m/min|
|Repetition accuracy||≤±0.02 mm/m|
1. The machine tool adopts 600°C high temperature heat treatment and 12m gantry milling finishing to ensure that the machine will not be deformed for a long time, and the acceleration can reach 1.5G.
2. Optional high and low exchange platform, only 15 seconds in one exchange, European standard design.
3. Every detail strives for perfection, and we will create industrial products with the requirements of luxury goods.
4. Metal marker software: Optimized software algorithm to maximize material saving; integrated common edge, bridge,micro-connection and other metal-specific cutting processes to reduce the difficulty of operators, integrated material management functions, make full use of waste and meet Management needs;
5. The software supports the input and output of general CAD (DXF, DWG, etc.) format files.The software supports editing (zoom, rotate, array, etc.) functions after importing graphics.
6. Every device of Chutian Laser has been tested and assembled by precision instruments, and the processing results of each finished product have been accurately measured.
This machine is widely used in aerospace, automotive, ship buliding, machinery manufacturing, elevator manufacturing, advertising production, household appliances manufacturing, medical devices, hardware, decoration, metal processing services, and other manufacturing industries.
This machine is suitable for metal materials such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel,
nickel titanium alloy, chromium nickel iron alloy, titanium alloy and etc.
- Application: LASER CUTTING
- Applicable Material: Metal
- Condition: New
- Laser Type: Fiber Laser
- Cutting Area: 1500mm*3000mm
- Cutting Speed: 40m/min
- Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg
- Cutting Thickness: 1-55mm
- CNC or Not: Yes
- Cooling Mode: WATER COOLING
- Control Software: cypcut
- Laser Source Brand: RAYCUS
- Laser Head Brand: Raytools

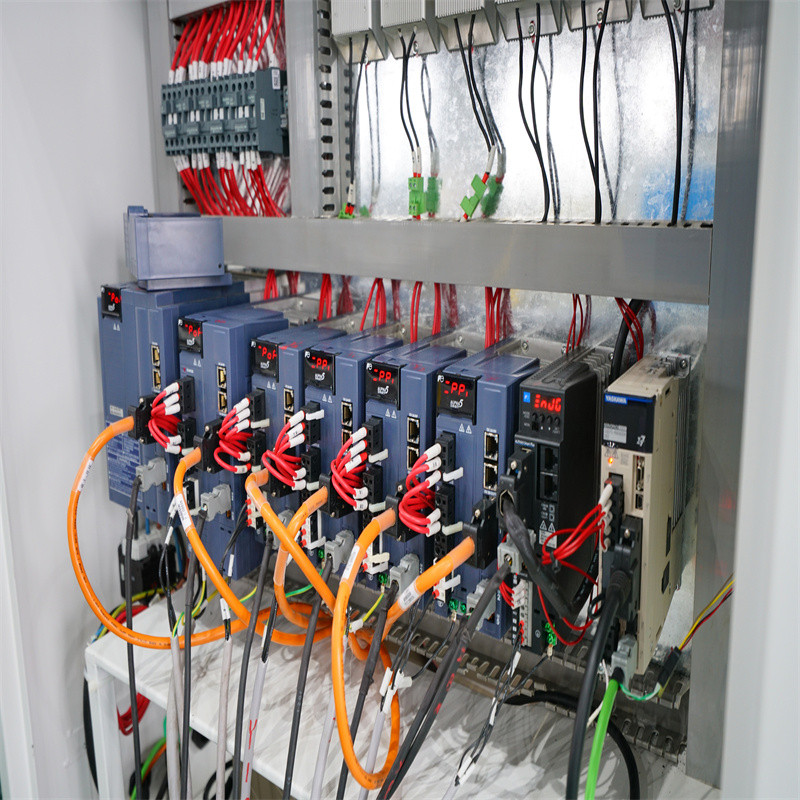

- Servo Motor Brand: Yaskawa

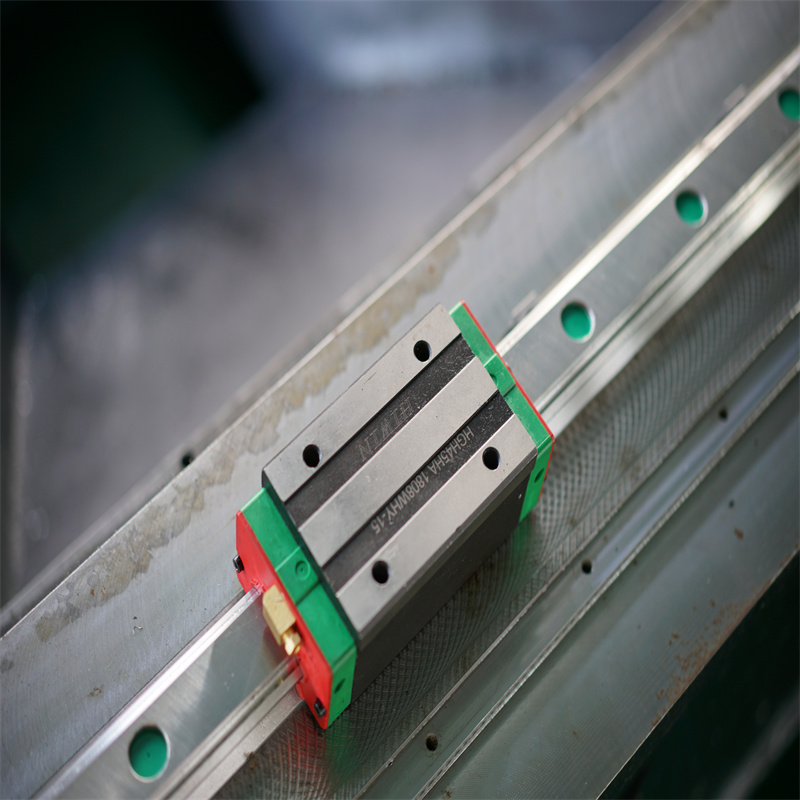

- Guiderail Brand: HIWIN
- Control System Brand: Cypcut
- Weight (KG): 4800 KG
- Key Selling Points: High-accuracy
- Warranty: 2 years
- Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, Bearing, Gear
- laser source: Raycus/IPG/MAX
- Working area: 3015/4020/6020
- Function: Cutting Metal Materials
- Input voltage: 380V±10% 50/60Hz, 3 phase
- Laser wavelength: 1070nm
- Laser beam quality: <0.373mrad
- Min. Cutting line width: ≤0.15 mm
- Continuous working time: 24 hours
- Color: orange-white
- Product name: 500w 1000w 2000w stainless steel fiber laser cutting machine
- Certification: ce
- After Warranty Service: Video technical support, Online support, Field maintenance and repair service
