3015 Fiber Laser Metal Cutting Machine 1000w 2000w Max Raycus Laser Power

Products Description

The fiber laser cutting machine combines cost efficiency, dynamic laser cutting, advanced automation solutions and easy-to-operate CNC system. This all-round system offers fast processing of a wide variety of material types and thicknesses.

The working size is 3000*1500mm can meet most of the applications of different industries. Of course, as your different requirements, the large size of platform can be customized ,such as 4020,6020,6025, etc.

The standard laser power design range from 1000w to 3000w, can cut material thicknesses up to 20 mm with a maximum pallet capacity of 700 kg. It is ideal for thin metal processing applications with common material type, thickness and size.

3015 Fiber Laser Metal Cutting Machine 1000w 2000w Max Raycus Laser Power

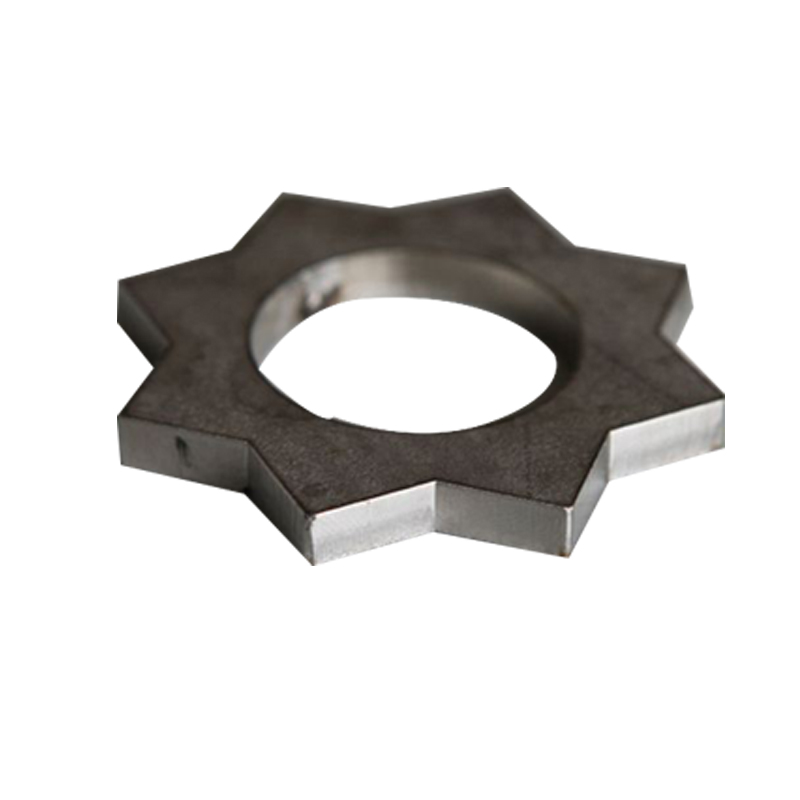

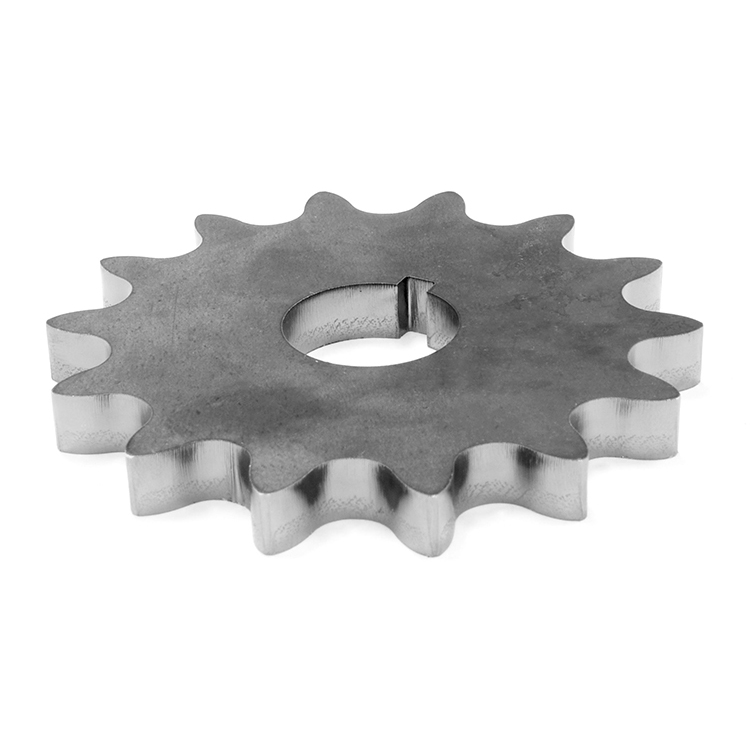

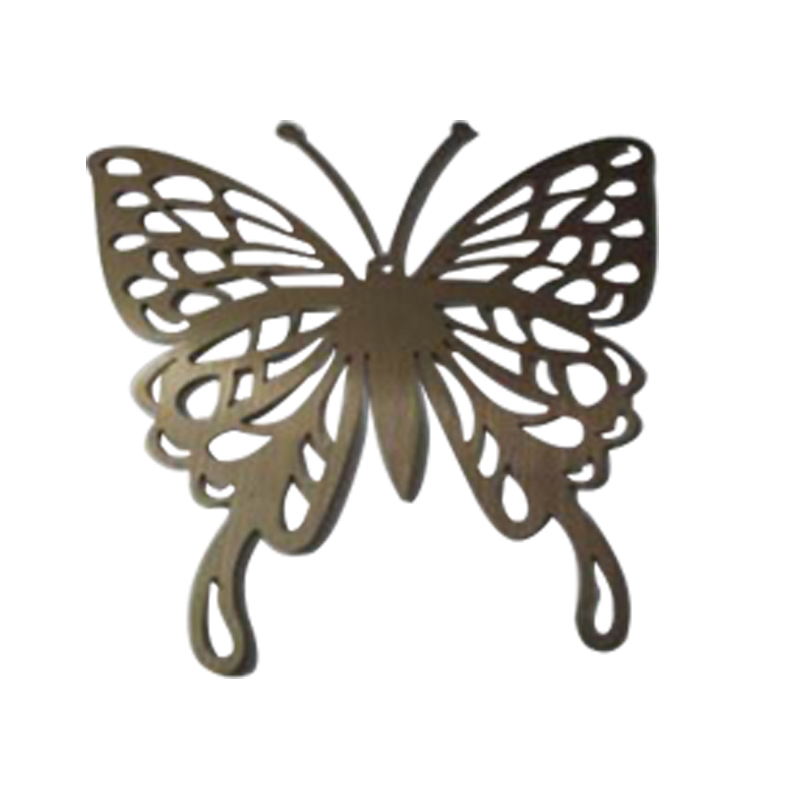

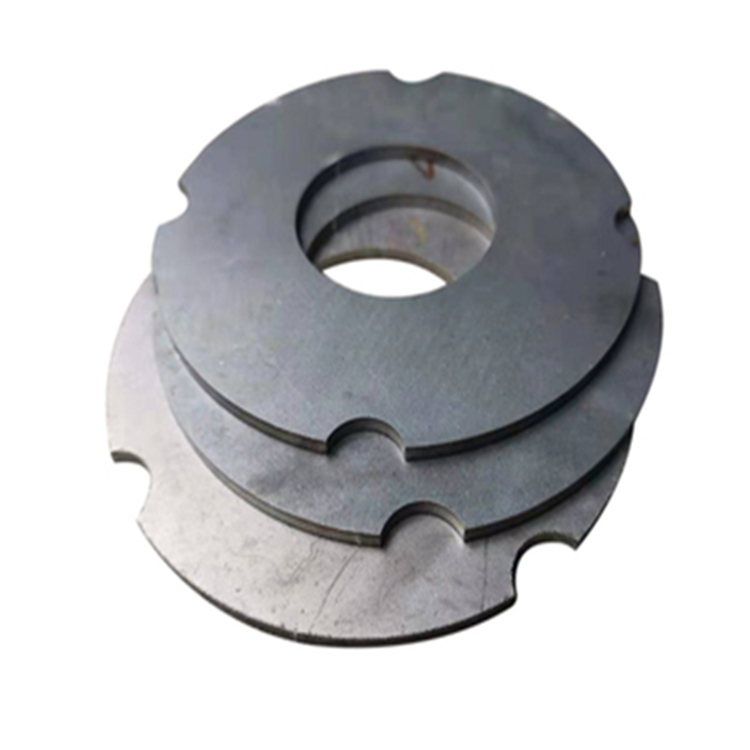

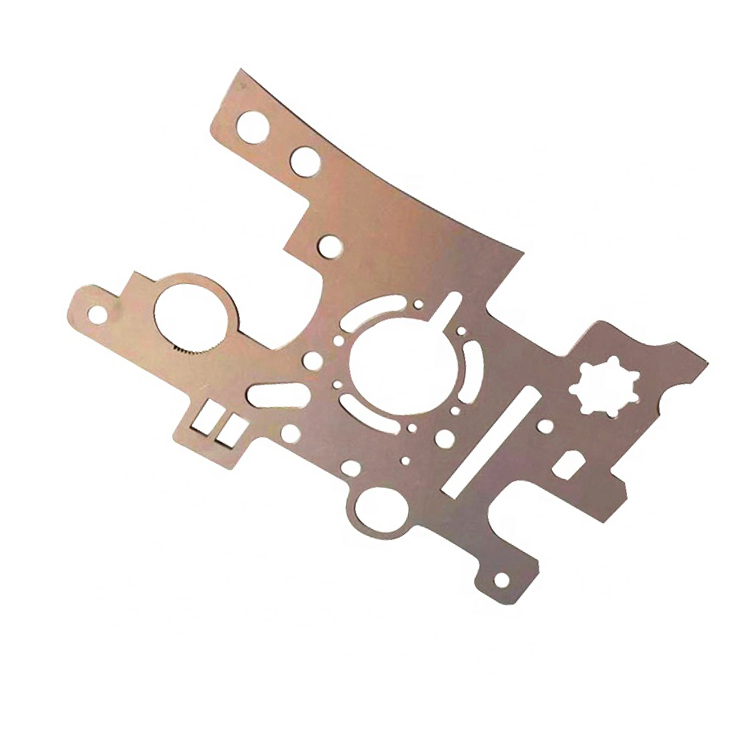

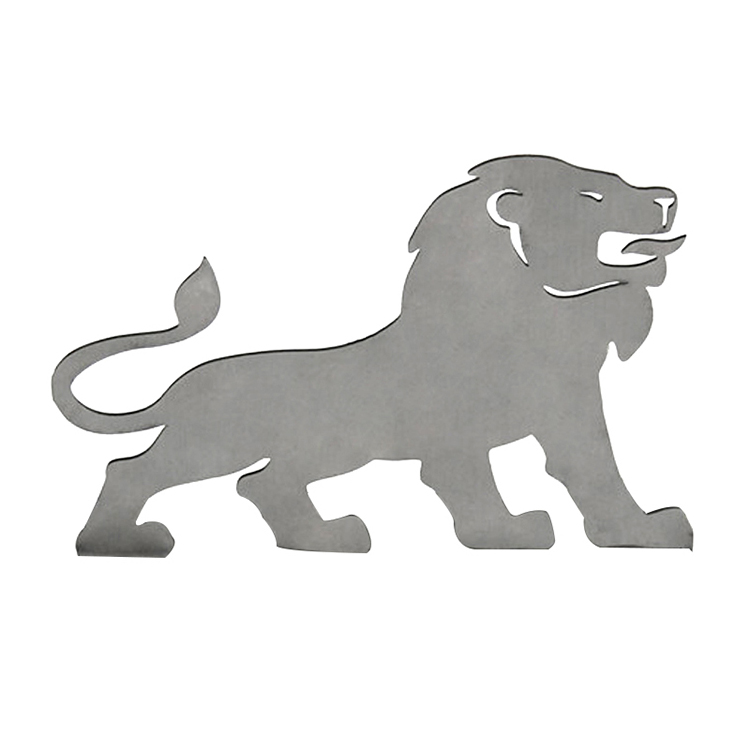

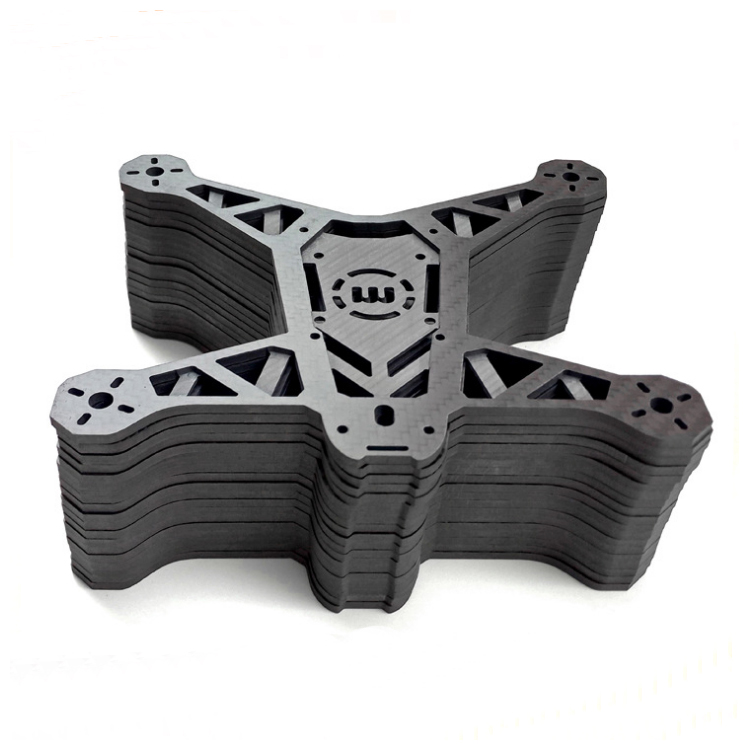

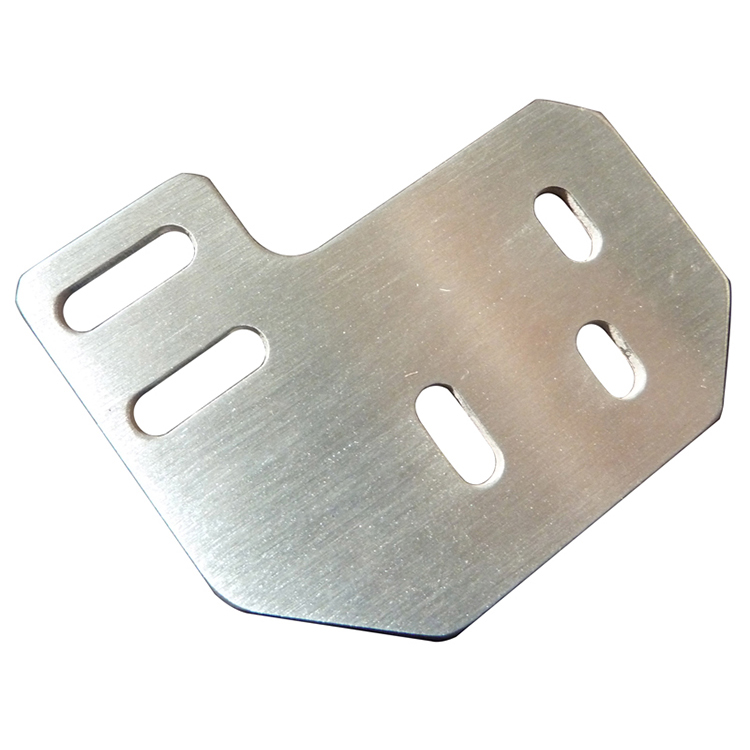

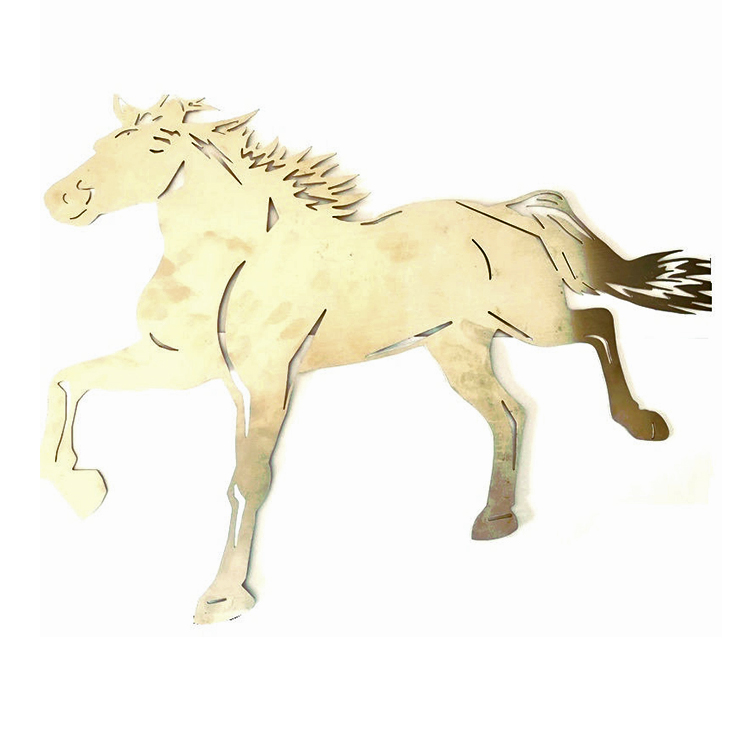

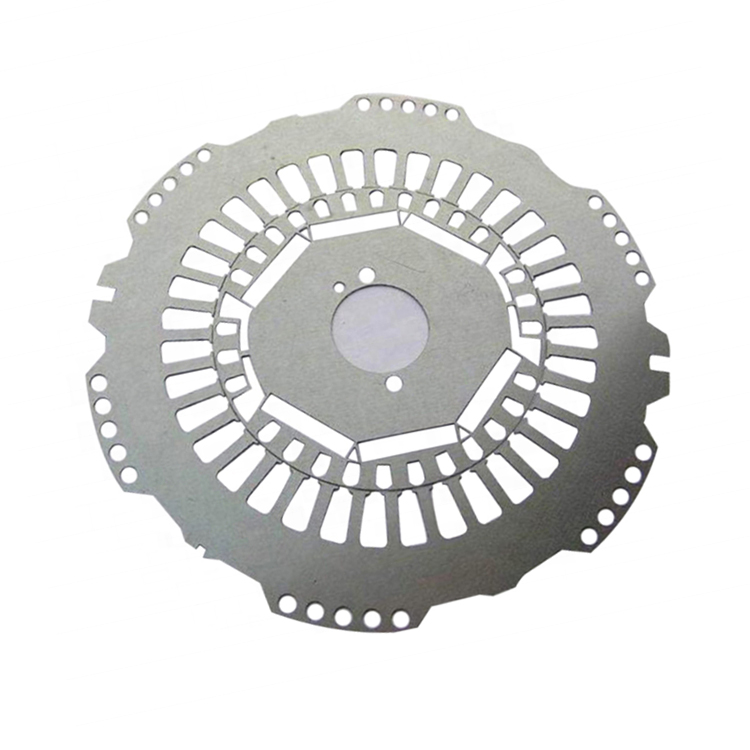

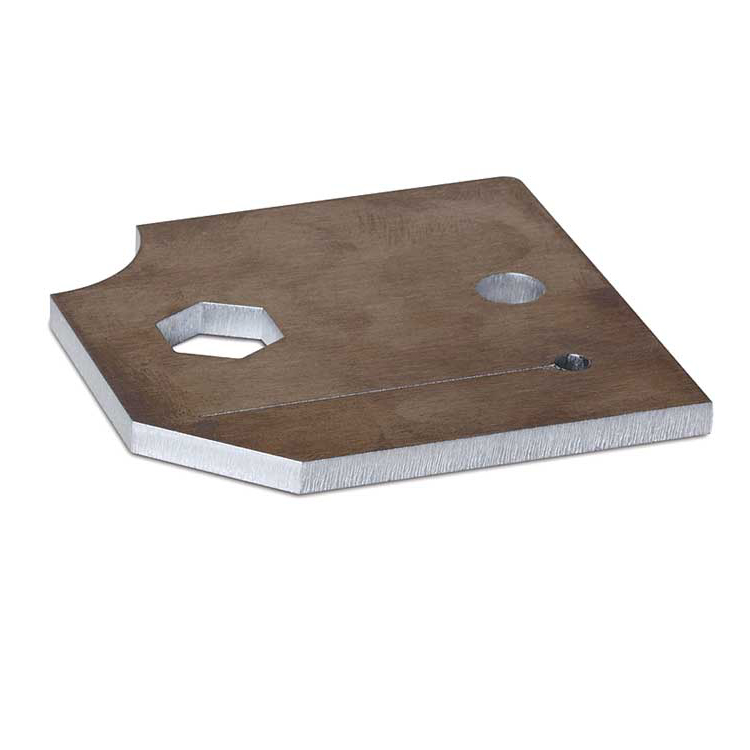

Application and cutting samples

If you want to cut your design for evaluation the cutting quality, just send us the graphics!

Fiber laser cutting machine
ModelS3015
Working area3000mm*1500mm
Laser power1000W, 1500W,2000W,3000W
Maximum Acceleration1.0G
Maximum moving speed100m/min
X/Y axis Positioning precision/-0.03mm
X/Y axis repeated positioning precision/-0.02mm
Approx. size5140mm*2460mm*1900mm
Approx. weight3500kg

Products details

Main parts of the machine all adopts from famous brand such as Laser source, laser head, servo system, water chiller,reducer, transmission parts, lubrication.etc. Ensure the high quality and high performance of the laser cutting machine.
3015 Fiber Laser Metal Cutting Machine 1000w 2000w Max Raycus Laser Power

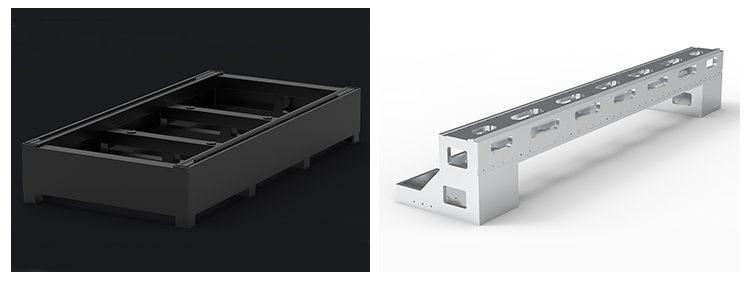

Heavy duty machine body

Welded metal body has undergone 600°C heat aging treatment, effectively remove the welding stress. And then processed by plano-milling machine . Which ensures it has high accuracy and high strength and a 20 year service life.

Cast aluminium cross beam

Integrated Cast aluminum beam,With light weight, high strength and stability, strong shock resistance, safe and reliable, ensure the beam with good dynamic performance and conducive to high speed cutting.
3015 Fiber Laser Metal Cutting Machine 1000w 2000w Max Raycus Laser Power

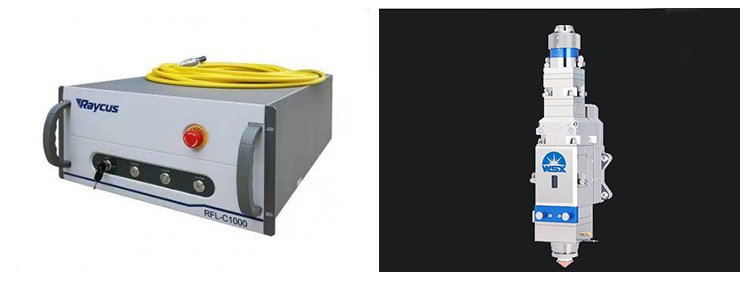

World famous brand laser source

Laser source can be adopted from IPG, Raycus ,MAX, ITF as request. With stable Cutting Performance, superior beam quality, high stability and free maintenance.

Long life branded Cutting Head

- Laser head can be adopted manual focusing or auto focusing as customer’s actual situation;
- Good sealing, anti-high pressure, long service life. 3015 Fiber Laser Metal Cutting Machine 1000w 2000w Max Raycus Laser Power

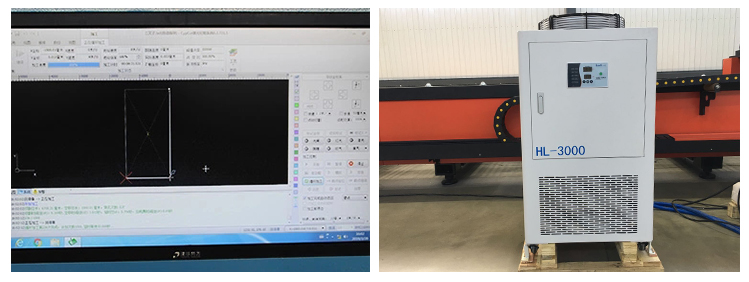

Powerful CypCut CNC system

- With rich friendly human -computer interaction interface , generous and easy to learn;With graphics handling and processing control functions,can greatly improve the cutting efficiency and save the raw materials

High preformance Hanli water chiller

Provide the stable dual cycle cooling system for laser fiber source and laser cutting head,automatically adjusting the water temperature to ensure the machine normally running long time. 3015 Fiber Laser Metal Cutting Machine 1000w 2000w Max Raycus Laser Power

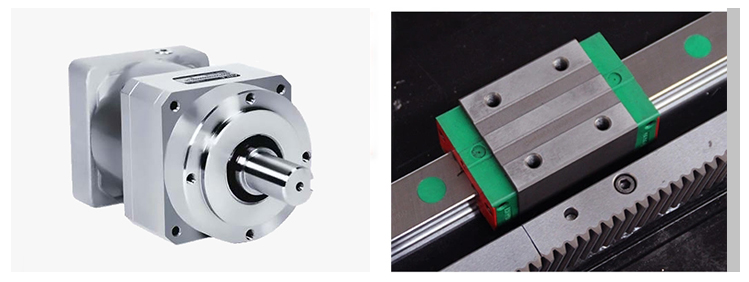

Japan Shimpo reducer

Be featured with excellent characteristics such as high precision, low noise, long service life, no oil leakage, large torque,.etc ,has been widely used in fiber laser cutting machine industry.

Taiwan YYC gear rack Hiwin linear guiderail

-With strong carrying capacity and high accuracy, can ensure fast and precise movement of the motive parts;
-Adopt wear resistant material, long life, maintenance free, ensure stable and reliable running of the machine tool.

Why Choose Us

★ 2 years warranty

2 years guarantee of the whole machine and we give lifetime maintenance free of charge.

★ Free training

Free training to make sure your operating staff master the operating of machine at our factory.

★ 24 hours online service

24 hours online services through Whatsapp, Skype, Email or on the phone.

★ English operation manual

Friendly English version manual and operation video CD disk.

★ Life time technical support

We can provide life time technical support for the laser cutting machine.

★ On-site service available

Engineers available for overseas training and after-sale services.

FAQ

Q1: Our workers can't operate the machine, how to train the staff?

We will provide you the user manual of the machine and 24-hour online service,we also support free training service, engineers can train your workers for free in our factory for 3-5 days. If request, our staff can arrange the on-site training.

Q2 : I don’t know which one is suitable for me ?

Please tell us your materials type? material size? material thickness range? Then we can recommend the most suitable model metal laser cutting machine to you.

Q3: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do?

We can send you pictures and videos ,or by online video to let you have clear understand of the machine condition.

Q4: Do you have CE document and other documents for customs clearance?

Yes,we have Original documents. At first we will show you and after shipment we will send you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5: What should I do when i have problem during use?

If have any problem during use,you need our technician to judge the problem else where will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door to door service if you need.

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500*3000mm
  • Cutting Speed: 30m/min
  • Graphic Format Supported: AI, DXF, BMP
  • Cutting Thickness: 0-20mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: FSCUT
  • Laser Source Brand: MAX/RAYCUS/ITF
  • Laser Head Brand: WSX/Raytools
  • Servo Motor Brand: Fuji/Yaskawa
  • Guiderail Brand: HIWIN/THK
  • Control System Brand: CYPCUT
  • Weight (KG): 3500 KG
  • Key Selling Points: Competitive Price
  • Optical Lens Brand: WSX
  • Warranty: 2 years
  • Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Motor
  • Product name: 3015 Fiber laser metal cutting machine
  • Laser power: 500W / 1000W / 2000W / 3000W/4000W
  • Function: metal sheet laser cutting
  • Cutting accuracy: 0.1-0.2mm
  • Positioning Accuracy: 0.03mm
  • repeated positioning accuracy: 0.02mm
  • Key words: fiber laser metal cutting machine
  • Working area: 3m*1.5m
  • Exhaust fan: optional
  • voltage stabilizer: optional
  • Certification: ce, ISO, Sgs
  • After-sales Service Provided: Online support, Free spare parts, Video technical support
  • After Warranty Service: Video technical support, Online support
