Products Description

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

Cutting table size options: 3000x1500mm, 4000x1500mm, 6000x1500mm, 4000x2000mm, 6000x2000mm

Cutting ability of different power (for reference):

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

Machine details

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

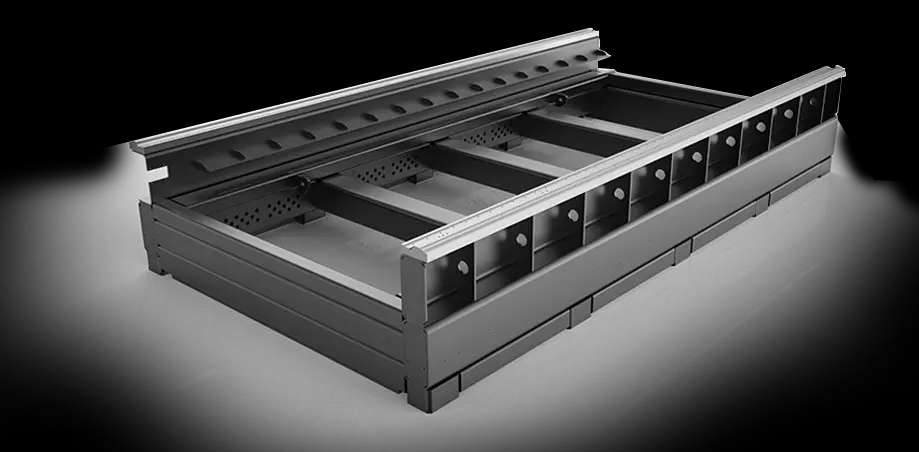

Cast-Iron Bed, Anti-Vibration, Stable, No Deformation

*The main frame adopts the gantry structure welded by all steel plates to ensure the long-term stability without deformation*The bed is annealed at high temperature in a large annealing furnace

*The bed is formed by imported gantry milling once

*Using gantry rack double guide rail, double servo drive structure

*Improve the stability and rigidity of the Y-axis beam

*Ensure the high precision and high dynamic performance of Y-axis beam movement

*Y-axis beam runs smoothly at high speed, greatly reducing gas consumption

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

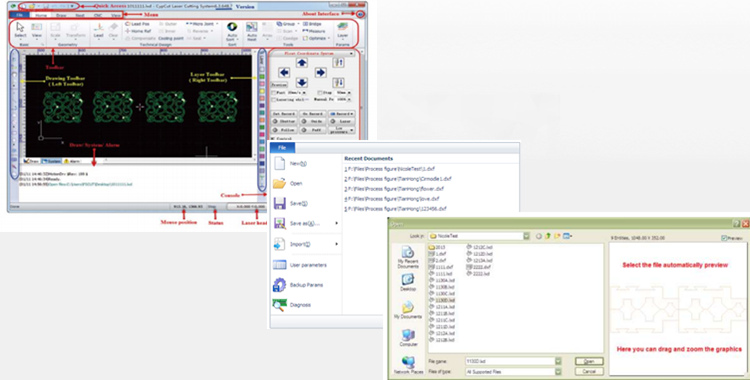

Cyput Control System

*Support AI, DXF, PLT, Gerber, LXD and other graphic data formats, and accept the Cyput Laser Cutting Control System international standard G code generated by MaterCam, Type3, Wentai and other software.

*To conduct automatic optimization when opening/importing DXF and other external files, including: to remove repetitive lines, merger connected lines, remove tiny graphics as well as automatically distinguish inside and outside models and conduct sorting. The above each function can be defined, as well as be carried out manually. To support common editing and typesetting functions, including: zooming in and zooming out, translation, mirror, rotation, alignment, copying, combination and so on.

*To use the easiest way to set the lead, slotted compensation, micro connection, bridge-connection, lead inside or outside, lead seal without gap and so on. GEARS, RACKS, GUIDES

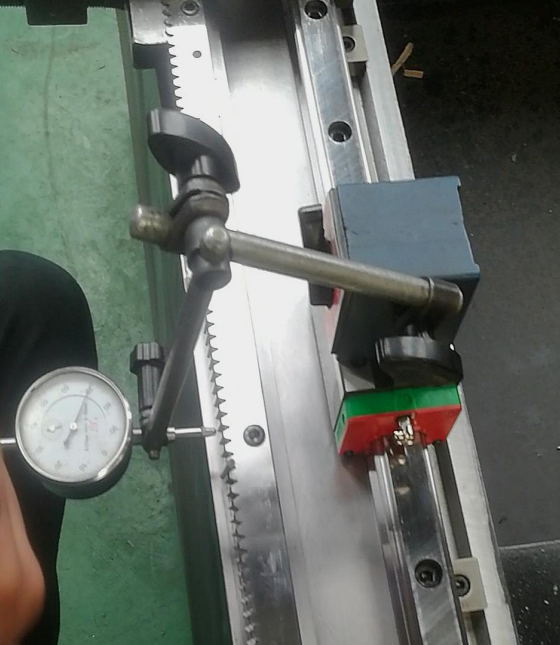

*The guide rail and rack are calibrated by a precision collimator with an accuracy of ±0.02mm

*Using Taiwan YYC rack, grinding on all sides. And there is a positioning pin design to prevent the rack from shifting

*Using Taiwan HIWIN guide rail, and use oblique pressure block design to prevent displacement of guide rail

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale 1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

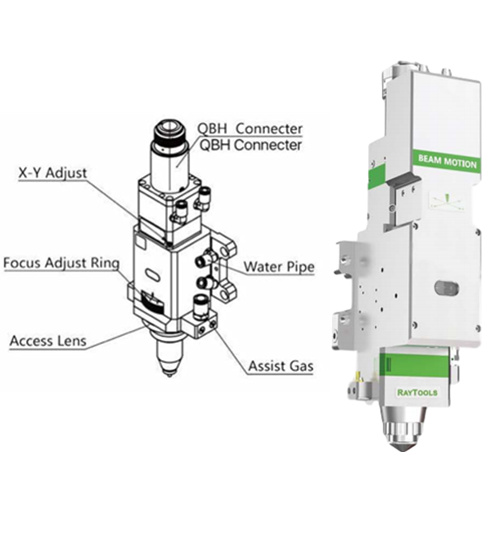

Switzerland Raytools Auto-Focus Laser Cutting Head

*AUTOFOCUS: Through the built-in drive unit of the servo motor, the focusing lens is driven by the linear mechanism to automatically change the position in the focusing range. The user can set continuous zoom through the program to complete the rapid piercing of the thick plate and automatic cutting of different materials.

*EFFICIENT: Reading the saved cutting parameters through the operating system can quickly change the focus position of the laser head, eliminating manual operation and improving efficiency by 30%

*STABLE: Unique optical configuration, smooth and efficient airflow design and dual water-cooled design make the laser head work stably for a long time

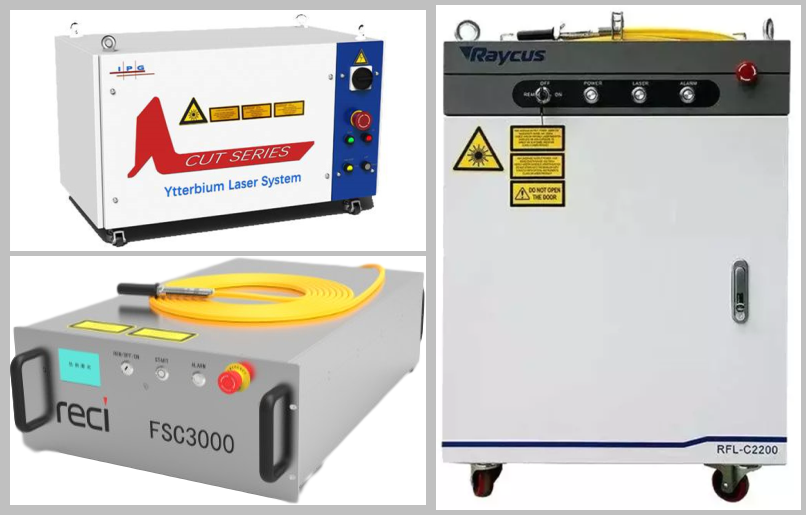

Optional Laser Source

*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.

*Stable performance and high cost performance

*The fiber launch is stable, with long service life of nearly 100,000 hours

*It can run continuously 24 hours a day to meet the requirements of industrial continuous production

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale 1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

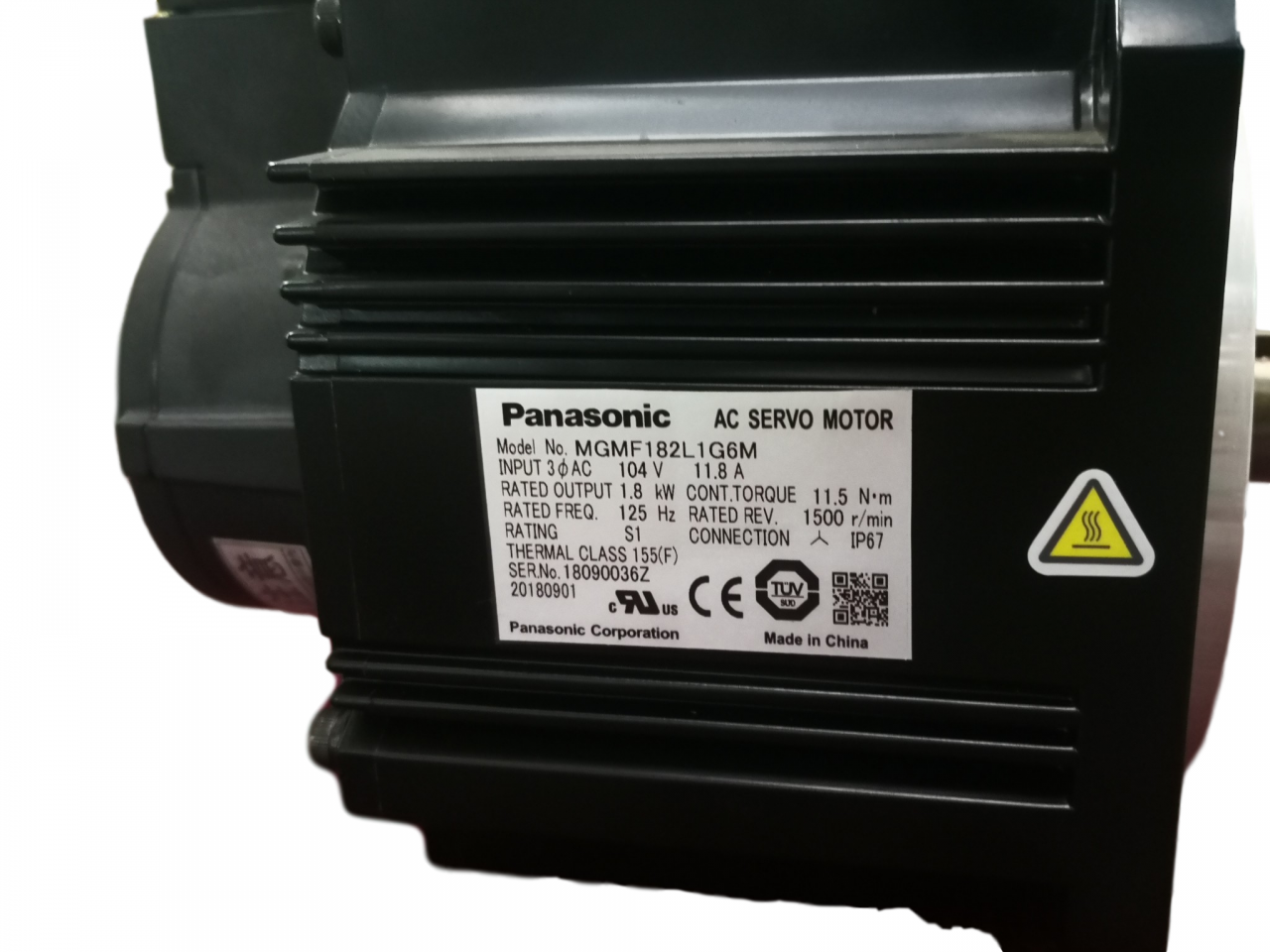

Japan Panasonic Servomotor Servo Driver

Using Japan Panasonic servo motor, servo drive and imported transmission system to ensure the accuracy and reliability of the fiber laser cutting machine.

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

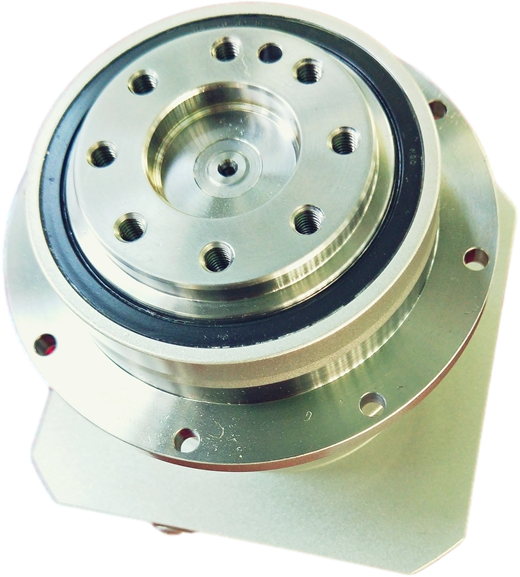

Japan Shimpo Reducer

Using Japanese SHIMPO reducer, 3 arc minutes accuracy, flange connection

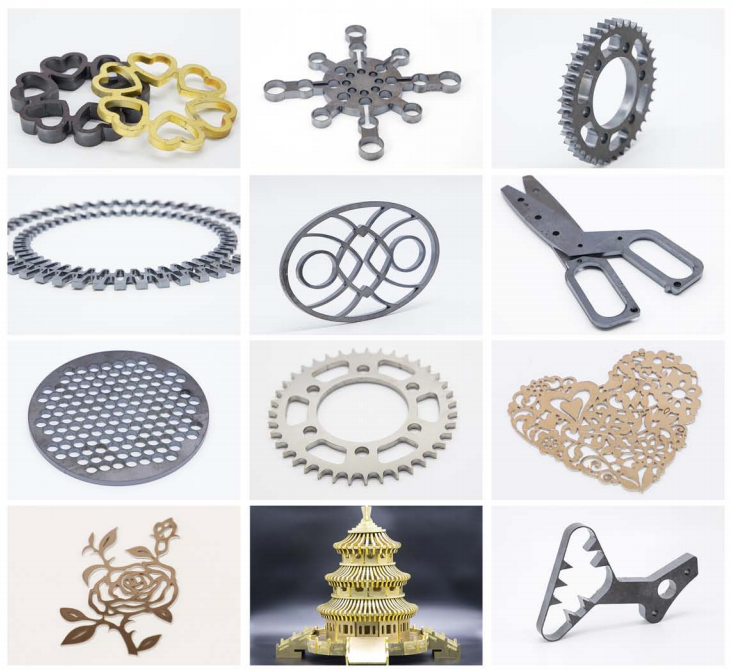

Cutting sample

1000w 2000w Sheet Steel Metal Tube Cnc Fiber Laser Cutting Machine For Sale

FAQ

Q1: I know nothing about this machine, what kind of machine should I choose?

Don't worry, you just need to tell us below simple info, then we will give you professional suggestion and quote you price very soon. a. What do you want to cut? Sheet, pipe or both? b. Material of the metalc. Max thickness

Q2: When I get this machine, but I don't know how to use it. What should I do?

We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly.

Q3: If the machine have problems or borken in the future, what can you do for me?

We guarantee machine quality for 13 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer by DHL, TNT freely. Besides guarantee period, we still provide you free online services for life. If parts broken, you can order replacement parts from us.

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500*3000mm
  • Cutting Speed: 0-40000mm/min
  • Graphic Format Supported: AI, Dwg, DXF, PLT
  • Cutting Thickness: Materials
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: Raytools
  • Servo Motor Brand: FUJI
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 3500 KG
  • Key Selling Points: High Productivity
  • Optical Lens Brand: II-VI
  • Warranty: 1 Year
  • Applicable Industries: Manufacturing Plant, Farms
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Pressure vessel, Motor, Pump, PLC
  • Mode of Operation: Pulsed
  • Configuration: bench-top
  • Products handled: Sheet Metal
  • Feature: Programmable
  • Laser source: Raycus IPG
  • Function: Cutting Metal Materials
  • Keyword: laser cutting machine
  • X,Y Axis gear: Shimpo,Japan
  • Electrics: Schneider,France
  • Color: Blue-white
  • Certification: ce
