1000w 3000w 6000w 10000w Sheet Metal Square Tube Metal Fiber Laser Cutting Machine
1000w 3000w 6000w 10000w Sheet Metal Square Tube Metal Fiber Laser Cutting Machine
1Product NameSheet Tube Metal Fiber Laser Cutting Machine
3Cutting SizeSheet metal cutting size : 3000mm×1500mm ,4000×2000mm, 6000×2000mmTube metal cutting size : Diameter : φ20-φ210mm    φ20-φ150mmLength : 6m / 9m
4Power1000W 2000W 3000W 4000W 6000W8000W 10000W 12000W 20000W
5Laser Wavelength1,070-1,080nm
6Max Moving Speed120m/min
7Position Accuracy0.01mm/m
8Repeatability Accuracy0.01mm
9Fiber Laser SourceMAX / RAYCUS / IPG / DK
10Motor&Drivers BrandJapan Fuji; Japan Yaskawa ; Taiwan Delta
11Cutting HeadRaytools / Au3tech / FSCUT / Ospri / WSX / PRECITEC
12Control SystemFSCUT / Au3Tech / Raytools / Weihong
13RuducerJapan Shimpo / France MOTOVARIO / Germany Lead-motion
14Compatible SoftwareCorelDraw/AutoCAD/Photoshop/AI
15Support Graphic FormatLXD/.DXF/.PLT/.AI/.Gerber/.DWG
17Gear RackTaiwan YYC / Germany HERION
18Electrical componentsSchneider made in France
19Water ChillerGuangzhou TEYU / Wuhan Hanli /
20OptionalRotary; Exchanging Table ; Protective Cover
21Processing MaterialStainless Steel / Carbon Stee l/ Galvanized steel / Aluminum / Copper/ Iron, etc

1000w 3000w 6000w 10000w Sheet Metal Square Tube Metal Fiber Laser Cutting Machine


Materials :

Fiber Laser Cutting machine can cut many metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized plate, aluminized zinc plate, pickling plate, copper, silver, gold, titanium and other metal plates and pipes. This machine has one 4th rotary, it can help you to cut tube (pipe) metals.

Industries :

Fiber Laser Cutting Machine can be applied to various industries, such as sheet metal processing, such as sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, grain machinery, textile machinery, engineering machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing, etc.

Product Details

Aviation Cast Aluminum Alloy Beam:

Machine adopts aviation cast aluminum alloy beam, which is manufactured according to the aerospace standards and extruded with 4300 tons pressure. The beam is processed by T6 heat treatment which can make the beam obtain the highest strength and strong deformation resistance.

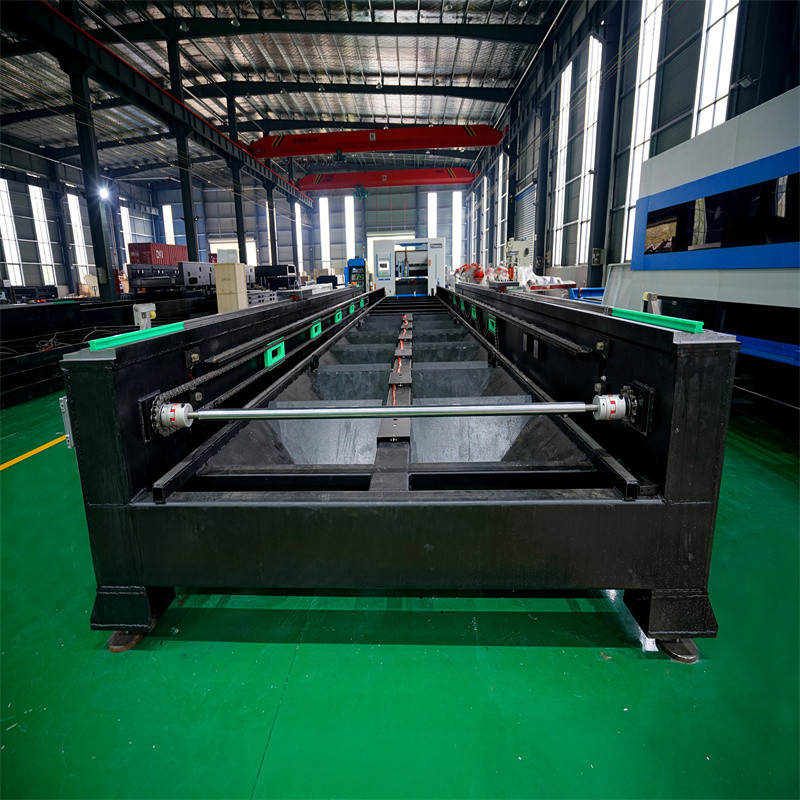

Stable & Strong Welded Steel Bed:

The bed is welded with big thickness square tubes, which can ensure a stable working performance. With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed , reduce vibration and guarantee a good cutting accuracy.
1000w 3000w 6000w 10000w Sheet Metal Square Tube Metal Fiber Laser Cutting MachineAuto Focus Laser Cutting Head:

Laser head with automatic focus function, which can adjust the focus automatically, no need to adjust it by hand. The software can change the focusing lenses automatically according to the different thickness of the materials. It can shorten the perforation time, improve the perforation quality and cutting speed. It’s simple, convenient and fast.

Dust-proof Electrical Cabinet With Air Conditioner

We put all electrical components and laser source into the independent control box, it is dust proof which can guarantee the life span of the components. Also we add the air conditioner on the control cabinets, which can keep the constant temperature automatically. It can prevent the high temperature damage for the components in summer.

Intelligent Software With Alarm Function

Adopts high definition toughened glass, intelligent touch, fast response and smoother operation. Ultra low power consumption and high resolution. The new intelligent alarm system is pushed to the interface through the control center to find abnormalities in advance, quickly eliminate and feed back, reduce hidden dangers, and there is no danger in remote alarm operation.

Servo Motors and Drivers

Adopts Japan Yaskawa motor, Japan Fuji motor or Taiwan Delta motor, with high precision, no step losing, high torque and low noise.

Good Quality Gears

Adopts Taiwan YYC / Germany HERION gears, which can make the machine position accuracy reach to 0.01mm


Japan Shimpo / France MOTOVARIO / Germany Lead-motion reducers
1000w 3000w 6000w 10000w Sheet Metal Square Tube Metal Fiber Laser Cutting Machine

Why Choose Us

High Quality Requirement from ourself

In order to ensure the high precision, every equipment will be finished with fine milling and high-temperature aging treatment, the structure will not deform after long-term use.

Strict Quality Control

RAYMAX has a strict and systematic quality control for each processing, from materials, production and delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main test includes rail transmission accuracy level test, cutting head vertical test, bed parallel and perpendicular test, etc.

Independent and Experienced R&D Department

In order to provide customized services and meet different working requirement for our customers, RAYMAX established one independent R&D department, which has 12 professional engineers. RAYMAX will update and innovate regulally.

Professional After-Sale Service

RAYMAX has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.

1. 3 Years warranty
2. 24-hour full after sales service.
3. OEM & ODM service
4. Online training, factory training, onsite training free of charge.


1. If I do not know how to operate the machine, how you can help me ?

First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.

2. What's your warranty?

Our warranty is 3 years, if there is any quality problems during warranty, we will send you new parts free of charge.

3. How about the shipping cost?

Please let us know your nearest seaport or door address, we will confirm the shipping cost with shipping companies.

4. How long can delivery the machine ?

Common machine can be delivered within 3-7 days. Customized machine need 12-14 days.

5. How about the payment?

T/T,20% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.


  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mm*3000mm
  • Cutting Speed: 120m/min
  • Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
  • Cutting Thickness: 0.1-50mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: CypCut
  • Laser Source Brand: MAX; IPG, Raycus,JPT
  • Laser Head Brand: Raytools,Au3tech, Precitec,Worthing, Empower,WSX
  • Servo Motor Brand: Japan Fuji, Japan Yaskawa,Panasomic, Delta
  • Guiderail Brand: HIWIN,THK,PMI,
  • Control System Brand: Cypcut
  • Weight (KG): 3500 KG
  • Key Selling Points: High-accuracy
  • Optical Lens Brand: Wavelength
  • Warranty: 3 years, 3 Years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Pressure vessel, Motor, Other, Bearing, Gear, Gearbox, PLC, Laser source
  • Mode of Operation: Pulsed
  • Configuration: 4-axis
  • Products handled: Sheet Metal and Tube
  • Feature: SERVO-MOTOR
  • Product Name: Sheet Metal and Tube Metal Laser Cutting Machine
  • Laser Power: 1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/20000W
  • Working area: 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm
  • Voltage: 220V/380V/415V/480V
  • Certificate: CE, ISO
  • Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
  • Color: Customized
  • Software: Cypcut Control Software
  • Keywords: Stainless Steel Plate Fiber Laser Cutting Machine
