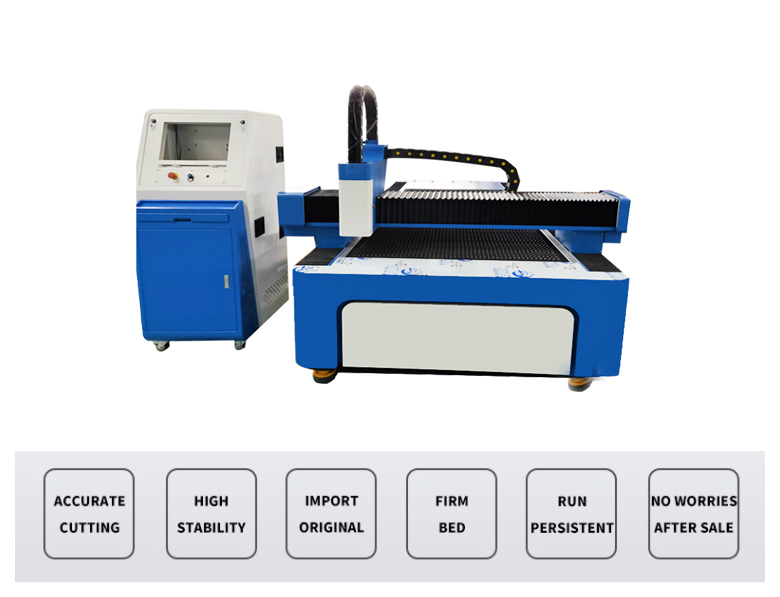

High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Main Features

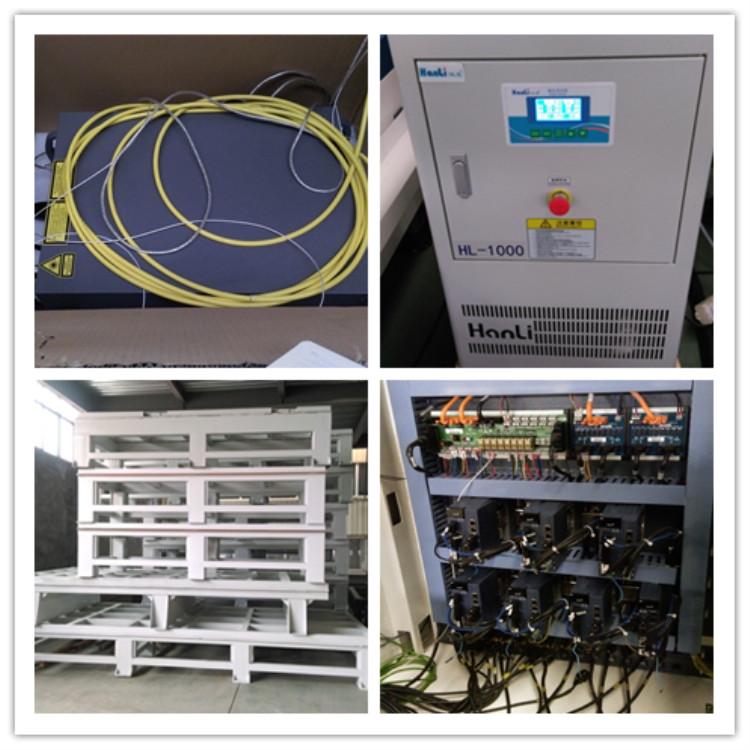

1. The famous brand of fiber laser resonator, electronic components, mechanical parts to ensure machine superior stability

2. Open design provides easy loading and unloading

3. Single working table saves space

4. Drawer style tray makes easy collecting and cleaning for the scraps and small parts

5. Gantry double driving structure, high damping bed, good rigidity, high speed and acceleration
High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Technical Date

Laser typeFiber laser
ModelHH-F1530
Fiber laser sourceRaycus, IPG, nLight(Optional)
Laser wavelength1070nm
Laser power300W, 500w,700W,1000W,1500w,2200w,3000w option
Cutting area1500mm x 3000mm
Moving systemJapanese YASKAWA servo motor, Germany Alpha Reducer and Germany Alpha
high precision rack and pinion, Hiwin linear guide transmitting system
Lubrication systemAutomatic Lubrication system
Fume and dust extraction systemSpecialized connection pipe with 2 centrifugal blowers (standard allocation)
Cooling systemProfessional water chiller system
Laser headGermany Precitec cutting head model: auto focusing
ControlCypcut control
Repeat position accuracy±0.02mm
position accuracy±0.03mm
Max Processing speed25m/min(up to materials)
Cooling wayWater cooling
Format supportedPRT,PLT, DXF,DWG, AI, DST,NV etc
Power supply requirementAC 380V 5% 50/60Hz 3Phase
Max steel cutting thickness1-22mm

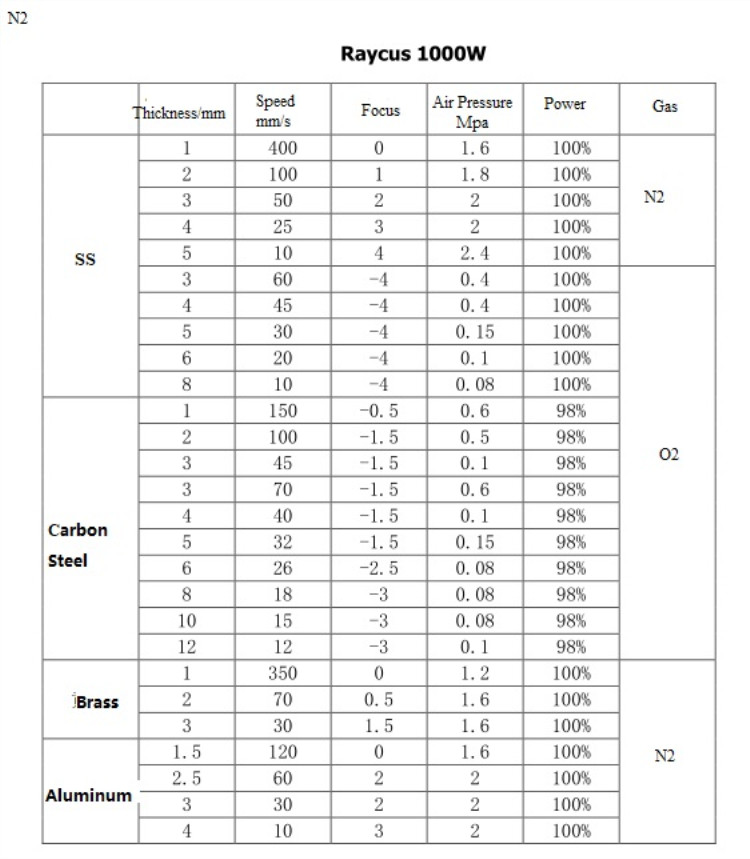

Cutting Thickness ,takes Raycus 1000W as example High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Application Industry

The advertisement industry, decoration industry, Racks & Cabinets Processing, Metal Crafts, engineering machinery, steel and iron, metal plate chassis, air-conditioner manufacturing, metal plate cutting, Sheet metal, hardware, kitchenware,  electronic, automotive parts, glasses, lighting, jewelry, etc

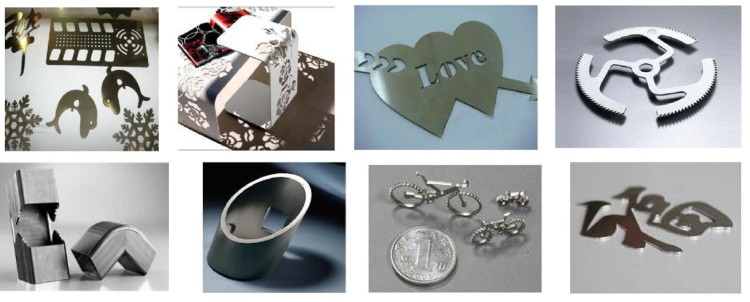

Available Materials

High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Specially for stainless steel, carbon steel, galvanized plate, many kinds of alloy, etc. If you want to cut high reflection metal materials, such as brass, copper, aluminum etc. We can customize the metal cutting machine according to your demands.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*12months warranty and 36months for motor
*24hours full after sale service to solve your problem. High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Package& Delivery

High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Inner package: Stretchy film and plastic film for humidity.

High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

Outside package: Standard marine export plywood case.

High Quality 1530 Fiber Laser Cutting Machine For Metal 500w 750w 1000w 1500w

We can package according to your requests.

FAQ

1. what's the package?

we use seaworthy packing,inside is a foam and PE film,outside is wooden case to protect it.

2. what's the warranty?

12months for all machines

3. How to install and run the machine?

we will send the install and video and user's manual with the machine, most customers can learn by themselves. we also provide romote machine or overseas training sevice.

4. Do you have the any materials for sale?

Yes,we have all kinds of materials such as aluminum coil and stainless steel.

5. MOQ ?

Our MOQ is 1 set machine.

Details

  • Application: LASER CUTTING
  • Applicable Material: Acrylic, Metal, Plastic
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500mmx3000mm
  • Cutting Speed: 60m/min
  • Graphic Format Supported: AI, PLT, DXF, Dst, Dwg
  • Cutting Thickness: 0-20mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut/AU3TECH
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: HIGHYAG
  • Servo Motor Brand: Inovance
  • Guiderail Brand: NSK
  • Control System Brand: WEIHONG
  • Weight (KG): 1000 KG
  • Key Selling Points: Easy to Operate
  • Optical Lens Brand: II-VI
  • Warranty: 1 Year
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Engine
  • Mode of Operation: continuous wave
  • Configuration: 2-axis
  • Products handled: Sheet Metal and Tube
  • Feature: Automated Loading
  • After-sales Service Provided: Online support
  • Keyword: Laser Metal Cutting Cnc Machine
  • Laser power: 300-1500W
  • Cutting materials: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )
  • Control system: Cypcut Control System
  • Color: Customer Requirement
  • Power supply: 380V/50HZ
  • Moving System: Servo Motor
  • Repeat position accuracy: ±0.03mm
  • Showroom Location: Saudi Arabia
