1530 2040 2060 2580 Heavy Duty Automatic Fiber Laser Cutting Machine For Stainless Steel

1. Fiber laser cutter power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.

2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.

3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.

4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.

5. China Top fiber laser machine cutting manufactuers, RAYMAX laser, best price and high quality, with CE etc certificates.

1530 2040 2060 2580 Heavy Duty Automatic Fiber Laser Cutting Machine For Stainless Steel

Product Description

mainly for metal plates,equipped with high power fiber laser,precise linear guide rail and high precision rack and pinion, high performance numerical control system, High precision, high efficiency and high cost performance. It is safety and environmental due to its covering of dust proof.

Product Details

Aluminum crossbeam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Welding bed

Environmentally friendly dust removal system with segmental cell.

Status light

Through Intelligent working buttons with different colors, people can easily know the working condition of the machine.

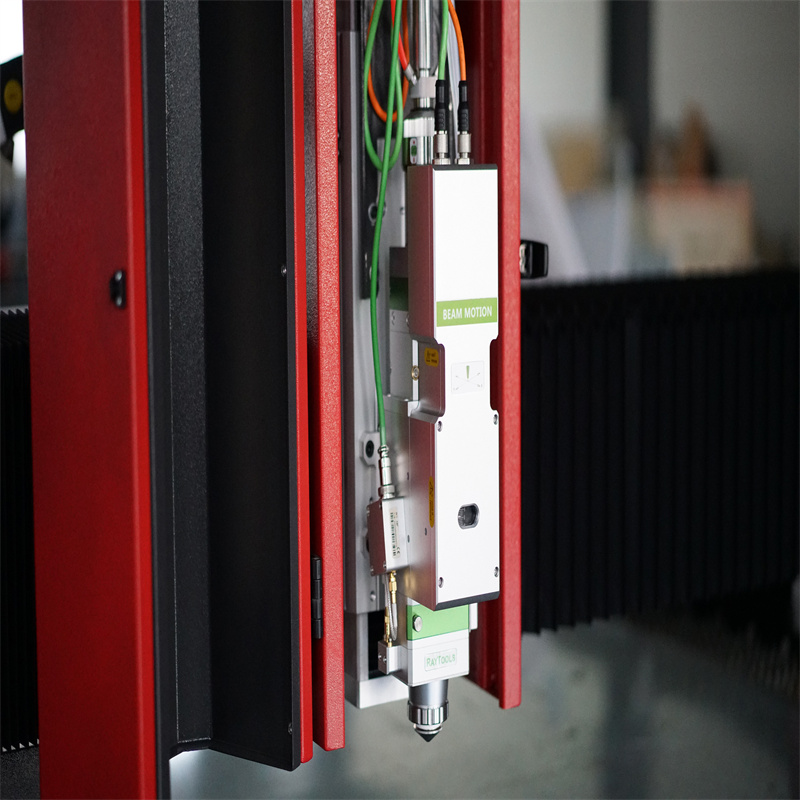

Laser head

Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations.

high power fiber laser

Using well-known fiber laser tools, whcih photoelectric conversion efficiency is high, power consumption is low.

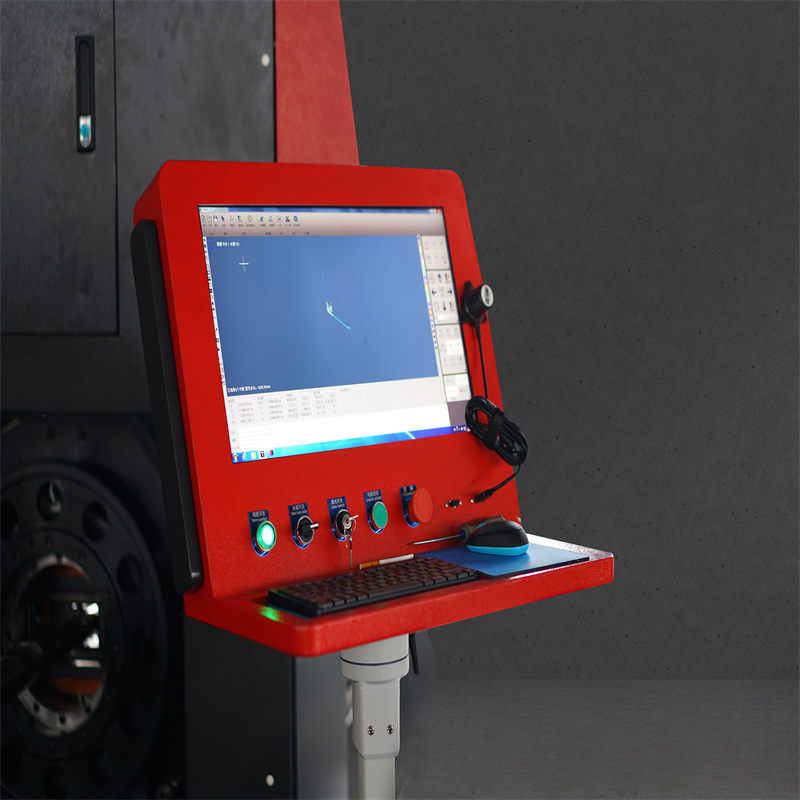

Power Distribution Cabinet

Independent electric control cabinet, making a easier operating and maintaining.

1530 2040 2060 2580 Heavy Duty Automatic Fiber Laser Cutting Machine For Stainless Steel

Product Paramenters

NO.ItemParameterUnit
1Flat cutting format (length * Width)4000x2000mm
2X axis travel2050mm
3Y axis travel4050mm
4Z axis travel300mm
5X, Y axis positioning accuracy±0.05/1000mmmm
6X, Y axis repeated positioning accuracy±0.03/1000mmmm
7Acceleration1.3Gm/s²
8Maximum operating speed120m/min
9Maximum load of platform2500kg
10Host shape (length, width and height)10175×3192×2033mm
11Laser Power4000w
12Control SystemBaichu
13Total machine power38Kw
14Power requirements380v/50Hz

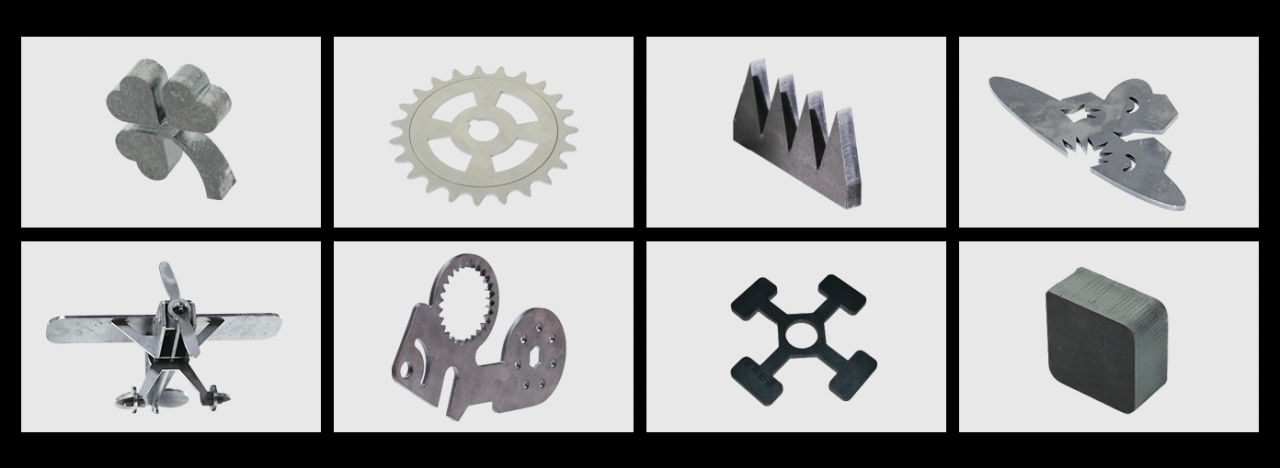

Sample

1530 2040 2060 2580 Heavy Duty Automatic Fiber Laser Cutting Machine For Stainless Steel

FAQ

Q: Do you have CE document and other documents for customs clearance?

A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give youCE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?

Different customers, different requirements, and many different laser power can be optional, that's why we list the price notinclude fiber source parts.

Q: If we are interested in your machine, how to choose proper power?

Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q: How can I do if the laser cutting machine goes wrong?

A: If confronted with such problems, please contact us asap and do not tryfix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?

A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some partswill be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across theworld, We need your machines running in order to keep your business running, 24H Online ServiceExtensive coverage of 30 domestic offices and institutions to create a 2-hour service arrival. Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.Multi-batch customer return visits, timely discovery of problems to solve and improve.

Details

  • Application: LASER CUTTING
  • Applicable Material: Metal
  • Condition: New
  • Laser Type: Fiber Laser
  • Cutting Area: 1500*3000mm
  • Cutting Speed: 80M/min
  • Graphic Format Supported: AI, DXF
  • Cutting Thickness: 0.5-20mm
  • CNC or Not: Yes
  • Cooling Mode: WATER COOLING
  • Control Software: Cypcut
  • Laser Source Brand: RAYCUS
  • Laser Head Brand: Raytools
  • Servo Motor Brand: Panasonic
  • Guiderail Brand: HIWIN
  • Control System Brand: Cypcut
  • Weight (KG): 12000 KG
  • Key Selling Points: Automatic
  • Optical Lens Brand: II-VI
  • Warranty: 2 years
  • Applicable Industries: Hotels, Manufacturing Plant, Farms, Retail, Food Shop, Construction works , Advertising Company
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Pressure vessel, Motor, Gearbox
  • Mode of Operation: Pulsed
  • Configuration: gantry type
  • Products handled: Sheet Metal
  • Feature: Automated Loading
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Laser source: Raycus
  • location precision: 0.05mm
  • cutting precision: 0.1mm
  • laser head: Germany technology
  • machine body: welding
  • Cutting mode: fiber laser cutter
  • Product name: Fiber Laser Metal Cutting Machine
  • NET WEIGHT: 5000KG
  • Keyword: automatic fiber laser cutting machine price for stainless steel
