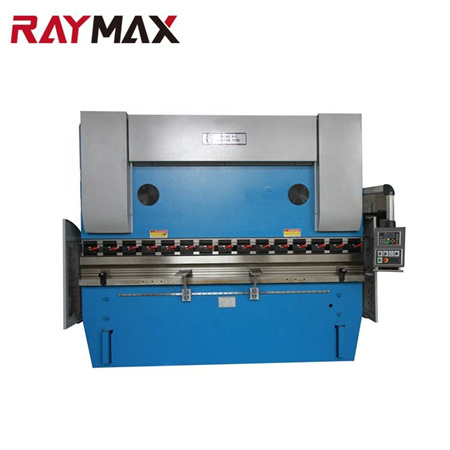

80 ton press brake

Products Description 1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity. 2. Mechanical torque system makes sure the synchronization of cylinders. 3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel. 4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable. DA53T controller features: “Hot-key” touch navigation 10.1" high resolution colour TFT Up to 4…

CNC controller DA53T： DA-50Touch, numerical touch Compact CNC 4 axis press brake DA58T：DA-50Touch, 2D graphical touch CNC 4 axis press brake DA66T： DA-Touch series, 2D graphical front-end CNC 6 axis or 8 axis press brake DA69T: DA-Touch series, 3D graphical front-end CNC 6 axis or 8 axis press brake Press brake under working press brake wholistic processing Backgauge of the press brakeyou can choose the backgauge,we have many type, this is simple one. Motor and pumpyou can choose the motor brand and gear pump Side of the press brakethis is deep throat depth Special die we can customized die according to your…

Products Description Product parameters Model Nominal pressure(KN) Length of table(mm) Distance between columns(mm) Throat depth(mm) Stroke(mm) Open height(mm) Main motor(KW) Overall dimensions L×W×H(mm) 63t/2500 630 2500 1905 300 150 420 5.5 2700*1700*2300 63t/3200 630 3200 2700 300 150 420 5.5 3400*1700*2300 80t/2500 800 2500 1900 300 150 420 5.5 2700*1700*2400 80t/3200 800 3200 2700 300 150 420 5.5 3400*1700*2300 100t/3200 1000 3200 2700 350 180 420 7.5 3400*1800*2600 100t/4000 1000 4000 3100 350 180 420 7.5 4200*1800*2600 125t/3200 1250 3200 2700 350 200 420 11 3400*1900*2600 125t/4000 1250 4000 3090 350 200 420 11 4200*1900*2600 160t/3200 1600 3200 2600 350…

High Precision The main oil cylinders fitted on both sides adopt closed loop control mode which is composed of Germany electro-hydraulic servo valve and imported grating ruler,breaking through the stroke control mode of traditional mechanical stop bending machines. Back Gauge The functional components of the back gauge are all imported, ensuring the stopping precision. The machine also can adopt more functional multi-axis blocking according to the customers' requirements. Hydraulic System The hydraulic system adopts integrated control system imported from Germany, which decreases the installation of pipelines and ensures working stabillity of machine tool and conciseness and beauty in appearance. Details…
