The main oil cylinders fitted on both sides adopt closed loop control mode which is composed of Germany electro-hydraulic servo valve and imported grating ruler,breaking through the stroke control mode of traditional mechanical stop bending machines.
The functional components of the back gauge are all imported, ensuring the stopping precision. The machine also can adopt more functional multi-axis blocking according to the customers' requirements.
The hydraulic system adopts integrated control system imported from Germany, which decreases the installation of pipelines and ensures working stabillity of machine tool and conciseness and beauty in appearance.

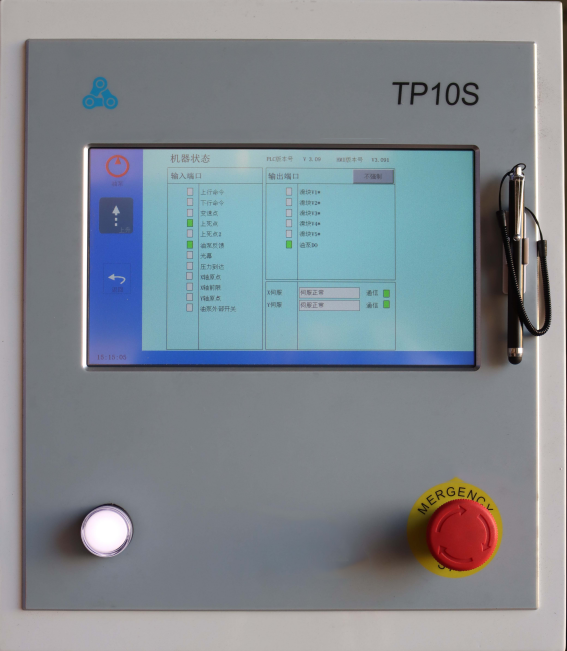

256K true color touch screen.
Support multi-angle programming, the system automatically calculates the bending depth.
For 200 programs, each program has 20 steps.
Soft limit function, power off memory.

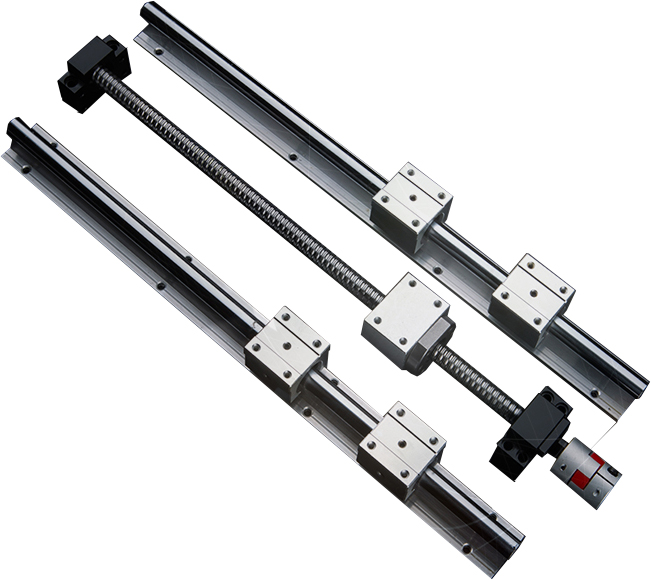

Ball Screw and Linear Guide
RAYMAX HSK series bending machine is equipped with ball screw and linear guide. The advantage of using ball screw and linear guide is that it can reduce driving torque, improve transmission efficiency and ensure positioning accuracy.

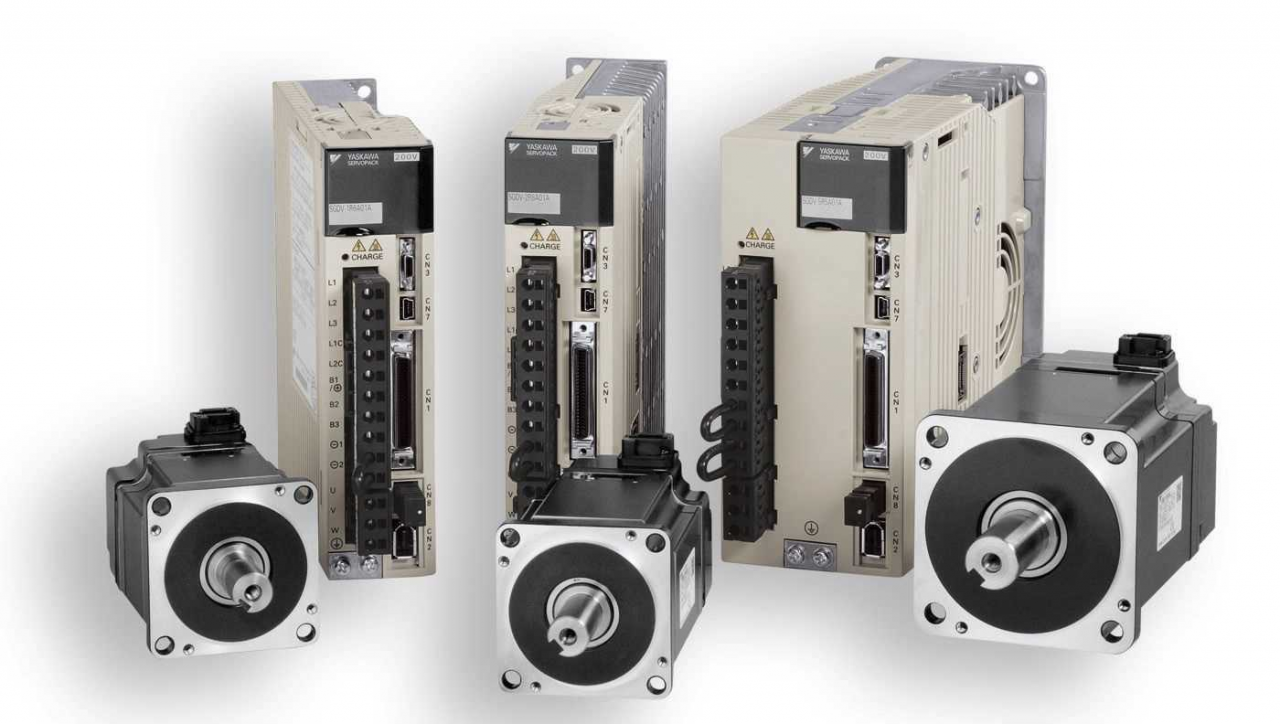

The RAYMAX HSK series bending machine is equipped with a servo motor and driver. The advantages of the servo motor are high positioning accuracy, strong anti-overload ability, and stable low-speed operation.

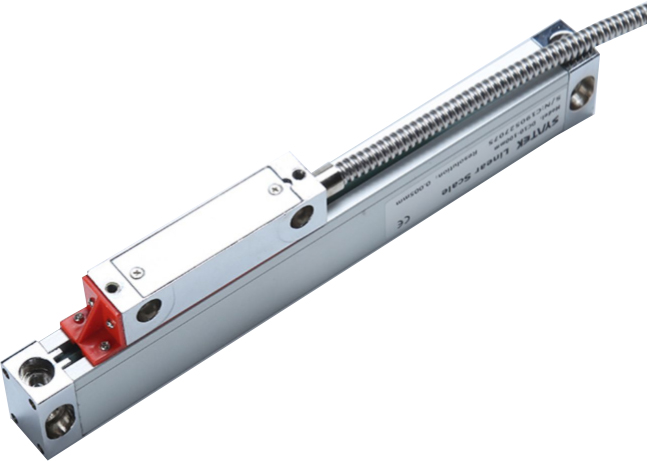

RAYMAX HSS series bending machine adopts grating ruler to measure feedback accuracy. The grating ruler adopts a semi-sealed design, which has certain functions of waterproof, dustproof and iron filings. Solenoid Valve GroupThe RAYMAX HSK series bending machine adopts the German Rexroth solenoid valve group. The advantage of the solenoid valve group is that the external leakage is blocked, the internal leakage is easy to control, the use is safe, the system is simple, the power is small, and it can be connected to the computer.

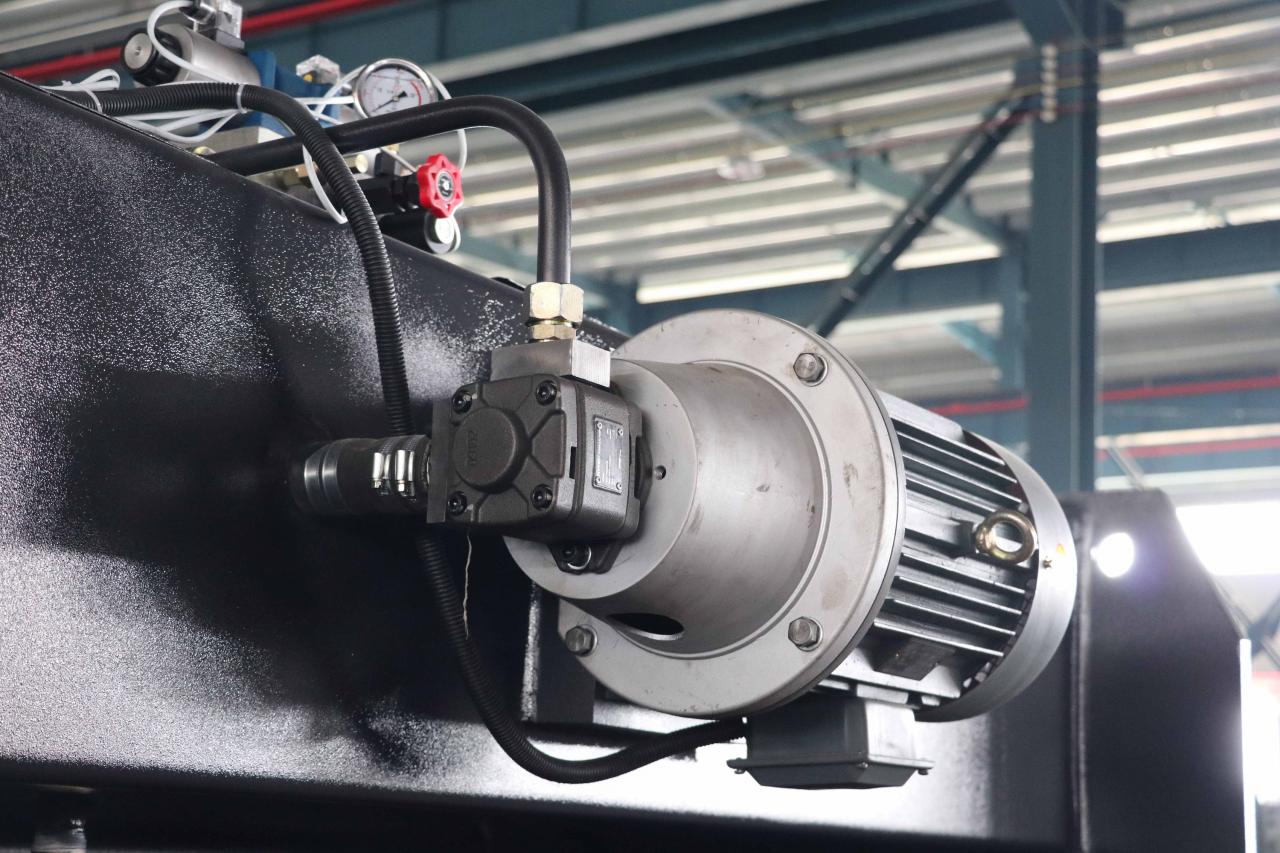

RAYMAX HSK series bending machine is equipped with American Sunny oil pump. The advantages of SUNNY oil pump are low noise, small flow and pressure fluctuation, stable flow and pressure output at low speed, insensitive to oil pollution, long service life .

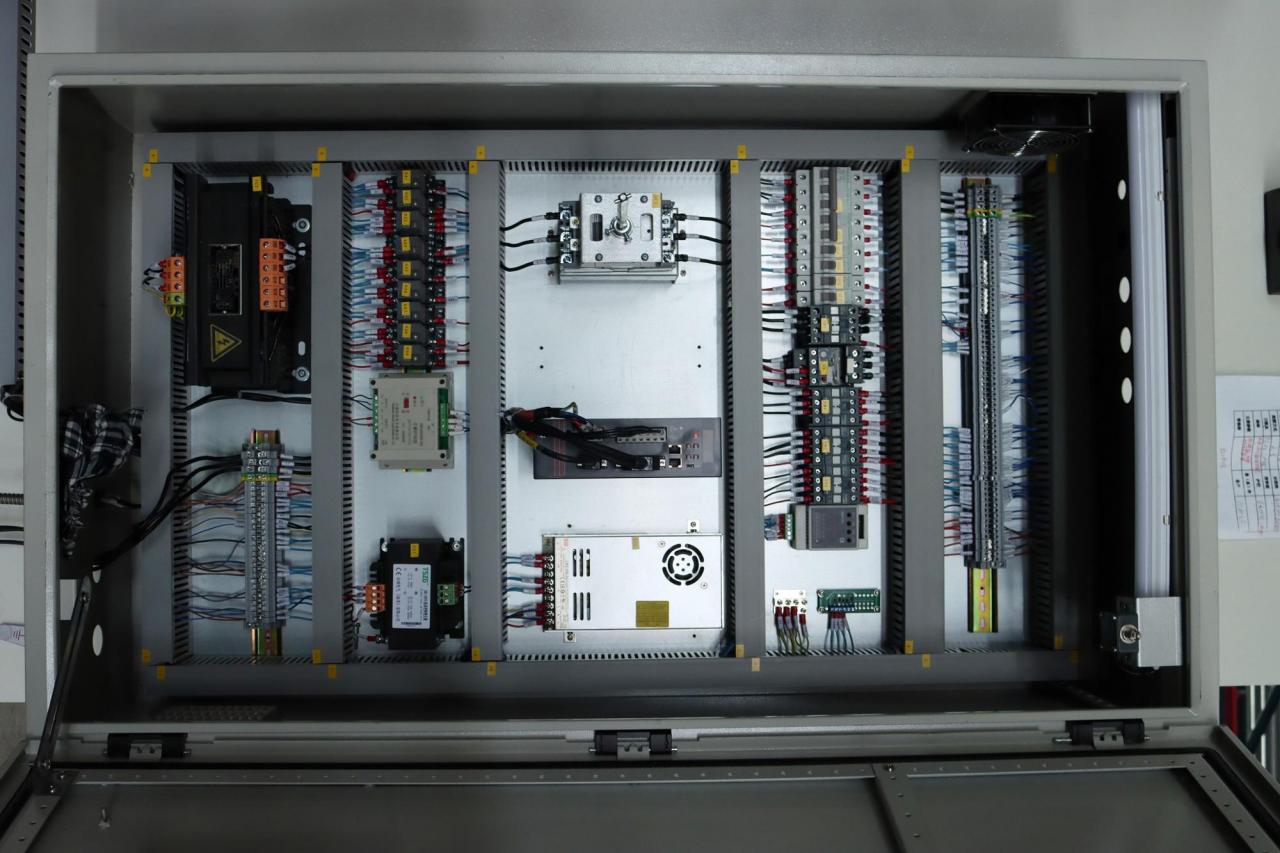

Main Electrical Components
RAYMAX HSK series bending machine adopts French Schneider electric components, which are safe and reliable, strong anti-interference ability, and have short circuit, overload, and phase loss protection.

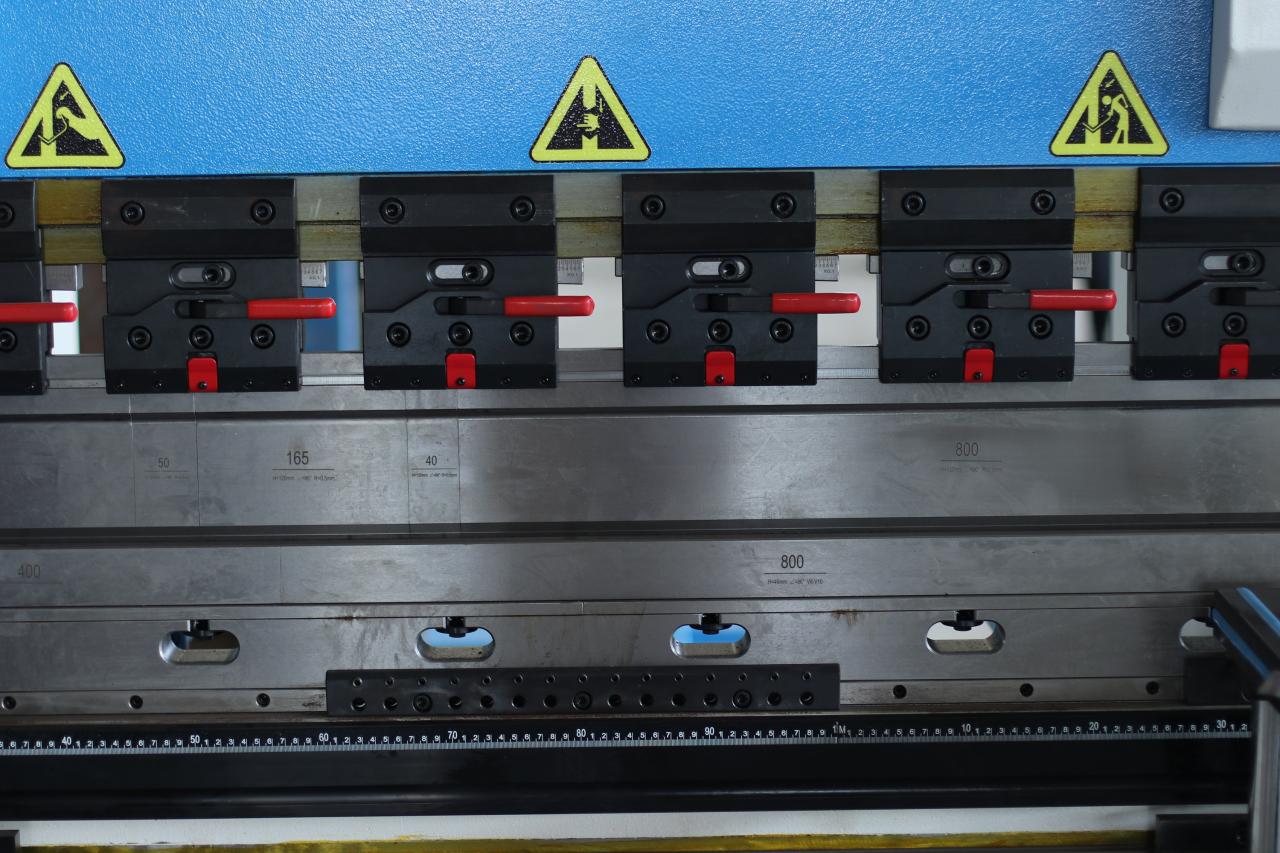

RAYMAX Quick Clamping System
● safe and fast tool change
● substantial improvement in time consumption and related costs
● Secure against tool falling down
●Available in manual, pneumatic and hydraulic models.
● Mounting: Simply from the bottom into the housing, tighten-DONE!
● Easy to mount on your press brake.Modify cation of the press brake is not necessar Security configuration

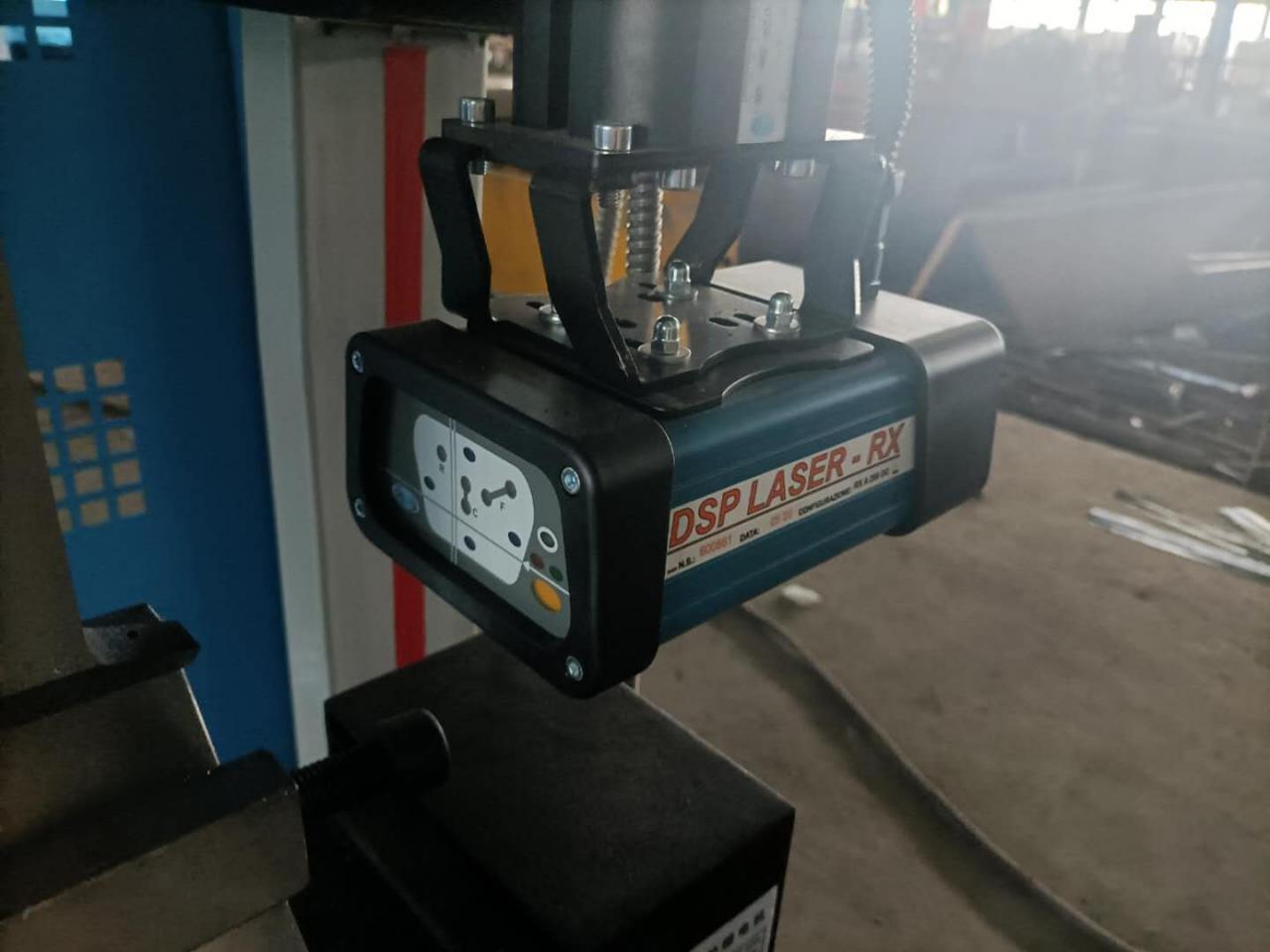

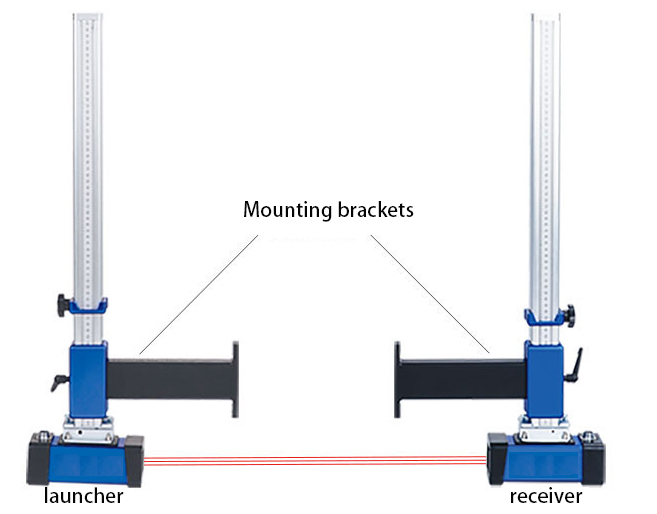

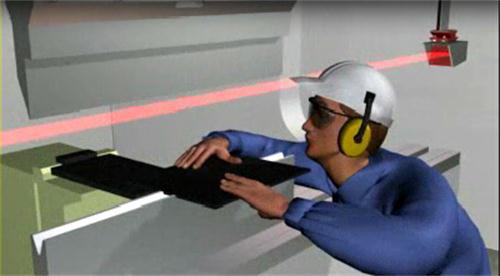

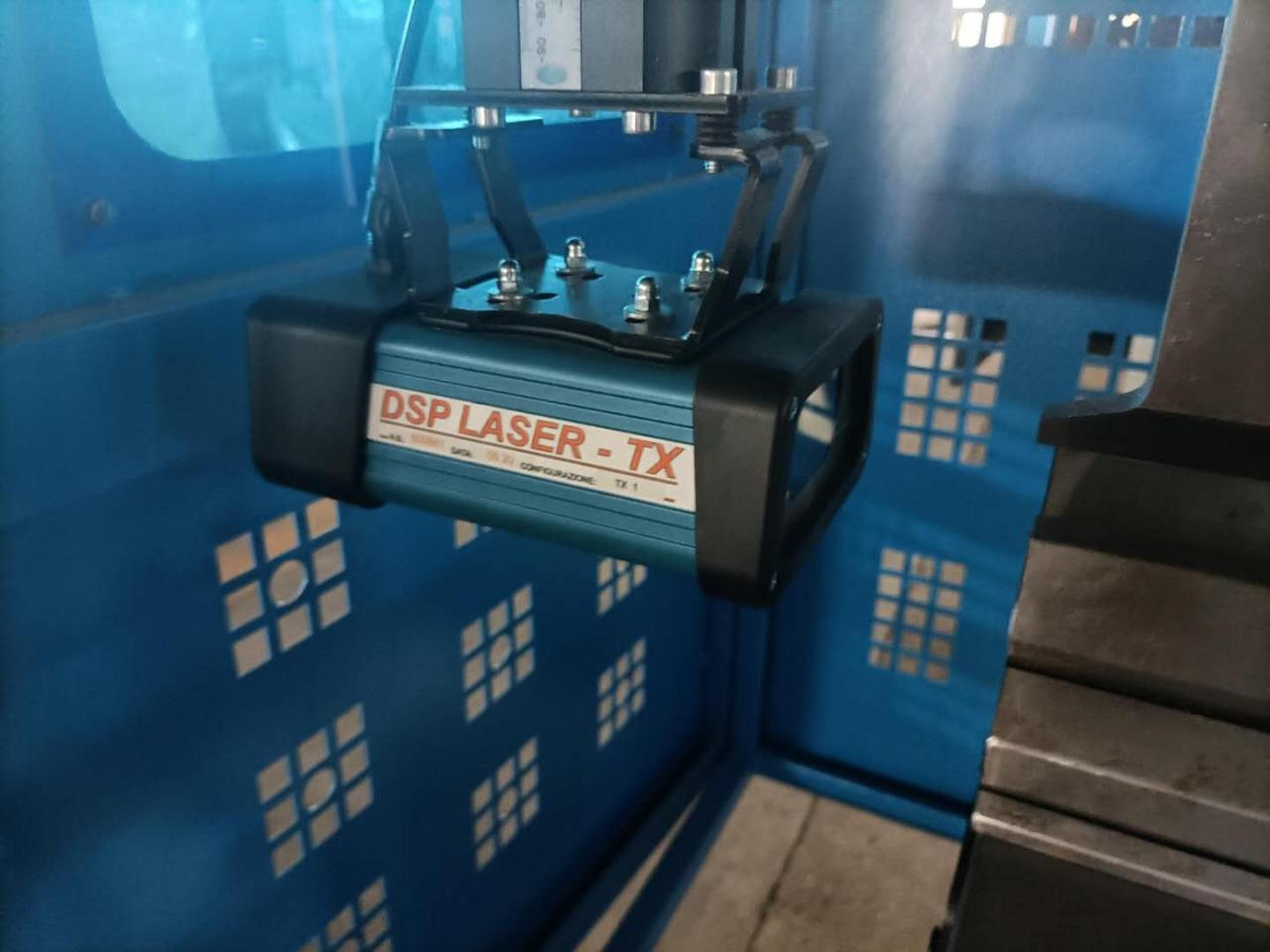

RAYMAX Photoelectric Safety Protection
The RAYMAX photoelectric protection system provides efficient solutions for operator safety and machine production. It meets 4 types of standards and can meet the most demanding requirements in the world, international safety standards.
The RAYMAX HSK series of bending machines are equipped with protective nets on the front and rear sides to protect the safety of the operator and prevent the safety of other personnel.
1. Buyer pays 30% advance payment.
The machine began to make processing.According to the customer's configuration requirements, from the processing of the machine frame, the heat treatment, the selection of accessories, the assembly of the machine and the production and debugging, this process takes about 15-20 days.
2. After the machine is made, the buyer pays the remaining 70% of the amount.
After the machine is manufactured and debugged, we will send the video to the buyer and transport it to a port in China for shipment to the destination port. This process takes about 1 -2 days.
After the machine is put into the container at the port, we will wait for the scheduled sailing schedule. Generally, we will choose to book the nearest sailing schedule. This process takes about 2-3 days
After the agreed sailing time is up, the machine will be transported from the Chinese port to the destination port. According to the distance between each country/region, this process will be different, and the sailing time will also be different, but we will inform you about the situation before the buyer pays. Sailing days
Q: Are you a factory or a trading company?
A: We are factory.we produce our own brand machines
Q: How long is the warranty period of your machine?
A: The whole machine is guaranteed for one year, and the core components are guaranteed for two years.
Q: Can you supply the relevant documentation?
A: Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Q: How about the shipping fees?
A: The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
- Slider Stroke (mm): 800 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 800 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 2000
- Width of Working Table (mm): 1000 mm
- Dimension: depends on the model, 3200*1600*2600
- Condition: New, New
- Brand Name: RAYMAX
- Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel
- Automation: Automatic, Automatic
- Year: 2020
- Weight (KG): 7500
- Motor Power (kw): 7.5 kw
- Key Selling Points: High Productivity
- Warranty: 2 years
- Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Printing Shops, Construction works , Energy & Mining
- Showroom Location: Turkey, Italy, Viet Nam, Brazil, Peru, Indonesia, India, Spain, Thailand, Argentina
- Marketing Type: New Product 2020
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 2 years
- Core Components: Motor, Gear
- Norminal pressure: 1250T
- Work-bench length: 3200mm
- Max .opening height: 320mm
- Main motor: 7.5Kw
- Extra Services: Heat Treating
- Stroke: 120MM
- Nominal Pressure (kN): 3000
