Electro-hydraulic press brake

RAYMAX press brake features an CNC crowning system for improved quality, a servo driven back gauge system for
increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increasedworking speeds, stroke, daylight, and pressing capacities of GENIUS Series machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.

Cnc Press Brake With Photoelectric Guard Electro-Hydraulic Synchronous Bending Machine

Product Specifications

Type63T/250080T/3200100T/3200160T/3200200T/3200250T/3200300T/3200
Nominal Force (KN)63080010001600200025003000
Bending Length (mm)2500320032003200320027003200
Vertical Distance (mm)1900270027002700270027002700
Depth of Throat (mm)350350400400400400400
Slider Travel (mm)170170200200200200200
Max.Opening (mm)380380420420420420420
Main Power (Kw)5.57.57.511151522
Crowing Cylinders2333333
Control Axes3+13+13+13+13+13+13+1
X Axis Travel(mm)500500500500500500500
X Axis Speed (mm/s)200200200200200200200
Overal Dimension
(LxWxH)(mm)
3100x1450x20503500x1550x21003500x1580x24003500x1650
x2500
3500x1680
x2550
3500x1700
x2600
3500x1800
x2730
Weight(Ton)5.87.88.51114.215.616.8

Cnc Press Brake With Photoelectric Guard Electro-Hydraulic Synchronous Bending Machine

Product Configuration

DA-53T control system

*"Hot-key”touch navigation

*10.1" high resolution colour TFT

*Up to 4 axes (Y1,Y2 + 2 aux. axes)

*Crowning control

*Tool / material / product library

*Servo and frequency inverter control

*Advanced Y-axis control algorithms for  closed-loop as well as open-loop valves.

*TandemLink (option)

*USB memory stick interfacing

*Profile-T offline software

Fast Clampings

*Standard double-V lower dies with different size and various shaped slots for choice, convenient for exchanging dies, capable for bending regular plates, with high cost performance-ratio CNC double-V die workbench, convenient for installation of segmented dies .

Taiwan HIWIN Ball Screw And Linear Guide Rail

*Equipped with Taiwan HIWIN ball screw and linear guide rail, backgauge adopts horizontal installation shell structure with high stability, single shell double guide rail, high precision, X axis drive, automatic CNC system
Cnc Press Brake With Photoelectric Guard Electro-Hydraulic Synchronous Bending Machine

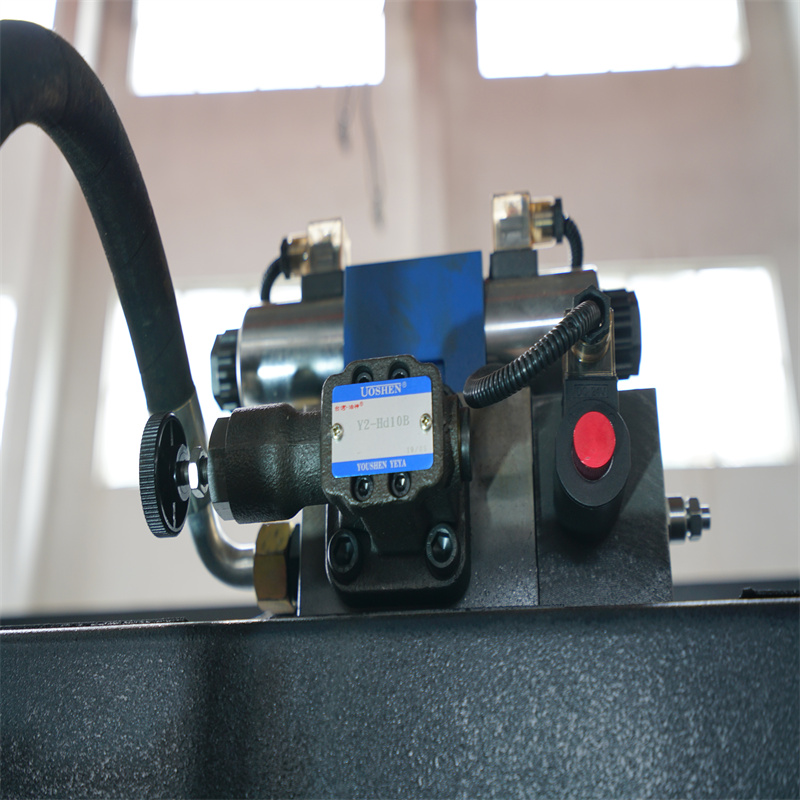

World famous Hydraulic value set

Adopt the best quality Germany BOSCH REXROTH cylinder valve to ensure high performance and high reliability,no ol leakage and fault.

V- -axis Mechanical Crowing

V-axis mechanical crowing, improving the accuracy of bending angle and linearity

Siemens motor

Guarantees the machine service life ,and reduce the noise when working

Foot Switch

*It is movable and can stop the operation anytime you want by emergency button. Enchancing the service life and optional sensitiviy. It is more reliable.

Manual back gauge finger

*2 to 5 back gauge fingers (standard 3)

0il pump

*American world famous brand for hydraulic pump. It performs well and provides great power for the whole system. Using Sunny pump ensures the pump service life and lower working noise.

42CrMo Toolings

*The dies are made by 42CrMo steel ,hardness after heat treatment up to 42 degrees,ensuring the die service life

Spain FAGOR Grating ruler

*Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler, then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controling the slider (Y1 ,Y2)running on the same frequency, maintaining the parallel state of the worktable.

Powerful Cabinet

*French schneider electrics to ensure machine stability, and Estun servo drive to control the accuracy of X, Y axes .

*Open Door

*Power Off

Details

  • Slider Stroke (mm): 120 mm
  • Automatic Level: Fully Automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: Synchronized
  • Length of Working Table (mm): 3200
  • Width of Working Table (mm): 3200 mm
  • Dimension: 3500x1700x2200mm
  • Condition: New
  • Place of Origin: China
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: Cut To Length
  • Year: 2021
  • Weight (KG): 2800
  • Motor Power (kw): 13.5 kw
  • Key Selling Points: Automatic
  • Warranty: 2 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
  • Showroom Location: None
  • Marketing Type: New Product 2021
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Bearing, Motor, Pump, PLC, Engine
  • CNC Control system: DA53T
  • Function: Sheet metal bending
  • Power: 13kw
  • Product name: press brake
