mechanical sheet metal shear

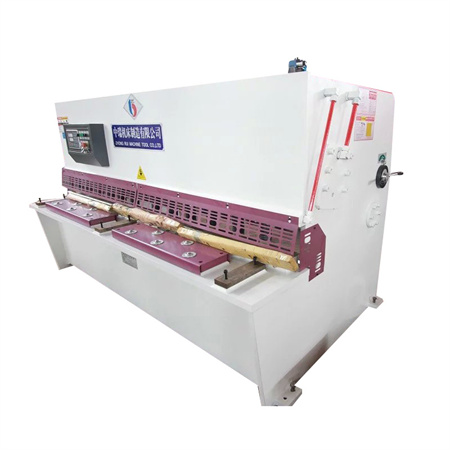

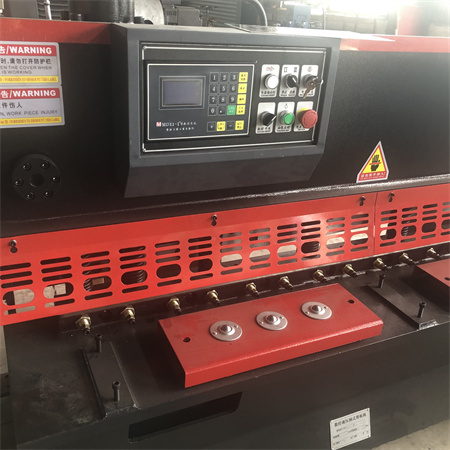

Product Information CNC Hydraulic Guillotine | QC11K 10 12 16 mm 3200 4000mm Metal Guillotine Shear CNC Guillotine Shearing Machine * Streamlined design originated from EU, the kind of machine tool consists of rack, cutter holder, oil cylinder, hydraulic controller,backgauge and other components. Finite-element analysis of main parts, welding parts uses tempering, vibration and other processing methods to eliminate stress ensuring the structural strength and rigidity of the rack and components; * Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent and realizing seamless rolling during cutter holder moving. * Leftmost front holder configured…

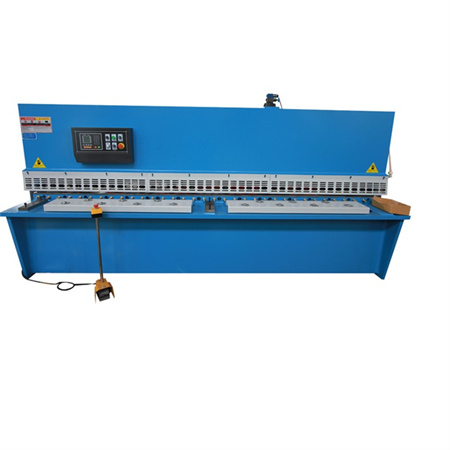

Products Description Max. Cutting Width (mm): 3200 Max. Cutting Thickness (mm): 8 mm Automatic Level: Fully Automatic Blade Length (mm): 2000 mm Backgauge Travel (mm): 10 - 600 mm Throat Depth (mm): 120 mm Condition: New Power (kW): 7.5 kW Weight (KG): 5150 KG Place of Origin: Anhui, China Voltage: 220V/380V Dimension(L*W*H): 3860*1700*1700mm Certification: CE Warranty: 3 years Machinery Test Report: Provided Video outgoing-inspection: Provided Warranty of core components: 1 Year Core Components: Motor, Pump Cut Thickness: 6mm Cut length: 3200mm Shear Angle: 0.5-2°' SPM: ≥ 22/Min-1 Back Gauge: 20-600mm Throat Depth: 110mm Hydraulic CNC Shearing Machine for Metal Shear…

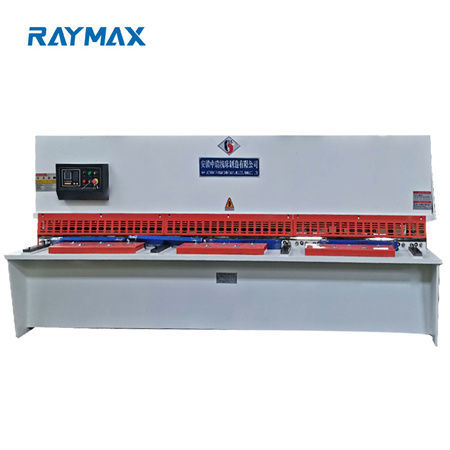

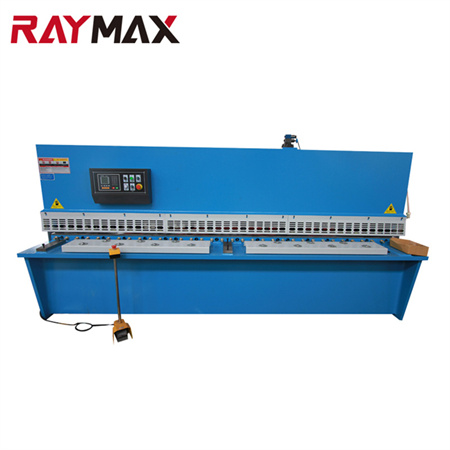

HYDRAULIC GUILLOTINE SHEARS MASTER SERIES The RAYMAX guillotine shear is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cutsand of extremely high quality. MACHINE DESIGN RAYMAX Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.…

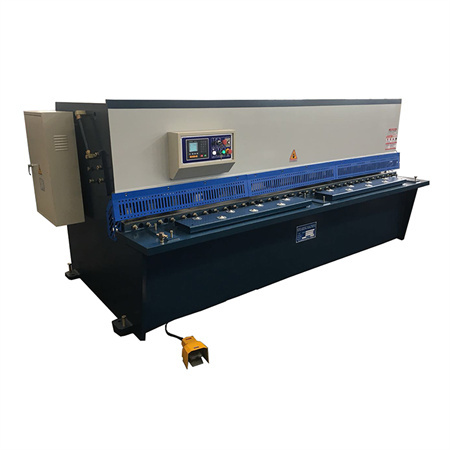

Main functions and features 1. The second generation of shear. 2. Welded steel plate construction, heating to eliminate stress, with high strength and good rigidity. 3. Advanced integrated hydraulic system with and excellent reliabitity quality. 4. Rapidly,accurately and conveniently adjusting the blade clearance by motor 5. The adjustable rake angle can minimize plate deformation. 6. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can be also guaranteed. 7. Shearing in sections, shadow-line cutting. 8. Counter for the motorized back gauge. 9. Back support device (optional).…
