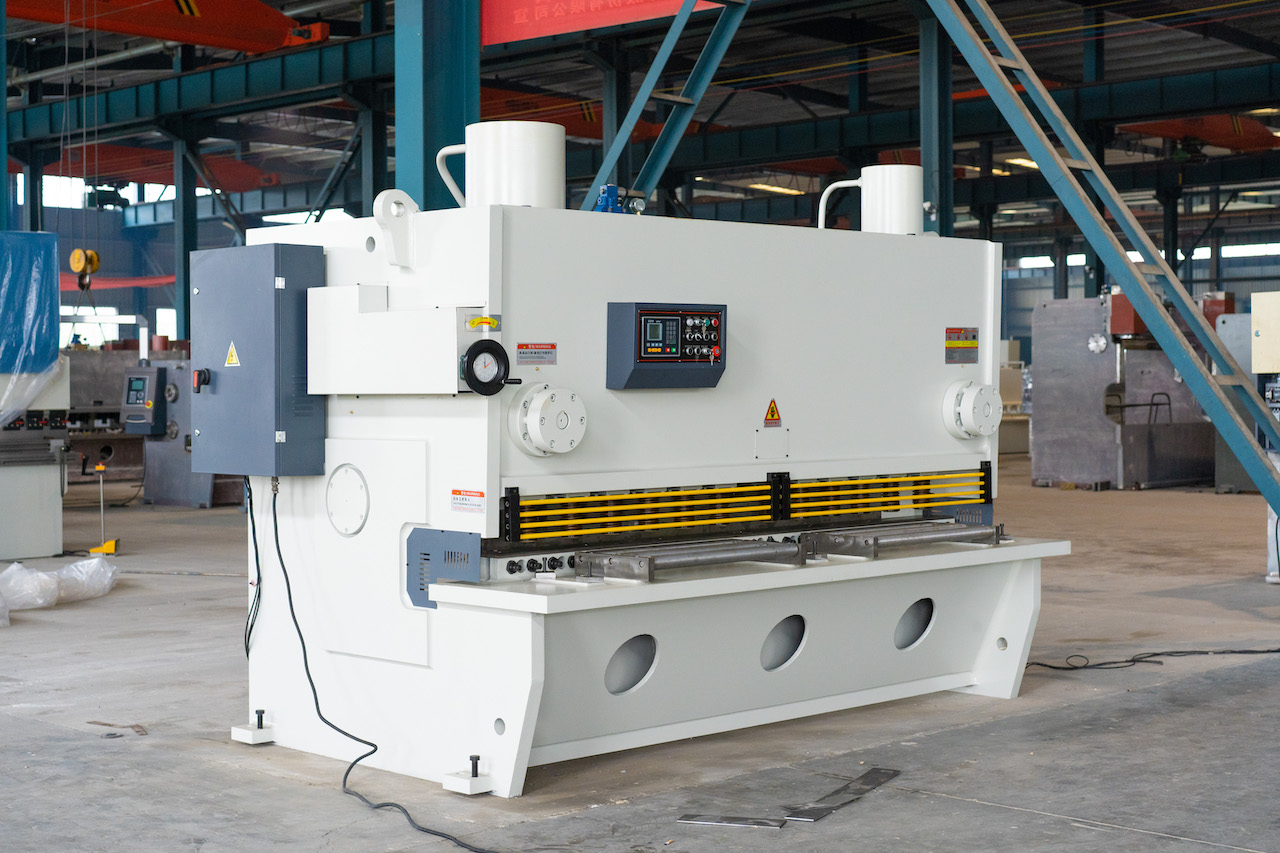

Qc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing Machine

Products Description

Max. Cutting Width (mm): 3200
Max. Cutting Thickness (mm): 8 mm
Automatic Level: Fully Automatic
Blade Length (mm): 2000 mm
Backgauge Travel (mm): 10 - 600 mm
Throat Depth (mm): 120 mm
Condition: New
Power (kW): 7.5 kW
Weight (KG): 5150 KG
Place of Origin: Anhui, China
Voltage: 220V/380V
Dimension(L*W*H): 3860*1700*1700mm
Certification: CE
Warranty: 3 years
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump
Cut Thickness: 6mm
Cut length: 3200mm
Shear Angle: 0.5-2°'
SPM: ≥ 22/Min-1
Back Gauge: 20-600mm
Throat Depth: 110mm

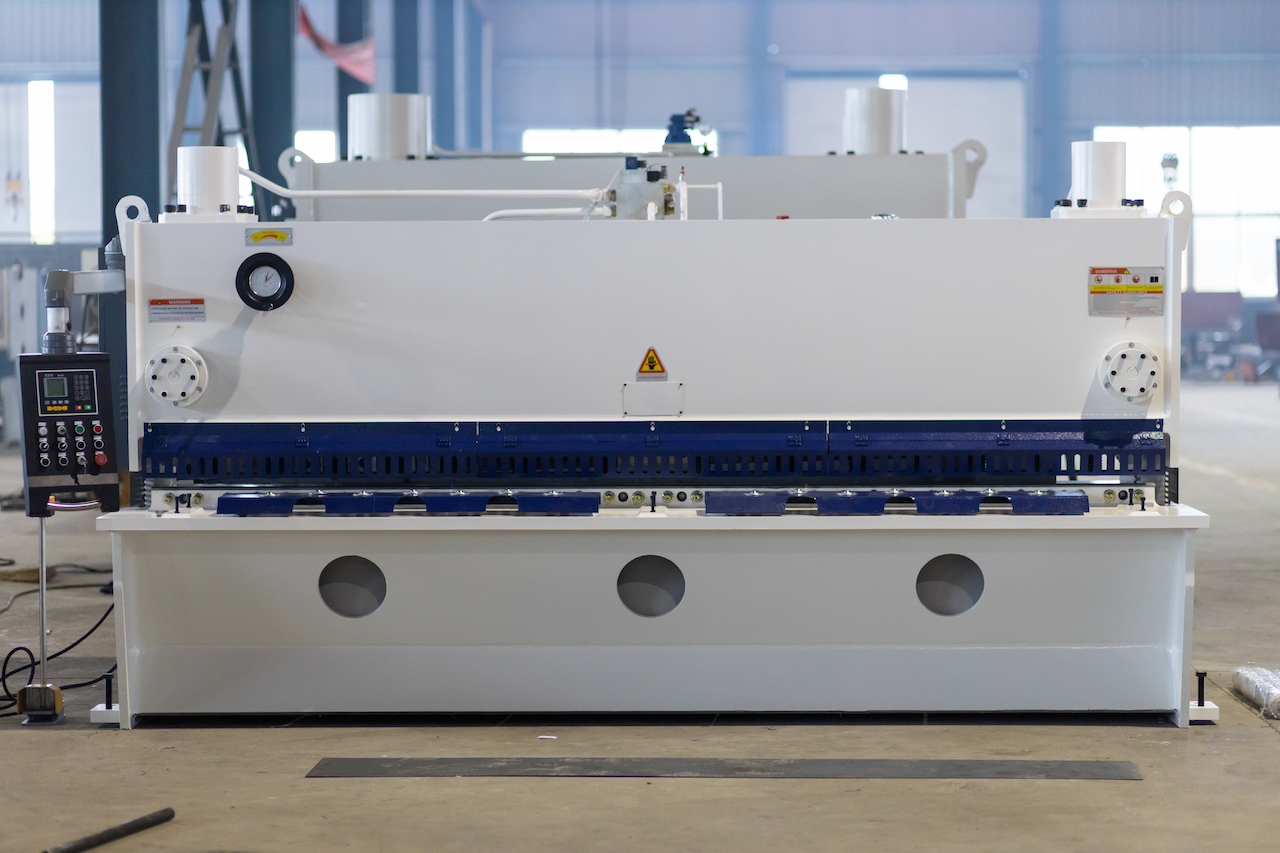

Qc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing Machine

Hydraulic CNC Shearing Machine for Metal Shear Cutting Machine

Hydraulic CNC Shearing Machine for Metal Shear Cutting MachineHydraulic Shearring machine QC11Y can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting; QC11Y is developed by engineers of RAYMAX reflects innovative technology with all aspects of it.

Standard Equipment:

1. Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.

2. Portable foot pedal is eligible for single and automatic cutting.

3. ESTUN E21s NC controller System.

4. NC controlled motorized backgauge system.

5. 600 mm motorized back gauge system with 0.1 mm accuracy.

6. Front support arms with T slot, ruler and flip stop.

7. Squaring arm.

8. Scales with metric and inches.

9. Cutting line illumination and shadow line.

10. Central lubrication system.

11. Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.

12. Rear sliding plates.

13. Front sliding plates with ball bearings on the table.

Cutting thickness8mm
Cutting length3200mm
Cutting angle1°30`
Material strength450KN/CM
Travel time8Mm-1

Details Images

Qc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing Machine

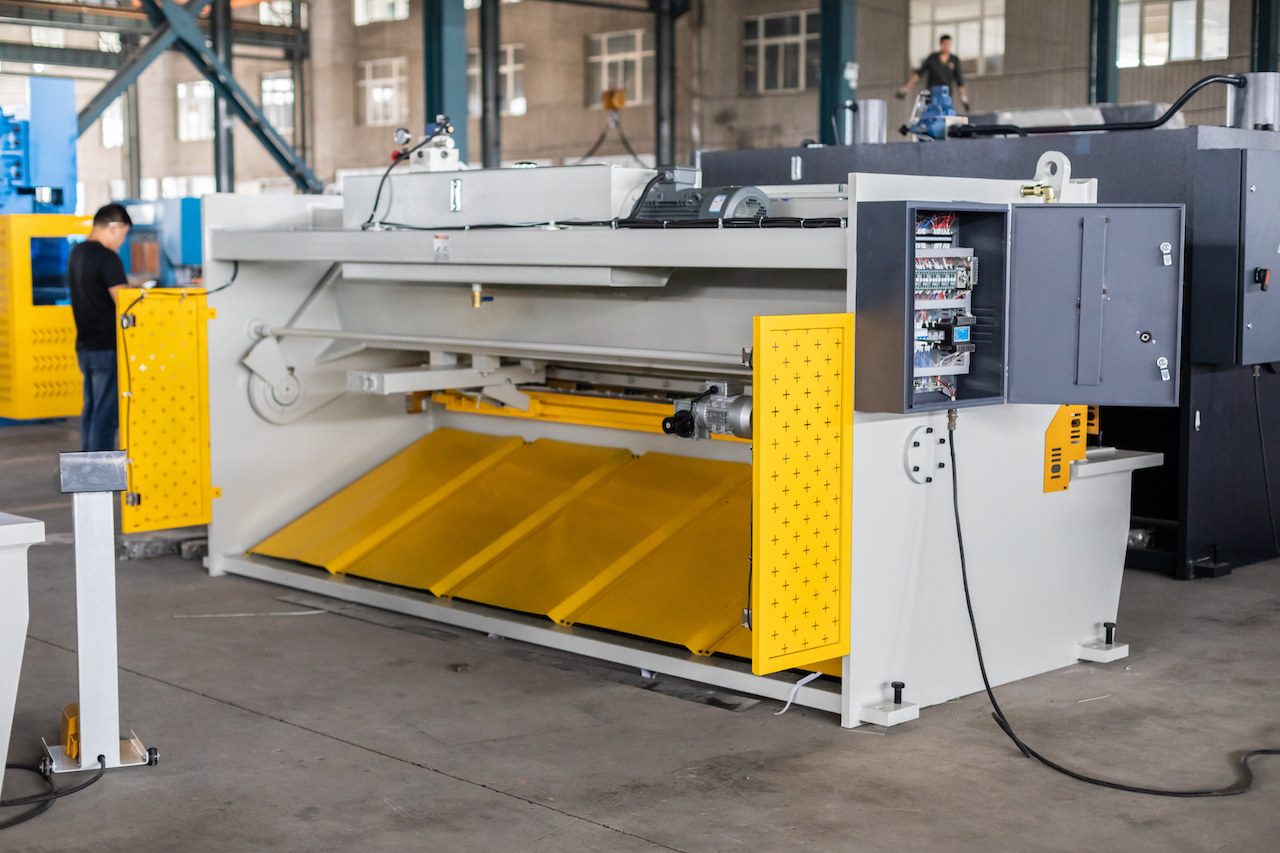

Machine stronger welding structure, high precision and more peacefully desig and comfortable usageReferring to man -machine engineering design Backside all with safetyguard guarantees opeartations safety
Qc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing MachinePNEUMATIC SHEET SUPPORT SYSTEM

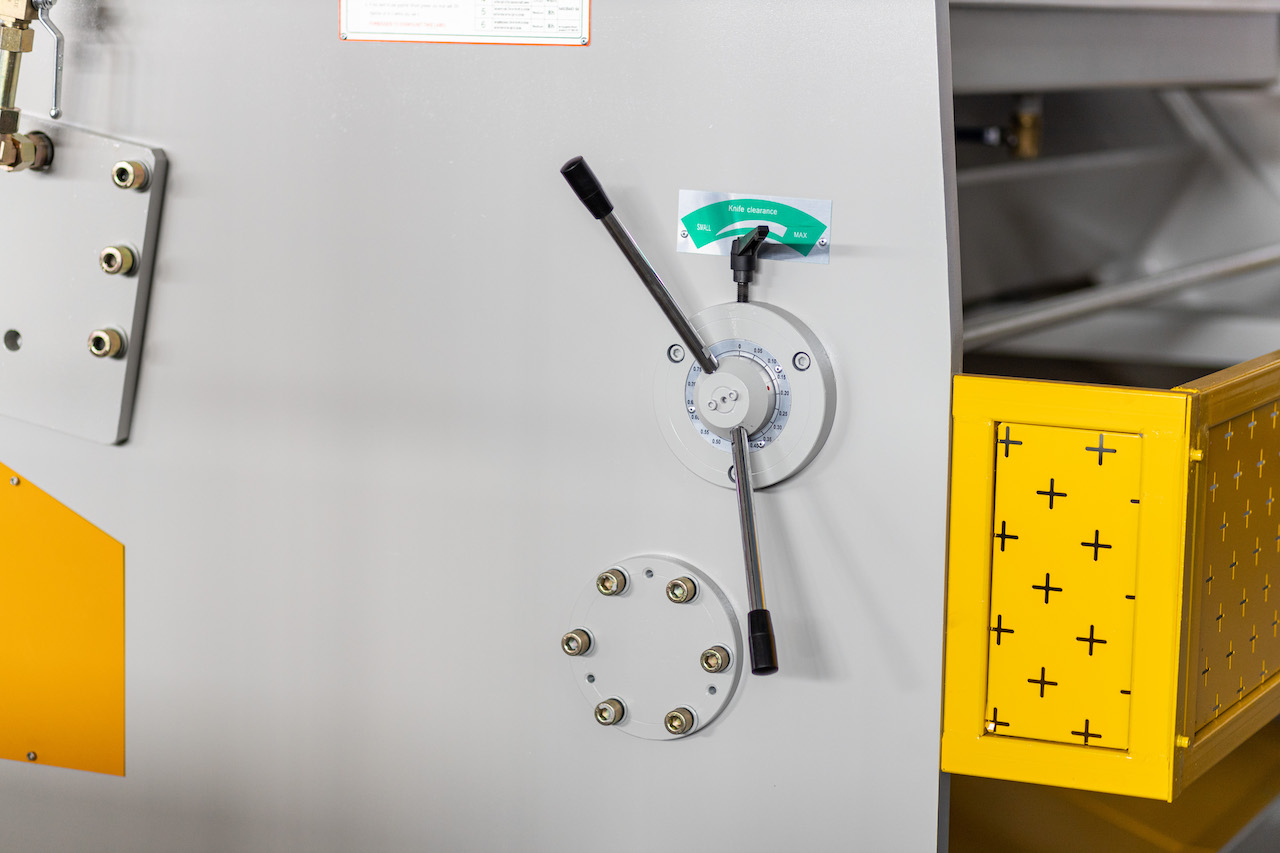

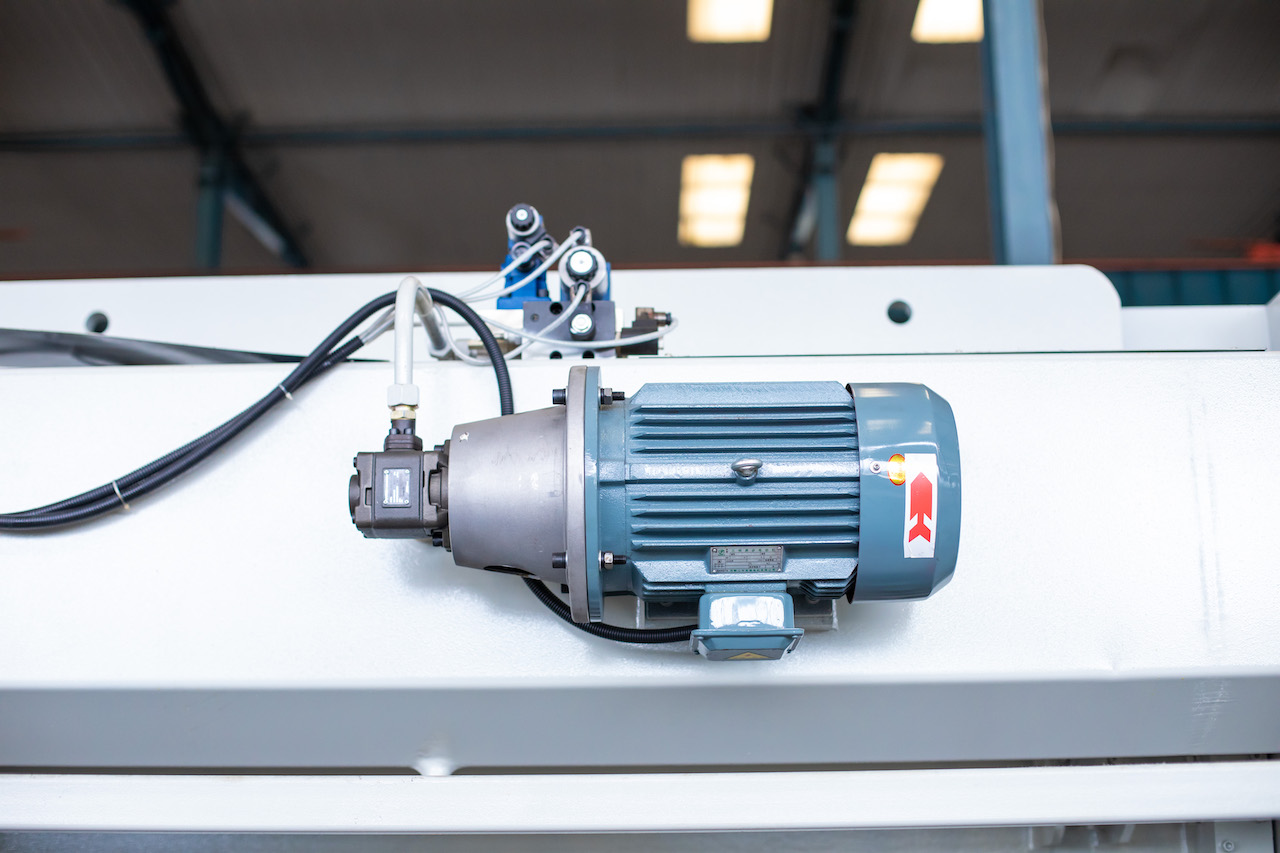

Monobloc Panel Type support system:  Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Blade clearance adjustmentAdjust the cutting blades gap by motor according the cutting thickness of the metal sheet can get better cutting performanceQc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing Machine MAIN SERVO MOTOR

Using Germany Siemens main motor and Rexroth valve to improves the life span of the machine and keeps the machine working in low nose enviromentQc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing Machine

Safety Equipment:

● Safety Standards(2006/42/EC)
1.EN 12622:2009 A1:2013
2.EN ISO 12100:2010
3.EN 60204-1:2006 A1:2009

Sample room

Qc11y 8x3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing Machine

Our Service

1. Installation Services

Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and
preoperation of machines. ( Customers only need to pay the airfare and hotel )

2. Training Service

Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician
to our company to learn how to operate machines.

3. Quality Guarantee

We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 5 years.


Q: How to get a accurate quotation from us ?

A: Please provide us the details of material , max thickness and max width .

Q: Can you do OEM service ?

A: Yes, we can. your design is accepted , your own logo can be used on the machine.

Q: What's the shipping cost from china to your country ?

A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.

Q: Do you accept LC payment ?

A: Yes, normally our payment is 30% 70% T/T ,LC payment is also acceptable

Q: How to operate this machine ?

A: Video line of our factory or we send you the video directly.

Q: What about commissioning service ?

A: We can offer commissioning service , the buyer need to afford plane tickets.

Q: Do you offer teaching & training ?

A: Training at supplier's plant


  • Place of Origin: China
  • Brand Name: RAYMAX
  • Condition: New
  • Type: Shearing Machines
  • Video outgoing-inspection: Provided
  • Machinery Test Report: Provided
  • Marketing Type: Hot Product 2021
  • Warranty of core components: 5 years
  • Core Components: PLC, Bearing, Gearbox, Motor
  • Voltage: customize
  • Rated Power: 7.5kw
  • Dimension(L*W*H): 3860x1700x1700mm
  • Year: 2021
  • Warranty: 5 years
  • Key Selling Points: High-accuracy
  • Applicable Industries: Garment Shops
  • Showroom Location: Egypt, United States, Philippines, Peru, India, Mexico, Kenya, Argentina, Colombia, Algeria, Sri Lanka
  • Product name: Hydraulic Shearing Machine
  • Application: Industrial Metal Cutting
  • Keyword: Shearing machine
  • Cutting thickness: 8mm
  • Function: Cutting Metal Material
  • Model: 8x3200
  • Machine type: Hydraulic Cutting Machine Shearing Machine
  • Brand: RAYMAX
  • Control system: E21S
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: United States, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Sri Lanka, South Africa
  • Certification: CE
  • Weight: 5150kg
