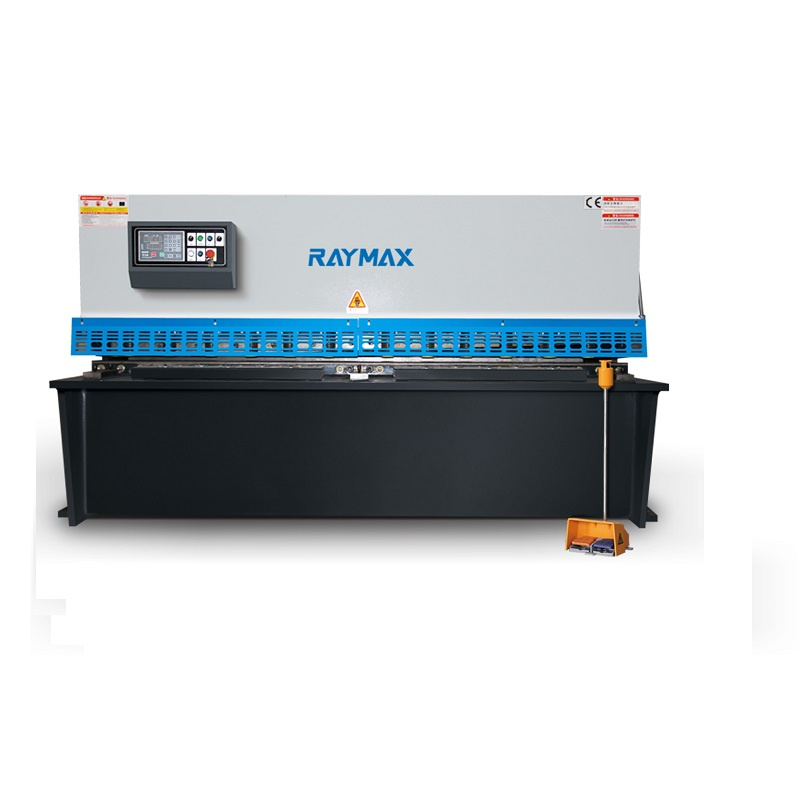

Small Cnc Electric Hydraulic Sheet Metal Plate Guillotine Shearing Machine Price

 Main Features

* Real-time display of back gauge position

* Multi-step programming function, the back gauge can be automatically operated and continuously positioned, realizing the automatic adjustment of the back gauge position

* The cut count function displays the number of cuts in real time

* The use of high-precision machining ball screws and linear guides ensures positioning accuracy

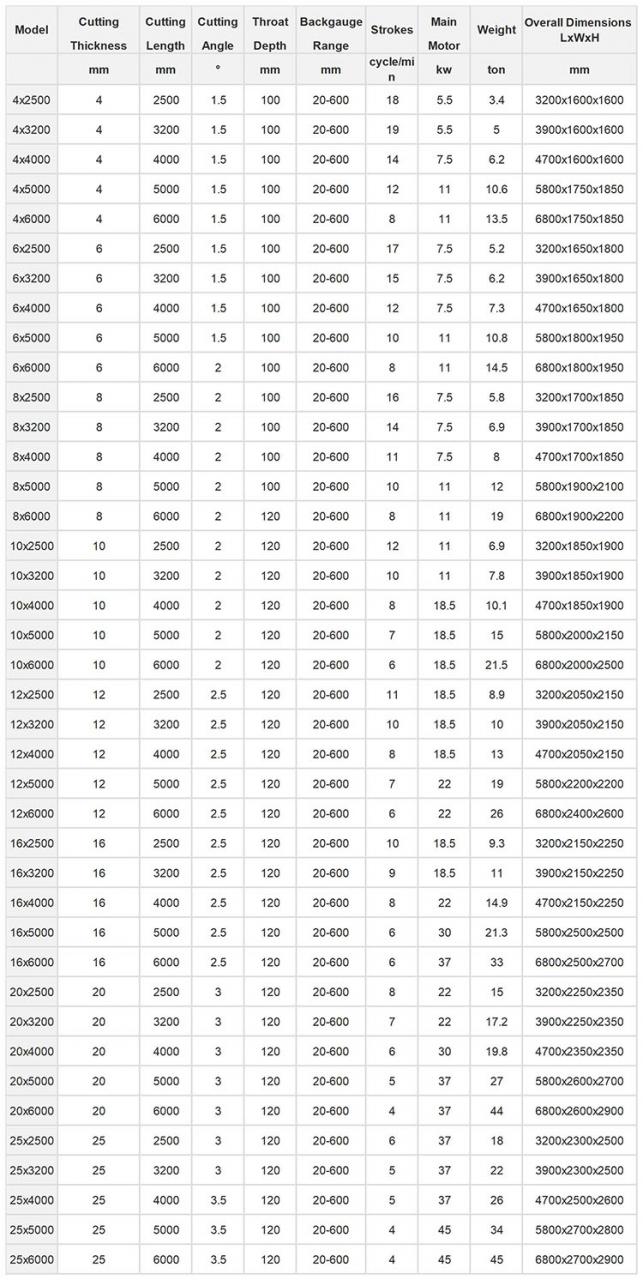

Product Paramenters

Small Cnc Electric Hydraulic Sheet Metal Plate Guillotine Shearing Machine Price

E21S Control System

Backgauge control.
Control for general AC motor
Intelligent positioning
Double programmable digital output, stock counter
Program memory of up to 40 programs
Up to 25 steps per programs
One side positioning, Retract function
One key backup/restore of parameters
Small Cnc Electric Hydraulic Sheet Metal Plate Guillotine Shearing Machine Price

ES10 CNC Control System

7-inch TFT real color touch screen
Menu programming interface
Programmable cutting function
Automatic calculation of cutting length
Automatic correction of backgauge
Backgauge is controlled by servo motor
Automatically calculate blade clearance
Automatically calculate cutting angle
Support multi languages.

DAC310 (DELEM) CNC Control System

Bright LCD 128 x 64 display
Backgauge control
Gap control
Stroke length limitation
Actual and Programmed position visualization
Stock counter
Programmable up to 100 steps
Panel-based housing
Servo control / inverter / 2-speed AC control

Pressing Mechanism

shearing machine is equipped with plate pressing mechanism. The pressing head presses down to compress the plate when cutting plate.

Steel Ball Transmission Structure

RAYMAX shearing machine is equipped with steel ball transmission structure, which can saves the operator's effort in feeding material and increase the efficiency.


RAYMAX shearing machine adopts guardrail to prevent the operator from accidentally operating and pinching, and also avoiding work injuries during cutting errors.
Small Cnc Electric Hydraulic Sheet Metal Plate Guillotine Shearing Machine Price

Laser Light Alignment (optional)

The laser light alignment device will help you positioning the cutting line quickly. This is convenient and time-saving. Our services


1. We will help you confirm the model of our machine according to your offered pipe information.2.You are very welcome to see our machine how to work in the factory before you place an order with us.


1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine.We also offer free training in our factory, the following is our training contents:Detailed function of our machine, 1 hour; NC control using, 0.5 hour; Tooling installation and adjustment, 0.5-1 hours; Maintenance and repair, 0.5-1 hours; Real operation according client products, 1-2 hours.During the training period,we offer free pick-up,hotel and food.

2.  We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely.

3. Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.


Q1: Are you trading company or manufacturer ?

A1: We are manufacturer of pipe tube processing.

Q2: How long is your delivery time?

A2: The standard model is 15-30 days, the customized model is 30-60 days.

Q3: How to choose the model of machines?

A3: The thickness, width and material.

Q4: What is your term of payment ?

A4: 30% T/T in advance, the balance before shipment. ",


  • Max. Cutting Width (mm): 3200 mm
  • Max. Cutting Thickness (mm): 10 mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 2
  • Blade Length (mm): 3300 mm
  • Backgauge Travel (mm): 10 - 700 mm
  • Throat Depth (mm): 120 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 11 kW
  • Weight (KG): 7800 KG
  • Place of Origin: Jiangsu, China
  • Voltage: 380V/220V/440V/600V
  • Dimension(L*W*H): 3900X1850X1900mm
  • Year: 2020
  • Warranty: 1 Year
  • Key Selling Points: Competitive Price
  • Applicable Industries: Manufacturing Plant, Construction works
  • Showroom Location: Canada, United States
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Motor, Pump, PLC, Pressure vessel
  • Application: Metal Plate Cutting Machine
  • Keyword: shearing machine
  • Control system: ESTUN E21S

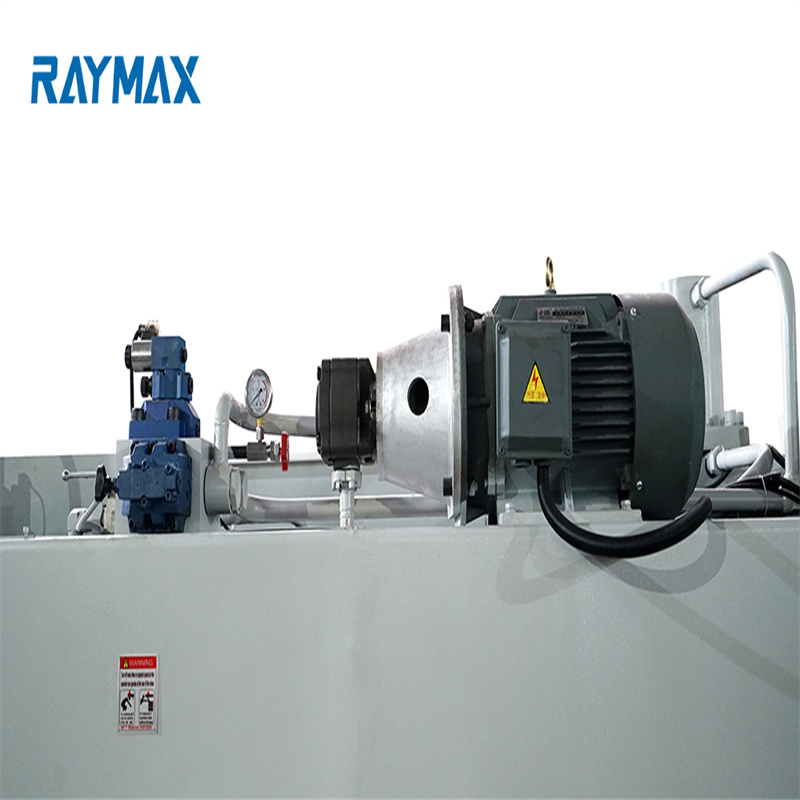

  • Hydraulic system: Rexroth Germany
  • Electric parts: Schneider France
  • Blade material: 9CrSi/6CrW2Si
  • Color: Blue White
  • Item: cutting off machine for small metal cutting machinery supplier
  • After Warranty Service: Video technical support
  • After Warranty Service Type: Online support
