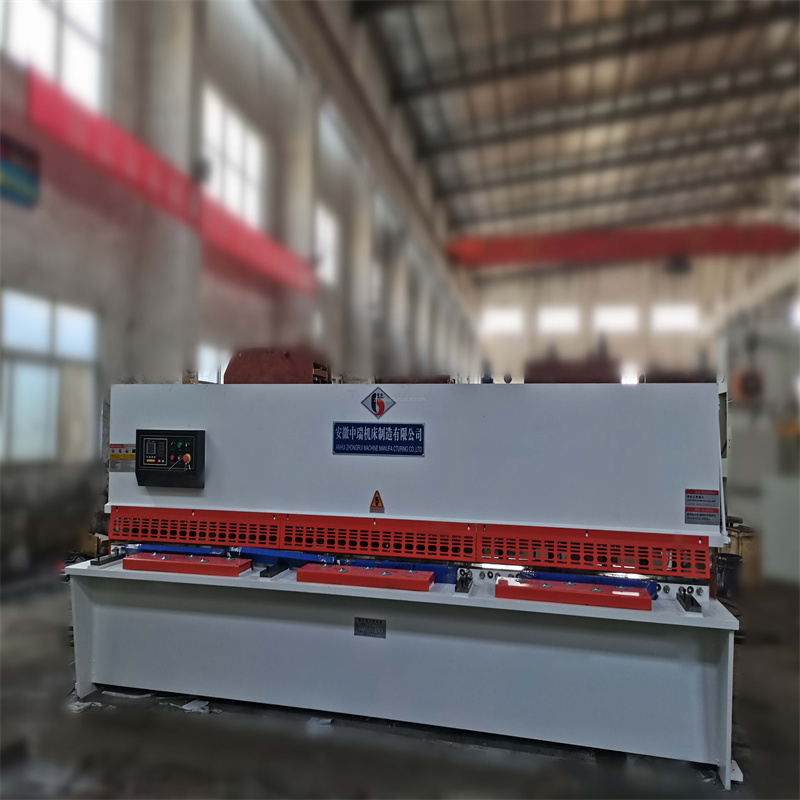

Shear Machine Hydraulic Shearing Machine Cnc Hydraulic Sheet Metal Shear Machine

Main Features:

* Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

* Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,

* The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

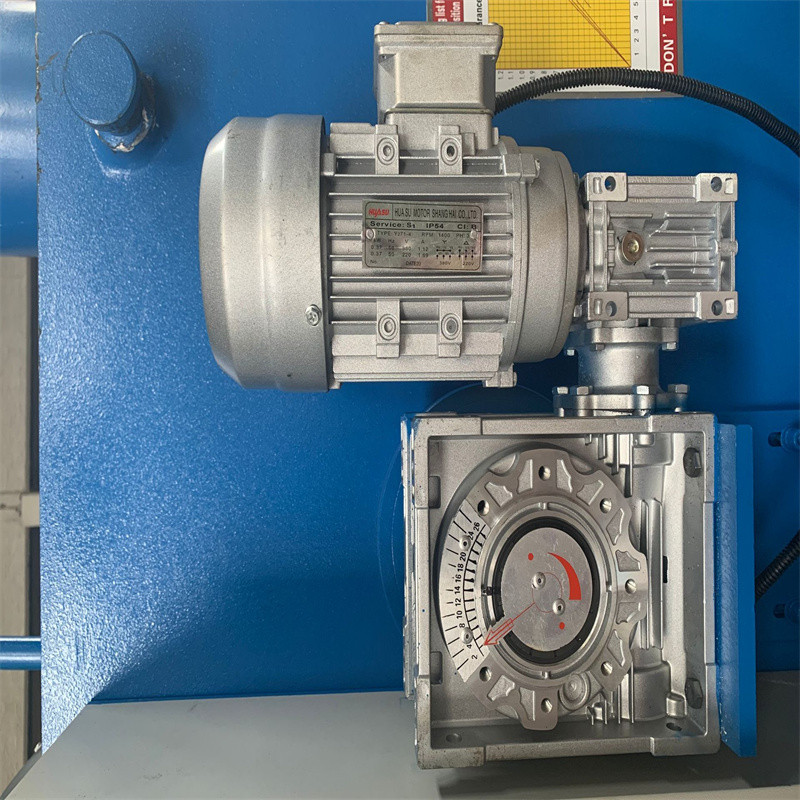

* The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21S with Delta inverter.

* Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

* Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.
Shear Machine Hydraulic Shearing Machine Cnc Hydraulic Sheet Metal Shear Machine

Standard Equipment:

* Estun E21S NC control system
* Powered Back guage X-axis
* DELTA Inverter controlled back guage
* HIWIN Ball screws &Polished rod with 0,05mm accuracy
* Squaring Arm and Front Support Arms
* Germany Bosch-Rexroth Hydraulic
* Germany EMB Tubing connector
* Germany Siemens Main Motor
* Telemecanique/Schneider Electrics
* Hydraulic &Electrical overload protection
* Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

Estun E21S NC control System

* Backgauge control
* Control for general AC motors,frequency inverter
* Intelligent positioning
* Double programmable digital output
* Stock counter
* Program memory of up to 40 programs Up to 25 steps per program
* One side positioning
* Retract function
* One key backup/restore of parameters
* mm/inch
* Chinese/English
Shear Machine Hydraulic Shearing Machine Cnc Hydraulic Sheet Metal Shear Machine
We have machines of different models, which can cut plates of different thickness, length and material. Welcome to buy at any time.  We strongly recommend user to ship it in a whole container or with user’s own goods in personal container(FCL), we have a experienced group for loading and fixing in our factory. If LCL, then we must pack it with wooden box, but for safety it is not as good as FCL.

We will provide user with full sets of videos and manuals after order confirmed. And we welcome user to our factory to receive training. If necessary, we can come to user’s factory to install and train user.

How about your machine quality? We are worry about the quality.

RE: RAYMAX company is a mature brand in CHINA,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE: 1. RAYMAX always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qanlity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE: 2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.


  • Max. Cutting Width (mm): 3200
  • Max. Cutting Thickness (mm): 8 mm
  • Automatic Level: Fully Automatic
  • Blade Length (mm): 3200 mm
  • Throat Depth (mm): 100 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 11 kW
  • Weight (KG): 7200 KG
  • Place of Origin: China
  • Voltage: 220V/380V
  • Dimension(L*W*H): 3880*2150*2000mm
  • Warranty: 2 Years
  • Key Selling Points: Automatic
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Other
  • Showroom Location: None
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: PLC
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Manufacturer: RAYMAX
  • Power type: hydraulic sheet metal cutting machine
  • certificate: CE
  • controller: NC e21s
  • backgauge: 20-600
  • blade material: 6CrW2Si
  • motor Brand: Gerrmany Simens
  • hydraulic system: Germany Bosch-rexroth
  • pump: Sunny from u.s
