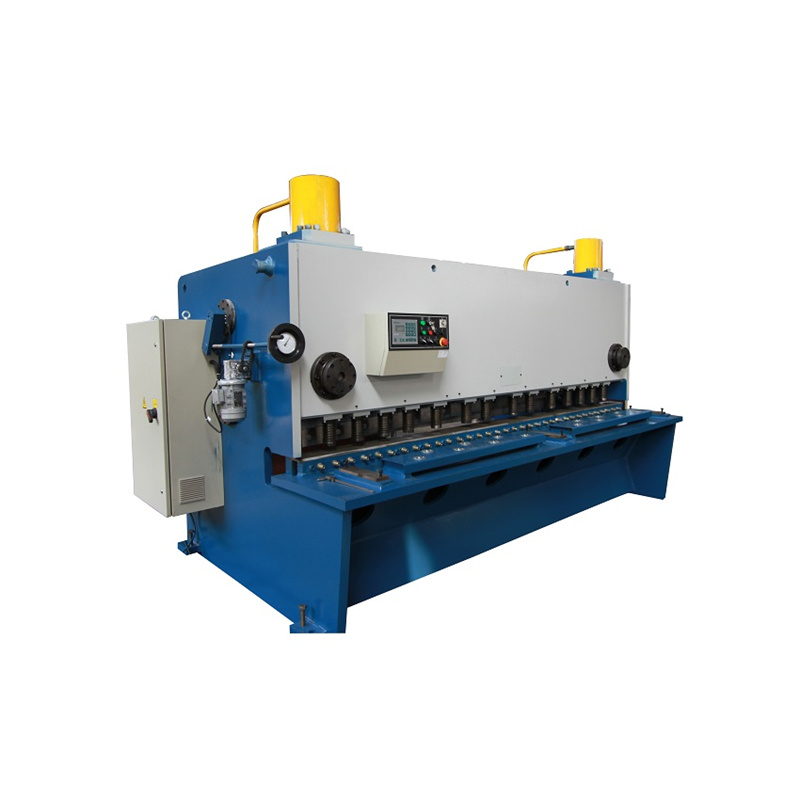

Qc12y 62500mm Hydraulic Steel Shearing Machine Metal Cutting Machine Electric Shears

Product Description

QC12Y 6*2500mm hydraulic steel shearing machine metal cutting machine electric shears

1. Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2. Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth, Germany,

3. The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.

4. The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.

5. Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

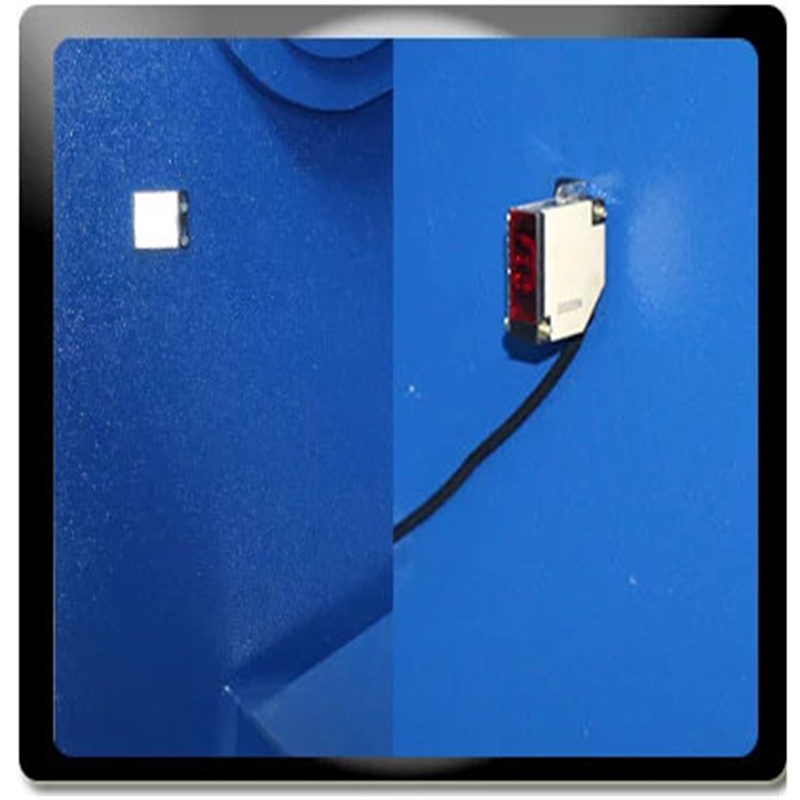

6. Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.
Qc12y 62500mm Hydraulic Steel Shearing Machine Metal Cutting Machine Electric Shears

Technical parameters

TYPEQC11Y-6*3200QC11Y-8*3200QC11Y-10*4000QC11Y-12*3200
Cutting Thickness6mm8mm10mm12mm
Cutting Length3200mm3200mm4000mm3200mm
Cutting Angel1°30′2°30′2°30′2°30′
Dimension(mm)3450*1850*17803450*1900*18004650*2100*20003800*2150*2000

Estun E21s NC Control System:

* Backgauge control
* Control for general AC motors,frequency inverter
* Intelligent positioning
* Double programmable digital output
* Stock counter
* Program memory of up to 40 programs Up to 25 steps per program
* One side positioning
* Retract function
* One key backup/restore of parameters
* mm/inch
* Chinese/English
Qc12y 62500mm Hydraulic Steel Shearing Machine Metal Cutting Machine Electric Shears

Details

  • Max. Cutting Width (mm): 2500
  • Max. Cutting Thickness (mm): 6 mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 1.5
  • Blade Length (mm): 2500 mm
  • Backgauge Travel (mm): 10 - 600 mm
  • Throat Depth (mm): 100 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 7.5 kW
  • Weight (KG): 4600 KG
  • Place of Origin: Anhui, China
  • Voltage: 220/380v Optional
  • Dimension(L*W*H): 2720*1850*1750mm
  • Year: 2020
  • Warranty: 1 Year
  • Key Selling Points: High-accuracy
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Showroom Location: None
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
  • Product name: hydraulic guillotine shearing machine
  • Name1: guillotine shearing machine
  • Machine type: QC12Y-6X2500
  • Cutting thickness: 0.1mm-6mm
  • Main Motor: Siemens Germany
  • CNC System: E21S
  • Pump: 16L
  • Cutting speed: 20~30 Times/min
  • Hydraulic oil: 6# Anti-wear Hydraulic Oil
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: None
  • Certification: ce
