Products Description

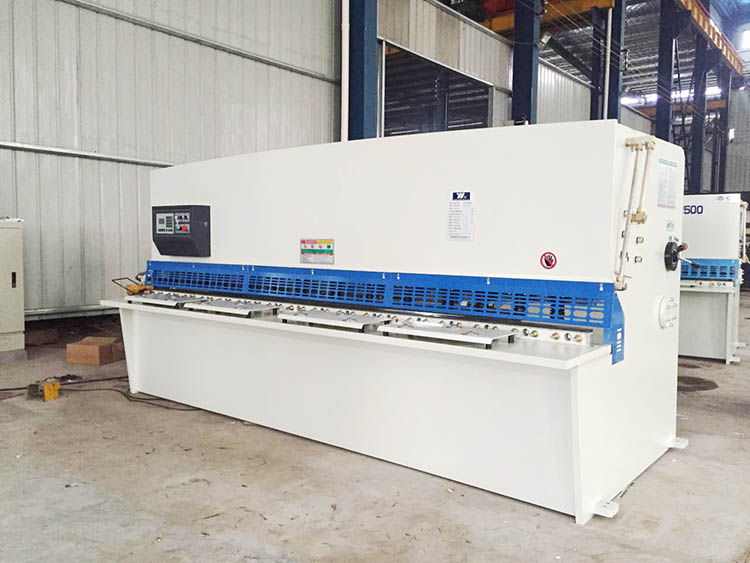

Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine

- Streamlined looking,Frame: consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

- As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

- High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

- The machine by CE certification and ISO quality system certification

Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate

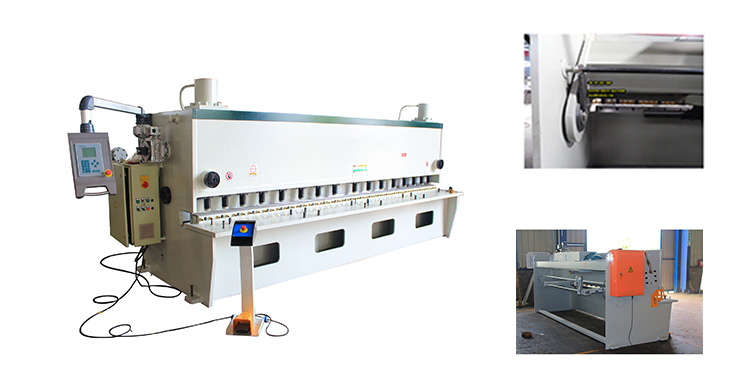

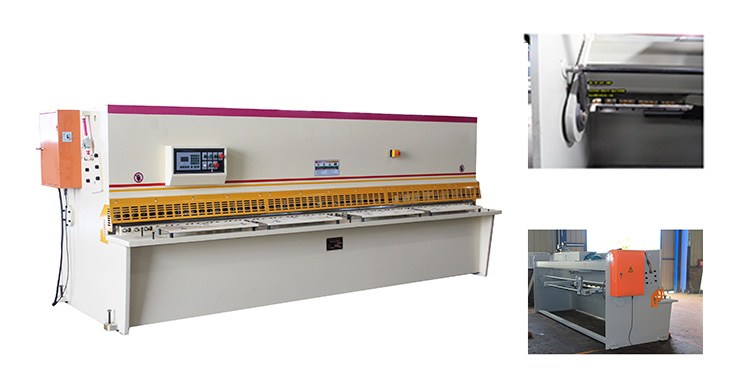

QC12Y Series Hydraulic shearing machine

Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate

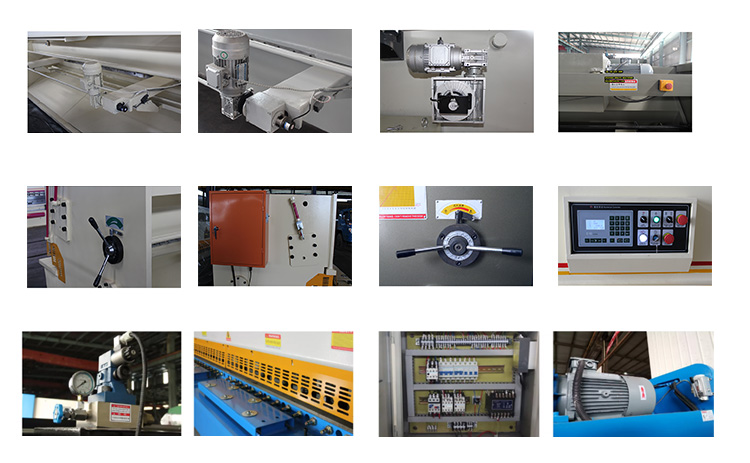

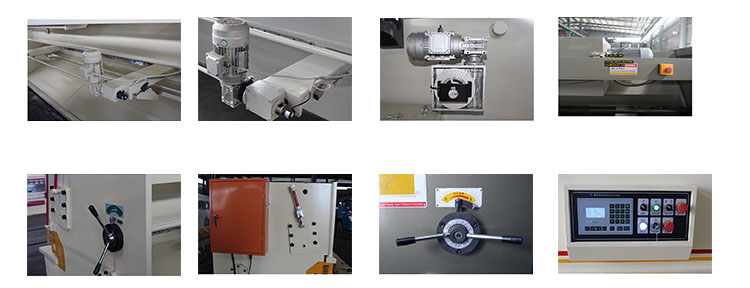

Hydraulic shearing machine Features

1. Entire welded frame, tempering.(our feature)

2. Digital display,back gauge size & shear times

3. Balde clearance indicated,easy for adjusting

4. Cartridge type hydraulic system,impove the reliability and security for Hydraulic shearing machine running.

The working conditions and environments used are:

1. Input power: 380V ± 5% / 50Hz ± 1, three-phase five-wire (according to customer requirements) or Input power: 220V ± 5% / 60Hz ± 1, three-phase

2. Ambient temperature: 0℃-45℃

3. At 40 ℃: relative humidity≤50%; at 20℃: relative humidity≤85%

The use of occasions should not seriously affect the use of welding gas, steam, chemical deposition, dust, mold and other easy fuel and corrosive substances, and does not allow severe vibration and bumps. The equipment should be placed in a dry and ventilated place and prevent sunlight, direct and rain.

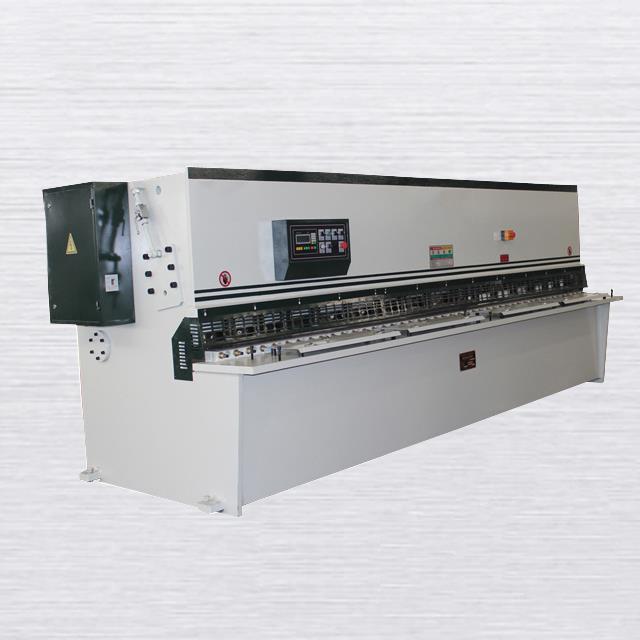

QC11Y Series Hydraulic shearing machine

Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate

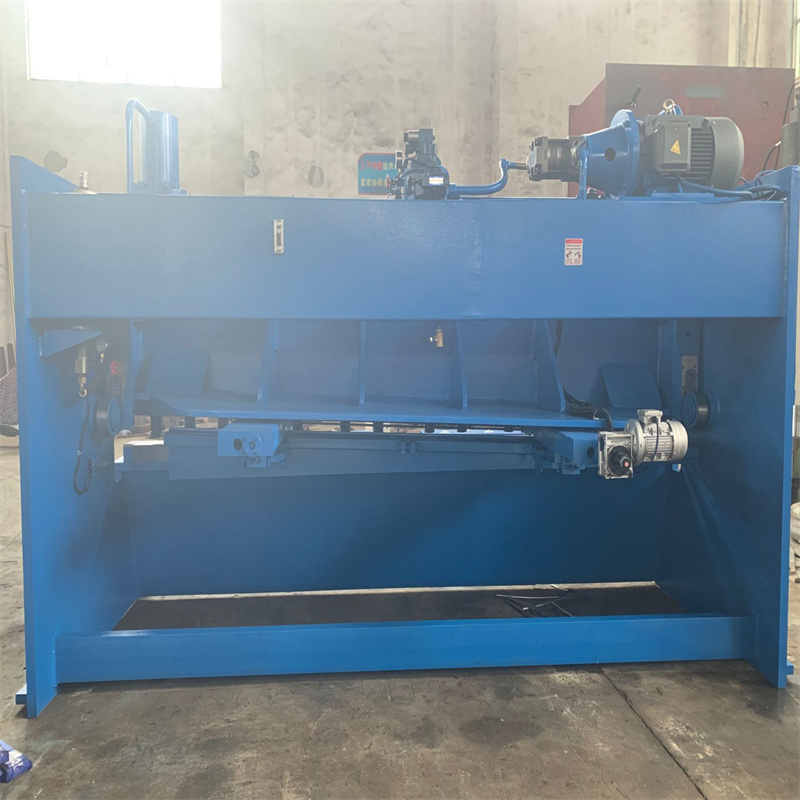

QC12Y Series Hydraulic shearing machine

Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate

- Electrical components are imported or from Sino-foreign joint Venture, in accordance with international standards, reliable safety, long life, good anti-interference ability.

- Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.

- Emergency stops on machine and foot switch for safety and Fence like body guard is standard or light curtain is optional.

The famouse brand for Motor ,Gear pump ,Hydraulic system,Ball screw and line guide ,Sealing rings ect.

Product Paramenters

TypeCutting lengthTravel timesStopper adjust rangePower
4x25002500mm28 Min-120-500mm4.0kw
6x32003200mm14 Min-120-600mm7.5kw
8x60006000mm8 Min-120-600mm11kw
10x40004000mm6 Min-120-600mm11kw
12x50005000mm10 Min-120-800mm30kw
16x32003200mm6 Min-120-800mm22kw
20x40004000mm6 Min-120-1000mm30kw
25x32003200mm6 Min-120-1000mm37kw
30x32003200mm4 Min-120-1000mm37kw

For the steel guillotine shear, besides the above model, we accept customized accordingly.pls advise the plate length and thickness, we will design the steel guillotine shear for you. we use the famouse brand for Hydraulic shearing machine configurations, smoothly cutting effect, good quality and high performance.

1Motor1SetSiemens China
2Gear pump1SetSunny USA
3Casting connector1SetCast CO Italy
4Main electric parts1SetSiemens China
5Hydraulic system1SetRexroth Germany
6Sealing rings1SetValqua CO Japan
7Blade1SetJinshan China
8Ball screw and line guide1SetHiwin TaiwanChina
9E21 CNC System1SetESTUN China

Why Choose Us

1. Management objective

Quality roots in responsibility, honesty creates value.Strives for perfection, the good faith for this, the customer is supreme, for customer creation value.We insist, pragmatic, pioneering and the principle of good faith.

2. Sourcing Solutions

Detail matters!It is our policy to ensure we understand your product or range requirements 100% before selecting the right manufacture for you.

3. Quality Control

We arranged professional person to test each one machine before sending goods to foreign countries. we are not send unqualified equipment to abroad.

4. After-sales

We put a lot of hard work into making sure we supply you with the products you want,so why wouldn’t we want to hear about your success with them? we also know that sometimes,issues do arise.your feedback is vital for us to continue to improve.
One year warranty will be offered, we will provide with some accessories that is broken within one year after the factory
inspection date (see factory inspection sheet).Accessories will be sent by common mail or sea freight.

5. Documents

We offer the following documents for customs clearance, if you require extra documents please inform us in advance.
1) 3 Original B/L
2) 3 Original Commercial Invoice
3) 3 Original Packing List
4) 1 Original Insurance Certificate (for C.I.F term)
5) 1 Original certificate (if necessary) Recommend Products

Product packaging

Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate Sheet Metal Machinery Cutting Machine Guillotine Shearing Machine Dalian Plate


1. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.

2. What certificate the machine in your company get?

We’ve passed the ISO9001 Quality System Approval and CE Certification.

3. Do you have price list for optional configuration?

We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.

4. Does your company accept CIF price?

CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.CIF price also includes marine premium which is 2‰ of 1.1*total amount.

5. If your engineer come to our country to fix the machine and do some training, how much will it cost?

The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as v isa fee. Staff cost is
100USD/day/person, normally, it’s a two person job. But it will depends for a large equipment or installation and debugging of the whole line.

6. What’s the warranty?

Warranty is 12 months which begins from the day when the machine has arrived at the importer’s port.

7. What’s your methods of transportation?

For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation.Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.

8. If the machine is out-of-warranty, how to charge the cost of accessories?

For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.

9. What I would do for the machine failure?

If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.

10. How to define the machine warranty? When did you start timing?

We identify the warranty based on the factory number. Warranty timing counted starting after equipment commissioning and acceptance. If you have any questions, please email us for consultation.

11. How long is the warranty period of machine tool?

We commitment to client machines are one-year warranty. For the purchase of the user, registered as a member in this website, with the factory number of the machine, you can enjoy extended warranty of 3 months. For details, please refer to membership service.

12. Does MC have maintenance manual and operation manual?

Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)


  • Max. Cutting Width (mm): 3200
  • Max. Cutting Thickness (mm): 12 mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 1-2
  • Blade Length (mm): 6000 mm
  • Backgauge Travel (mm): 20 - 600 mm
  • Throat Depth (mm): 200 mm
  • Condition: New
  • Power (kW): 5.5 kW
  • Weight (KG): 5700 KG
  • Place of Origin: China
  • Voltage: 220V/380V
  • Dimension(L*W*H): 6480X2100X2300
  • Warranty: 1 Year
  • Key Selling Points: Competitive Price
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Advertising Company
  • Showroom Location: United States, France, Germany, Brazil, Peru, Chile
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Other, Engine, Gearbox
  • Name: Hydraulic Cnc Plate shearing machine,plate shearing machine
  • Machine body: Steel plate welded frame
  • Cutting method: Hydraulic power
  • Cutting angle: Adjustable
  • Use in: Metal forming industry
  • Products: Different kinds of sheet type
  • Named: Guillotining shear machine
  • Title: Sheet metal cutting machine
  • Weight: 5700kg
  • Rated Power: 5.5KW
