Cnc Hydraulic Metal Sheets Automatic Guillotine Shearing Machine For Metallic Processing

Product Description

NoItemsValueUnit
1Max cutting thickness8mm
2Max cutting width2500mm
3Plate strength2450N/mm
4Shearing angle1º30degree
5Back-guage max distance500mm
6Stroke time14time/min
7Distance between columns3420mm
8Blade length3300mm
9Worktable height810mm
10Main motor power7.5KW
11Dimension3690×1750×1680mm

Cnc Hydraulic Metal Sheets Automatic Guillotine Shearing Machine For Metallic Processing

Main Features

1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity .

2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.

3. Decrease the force of fulcrum through leverage to prolong working life

4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.

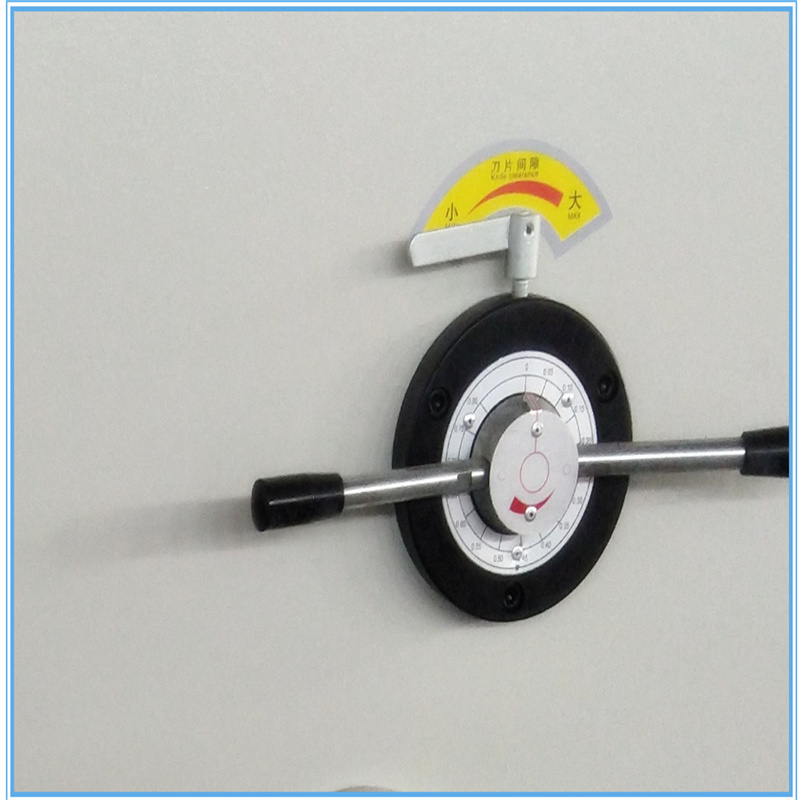

5. with fast and flexible gap adjusting mechanism for high shearing accuracy

6. Equipped with Lighting Alignment Device for easy shearing

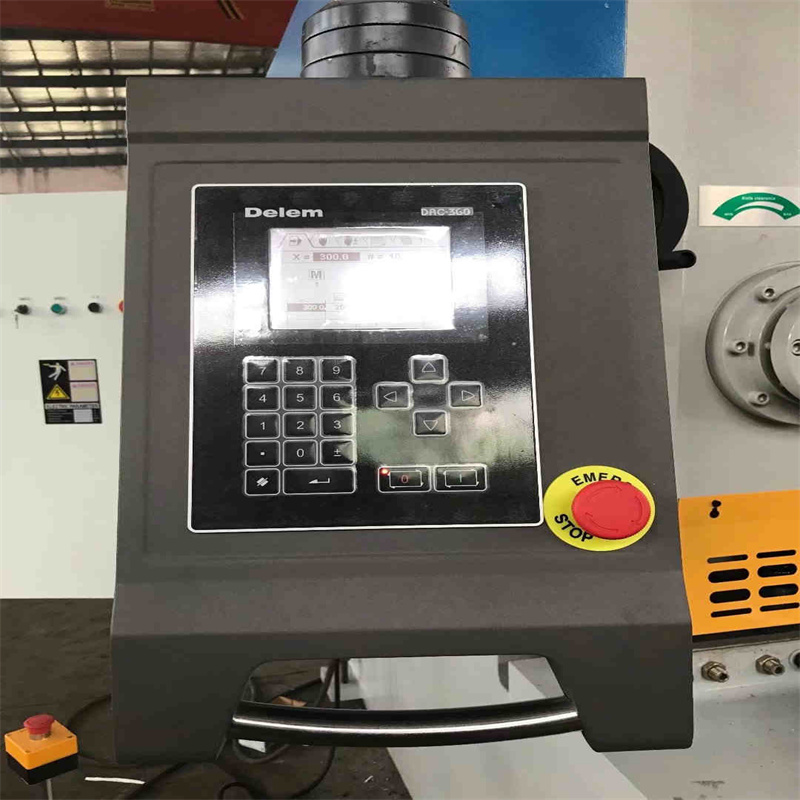

7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.

8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
Cnc Hydraulic Metal Sheets Automatic Guillotine Shearing Machine For Metallic Processing

Our Service

Pre-sales Service

1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.

After-sales Service

1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .

FAQ

How about your machine quality? We are worry about the quality.

RE: RAYMAX company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

Whether the machine price can be more discount?

RE:1. RAYMAX always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.

RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.

Details

  • Max. Cutting Width (mm): 2500 mm
  • Max. Cutting Thickness (mm): 8 mm
  • Automatic Level: Semi-automatic
  • Blade Length (mm): 2600 mm
  • Backgauge Travel (mm): 20 - 600 mm
  • Throat Depth (mm): 320 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 7.5 kW
  • Weight (KG): 4000 KG
  • Place of Origin: Anhui, China
  • Voltage: cusomized
  • Dimension(L*W*H): 2990mm*1650mm*1620mm
  • Year: 2020
  • Warranty: 3 years
  • Key Selling Points: High-accuracy
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
  • Showroom Location: Egypt, United Kingdom, United States, Viet Nam, Philippines, Indonesia, Pakistan, Spain
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Bearing, Motor, Gear, Engine, Gearbox
  • After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • Product name: automati
    c guillotine shearing machine/used metallic processing machine
  • Color: Customizable
  • Application: Metal sheet cutting
  • Oil cylinder: Parker
  • Electrical component: Schneider
  • Sealing element: NOK
  • Hydraulic valve: Rexroth
  • Motor: SIEMENS BEIDE
  • Control system: E21S
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Egypt, United Kingdom, United States, Viet Nam, Philippines, Indonesia, Pakistan, Spain
  • Certification: CE ISO
