Qc11y Metal Plate Hydraulic Guillotine Shearing Machine For Sale

Main functions and features

1. The second generation of shear.

2. Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.

3. Advanced integrated hydraulic system with and excellent reliabitity quality.

4. Rapidly,accurately and conveniently adjusting the blade clearance by motor

5. The adjustable rake angle can minimize plate deformation.

6. As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.

7. Shearing in sections,shadow-line cutting.

8. Counter for the motorized back gauge.

9. Back support device (optional).

Technical Parameters

1Cutting thickness16mm
2Cutting Length6000mm
3Backgauge Range20-1000mm
4Material Strength≤450N/mm²
5Shear Angle0.5-3°
6Strokes≥4(min-1 )
7Main motor power22KW
8Overall dimension              W2400mm
9Machine weight35000kg

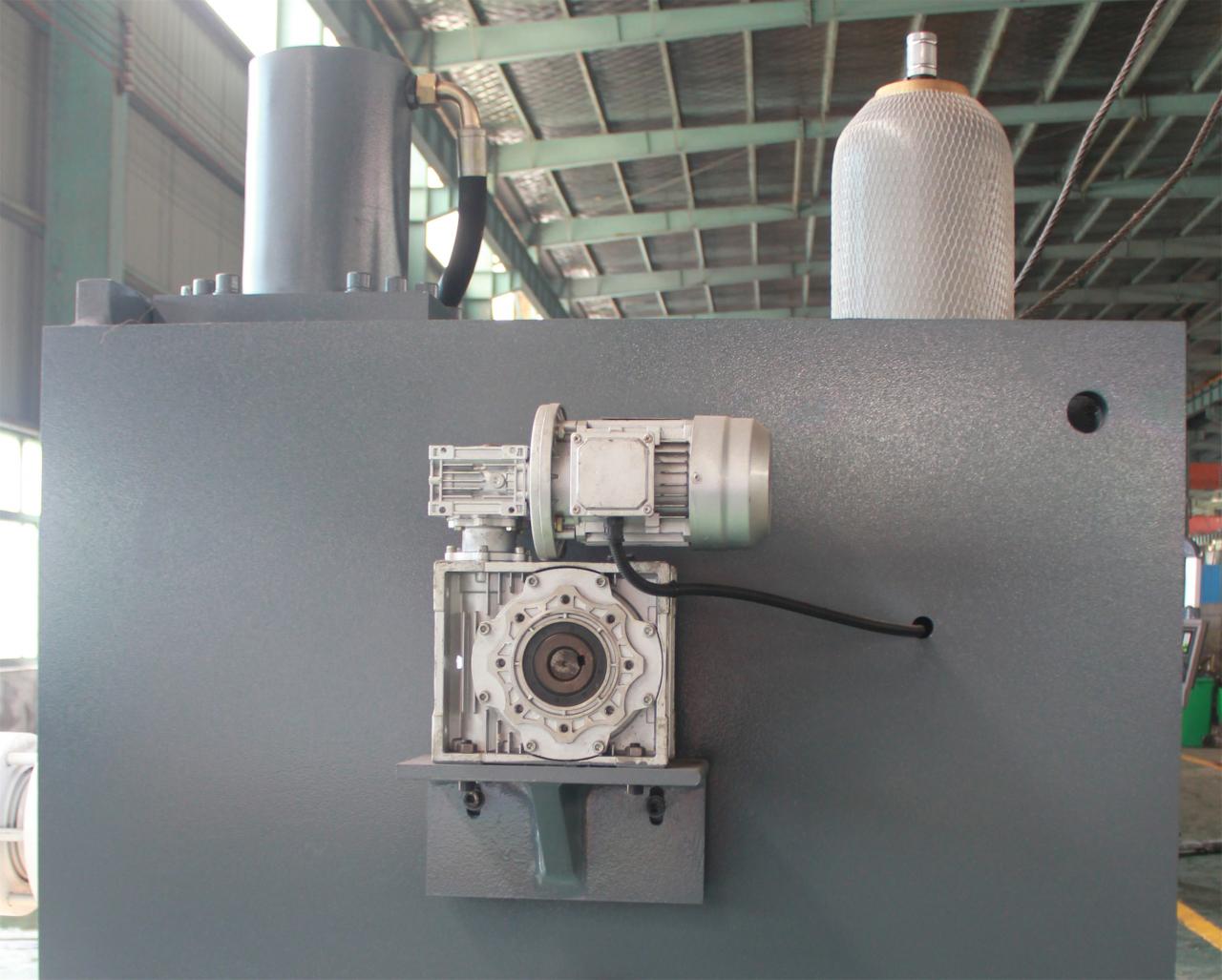

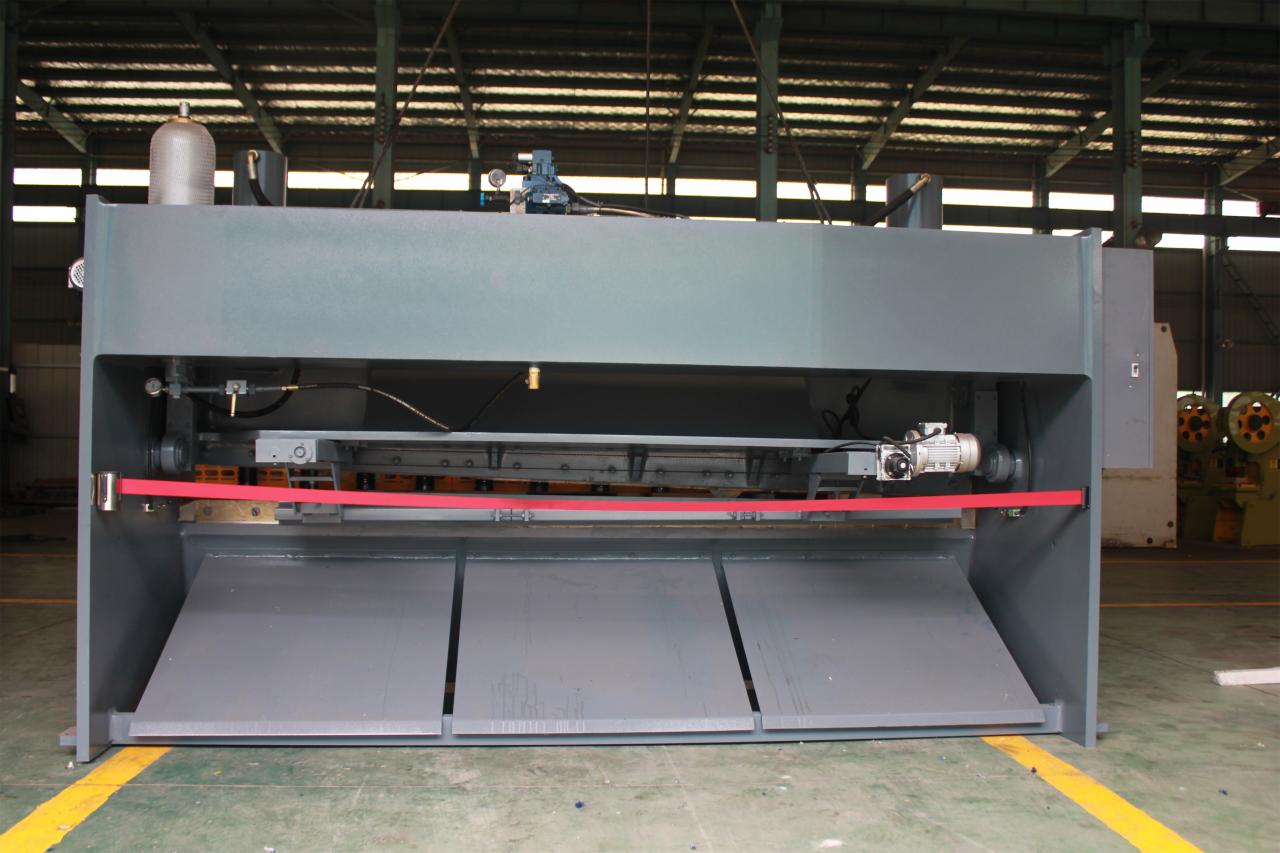

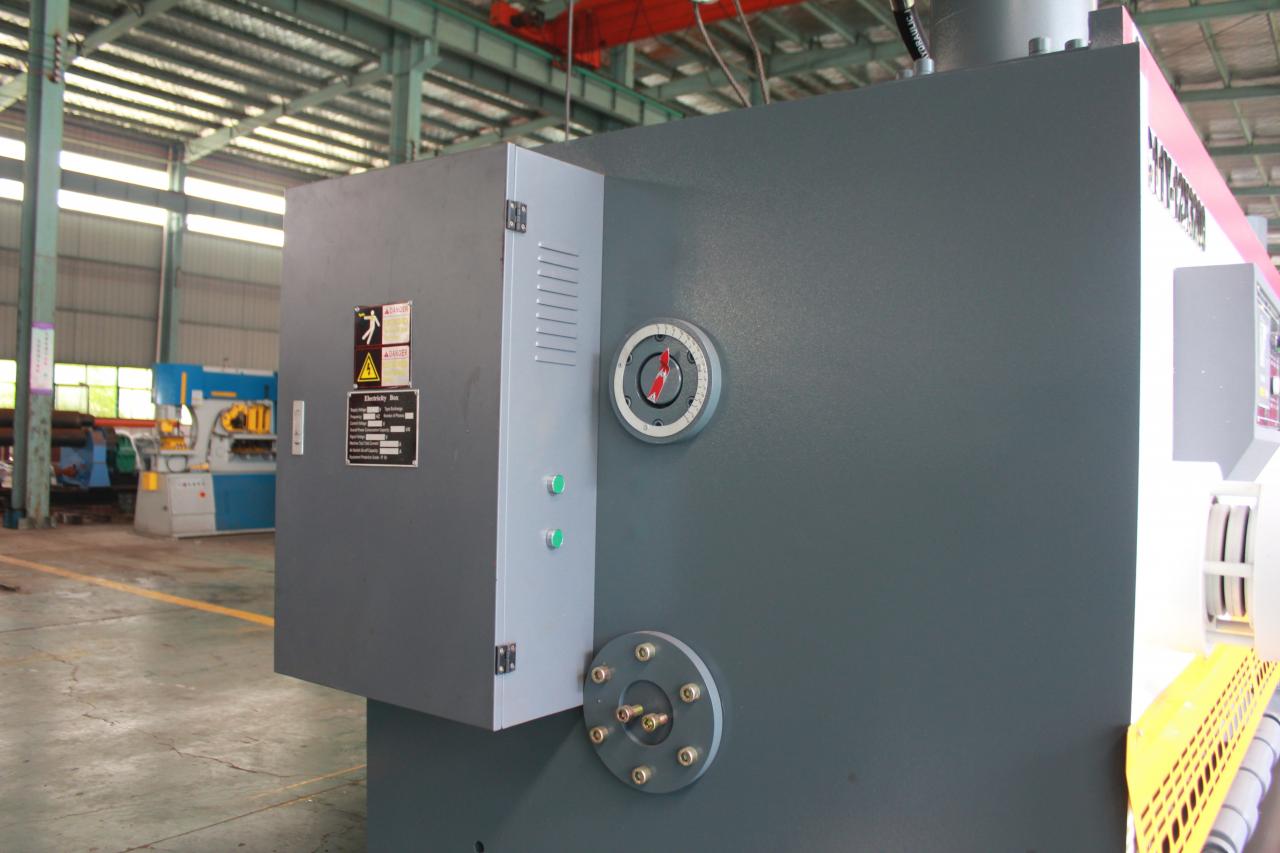

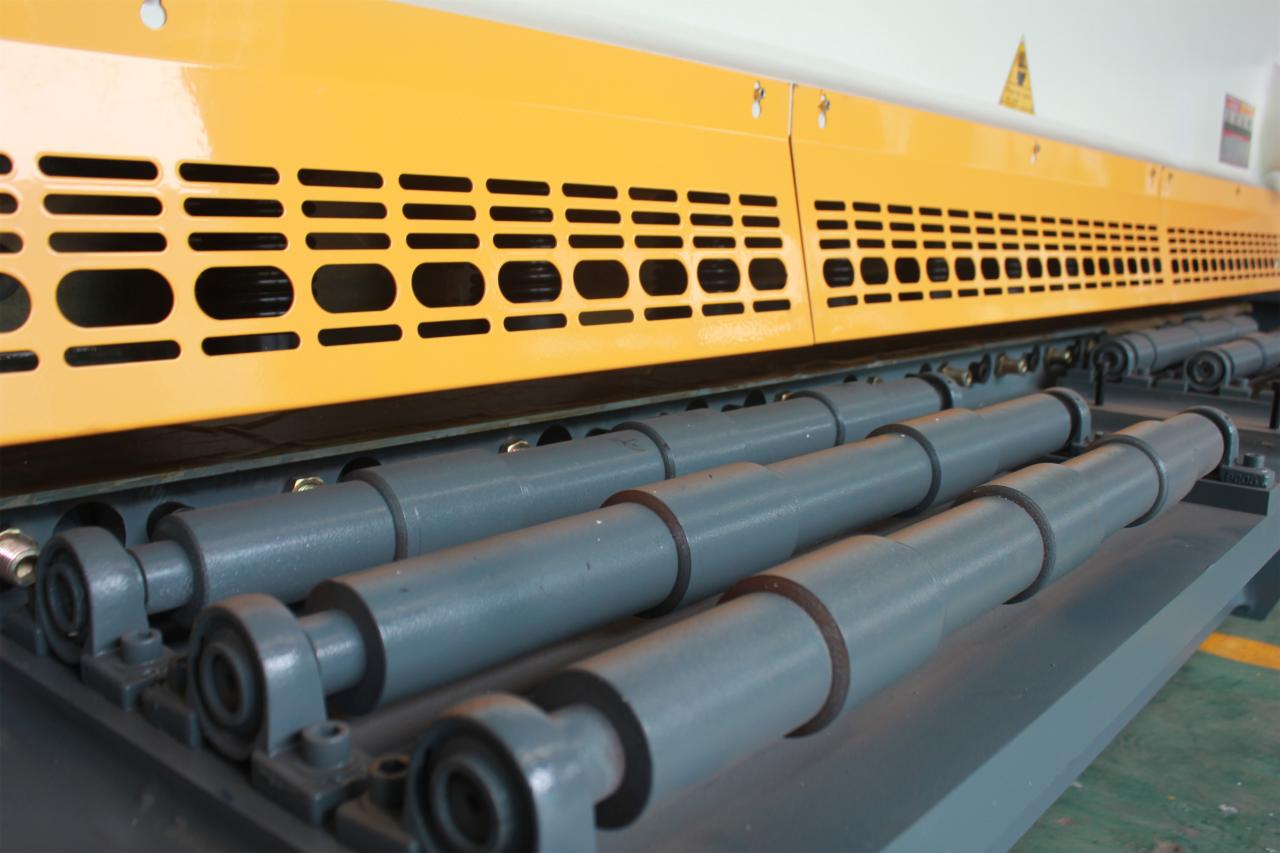

Detailed Images

Qc11y Metal Plate Hydraulic Guillotine Shearing Machine For SaleQc11y Metal Plate Hydraulic Guillotine Shearing Machine For SaleQc11y Metal Plate Hydraulic Guillotine Shearing Machine For SaleQc11y Metal Plate Hydraulic Guillotine Shearing Machine For SaleQc11y Metal Plate Hydraulic Guillotine Shearing Machine For Sale

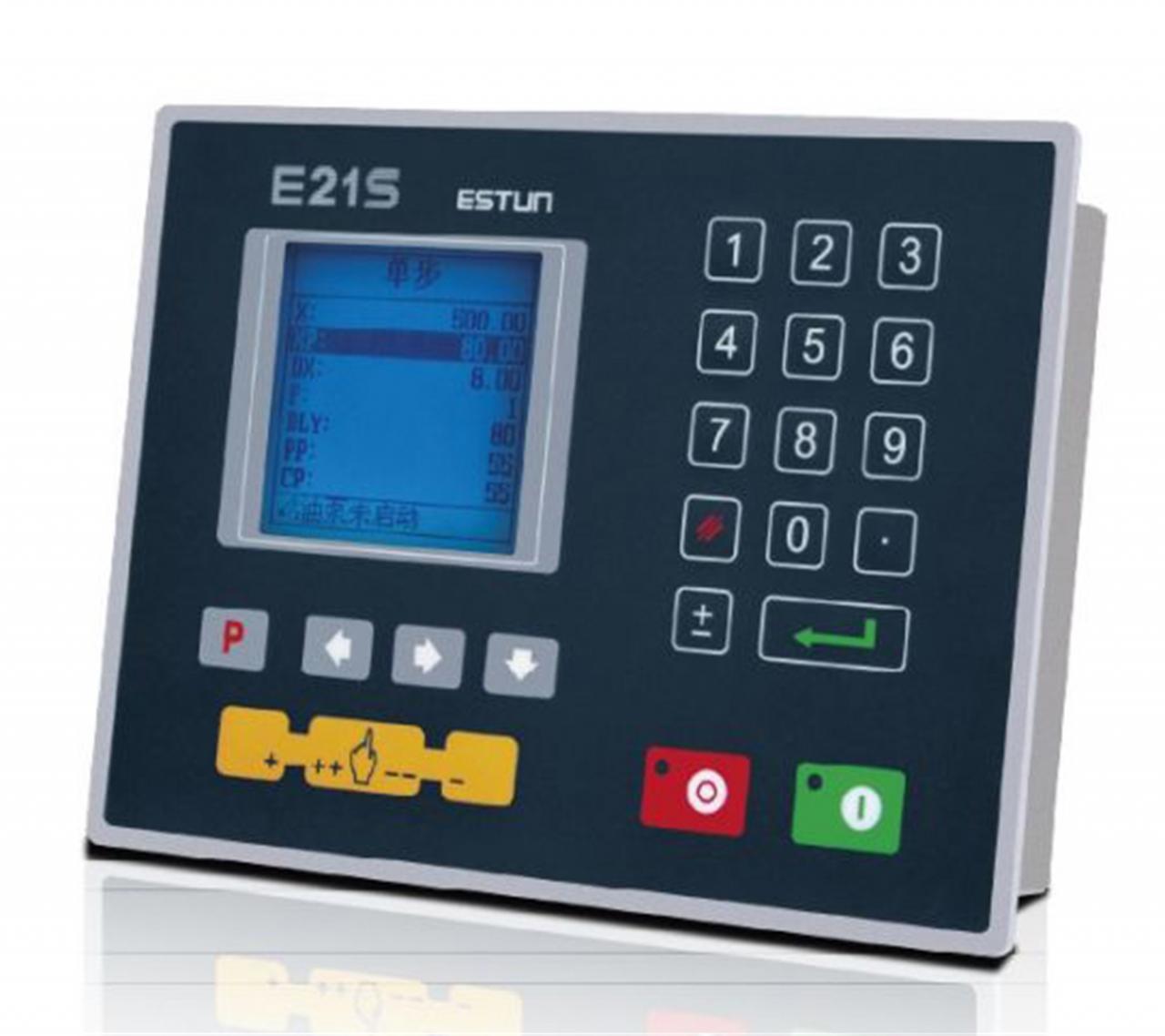

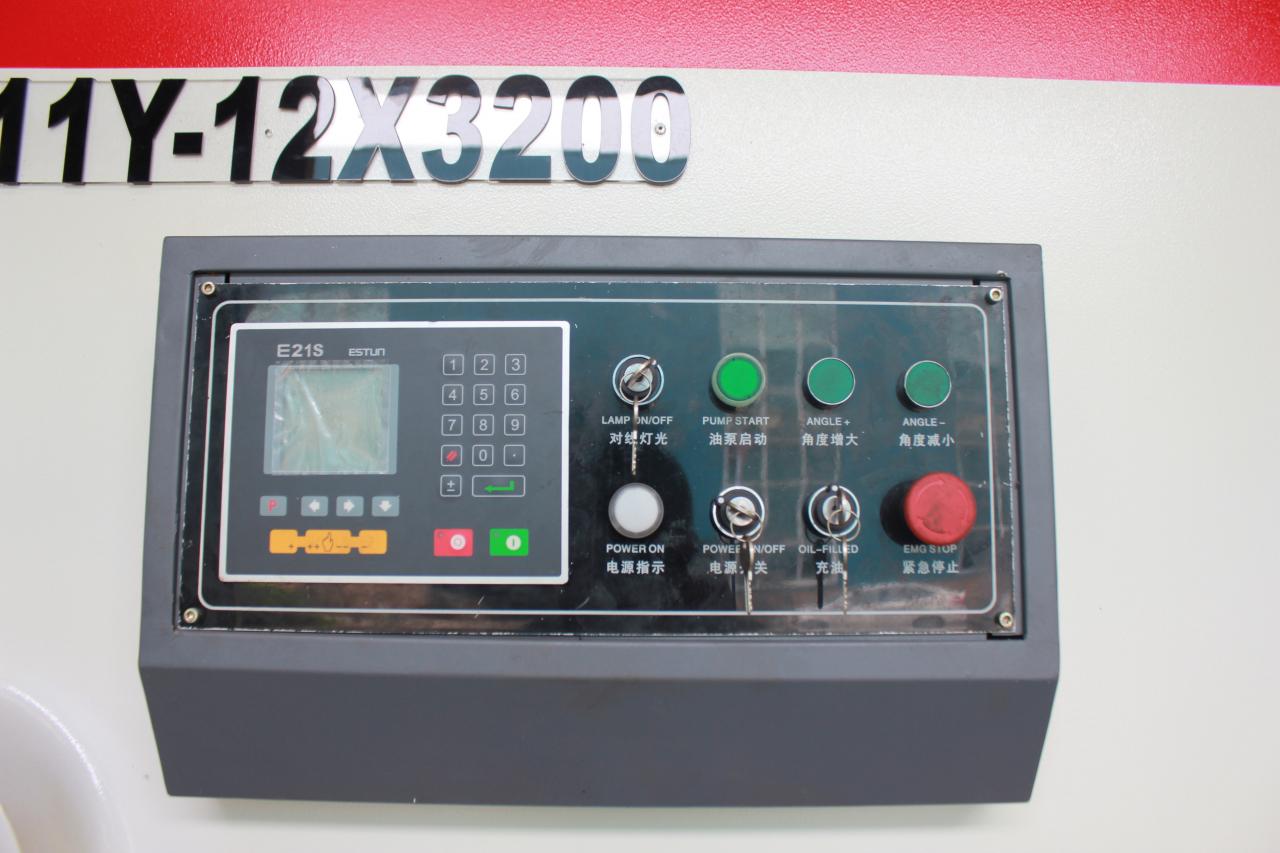

E21S Controller

Qc11y Metal Plate Hydraulic Guillotine Shearing Machine For Sale

  • 1.Backgauge and block control
  • 2.Control for general AC motors, frequency inverter
  • 3.Intelligent positioning
  • 4.Stock counter
  • 5.Holding/decompression time setting
  • 6.Program memory of up to 40 programs
  • 7.Up to 25 steps per program
  • 8.One side positioning
  • 9.Retract function
  • 10.One key backup/restore of parameters
  • 11.mm/inch
  • 12.Chinese /English

Main configuration

CNC controllerE21S Estun               China Brand
Main motorSiemens                    Germany brand
Electrical componentsSchneider                  France brand
Gear pumpSunny                         USA brand
Seal ringNOK                           Japan brand
Hydraulic systemBoschrexroth            Germany brand
Ball screwHIWIN                        Taiwan brand
Tubing connectorEMB                           Germany Brand
Variable frequency driveShihlin                       Taiwan Brand

The standard accessories are in the below:

1. Anchor bolt
2. Hex nut
3. Seal ring
4. Washer
5. Grease gun
6. Allen wrench
7. Feeler gauge
8. Foot switch
9. Front support arms
10. Electrical box key, control panel key
11. Operation manuals


  • Max. Cutting Width (mm): 6000 mm
  • Max. Cutting Thickness (mm): 16 mm mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 0.5-3
  • Blade Length (mm): 6000 mm mm
  • Backgauge Travel (mm): 20 - 1000 mm
  • Throat Depth (mm): 100 mm mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 22 kW
  • Weight (KG): 35000 KG
  • Place of Origin: Jiangsu, China
  • Voltage: any design
  • Dimension(L*W*H): 7250x2400x3100mm
  • Year: 2020
  • Warranty: 2 years
  • Key Selling Points: High-accuracy,High Productivity,Long Service Life
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
  • Showroom Location: None
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Motor
  • Product name: QC11Y Hydraulic Guillotine Shearing Machine
  • Keyword: Hydrualic Shearing Machine
  • Usage: Shearing Metal Sheet
  • Certificates: CE,BV,ISO9001:2008,TUV
  • Cutting material: Metal .Alloy Metal .Aluminum
  • Control system: E21S/Estun E200/Delem DAC310s/DAC360S
  • Cutting thickness: 16mm
  • Cutting length: 6000mm
  • BACK guage: 20-1000mm
  • Size: Customized
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
  • Certification: CE,BV,ISO9001:2008,TUV
