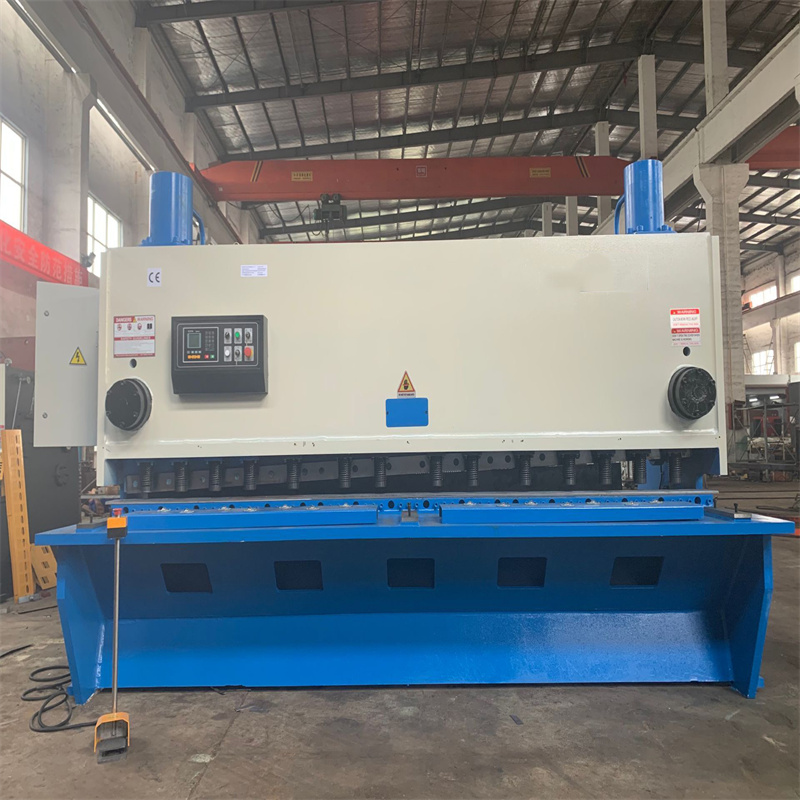

Sheet Metal Cutter Machine Hydraulic Guillotine Shearing Machine For Cutting Iron

Swing beam shearing machine

1. Rack,knife vibration to eliminate stress,welding machine,durable

2. Advanced integrated hydraulic system,good reliability

3. Three-point support rolling guide to eliminate the bearing clearance,to ensure the quality of shear

4. Electric blade gap adjustment,quick and accurate

5. On the full use of the blade edge on all sides,the increased use of time

6. Shear angel can be electrically adjusted,reducing the amount of shear deformation plate

7. After the block,RV reducer electric adjustment,electronic digital display,accurate and reliable
Sheet Metal Cutter Machine Hydraulic Guillotine Shearing Machine For Cutting Iron

Shearing machine main features:

1, German Siemens Motor can be optional

2, France Schneider electric can be optional

3, USA Sunny oil pump is optional

4, Material pressure cylinder, to ensure you the best leakproofness, without oil leak trouble

5, The oil cylinder is with mirror finished, also to reduce oil leak trouble

Hydraulic system

1) Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box

2) Every complete working cycle can be achieved through the control of hydraulic valve. The remote adjustment valve can adjust the working pressure at the right side of the wall board

3) All seals in cylinder is imported (the most famous brand), good quality and high performance

4) Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.

Blade adjust and cutting precision

1) Adopt hand-wheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting

2) The rectangular mono-block blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality

3) Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal

4) System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.
Sheet Metal Cutter Machine Hydraulic Guillotine Shearing Machine For Cutting Iron
Built-in Spring Pressure Cylinder

Built-in spring pressure cylinder,its lower end equipped with special material gasket, separately control the pressure,avoiding
aluminium alloy or other softor materials being imprinted

Workbench

Rolling steel ball of workbench can reduce friction,protect the workpiece urface;delicate desingn is convenienfor cutting petty materials by hand

Hydraulic Valve

Hydraulic transmission with high reliability,integrated dydraulic system can effectivelyalleviate problems caused by leakage of hydraulic fluid,

Electrical system

Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable
safety,long life,good anti-interference ability.

Controller

E21S controller cantilever device,referrinigto man-machine engineering deign principle,easy CNC system operation
surface,significantly improving the operation precision and comfortability

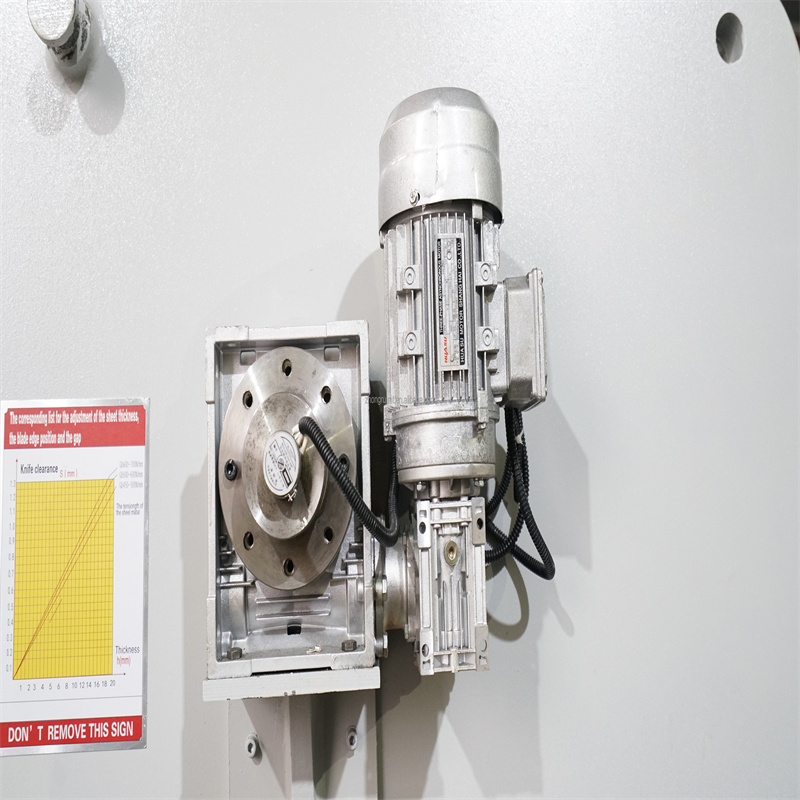

Blade Clearance Adjustment

Rapid adjustment mechanism for rearranging blade clearance,easy operation by hand,realizing stepless adjustment of blade clearance

Model
(QC12Y Series)		Max cutting
thickness
(mm)		Max cutting length
(mm)		Cutting AngleRam strokes
(n/min)		Back stop
range
(mm)		Motor
(kw)		Machine size
(mm)
4x2500425001.31820-60043150x1650x1700
4x3200432001.31820-6005.53840x1675x1600
4x4000440001.31220-6005.54640x1850x1750
4x5000450001.31020-6007.55660x2050x1900
4x6000460001.3720-8007.56730x2250x2500
6x2500625001.31820-6007.53130x1675x1600
6x3200632001.31420-6007.53840x1675x1620
6x4000640001.31420-6007.54630x1850x1700
6x5000650001.31220-800115660x2050x1950
6x6000660001.31020-800116700x2300x2300
8x2500825001.31220-600113130x1530x1600
8x3200832001.31020-600113840x1675x1620
8x4000840001.3820-600114630x1850x1700
8x5000850001.3720-800154630x2050x1950
8x6000860001.3620-800156750x2330x2230
10x25001025001.31220-600153130x1580x1800
10x32001032001.31020-600153840x1725x1850
10x40001040001.3820-600154650x1900x1850
10x50001050001.3820-800155600x2000x1950
16x25001625001.31020-60018.53200x2150x2250
16x32001632001.3920-60018.53900x2150x2250
16x40001640001.3820-600224700x2150x2250
16x50001650001.3620-600305800x2500x2500

 FAQ

Q1. How about the quality of your machines?

Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience. We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.

Q2. Can you give me a better price for the machine?

1. The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.

2. We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.

3. As a factory, we have an advantage in price.

Q3. How can we provide you efficient services (metal processing solution)?

There are Three Steps as following:

1. Gather your requirements based on your real working situation.

2. Analyze your information and provide our feedback.

3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations non-standard products, we can offer professional designing.

Details

  • Max. Cutting Width (mm): 4000
  • Max. Cutting Thickness (mm): 6 mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 1.3
  • Blade Length (mm): 4000 mm
  • Throat Depth (mm): 80 mm
  • Condition: New
  • Brand Name: ntpacific
  • Power (kW): 7.5 kW
  • Weight (KG): 8500 KG
  • Voltage: Clients' requirements
  • Dimension(L*W*H): 4630x1850x1700
  • Year: 2021
  • Warranty: 1 Year
  • Key Selling Points: High-accuracy
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works
  • Showroom Location: None
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Pump, PLC
  • Name:: Iron sheet hydraulic shearing machine
  • colour:: Clients' requirements
  • Hydraulic system: Bosch Rexroth Germany
  • Sealing rings: NOK Japan
  • Electric parts: Siemens & Schneider
  • Hydraulic oil: 46#
  • BLADE: ALLOY STEEL
  • nitrogen: no need
  • Application: Mild carbon stainless steel plate or iron sheet
  • shearing plate material available: Mild steel,stainless steel,aluminum steel
  • After-sales Service Provided: Online support
  • After Warranty Service: Online support
  • Local Service Location: None
  • Certification: ce
