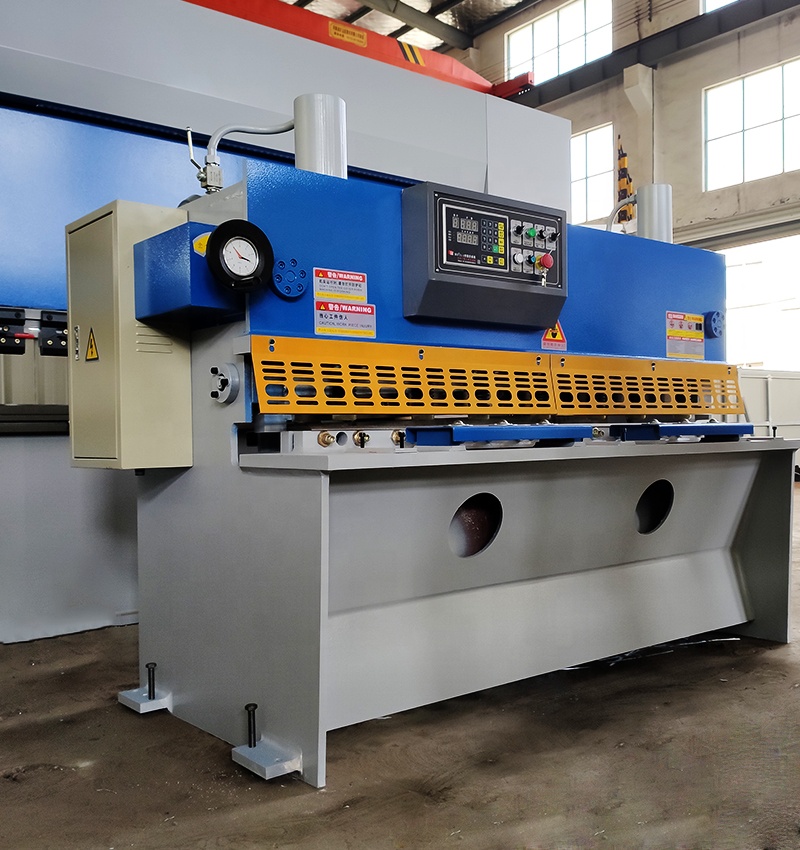

Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K

Machine Description:

Hydraulic Guillotine shearing machines are characterized by high accuracy and cut quality in all conditions and on any material.

The solid frame of the machine and the double plate, that supports the work bench, ensure absolute stability with performance and reliability.

The quality of guillotine shear is certified by hydraulic, electrical and mechanical components with high range.

The machine's performance, excellent in the standard equipment, can be upgraded with different components and accessories that are characterized by flawless performances even in extreme working.

The options of CNC control panel allows an easier use of the machine optimizing the manufacturing process.

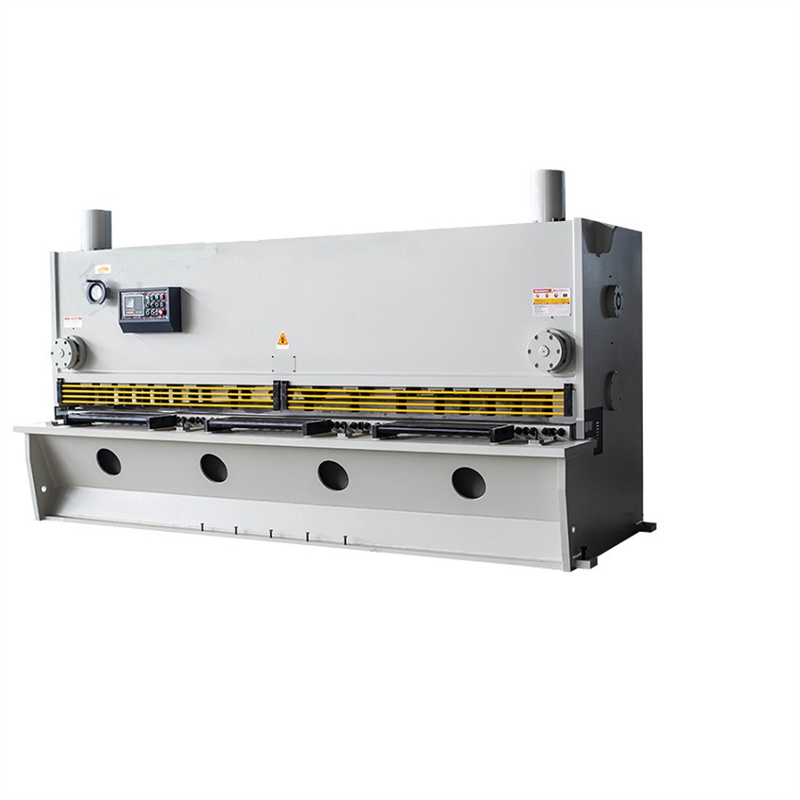

Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K

Machine Features

1. Steel welded structure with stress-free

2. Three guide trolleys enable accurate movement and fine shearing results

3. Hydraulically driven blade holder, retracted by cylinder accumulator

4. Adjustable rake angel to minimize deformation of sheared plate

5. Back gauge travel can be manually adjusted and knob fined, digital displayed

6. Swing away back gauge function for cutting longer sheets

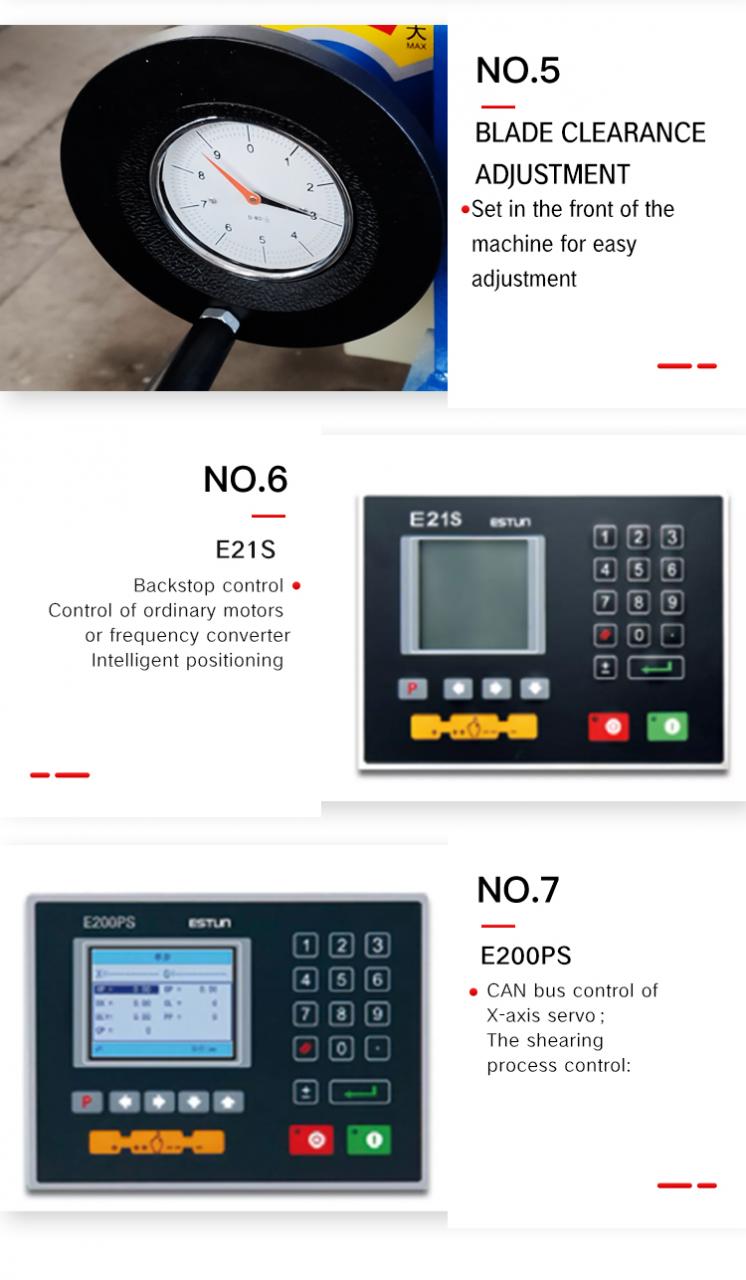

7. Indicator-based adjustment of blades clearance is easy, convenient and swift

8. 4 cutting edges blade

9. Full or shorter stroke of blade holder is adjustable

10. NC controller as standard configuration or CNC controller as optional

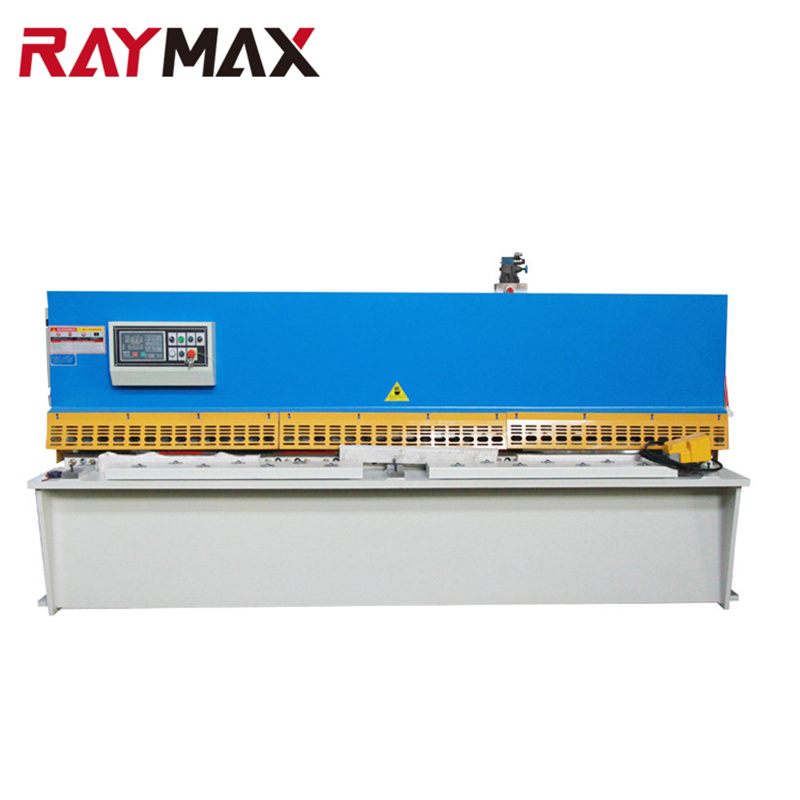

Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K

Product main technical parameters:

TypeCutting thickness (mm)Cutting lengthTravel TimesBack Gauge DistanceCutting AngleThroat DepthPowerDimension
(mm)(mm)(times/min)(mm)(°)(mm)(KW)LxWxH (mm)
6x250062500145501.51007.53100x1600x2050
6x320063200125501.51007.53800x1600x2050
6x400064000105501.51007.54600x1600x2100
6x60006600087501.5100116600x1900x2500
8x250082500145501.51007.53100x1600x2000
8x320083200125501.51007.53800x1600x2000
8x400084000105501.5100114600x1600x2100
8x60008600077501.5100156600x1900x2500
10x2500102500115502100113100x1700x2100
10x3200103200105502100113800x1700x2100
10x400010400097502100154600x1700x2200
12x2500122500127502100153200x1800x2250
12x3200123200107502100153900x1800x2250
12x40001240008750210018.54700x1800x2400
12x600012600057502100226800x2000x2600
16x2500162500117502.510018.53400x2100x2500
16x320016320097502.510018.54100x2100x2500
16x400016400067502.5100224900x2100x2600
16x600016600047502.5100227000x2300x2800
20x250020250087502.5100223400x2100x2600
20x320020320077502.5100224100x2100x2600
20x400020400067502.5100304900x2200x2700
25x25002525007750312037'3500x2200x2700
25x320025320067503120374200x2200x2800
25x400025400057503120375000x2300x2900
30x250030250067503.5120453600x2300x2800
30x320030320057503.5120454300x2300x2900
30x400030400057503.5120455100x2400x3000
Remark: Above models are only parts of our NC machine categories.
For more information, please feel free to contact with us.

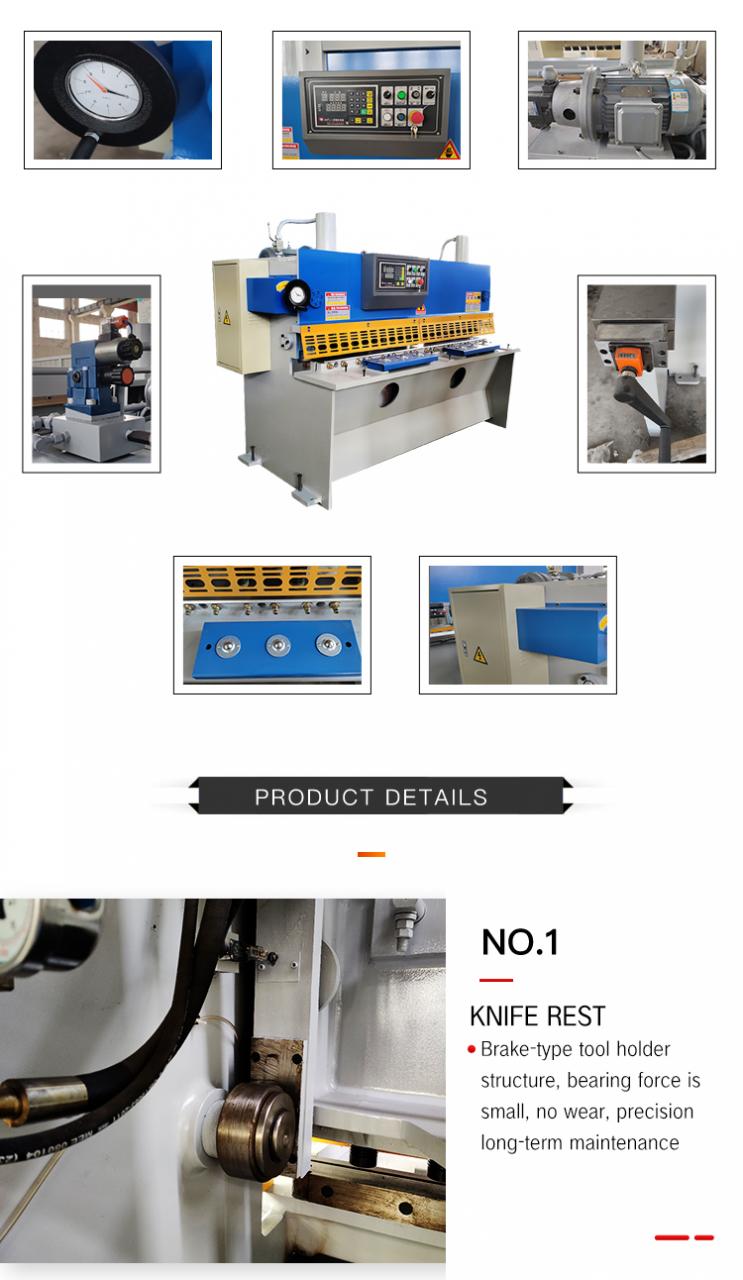

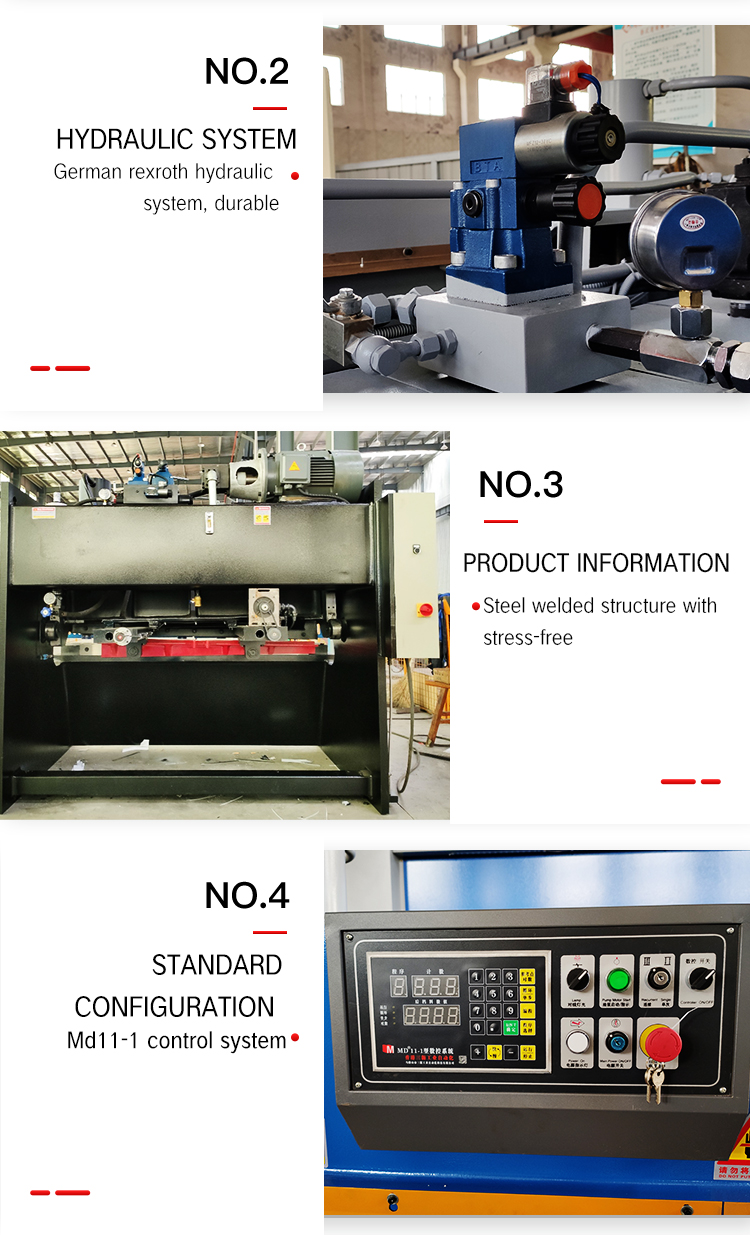

Details Display

Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K
Shear Cutting Machine Guillotine Metal Hydraulic Shearing Machine Qc11Y/K

Details

  • Max. Cutting Width (mm): 6000
  • Max. Cutting Thickness (mm): 30 mm
  • Automatic Level: Semi-automatic
  • Shearing Angle: 0.5-2.30
  • Blade Length (mm): 6000 mm
  • Backgauge Travel (mm): 20 - 800 mm
  • Throat Depth (mm): 80 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 15 kW
  • Weight (KG): 6800 KG
  • Place of Origin: China
  • Voltage: 220v/380v/410v/440v
  • Dimension(L*W*H): 4200x2300x3200
  • Year: new
  • Warranty: 1 Year
  • Key Selling Points: Automatic
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Food Shop
  • Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, PLC
  • Name: Hydraulic Guillotine Shears
  • Application: Industrial Metal Cutting
  • Product name: QC11Y Hydraulic Guillotine Shearing Machine
  • Keyword: Hydrualic Shearing Machine
  • Cutting material: Metal .alloy Metal .aluminum
  • Usage: Cutting Sheet Sheet
  • Machine type: Sheet Metal Hydraulic Guillotine
  • Cutting mode: Cold Cutting
  • Function: Shear Steel Plate
  • Control system: Estun E21 NC Control
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
  • Certification: ce
