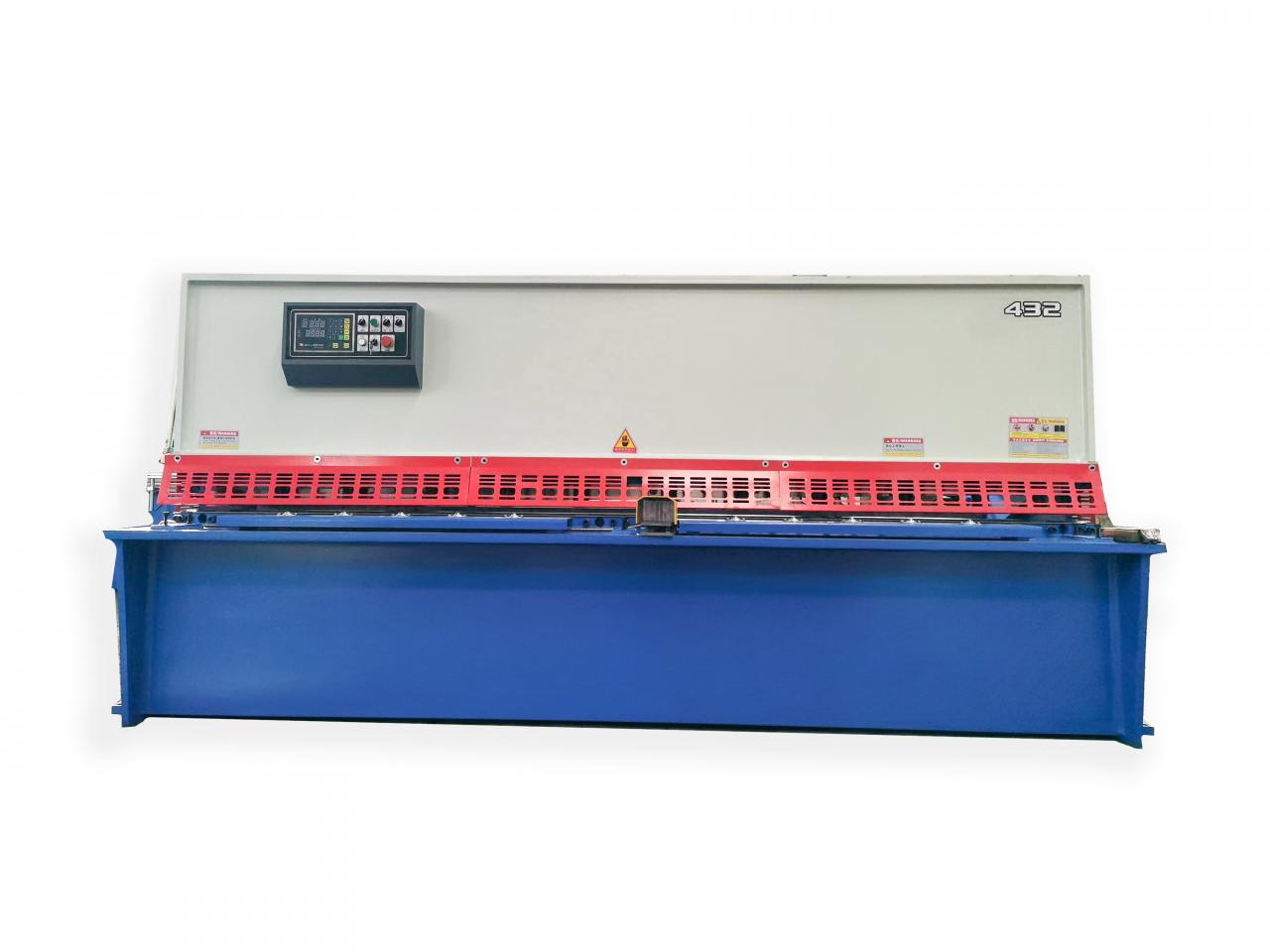

Cnc Hydraulic Shearing Machine Qc12y-123200mm Cnc Shearing Machine

Product Description

The main machine is equipped with a special numerical control system for shearing machine.

Real time display of back stop position.

Multi-step programming function, automatic operation and continuous positioning of the back stop, realize the automatic adjustment of the back stop position.

Shearing counting function, real-time display of shearing quantity, power-off memory stop material position, program and
parameters.

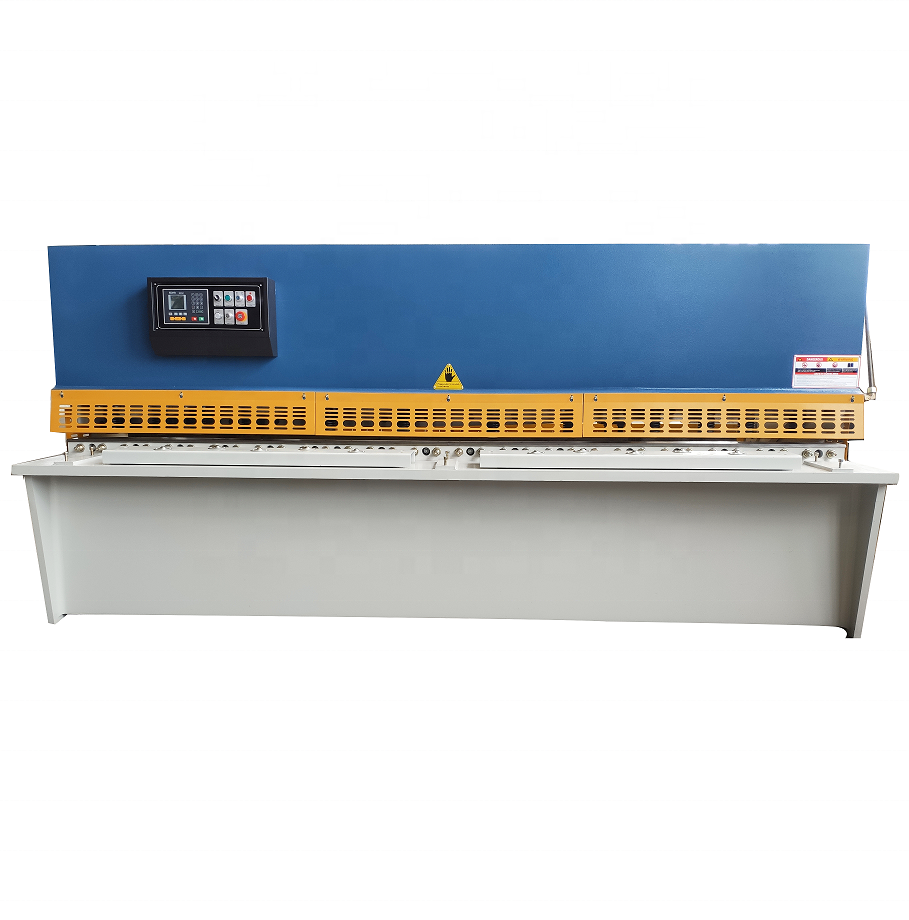

Imported ball screw and linear guide are adopted to ensure the positioning accuracy and higher machining accuracy. Cnc Hydraulic Shearing Machine Qc12y-123200mm Cnc Shearing Machine

Features:

1.  Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.

2.  Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.

3.  Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.

4.  Back gauge is adjusted by E21S controller.

5.  Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.

6.  Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.

7.  Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.

8.  The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel
protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty
material can be cutter easily.

9.  Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.

10.  Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting promptly.

Cnc Hydraulic Shearing Machine Qc12y-123200mm Cnc Shearing Machine

Product Paramenters

No.Item12*250012*320012*400012*5000E21S
1Max.shearing thickness12121212mm
2Max.shearing width2500320040005000mm
3Shearing angle°
4Material intension≤450≤450≤450≤450kn/cm
5Back gauge adjust range20-60020-60020-60020-600mm
6Stroke1210106times/min
7Main motor18.518.518.518.5kw
8Dimension(L*W*H)3200*1800*18003900*1800*18004900*1850*19005150*2150*2800mm

FAQ

1. Who are we?

We are based in Anhui, China, nearby Nanjing City. Started in 2008, sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(15.00%),Domestic Market(10.00%),Mid East(10.00%),South America(10.00%),Eastern Asia(5.00%),Africa(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?

Always final Inspection before shipment;Two years warranty, provide lifelong service.

3. What can you buy from us?

Hydraulic press brake, shearing machine, laser cutting machine, scrap metal baler, shear, air duct producing machines, etc.

4. Why should you buy from us not from other suppliers?

We are a factory in an industrial town near Nanjing city who manufacturing press brake, shearing machine, duct making machines, scrap metal shear, baler, etc. Machines export to India, Thailand, Russia, Dubai, USA, Peru, Mexico, Eu, Malaysia, UK, Romania, Ukraine, Philippines markets, etc.

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Other ways can also be accepted after we both sides' discussion and agreement.

6. What shall we do if don't know how to operate your machine?

We can arrange our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there're detailed installation and operating instructions attached. It's very simple, we have telephone and Email support at 24 hours per day.

Details

  • Max. Cutting Width (mm): 3200 mm
  • Max. Cutting Thickness (mm): 12 mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 2°
  • Blade Length (mm): 3200 mm
  • Backgauge Travel (mm): 20 - 600 mm
  • Throat Depth (mm): 120 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 18.5 kW
  • Weight (KG): 8800 KG
  • Place of Origin: Anhui, China
  • Voltage: 380V/220V Customer's Requirment
  • Dimension(L*W*H): 3900*1800*1800
  • Year: 2021
  • Warranty: 2 years
  • Key Selling Points: High-accuracy
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Metal sheet processing
  • Showroom Location: None
  • Marketing Type: New Product 2021
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
  • Name: Hydraulic Swing Beam Shearing Machine
  • Application: Sheet Metal Cutting Shearing Machine
  • Cutting thickness: 12mm
  • Cutting length: 3200mm
  • NC Control system: Estun E21S NC System Or MD11
  • Electric parts: Schneider
  • Motor: Siemens
  • Color: Customer Requirement
  • Material intension: ≤450
  • Travel times: 10T/min
