The main performance characteristics:

1. Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .

2. Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .

3. Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .

4. Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.

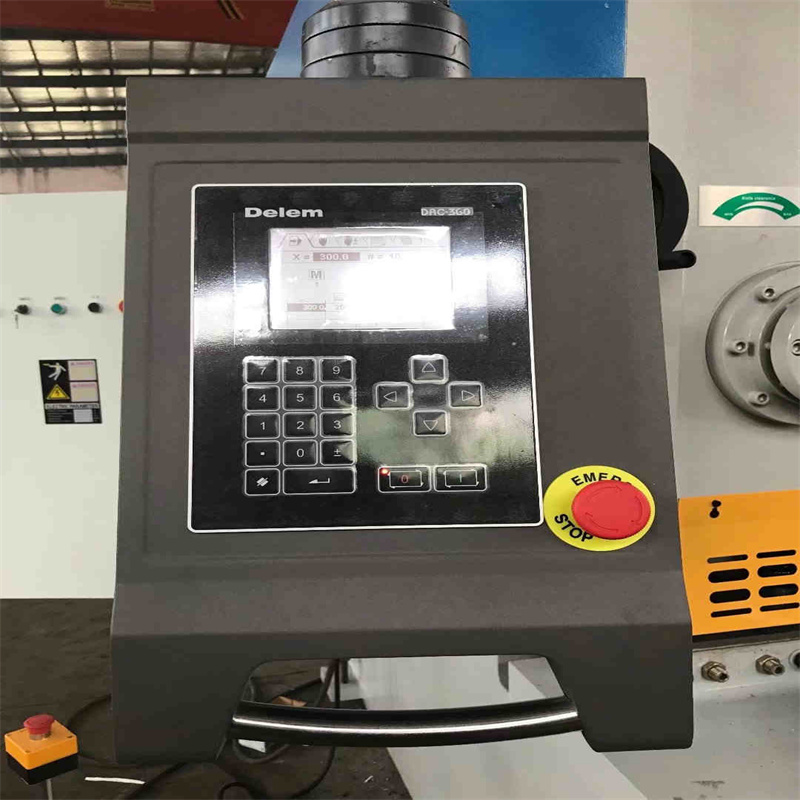

5. The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.

Application:

Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Parameters TypeShearing WidthStrokesBackstroke RangeShearing AngleWorking table heightMotor power
mmTime/minmm(°)mmKW
Q11Y6*2500250016~3520~60030'-1°30'8007.5
Q11Y6*3200320014~3520~60030'-1°30'8007.5
Q11Y6*4000400010~3020~60030'-1°30'8007.5
Q11Y6*5000500010~3020~80030'-1°30'90011
Q11Y6*600060008~520~80030'-1°30'100011
Q11Y8*2500250014~3020~60030'-2°80011
Q11Y8*3200320012~3020~60030'-2°85011
Q11Y8*4000400010~2520~60030'-2°90011
Q11Y8*5000500010~2520~80030'-2°100015
Q11Y8*600060008~2020~80030'-2°105015
Q11Y12*2500250012~2520~80030'-2°84015
Q11Y12*3200320012~2520~80030'-2°90015
Q11Y12*40004008~2020~80030'-2°94015
Q11Y12*500050008~2020~100030'-2°100022
Q11Y12*600060006~2020~100030'-2°106030
Q11Y16*2500250012~2020~80030'-1°30'84022
Q11Y16*3200320012~2020~80030'-1°30'90022
Q11Y16*400040008~1520~80030'-1°30'94022
Q11Y16*500050008~1520~100030'-1°30'100030
Q11Y16*600060008~1520~100030'-1°30'110037
Q11Y20*2500250010~2020~80030'-3°90030
Q11Y20*3200320010~2020~80030'-3°95030
Q11Y20*400040008~1520~80030'-3°110030
Q11Y20*500050008~1520~100030'-3°110037
Q11Y20*600060006~1520~100030'-3°120037

Details

Max. Cutting Width (mm): 6000 mm
Max. Cutting Thickness (mm): 20 mm
Automatic Level: Semi-automatic
Shearing Angle: 30
Blade Length (mm): 2500 mm
Backgauge Travel (mm): 20 - 1000 mm
Throat Depth (mm): 1000 mm
Condition: New
Power (kW): 37 kW
Weight (KG): 5000 KG
Voltage: Customizable
Dimension(L*W*H): customizable
Warranty: 1 Year
Key Selling Points: High-accuracy
Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works
Marketing Type: Hot Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Gearbox
Application: Sheet Metal Industry cutting shearing
Keyword: Shearing Machine
Color: Customizable
Cutting material: Metal .alloy Metal .aluminum
Key words:
Shearing Bending Machine
Name: Small Steel Shearing and Bending Machine
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support, Online support
Local Service Location: India, South Africa
Certification: ce,iso
