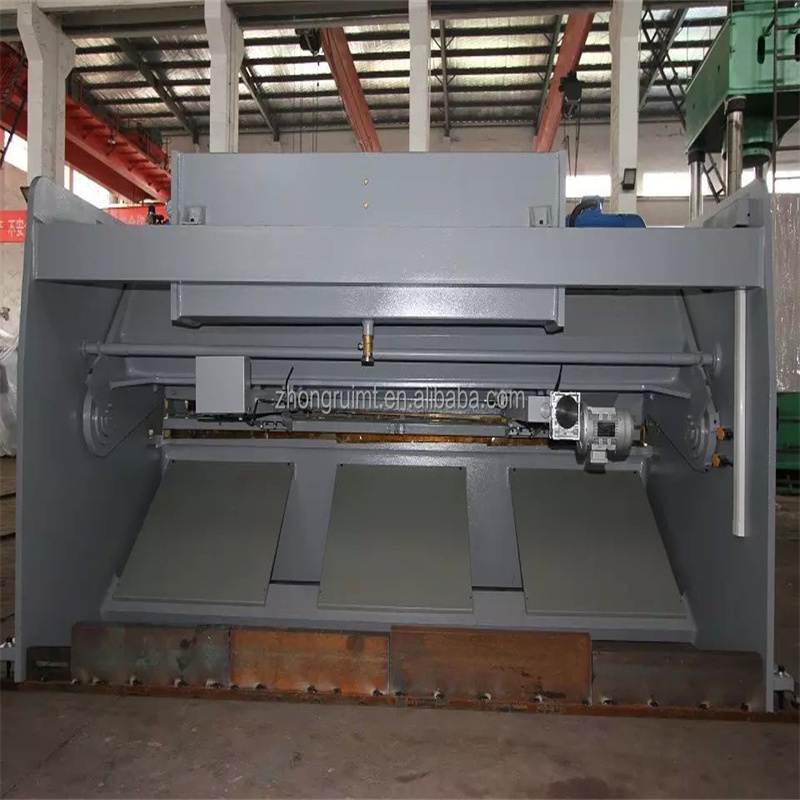

Hydraulic Shear Guillotine Machine Guillotine Shearing Machine

Hydraulic Shearing Machine Features include:

  • Solid monolithic structure
  • An avant-garde hydraulic system
  • Blade carrier beam: Thrust cylinders on the cutting axis with blade carrying beam
  • Blade pressure cylinders, with auto-regulating pressure, based on cutting force
  • Blade carrying beam guide over the whole cutting length
  • Rear regulator with recirculating ball screws
  • Running wheels’ table and frontal support
  • Cutting Angle & Blade Gap control by DAC310 DA360
  • Cutting line with LED illumination
  • ESTUN NC control System DELEM DAC310 DA360
  • Frontal support frame complete with retractable adjustable guides, millimetre rule and running wheels
  • HIWIN Ball screws & Polished rod with 0,01 mm accuracy.
  • Blade clearance adjustment with signs indicating light, rapid adjustment.
  • Concise hydraulic control, enhancing highly the reliability. Work area by adopting the fence type safety  protection device.
  • Blade material 6CrW2Si with hardness HRC58-60, with quality shearing result and long life
  • All the components are from Siemens Germany, Sunny USA, Schneider France Rexroth Bosch Germany.

Main Features

  • The HUANTU guillotine shear is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range.
  • The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality.
  • The HUANTU guillotine shear is available with a broad series of standard equipment but it is possible, at any moment, to add optional equipment according to requirement.

Hydraulic Shear Guillotine Machine Guillotine Shearing Machine

Machine Parts

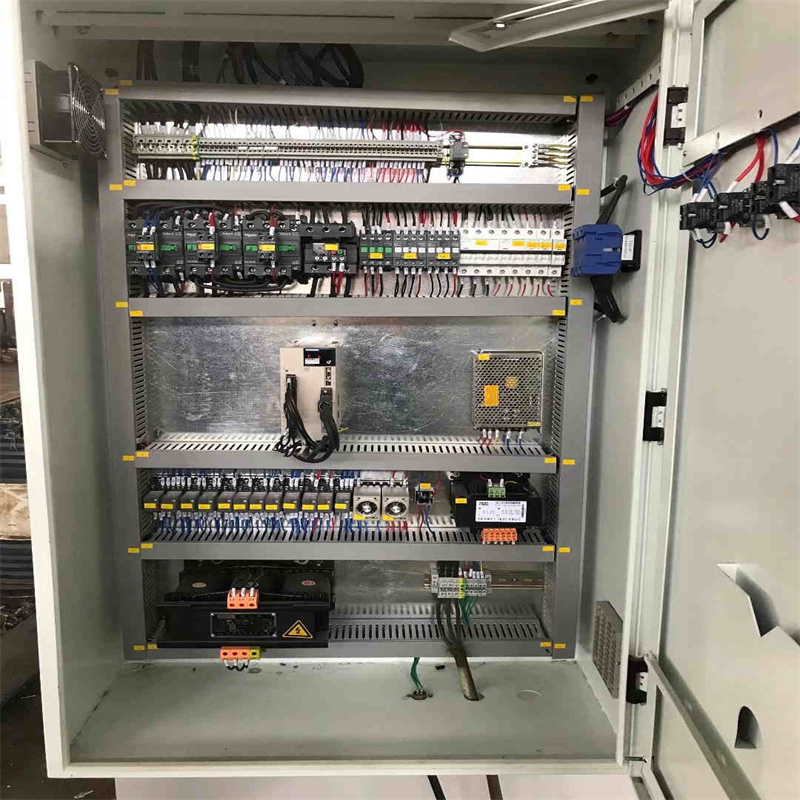

Name: Electric Components

Brand: Schneider France and Siemens Germany

Original: France and Germany

All RAYMAX press brake Electrical Components original from Schneider France and Siemens Germany. Also our machine use Frequency Inverter. We provide 5 years warranty for all our machines.

Name: Motor and Hydraulic System

Brand: Siemens Germany and Bosch-Rexroth Germany

Original: Germany

All RAYMAX Guillotine Shearing machine Motor original from Siemens Germany. HUANTU guillotine shear is equipped with a hydraulic system capable of simplifying the operator’s work enormously and to facilitate all the adjustments necessary for obtaining the best quality cut. Made up of the highest quality, all European, components, the hydraulic unit is a guarantee of long life for the machine as.

Name: Sheet Press Cylinders


Original: RAYMAX

RAYMAX guillotine shear is equipped with cylinders which press on the metal sheet with an automatically regulate-able pressure which varies according to the pressure required by the thickness and consistency of the material to be cut.



Original: Holland

The RAYMAX guillotine shearing machine E21 controller provides a complete and compact shear control application. Including backgauge control, gap control and stroke length limitation this state of the art electronics based unit makes a versatile solution.We also provide CNC DELEM DAC310, DAC360 or any other CNC system as customer requirement.

Name: Working table with ball roller


Original: RAYMAX

RAYMAX hydraulic guillotine shear working table all install the ball roller which will make more easier for the worker to input the plate into cutting area.

Name: Blade Carrier Beam


All RAYMAX standard shearing machine backside use back silder, which will make easier for the worker to pick up the material after cutting.In the Huantu guillotine shear, the cylinder pressure in the cutting axis is transmitted through the blade carrier beam, with a blade cropping capacity of up to half of its thickness and reduced wear on the gaskets and cylinders.

Hydraulic Shear Guillotine Machine Guillotine Shearing Machine

Dimension( L* W* H ) 3260×1280×2450 mm
Weight9 T
  PackageIron pallet and waterproof clothes
HOW TO CHOOSE  CONTAINERFor small and medium size machines ( machine height less than 2600mm ) we can use folklifter to load into container and unload the machine from the container. Container type we can choose 20' feet or 40'feet container


  • Max. Cutting Thickness (mm): 90 mm
  • Automatic Level: Fully Automatic
  • Shearing Angle: 0-3
  • Blade Length (mm): 6100 mm
  • Backgauge Travel (mm): 20 - 1000 mm
  • Throat Depth (mm): 300 mm
  • Condition: New
  • Brand Name: RAYMAX
  • Power (kW): 16 kW
  • Weight (KG): 12000 KG
  • Place of Origin: Other Country
  • Voltage: Customer Required
  • Dimension(L*W*H): Model Different
  • Warranty: 5 years
  • Key Selling Points: Competitive Price
  • Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
  • Hydraulic system: Bosch Rexroth
  • Electronic system: Siemens/Schneider
  • Main Motor: Siemens Germany
  • Seal ring: Valqua Japan
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
  • Certification: CE ISO, SGS
