Wc67y-100t3200 Nc Press Brake, Press Break Machine, Hydraulic Press Brake

Product Description

1. Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.

2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.

3. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.

4. Travel limit protection, full machine guarding with safety interlocker.

5. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.

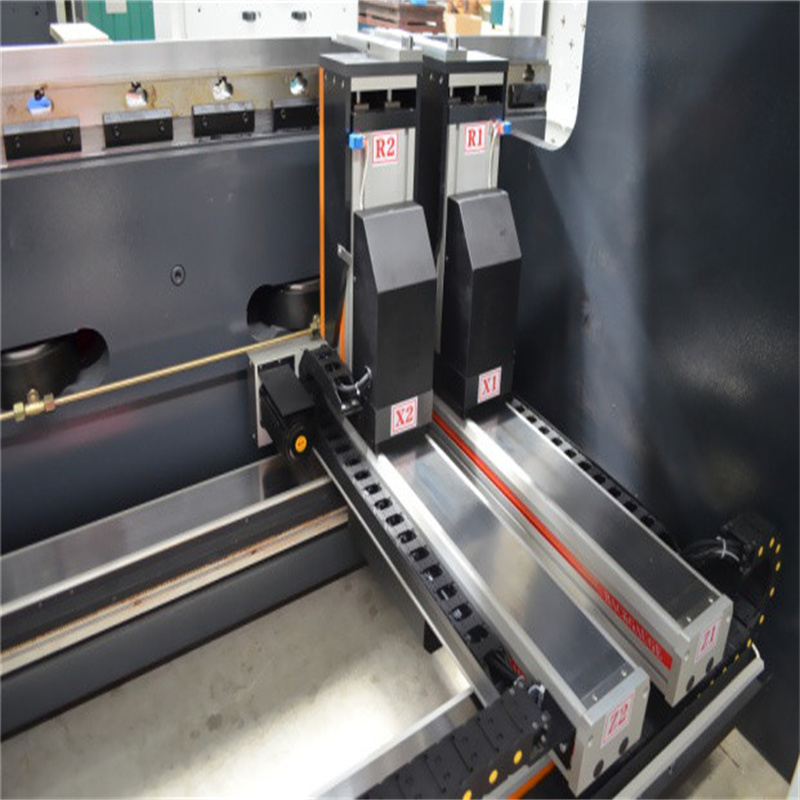

6. The stroke and distance of the back gauge is adjusted by the motor.

7. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays

8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

9. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.

10. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T.

Wc67y-100t3200 Nc Press Brake, Press Break Machine, Hydraulic Press Brake

ModelWC67K 100T 3200
Normal Pressure1000KN
Worktable Length3200MM
Distance between holes2600MM
Depth of throat350MM
Ram travel150MM
Max opening height400MM

Our service

1. Purchase Service

RAYMAX have a specialized and efficiency working team.If you are new on the machine, we will give you specialized
suggestion of whole work .

2.  Shipping Service

RAYMAX have a specialized and independent department which just for arranging shipping for buyer's goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .

3. Installation Service

Installation Services are available with all RAYMAX Company machines.We will dispatch technician to The Buyer's factory to installation and preparation of machines.

4. Clients Training Service

RAYMAX advises the buyer could send own technician come to our factory to learn how to operate machines, RAYMAX Company technician will teach and train the learners hand by hand till he can operate machine by himself.

5. After Sales Service

RAYMAX machines guarantee time is five year, except consumables parts

Wc67y-100t3200 Nc Press Brake, Press Break Machine, Hydraulic Press Brake


Q1: I knew nothing about this machine, what kind of machine i should choose?

Very easy to choose. Just tell us what you want to do by using machine, then let us give you perfect solutions and suggestions.

Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by whatsapp or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information

1)Your material.
2)Your materials max thickness
3) Your produts max width


  • Slider Stroke (mm): 150 mm
  • Automatic Level: Semi-automatic
  • Throat Depth (mm): 350 mm
  • Machine Type: Torsion Bar, Bending Machine
  • Length of Working Table (mm): 3200 mm
  • Width of Working Table (mm): 200 mm
  • Condition: New
  • Place of Origin: Anhui, China
  • Brand Name: RAYMAX
  • Material / Metal Processed: Brass / Copper, Stainless Steel, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: End Forming
  • Year: 2016
  • Weight (KG): 6500
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: High-accuracy
  • Warranty: 5 years
  • Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Advertising Company
  • Showroom Location: Egypt, United States, Viet Nam, Indonesia, Mexico, Spain, Argentina, Kazakhstan, Kyrgyzstan, Malaysia, Australia
  • Certification: ce
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: Viet Nam, Indonesia, Mexico, Thailand, Malaysia, Australia, Morocco, Argentina, Colombia, Kazakhstan, Kyrgyzstan
  • Nominal Pressure (kN): 1000 kN
  • Raw Material: Sheet / Plate Rolling
  • Name: press brake
  • Control system: E21 from ESTUN
  • Mold: WC67Y-100T/3200
  • Bending thickness: 3.9mmmm carbon steell
  • bending length: 3200mm
  • Worktable length: 3200mm
  • Dimension: 2500*1600*2600mm
  • Voltage: 220V/380V/415V/440V/customized
