The NC series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They arethe ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

  • The compact Estun E21 is a complete NC solution for conventional as well as synchronised press brakes.
  • In view of characteristics of press brakes, photoelectric encoder is equipped to display position of backgauge and dead block.
  • Integrated with time replay, soft limit switch and power down position memorization function, E21 provides a high cost
    performance.

Press Brake Controller

For torsion bar synchro NC hydraulic press brake, we provide the RT200, E21 with steppor motor or E200, E300, DA41 and DA41s controller with servo system.

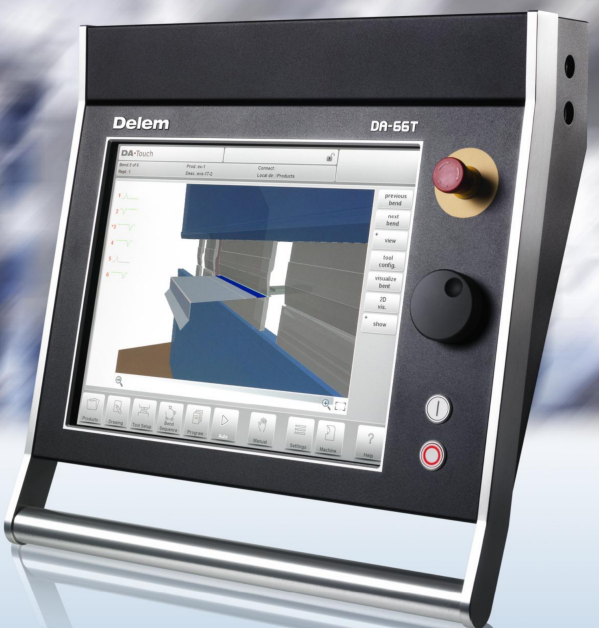

For electro-hydro servo synchro CNC press brake, we provide DA52s, DA53,DA58T, DA66T and CybTouch 8, CybTouch 12 controller.

Wc67k Cnc Aluminum Iron Plate Hydraulic Press Brake Cnc Metal Sheet Bending Machine Wc67k Cnc Aluminum Iron Plate Hydraulic Press Brake Cnc Metal Sheet Bending Machine
Wc67k Cnc Aluminum Iron Plate Hydraulic Press Brake Cnc Metal Sheet Bending Machine
Wc67k Cnc Aluminum Iron Plate Hydraulic Press Brake Cnc Metal Sheet Bending Machine
Wc67k Cnc Aluminum Iron Plate Hydraulic Press Brake Cnc Metal Sheet Bending MachineWc67k Cnc Aluminum Iron Plate Hydraulic Press Brake Cnc Metal Sheet Bending Machine

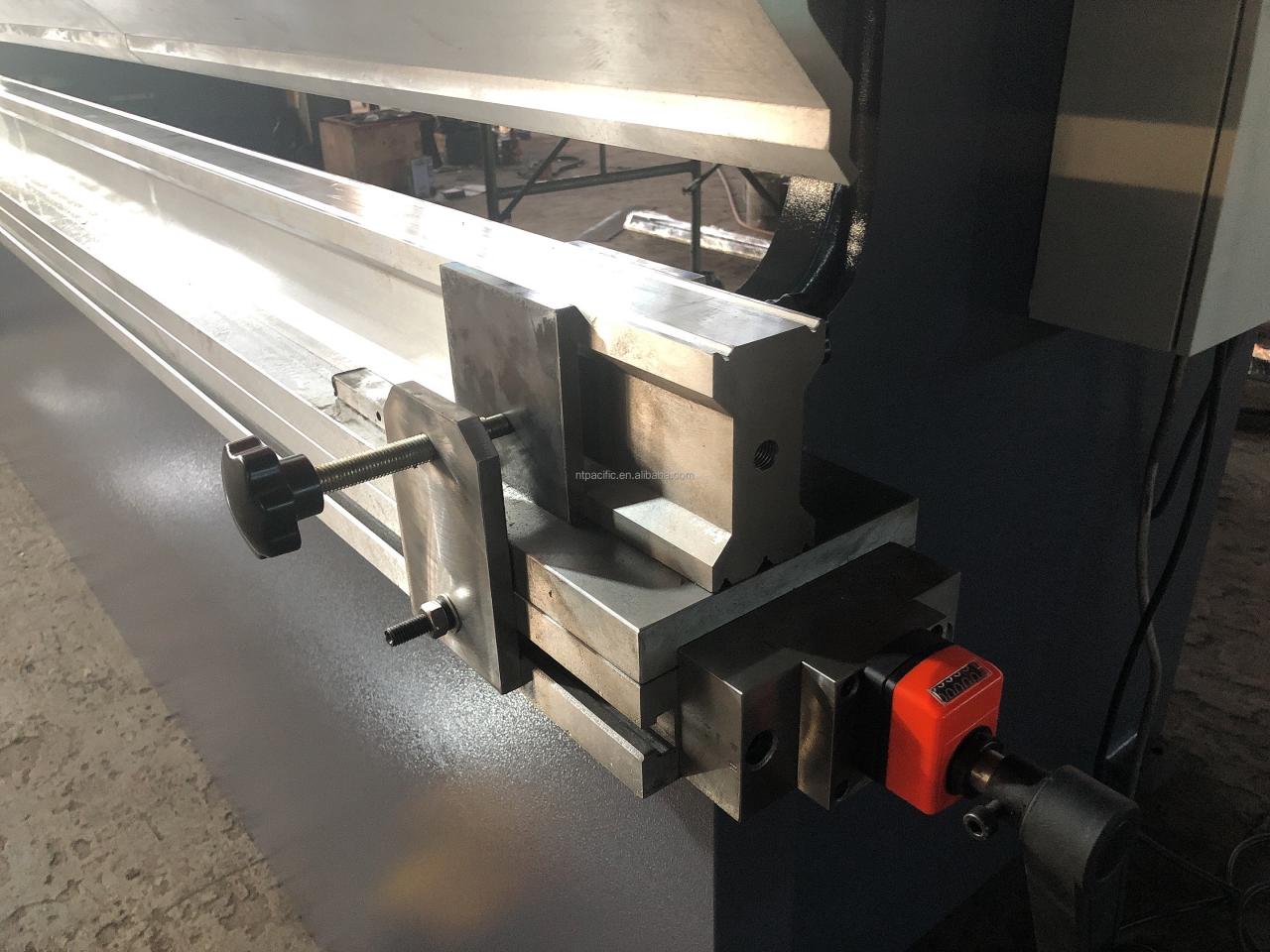

1. Height-adjustable and movable sliding front support arm.

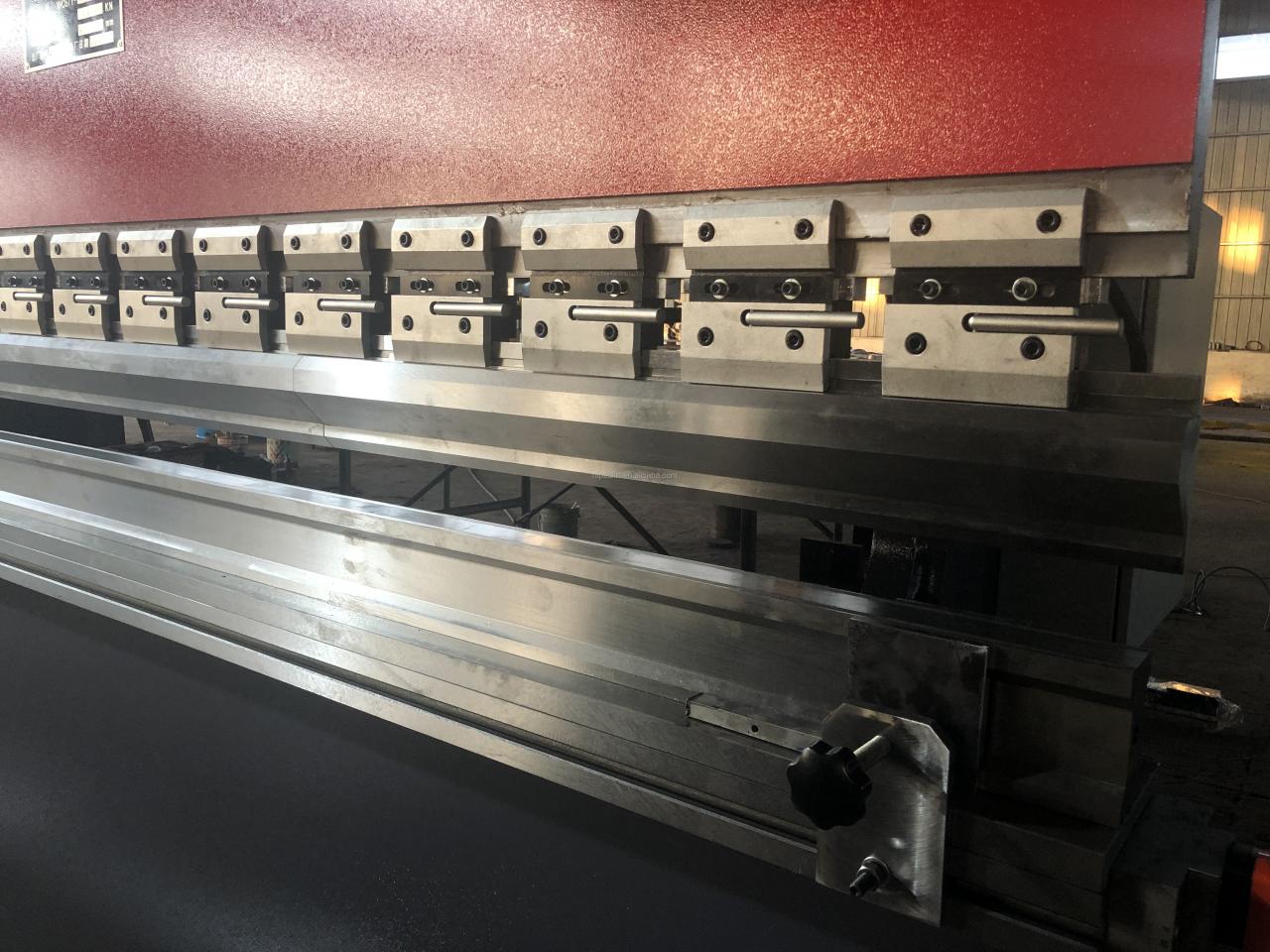

2. The top and bottom tools are surface hardened by special treatment.

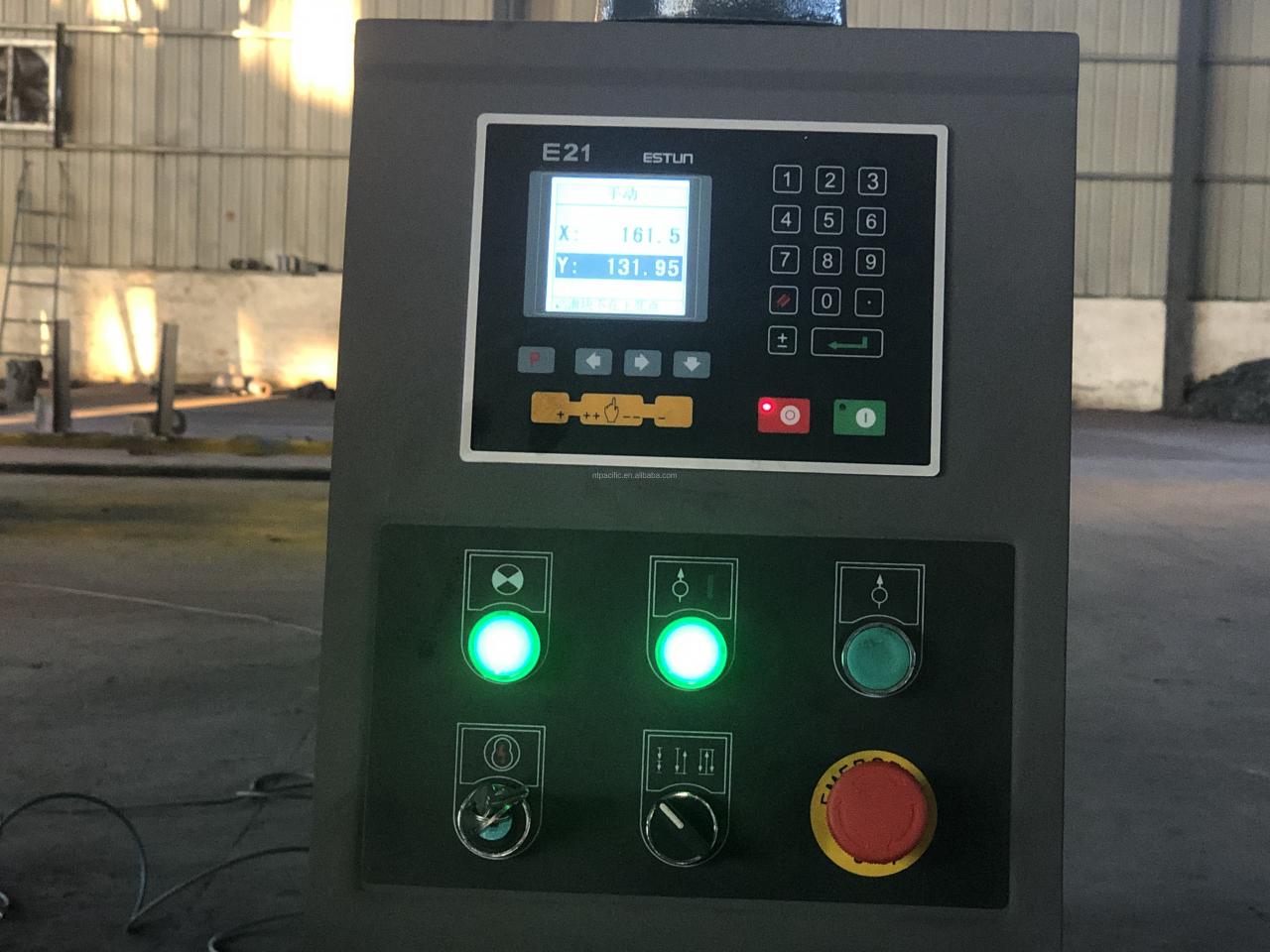

3. Estun E21 control system.

E21 Controller Press Brake

* Back gauge and ram stroke control
* Intelligent and unilateral positioning
* Work-piece counting function
* Holding/decompression time setting
* 40 programs stored, 25 steps per program
* One key back-up/restore of parameters

4. can fine-tune the fingers.

5. Optional metric and inch measurement, Chinese and English display.

6. Foot pedals are produced according to CE standards and are suitable for single and multiple bends.

7. A set of free standard Press Brake Tooling. Generally, the press brake toolings are customized based on final products or workpieces.

8. Pre-adjust electrical requirements based on customer's geographic area.

ModelNominalPressure(KN)Lengthof Table(mm)Distancebetweenframes(mm)ThroatDepth(mm)Stroke(mm)OpenHeight(mm)MainMotor(KW)Weight(KG)OverallDimensionsLXWXH(mm))
WC67Y/K-40/1600400160011502001003405.520001750x1350x1900
WC67Y/K-40/2000400200015902001003405.530002545x1510x2050
WC67Y/K-40/2200400220015902001003405.525002300x1350x1900
WC67Y/K-40/2500400250020902001003405.528002600x1400x1950
WC67Y/K-63/2500630250020502501003605.545002600x1400x2000
WC67Y/K-63/3200630320026002501203605.554003300X1450X2100
WC67Y/K-80/2500800250020502501203807.558002650X1420X2120
WC67Y/K-80/3200800320026002501203807.561003300X1450X2100
WC67Y/K-100/25001000250020503201203857.561002650X1450X2200
WC67Y/K-100/32001000320026003201203857.566003300X1450X2200
WC67Y/K-100/40001000400032003201203857.580004100X1450X2200
WC67Y/K-125/25001250250020503201203857.563002650X1550X2200
WC67Y/K-125/32001250320026003201203857.570003300X1550X2200
WC67Y/K-125/40001250400032003201203857.582004100X1550X2200
WC67Y/K-125/50001250500040003201204107.5115005100x1400x2660
WC67Y/K-160/320016003200260032020047011100003300X1780X2500
WC67Y/K-160/400016004000320032020047011120004100X1800X2350
WC67Y/K-200/320020003200260032020048515120003300X1750X2680
WC67Y/K-200/400020004000320032020048515138003300X1750X2680
WC67Y/K-250/320025003200260032025056018.5136003300X2100X2880
WC67Y/K-250/400025004000320032025056018.5150004100X2050X2980
WC67Y/K-300/320030003200260035025056022160003300X2050X3000
WC67Y/K-300/400030004000320035025056022200004100X2080X3100
WC67Y/K-300/600030006000470035025056022280006100X2080X3250
WC67Y/K-400/320040003200260035025058037200003300X2000X3000
WC67Y/K-400/400040004000320035025058037260004100X2080X3150
WC67Y/K-400/600040006000475040025058037375006100X2180X3580
WC67Y/K-500/400050004000320035025058037260004100X2080X3150
WC67Y/K-500/600050006000475040025058037375006100X2180X3580

FAQ

Q1. How about the quality of your machines?

Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience. We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.

Q2. Can you give me a better price for the machine?

1. The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2. We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3. As a factory, we have an advantage in price.

Q3. How can we provide you efficient services (metal processing solution)?

There are Three Steps as following:

1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.

Details

  • Slider Stroke (mm): 120 mm
  • Automatic Level: Semi-automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: Torsion Bar
  • Length of Working Table (mm): 5100
  • Width of Working Table (mm): 1400 mm
  • Dimension: as per machine specification
  • Condition: New
  • Material / Metal Processed: Stainless Steel, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: Ram stroke adjusted
  • Year: 2021
  • Weight (KG): 11500
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: Competitive Price
  • Warranty: 1 Year
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Printing Shops, Construction works¬†, Advertising Company
  • Showroom Location: None
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Motor, Pump, PLC
  • Name: Hydraulic Press Brake
  • Raw Material: steel stainless sheet
  • Color: red and yellow hydraulic press brake
  • stop back: Manual Opertation
  • motor: motor
  • CNC or NC: NC
  • control system: optional E21,RT200, DA41
  • Dies: Customize
  • Sealing rings: NOK Japan
  • Application: Metal steel sheet bending
  • Certification: ce
  • After-sales Service Provided: Online support
  • After Warranty Service: Online support
