Sheet Metal Bending Machine Hydraulic Bender Plate Stainless Steel Mini Press Brake

Product Description

1）WC67K NC hydraulic plate press brake with E21 controller

Sheet metal plate press brake with E21 NC system

Frequency converter controls the positioning of X,Y axismain motor: SIEMENS Germay

Valve:Bosch Rexroth Germany

Electrics: Schneider France

1. The design meets EU international standards. The fuselage eliminates internal stress by annealing and ensures higher precision and strength. All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.

2. The WC67K series torsion axis bending machine uses Chines ESTUN NC control system to help you increase your productivity and keep the lowest cost and lower maintenance costs.High quality and repetitive bending is obtained by using synchronized cylinders and valves.

3. E21 system programming control system and inverter realize the accurate positioning function of X axis Y axis.

4. Cutting-edge frequency response hydraulic control technology,Rigid upper beam runs on 8-point bearings with bending precision of /-0.01 mm

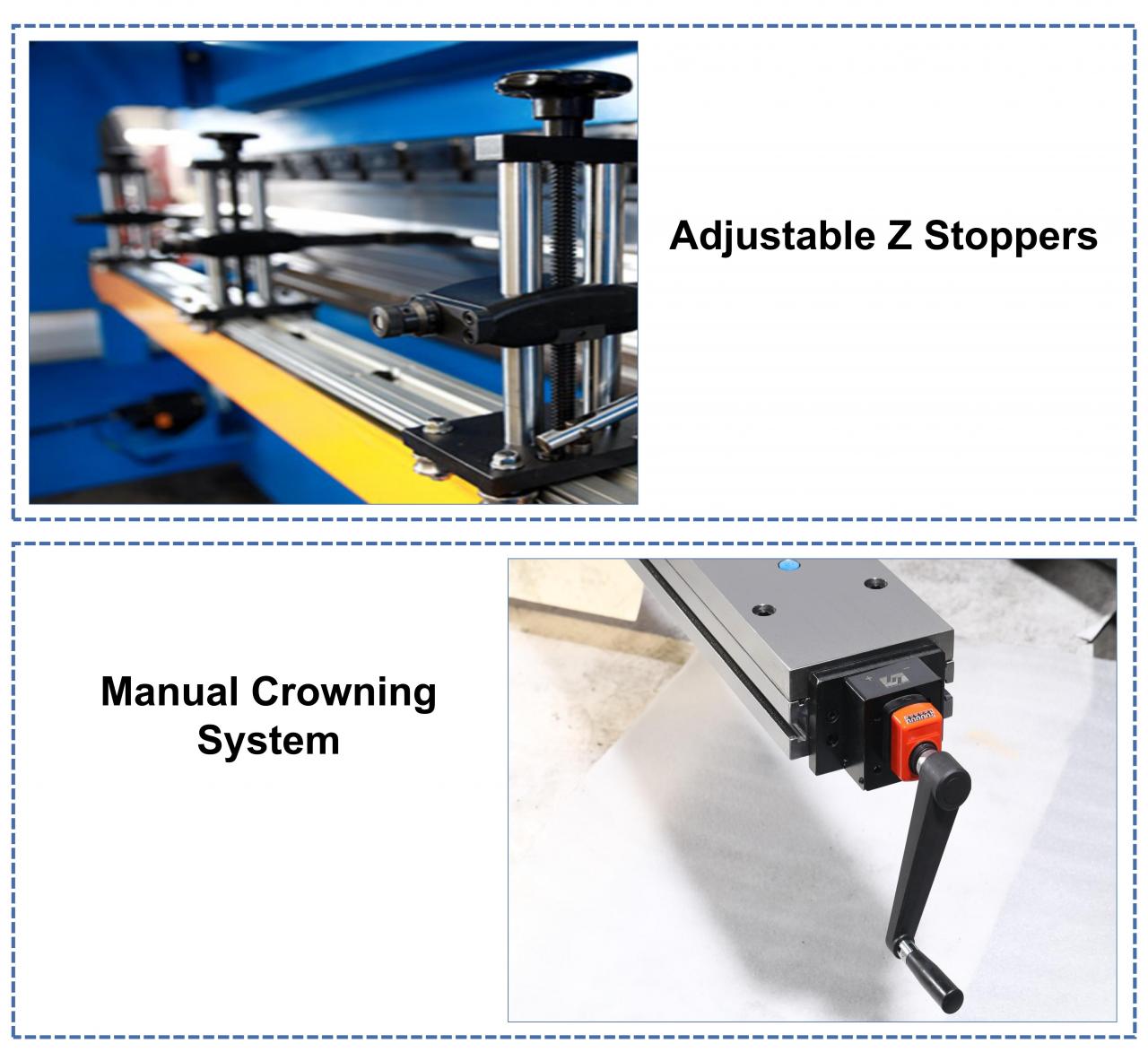

5. Optional V-axis compensation function, and select the appropriate mold to bend complex shape workpieces easily.Standard Equipment。

Chinese E21 NC controller

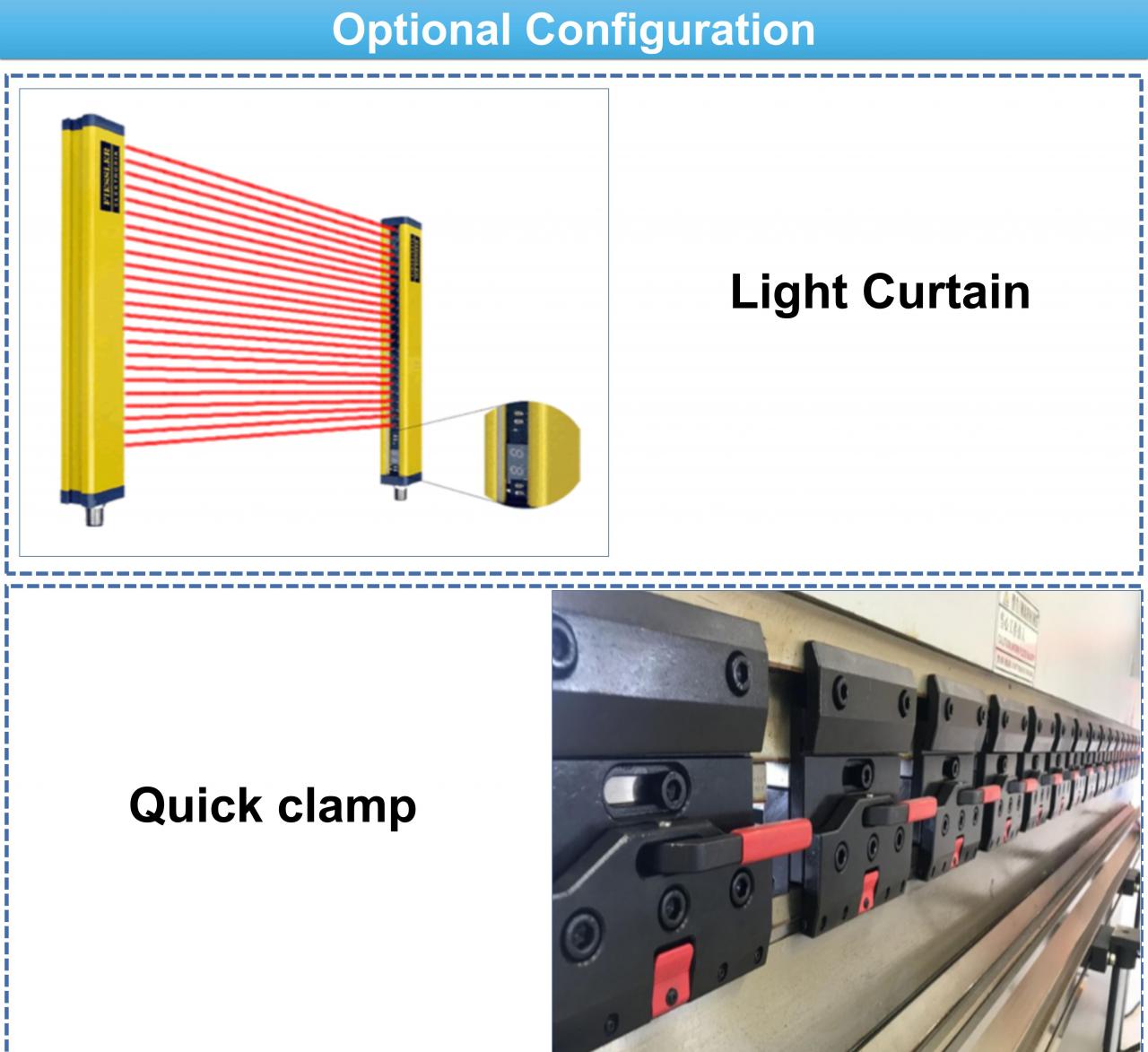

1. Light guards ensure the safety of operators during operation

2. Y-axis and X-axis system control adjustment and frequency converter controls the positioning of them.

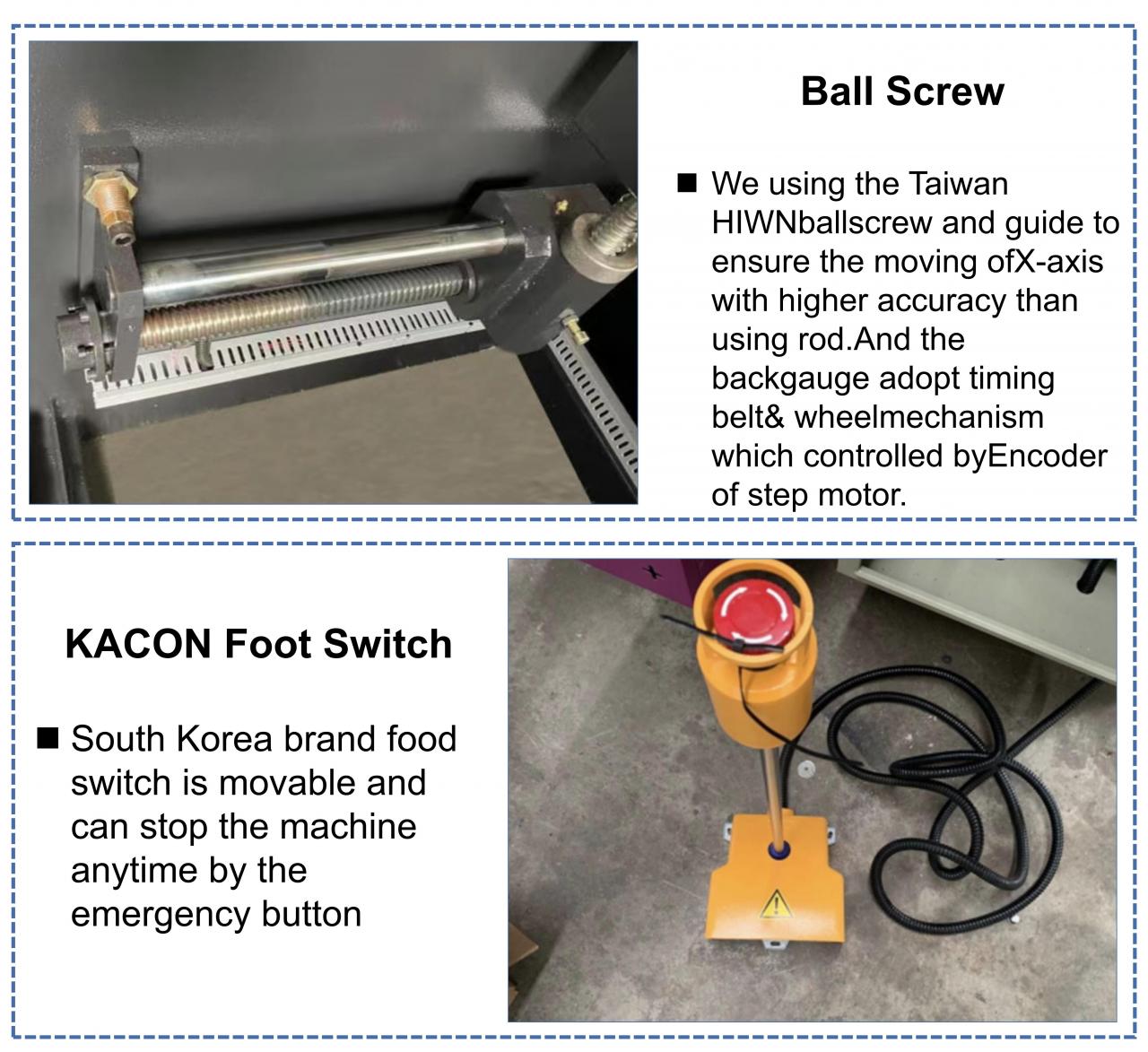

3. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).

4. Steel mono-block construction.

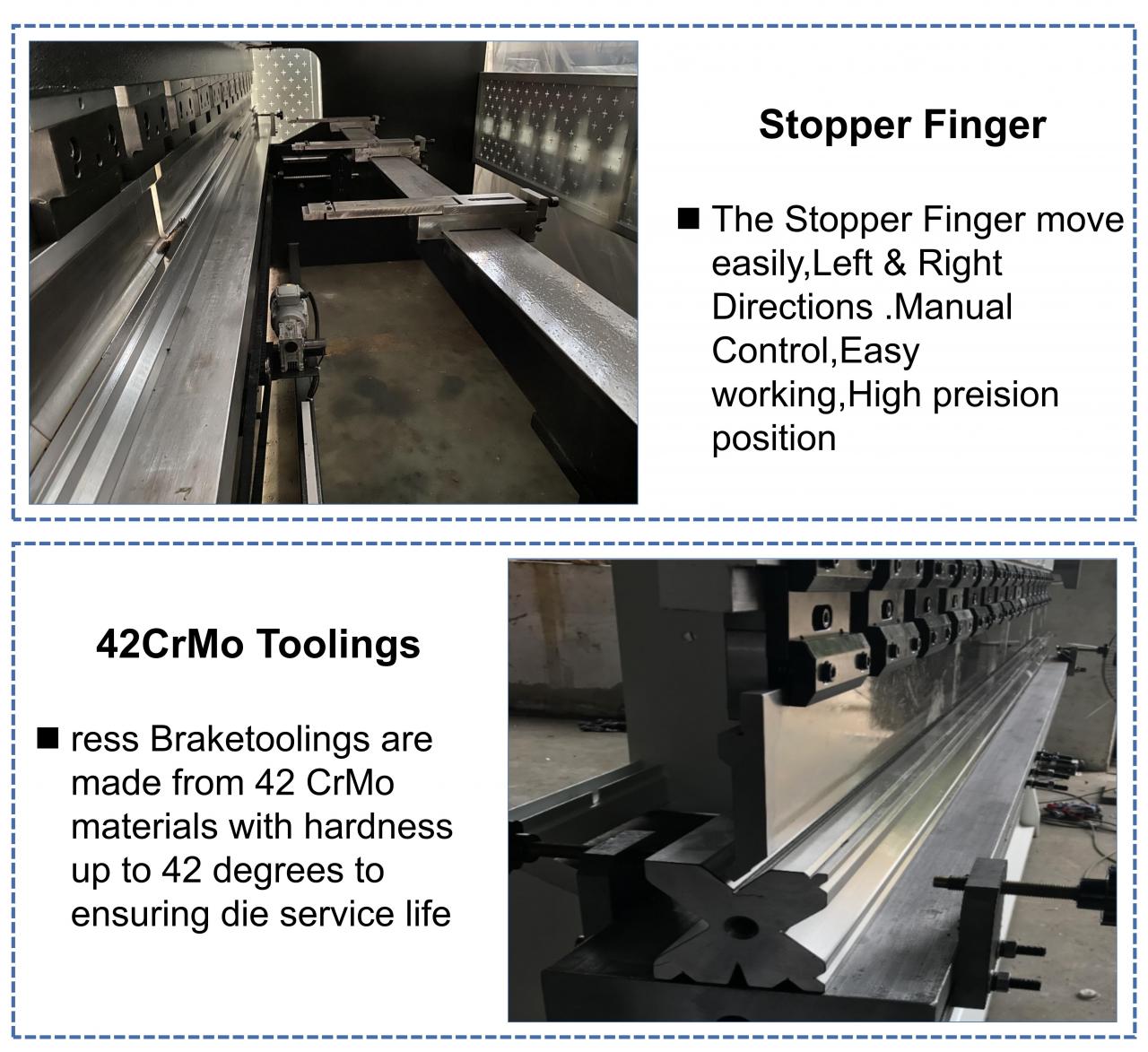

5. Adjustable stop fingers.

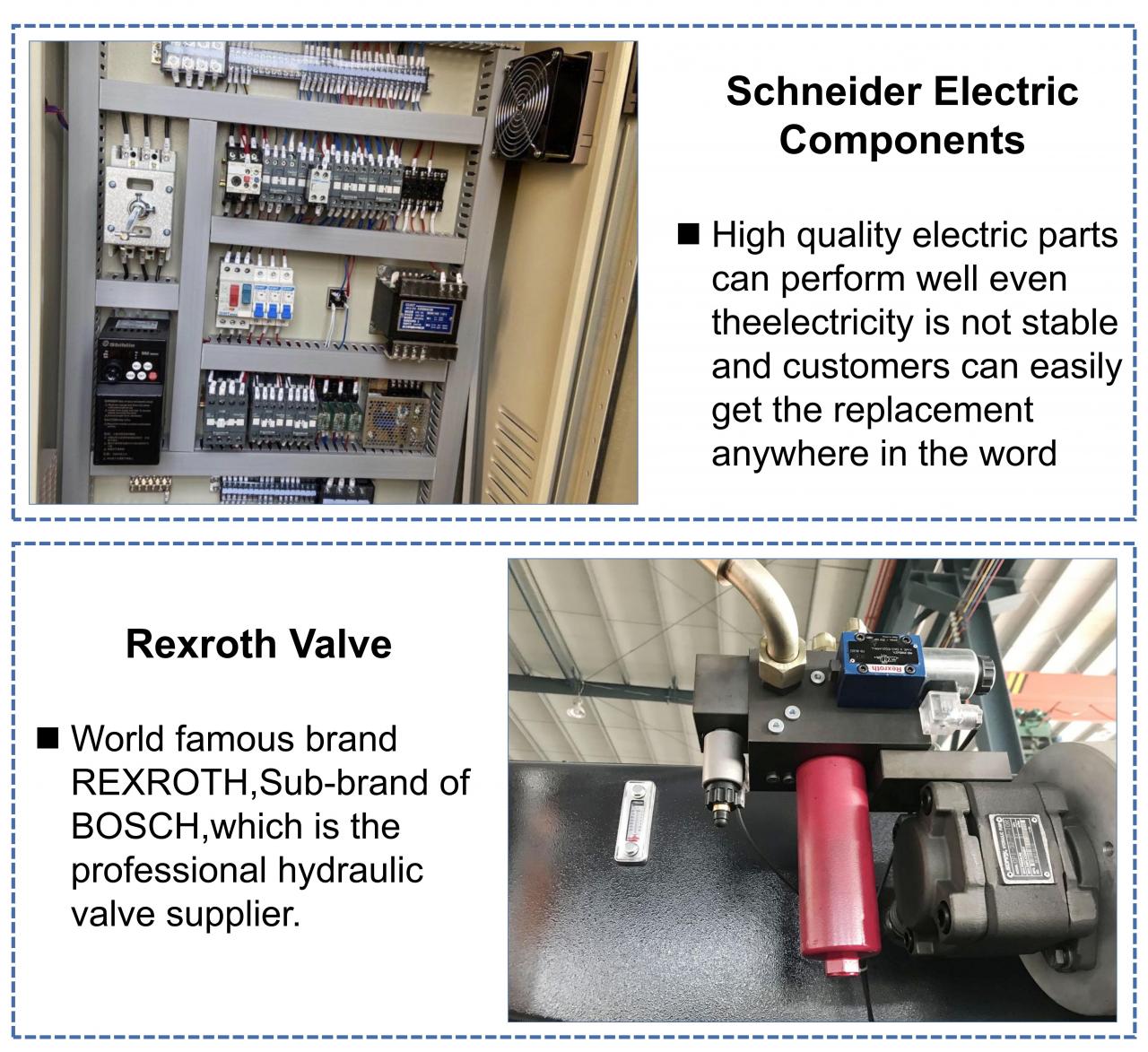

6. Standard electrics from Schneider,France.

7. Standard oil tube connectors from EMB Germany.

8. Standard valves and oil pump from Bosch Rexroth Germany.

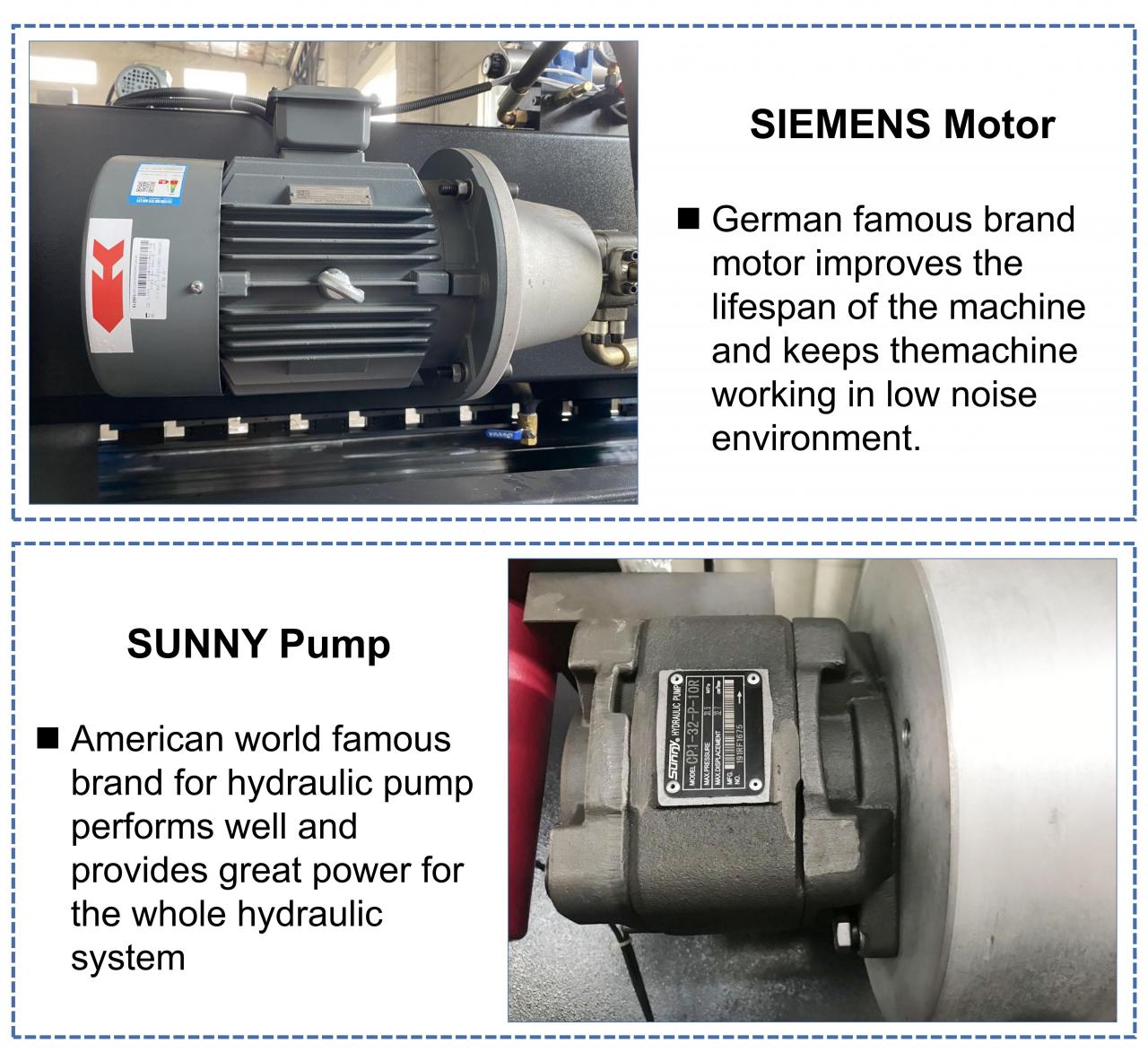

9. Standard main motro from Siemens Germany

10. Hydraulic and electrical overload protection

Chines ESTUN E21 NC System

Monochrome LCD box panelIntegral factor freely programmable

Automatic positioning control(commen motor or inventer)

Spindle offset allowanceInternal time relay

Stock counter and Internal time relay

B1ackgauge position display with 0.01mm

Manufacturing Technique

Item	Unit	Specification
Machine model		100T-2500	100T-3200	100T-4000
Nominal force	KN	1000	1000	1000
Length of working table	Mm	2500	3200	4000
Distance between columns	Mm	1900	2600	3200
Throat depth	Mm	320	320	320
Max. slide stroke	Mm	120	120	120
Max. shut height	Mm	370	370	370
Travel times	Time/min	15	15	15
Main motor power	Kw	7.5	7.5	7.5
Max. hydraulic pressure	Mpa	25	25	25
Outline dimensions	mm	2500*1600*2400	3200*1600*2500	4000*1600*2500

Details

• Slider Stroke (mm): 110 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 200 mm
• Machine Type: Synchronized, Torsion Bar, NC Press Brake
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 2500 mm
• Dimension: 2545x1510x2050
• Condition: New
• Material / Metal Processed: Stainless Steel, Carbon steel, Aluminum
• Automation: Automatic
• Weight (KG): 6500
• Motor Power (kw): 5.5 kw
• Key Selling Points: Easy to Operate
• Warranty: 5 years
• Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Construction works
• Showroom Location: Indonesia
• Marketing Type: Ordinary Product
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 5 years
• Core Components: Motor, Pump
• Electrical components: Schneider France
• Servo motor/ Servo drive: YASKAWA
• Voltage: 220V/380V/415V/440V/customized
• Motor: Siemens Germany
• Ball screw: HIWIN TBI
• Nominal Pressure (kN): 1600 kN
• Max open: 370 mm
• Poles distance: 1970mm
• Color: Customized
