Press Brake Metal Press Brake WC-63T/3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

Model: KCN-6332

2 Axis CNC Control(X, Y,)

X: Backgauge front and back; Y: Ram stroke

W: Worktable crowning (optional)

Main functions and features

1. Overall welded and processed structure.

2. High mechanical strength and strong rigidity.

3. Ram stroke hydraulic approaching downward, stable and reliable.

4. E21 can control the movement of ram stroke and backgauge, achieving efficient and highly precise positioning.

5. Wedge compensation on top punch clamping.

6. Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.

7. 2 Sliding front sheet support arms mounted onto T slot of the bed.

8. Solid one block four face multi V die.

9. Approved stable and reliable hydraulics.

10. Stop fingers with milscale for plate bending machine.

Technical Parameters

No.ItemParameterUnit
1Nominal pressure630KN
2Table length3200mm
3Max.Slider stroke120mm
4Max.Shut height350mm
5Between columns2600mm
6Throat depth250mm
7Main motor power5.5KW
8Down Speed120mm/s
9Pressing Speed10mm/s
10Return Speed90mm/s
11Control axisX Y/
12X axis Stroke500mm
16Backgauge Stoppers2/
17Overall dimensionL   3500mm
W  1500mm
H  2300mm
18Machine weight5000KG

Detailed Images

Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake
Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

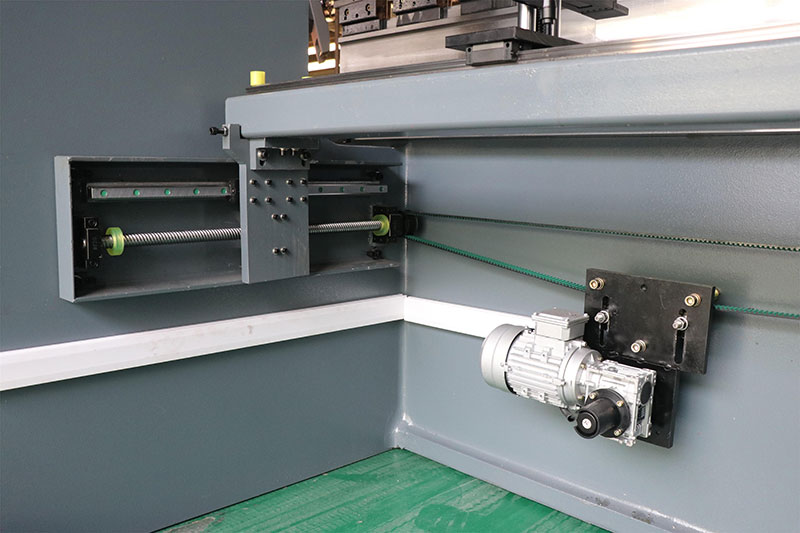

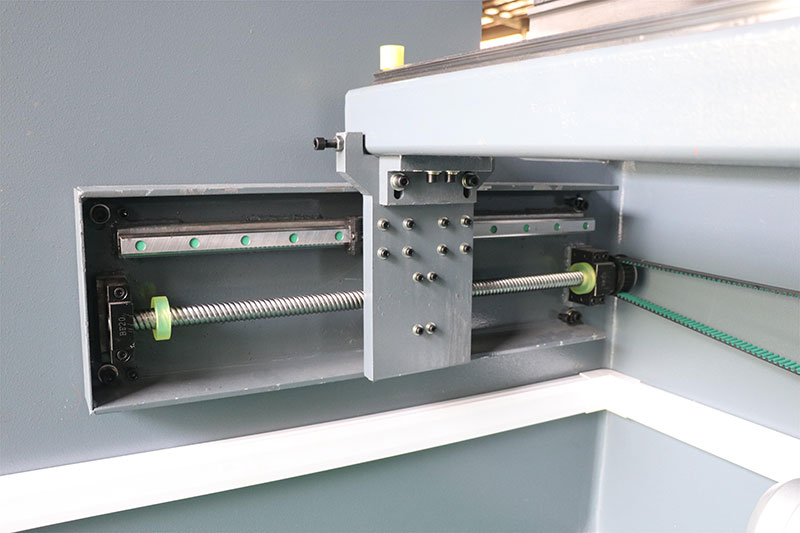

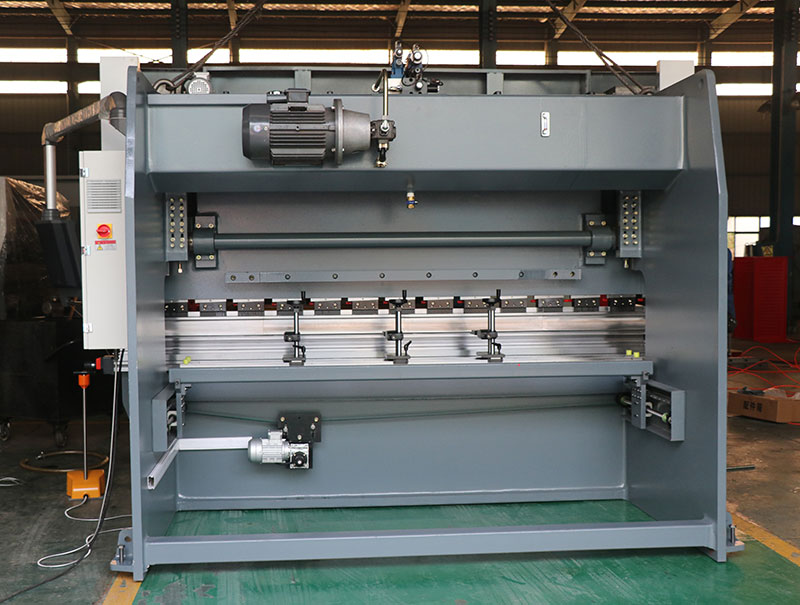

Backgauge with ball screw and liner guide

Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

Multifunction adjustment of the tightening wheel.

Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

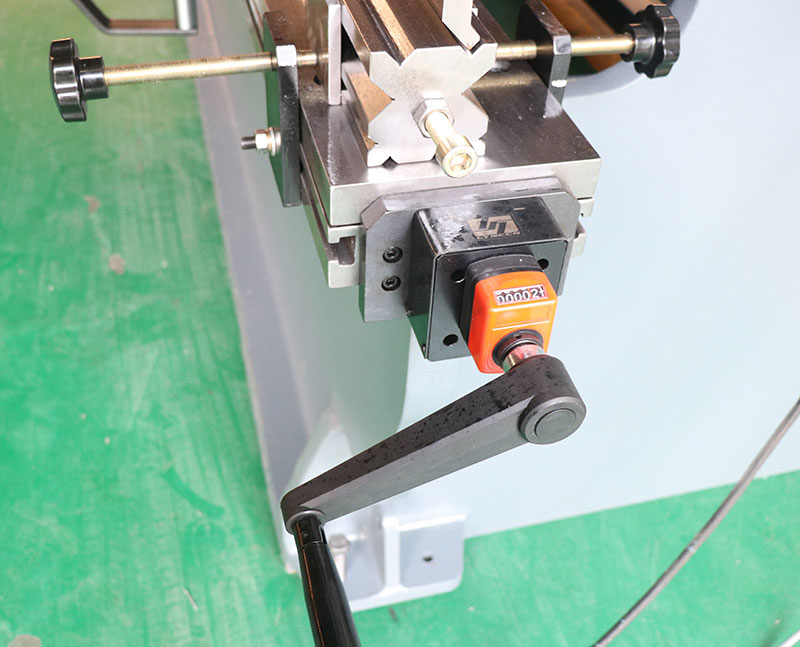

Manual table crowning(optional)

Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

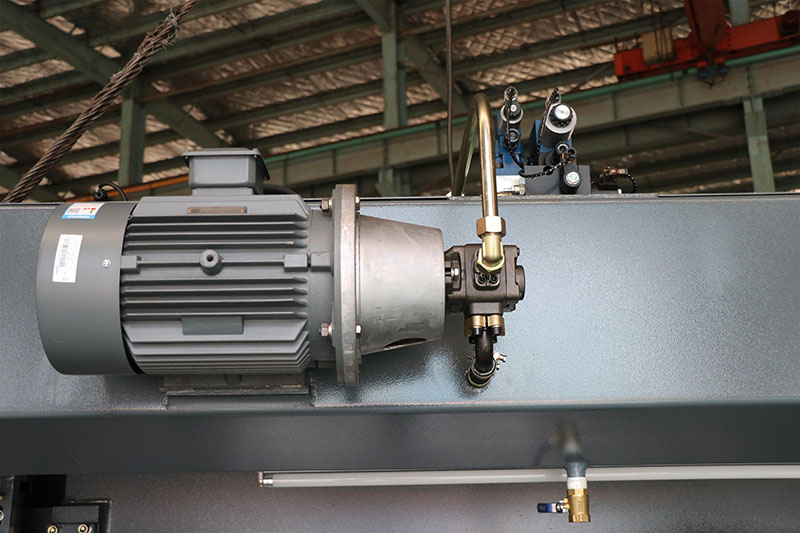

Siemens main motor German brand.

Sunny pump USA brand.

Rexroth valve German brand.

European style quick release clamping

The guideway use the brass, wear-resisting, long service life.

Metal-Press-Brake-Wc-63t3200-Metal-Sheet-Bending-Machine-Cnc-Hydraulic-Press-Brake-5

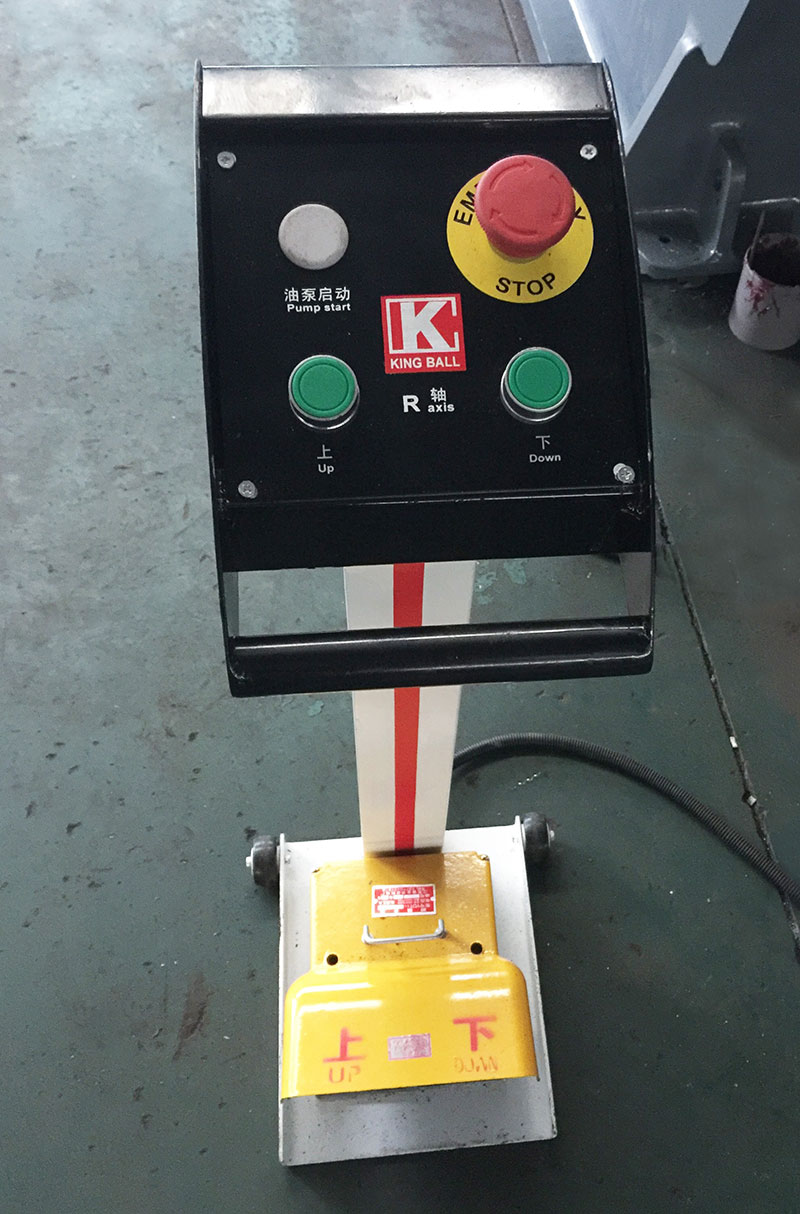

Pedal switch with emergency stop, safe operation, the base with rollers easy to move.

Metal-Press-Brake-Wc-63t3200-Metal-Sheet-Bending-Machine-Cnc-Hydraulic-Press-Brake-4

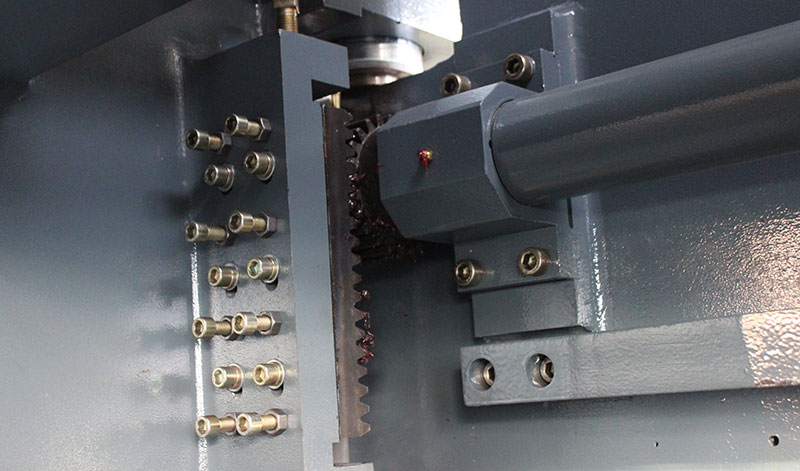

The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two sides of the synchronization.

Metal-Press-Brake-Wc-63t3200-Metal-Sheet-Bending-Machine-Cnc-Hydraulic-Press-Brake-3

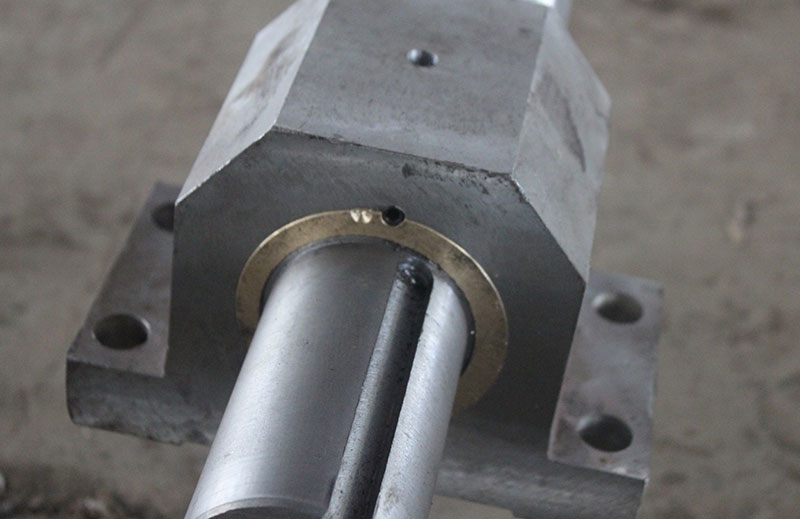

The connector use wear - resistant brass.

Metal-Press-Brake-Wc-63t3200-Metal-Sheet-Bending-Machine-Cnc-Hydraulic-Press-Brake-2

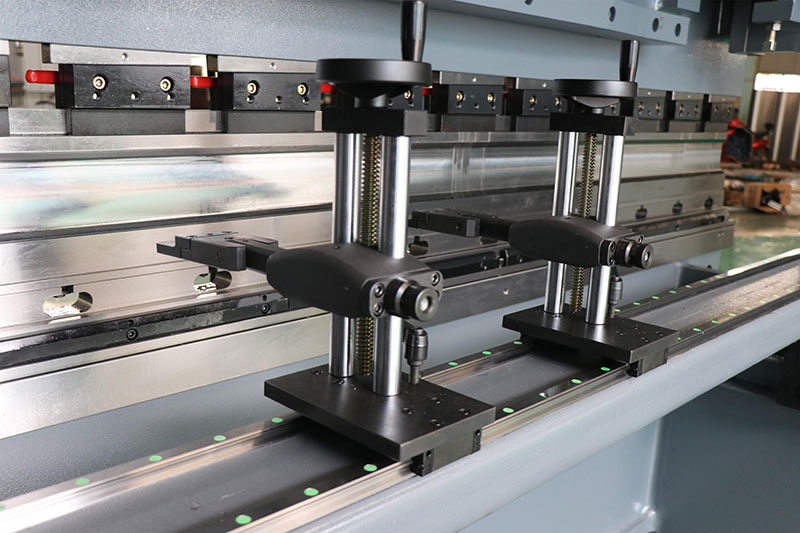

The stopper up and down by manual, move left and right on two linear guides.

Main configuration

NameProducer
CNC controllerE21 Estun China Brand
Main motorSiemens Germany brand
Electrical componentsSchneider France brand
Gear pumpSunny USA brand
Seal ringNOK Japan brand
Hydraulic systemBoschrexroth Germany brand
Ball screw ,Linear guideHIWIN Taiwan brand
Tubing connectorEMB Germany Brand
Variable frequency driveShihlin Taiwan Brand

Metal Press Brake Wc-63t3200 Metal Sheet Bending Machine Cnc Hydraulic Press Brake

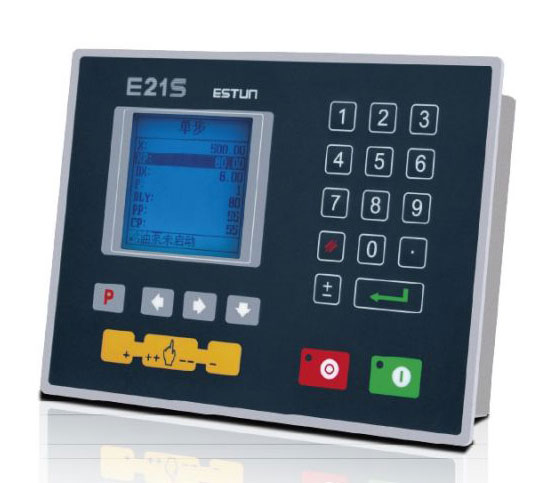

E21 NC controller

Backgauge and block control

Control for general AC motors, frequency inverter Intelligent positioning

Stock counter Holding/decompression time setting

Program memory of up to 40 programs Up to 25 steps per program

One side positioning Retract function

One key backup/restore of parameters mm/inch

Chinese /English

The standard accessories are in the below:

  • Anchor bolt
  • Hex nut
  • Seal ring
  • Gasket
  • Grease gun
  • Allen wrench
  • Foot switch
  • Front support arms
  • Electrical box key, control panel key
  • Operation manuals
