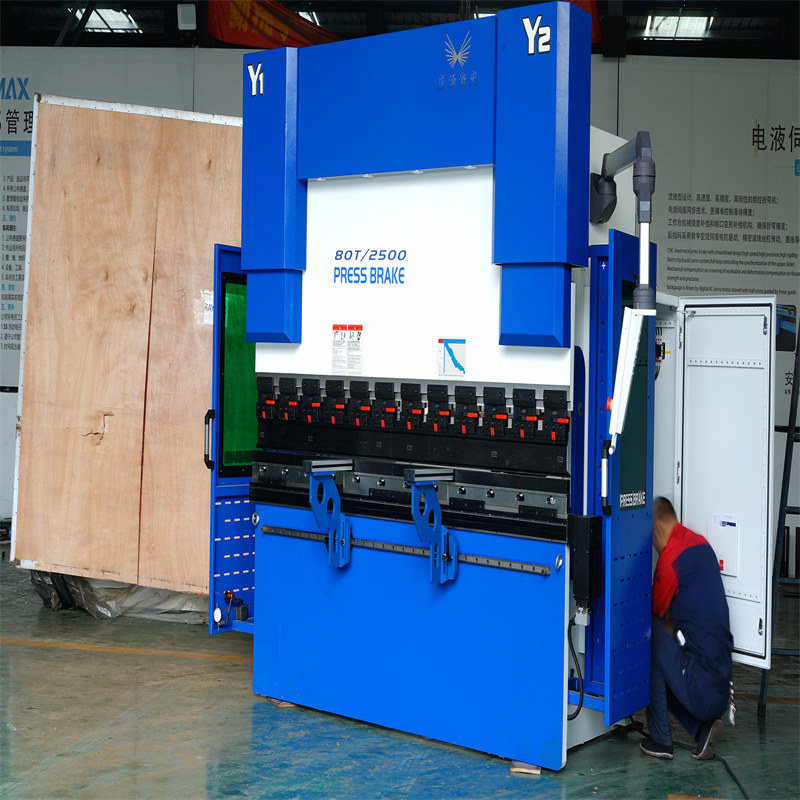

Cnc Hydraulic Press Brake Sheet Metal Bending Machine Manufacturer

Type	Nominal Force	Worktable Length	Poles Distance	Throat Septh	Slider Travel	Max Open	Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	L*W*H(mm)
30T/1600	300	1600	1280	200	80	285	3	1600*1000*1600
35T/2000	350	2000	1480	200	80	285	4	2000*1100*1800
40T/2200	400	2200	1850	230	100	320	5.5	2200*1200*1910
40T/2500	400	2500	1850	230	100	320	5.5	2500*1200*1910
50T/2500	500	2500	1850	230	100	320	5.5	2500*1200*2000
63T/2500	630	2500	1900	250	100	320	5.5	2500*1300*2210
63T/2500	630	3200	2500	250	100	320	5.5	3200*1300*2210
80T/2500	800	2500	1900	300	100	320	7.5	2500*1400*2300
80T/3200	800	3200	2500	320	100	350	7.5	3200*1500*2300
100T/3200	1000	2500	1900	320	100	350	7.5	4000*1500*2400
100T/4000	1000	3200	2500	320	120	370	7.5	2500*1600*2400
100T/3200	1000	4000	3000	320	120	370	7.5	3200*1600*2600
125T/3200	1250	3200	2500	320	120	370	7.5	4000*1600*2700
125T/4000	1250	4000	3000	320	120	370	7.5	3200*1600*2600
160T/3200	1600	3200	2500	320	200	460	11	4000*1600*2700
160T/4000	1600	4000	3000	320	200	460	11	3200*1600*2600
160T/5000	1600	5000	4000	320	200	460	11	4000*1600*2700
160T/6000	1600	6000	4940	320	200	460	11	3200*1700*2700
200T/3200	2000	3200	2500	320	200	460	11	4000*1700*2800
200T/4000	2000	4000	3000	320	200	460	11	5000*1900*3100
200T/5000	2000	5000	4000	320	200	460	11	6000*1900*3200
200T/6000	2000	6000	5000	320	200	460	11	3200*1950*2800
250T/3200	2500	3200	2500	400	250	590	18.5	4000*1950*2800
250T/4000	2500	4000	3000	400	250	590	18.5	5000*1950*3000
250T/5000	2500	5000	4000	400	250	590	18.5	6000*1950*3300
250T/6000	2500	6000	5000	400	250	590	18.5	3200*2000*3200
300T/3200	3000	3200	2500	400	250	590	22	4000*2000*3400
300T/4000	3000	4000	4000	400	250	590	22	5000*2000*3400
300T/5000	3000	5000	5000	400	250	590	22	6000*2000*3400
300T/6000	3000	6000	2530	400	250	590	22	3200*2000*3450
400T/4000	4000	4000	3000	400	250	590	30	4000*2000*3450
400T/5000	4000	5000	4000	400	250	590	30	5000*2000*3450
400T/6000	4000	6000	5000	400	250	590	30	6000*2000*3450
500T/5000	5000	5000	4000	400	250	590	45	5050*3500*3700
500T/6000	5000	6000	5000	400	320	590	45	6050*3500*3700
600T/4000	6000	4000	3000	400	320	590	55	4050*4500*3700
600T/6000	6000	6000	5000	400	320	590	55	6050*4500*3700
800T/6000	8000	6000	5000	400	320	590	55	6300*4500*6000

1. The frame adopts steel structural parts, the left and right vertical plates, the workbench and the pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the overall rigidity is high and the stability is high.

2. The main components such as the fuselage and the slider are analyzed by ANSYS finite element analysis software to ensure the stability of the machine tool.

3. Hydraulic upper transmission, stable and firm.

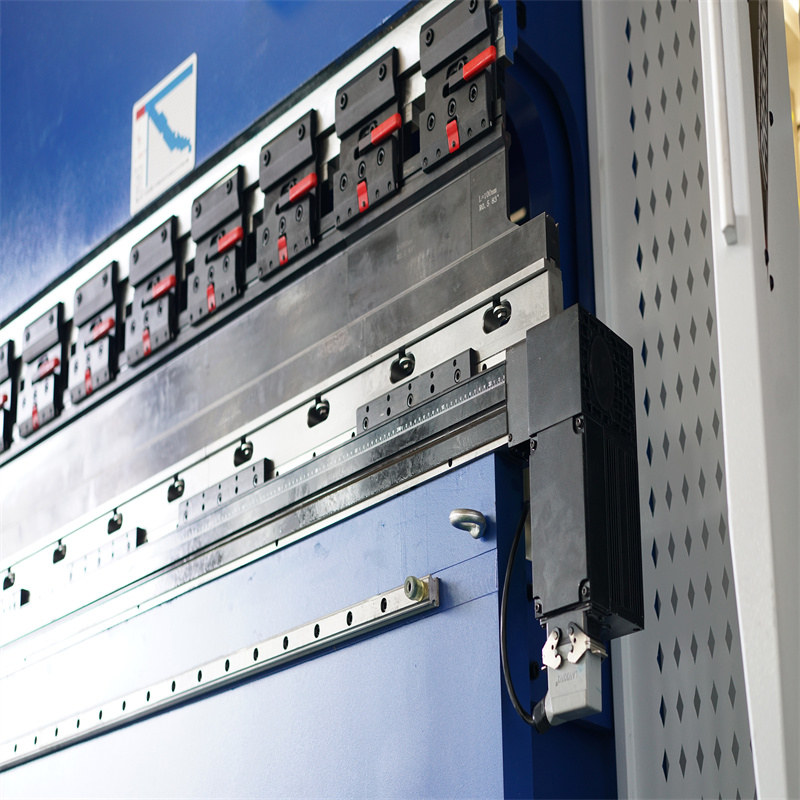

4. The mechanical block and the torsion shaft are synchronized with high precision.

5. Taiwan Shangyin ball screw and linear guide can have an accuracy of 0.02mm. The backgauge distance and slider stroke are controlled by the CNC system, which is convenient and quick.

6. ​​Jining Taifeng cylinders undergo forging, quenching and tempering, fine grinding, hard chrome plating and other processes, and are equipped with foreign seals to overcome oil leakage.

7. The hydraulic system adopts the German Bosch Rexroth oil circuit integrated hydraulic system, which reduces pipeline installation and has a beautiful and simple appearance.

8. The hydraulic components are selected from Germany to ensure the stability of the machine tool operation.

9. This machine adopts German Siemens three-phase system power supply (380V) for power supply, the control circuit voltage (220V) is provided by the control transformer Schneider, and the DC power supply required for the solenoid valve of the implementation circuit.

Details

• Slider Stroke (mm): 320 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 400 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 6000
• Width of Working Table (mm): 4000 mm
• Condition: New
• Material / Metal Processed: Stainless Steel, ALLOY, Aluminum
• Automation: Automatic
• Year: 2021
• Weight (KG): 6800
• Motor Power (kw): 7.5 kw
• Key Selling Points: Automatic
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Construction works , Other
• Showroom Location: None
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor, Engine, Other
• After-sales Service Provided: Video technical support, Online support
• After Warranty Service: Video technical support, Online support
