Hydraulic Sheet Metal Bending Cnc Press Brake Machine Wc67y

Performance Features

1. The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.

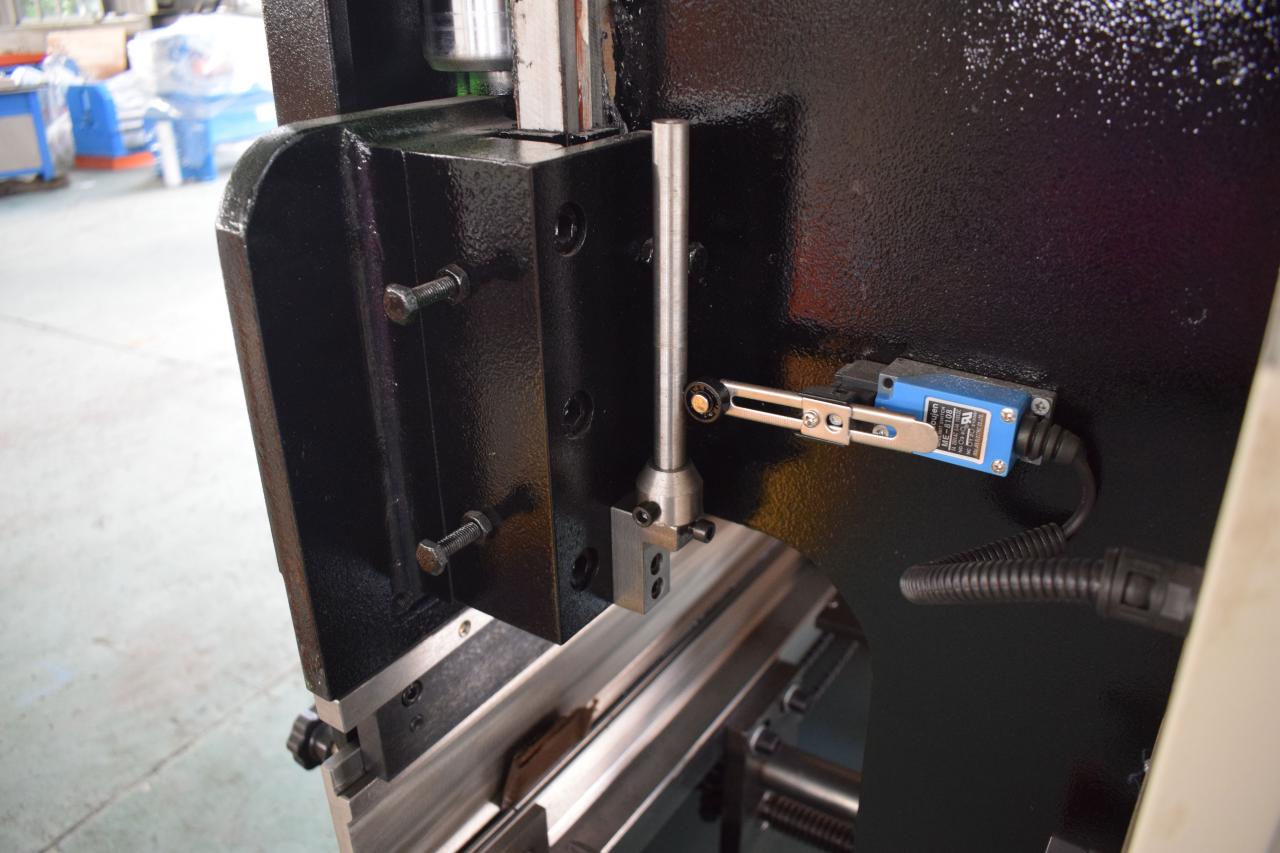

2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsinon bar, typical of stable and reliable operation, as well as high precision.

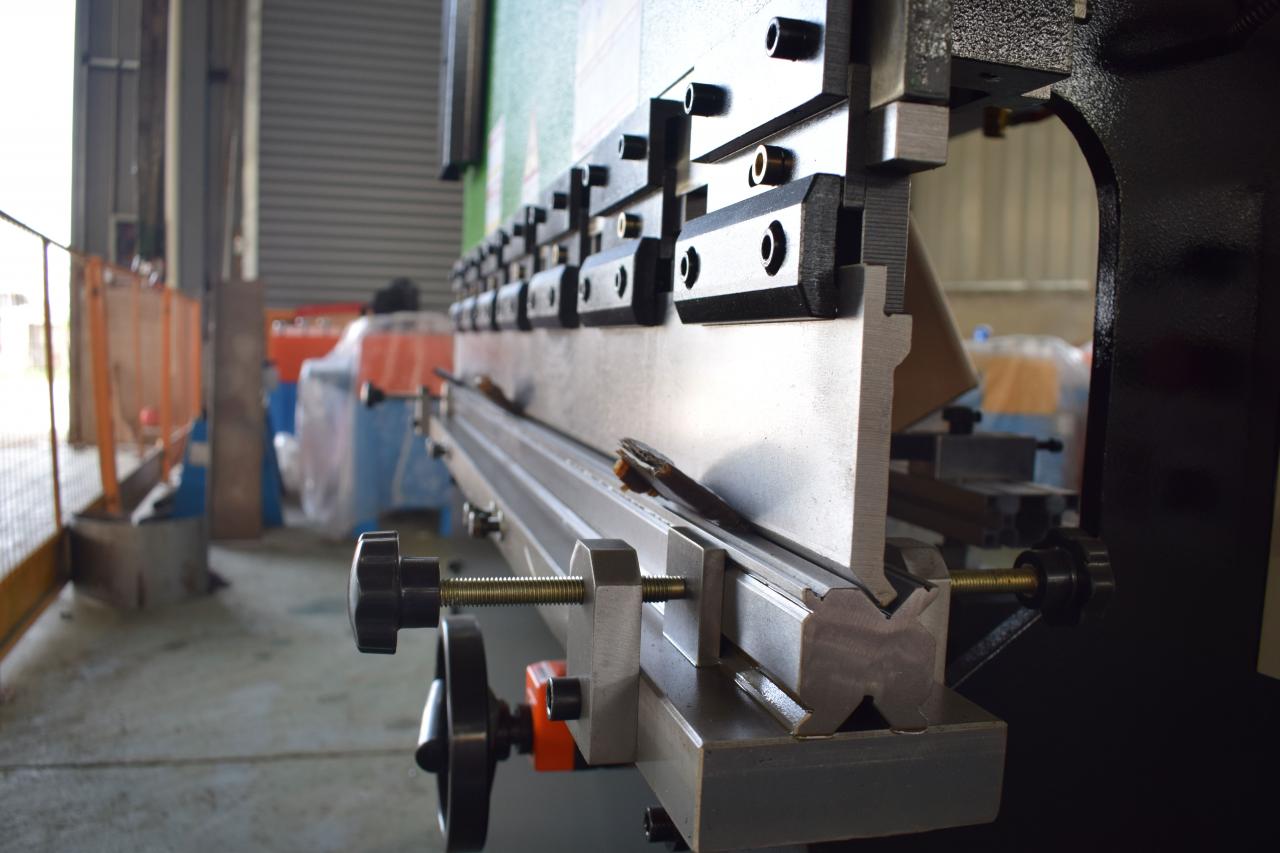

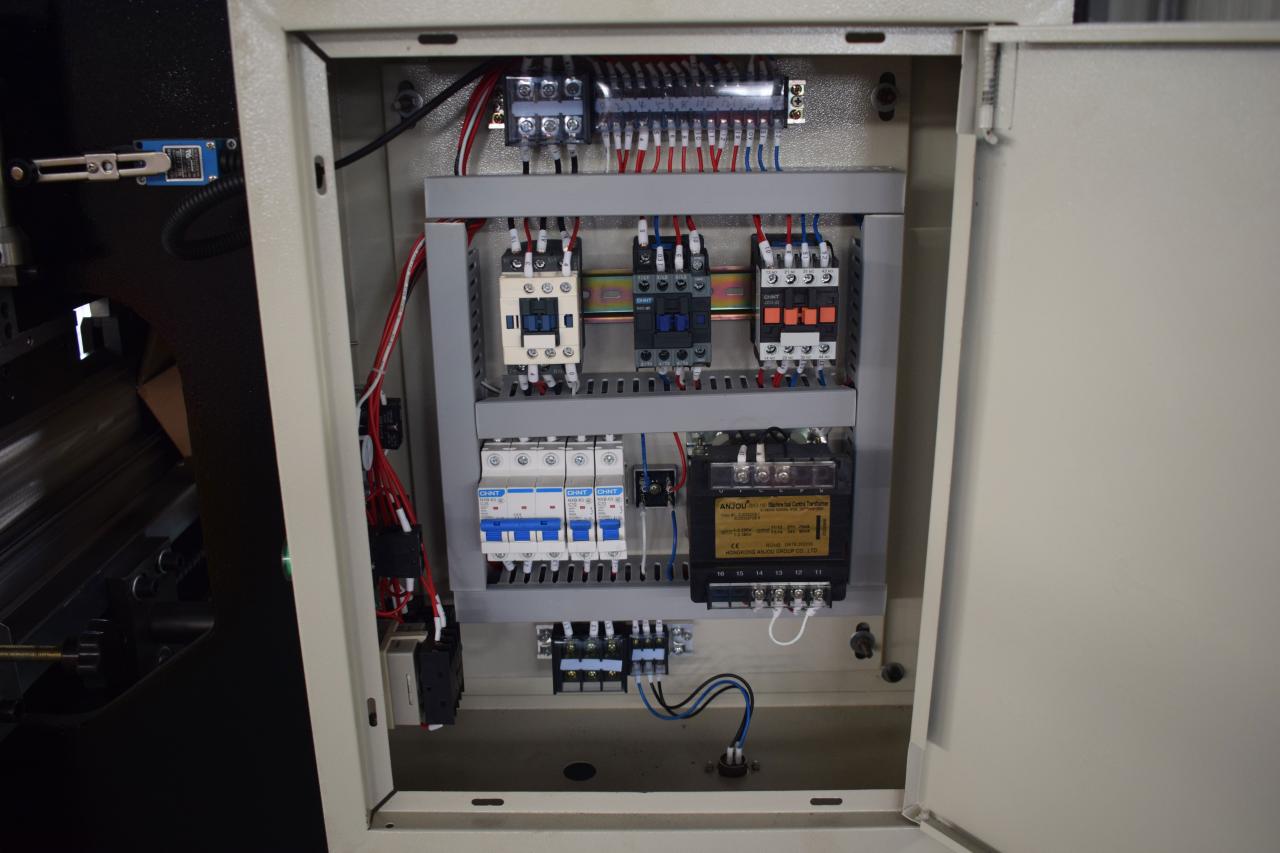

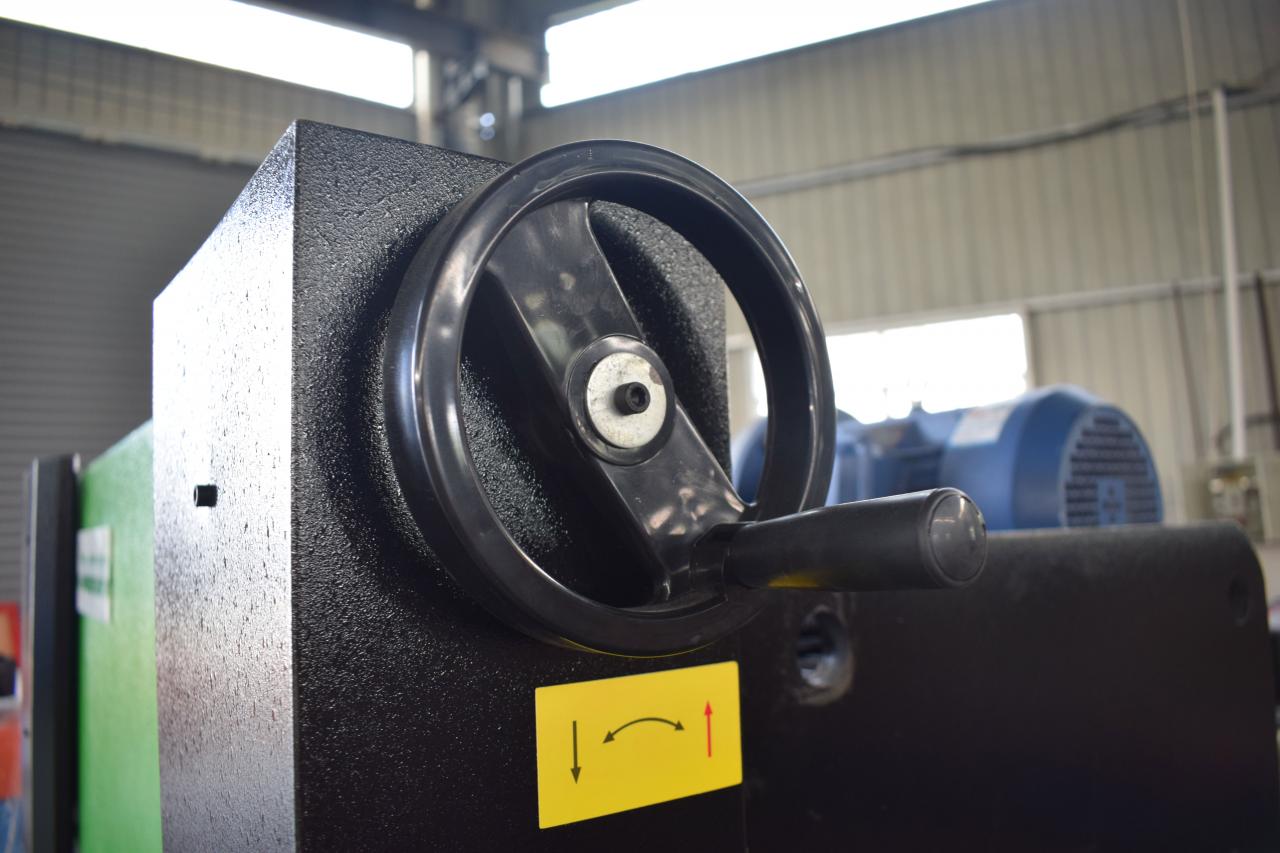

3. Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.

4. Upper die is fitted with deflection compensation device.



FAQ

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

3. How about your machine quality?

RAYMAX company is a mature brand in CHINA,through our 12 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

Details

• Slider Stroke (mm): 160 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 300 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 1600mm
• Width of Working Table (mm): 150 mm
• Dimension: 1600*1100*1200mm, 1600*1100*1200mm
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Stainless Steel, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: End Forming
• Year: 2020
• Weight (KG): 1300

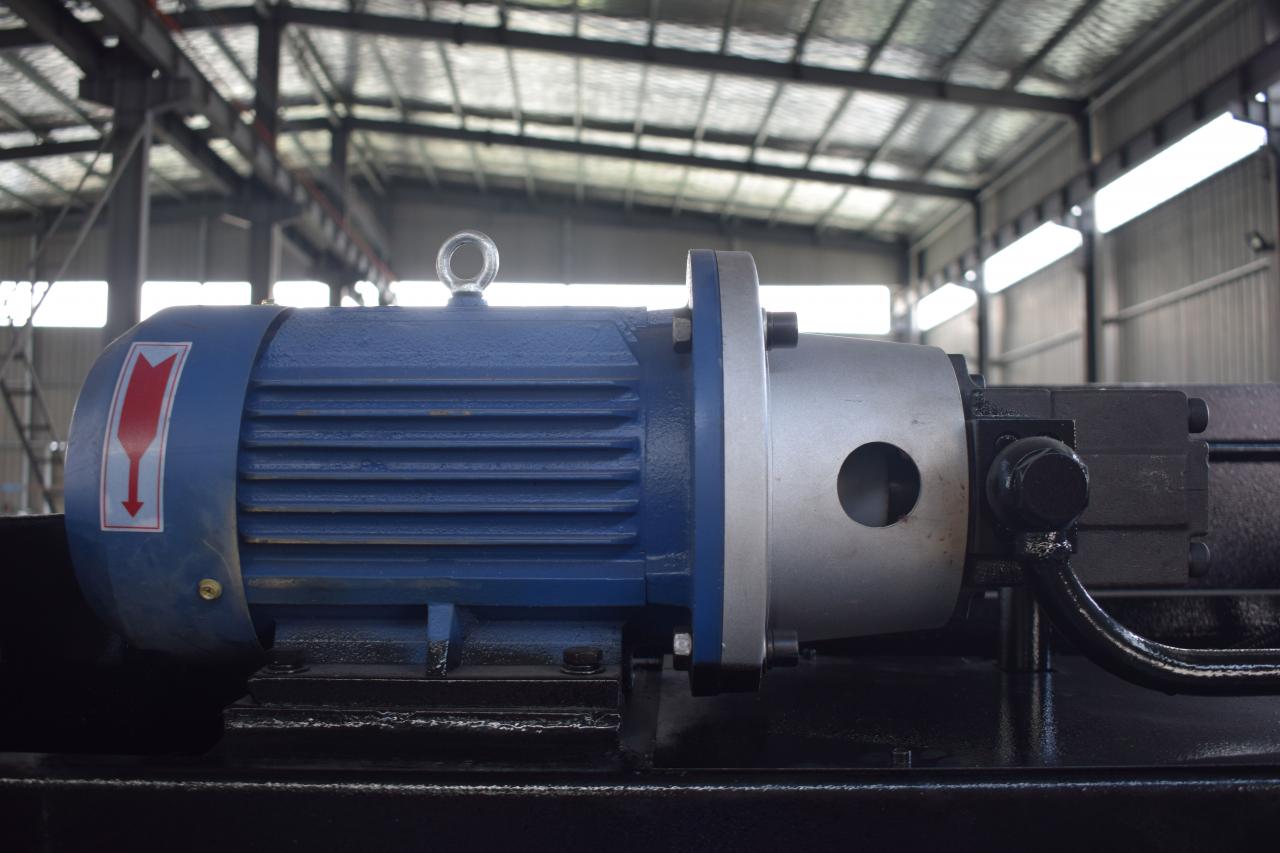

• Motor Power (kw): 4.5 kw
• Key Selling Points: High-accuracy
• Warranty: 2 years
• Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Farms, Retail
• Showroom Location: None
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Bearing, Motor, Pump, Gear
• Numerical control axis number: 4 (2)
• Open Height: 340mm
• After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Online support
• Name: Press Brake Machine
• Type: WC67Y-30T/1600
• Weight: 1300kg
• Motor Power: 4.5KW
• Function: Steel Metal Bending
• Repeatable position accuracy: 0.01mm
• Nominal Pressure (kN): 300 kN
• Certification: CE SGS BV CQC
• After Warranty Service: Video technical support, Online support
