Cnc Servo Press Brake 250t 3.2m 3 1 Axis 3 Meter Sheet Metal Press Brake

Main Feature

1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.

2. The two sides master cylinders belong to the electro-hydraulic CNC bending machine CNC axis where Y1, Y2 axes, synchronized compatible with hydraulic servo valve imported from Germany and the German HEIDENHAIN grating closed loop control, accurate feedback, sliders run accurate, repeat slider accuracy and parallel precision can reach /- 0.01mm.

3. Automatic hydraulic convex compensation system for worktable(V-axis), to address the slider deformation impact of the work piece during the bending. Numbers of compensation automatically adjusted by CNC system, convenient and accurate. ( mechanical compensation table structure for optional)

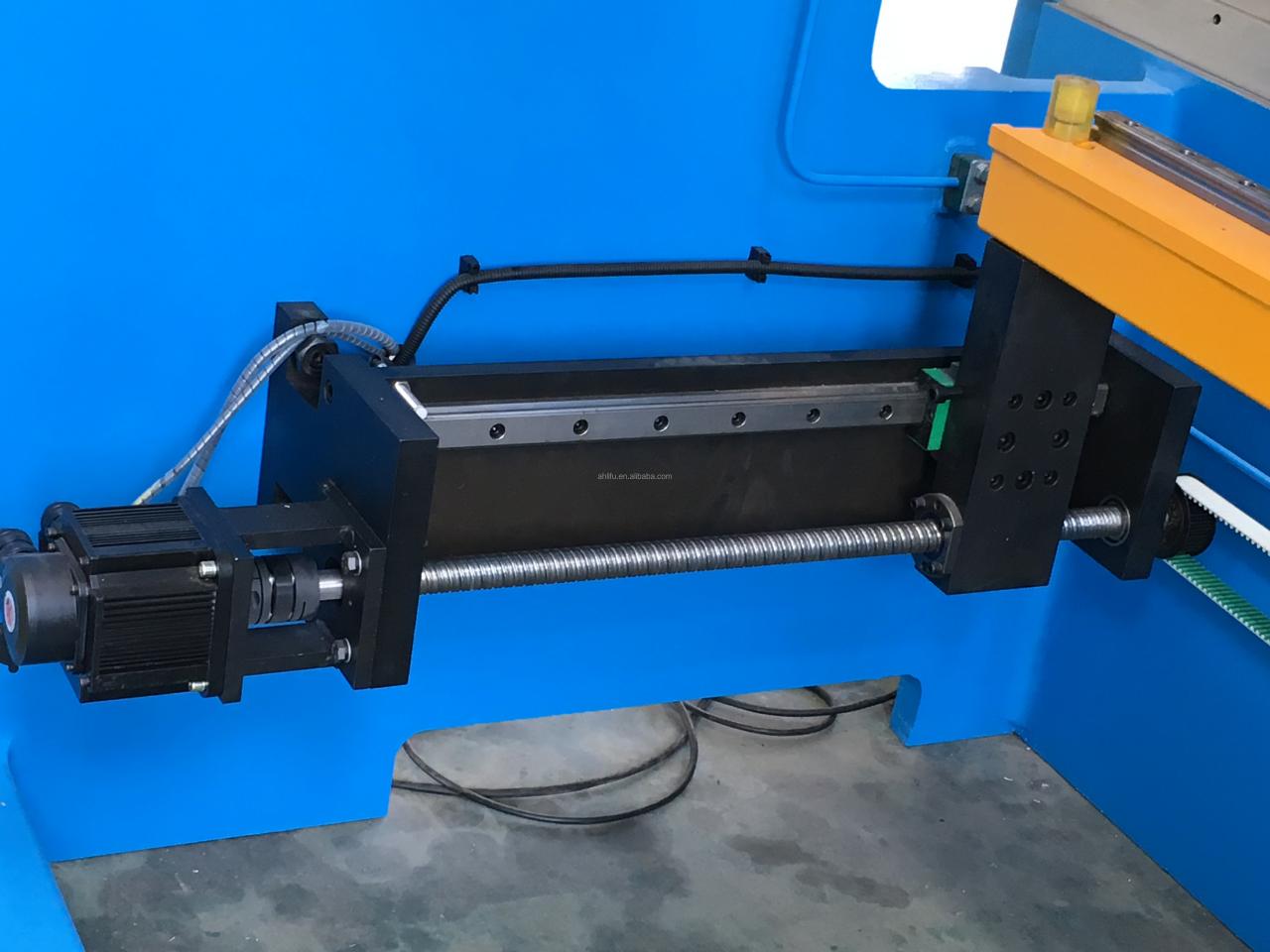

4. Back gauge(front and rear location) is the X-axis in CNC bending machine, driven by servo motor, CNC system, transmission through precision ball screw, linear guide, synchronous belt wheel, run fast, positioning data accurately. (Users could expand the R-axis or R1 axes, R2 axis, Z1 axis, Z2 axis, etc.)

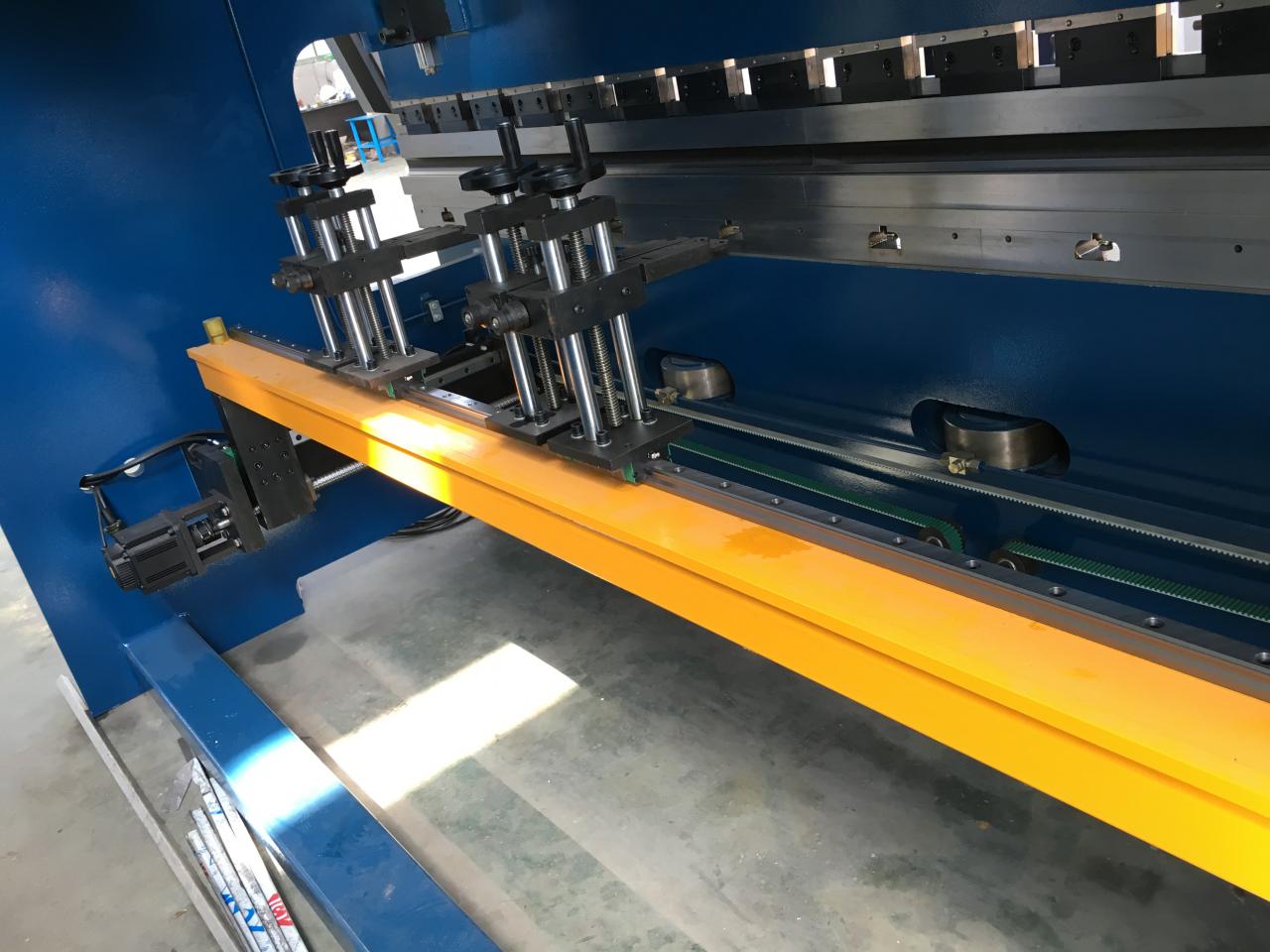

5. Front feeding device moves lateral through precision linear guide, easily control the spacing between the arms. Adjustable height level, which greatly improves the convenience of the work piece bending.

6. With fast clamp pallet bending mold, compatible with deflection compensation mechanism. Combined type of modular CNC bending mold in order to ensure high precision and high efficiency of bending. Adjusting the position of the lower mold handy in different working conditions.

7. Both ends of the machine are equipped with grating ruler, which are used to measure the exact distance between the slide and the worktable. Machinery frame equipped C type plate, grating installed in the C-plate to eliminate the effect of the column deformation on position of the slider. The slider position feedback data will be transferred to the numerical control system immediately to estimated servo valve control signal S1 ~ S2 and the output, control two hydraulic servo valve output flow, so that two cylinders synchronization.

Activities beam structure for the four-point positioning, good stability, Y1, Y2-axis can be individually programmed, can be planted in partial state, tapered bending ( inclined bending).

Suspend pressure maintaining after bending forming to reduce the resilience of the work piece, the pressure maintaining time can be set.

8. Safety barrier around the machinery, and photoelectric protection device to ensure safety working. (laser protection device for optional)

Technical Parameter

NOItemValueUnit
1Nominal force1000KN
2Worktable length2500mm
3Distance between holes2020mm
4Depth of throat320mm
5Ram travel120/150mm
6Max opening height320/350mm
7Main power7.5/11KW
8Throat depth320mm
9Weight6000kg
10Dimension2500*1600*2400mm

Main Outsourcing parts

NOPart NameOutsourcing Manufacturer
1Synchronous control proportional valveBosch Rexroth
2Proportional pressure control valveBosch Rexroth
3Oil pumpBosch Rexroth
4Seal ringJapan VALQUA
5Tubing connectorEMB
6MotorSiemens
7ElectricalSchneider
8Ball screwTaiwan HIWIN
9Linear guideTaiwan HIWIN
10grating ruler Heidenhain
11Servo motorESTUN
12CNC system DA52S CNC system

NOTE: cnc control system ESA S530, ESA S540, ESA S550, DA56S, DA66T, DA69T, DNC880S,  MODEVA12S, etc for optional

Detailed Images

Cnc Servo Press Brake 250t/3.2m 3+1 Axis 3 Meter Sheet Metal Press BrakeCnc Servo Press Brake 250t/3.2m 3+1 Axis 3 Meter Sheet Metal Press BrakeCnc Servo Press Brake 250t/3.2m 3+1 Axis 3 Meter Sheet Metal Press Brake
