China Stainless Steel Metal Sheet Bending Cnc Hydraulic Press Brake Machine

Main Features

* The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.

* Synchronized positive stop design, and by Estun NC programmable controller assuring accurate repeatability & ease of use.

* Variable invertordrive of 2 axis to ensure good precision.

* Efficient, low noise and accurate hydraulic system.

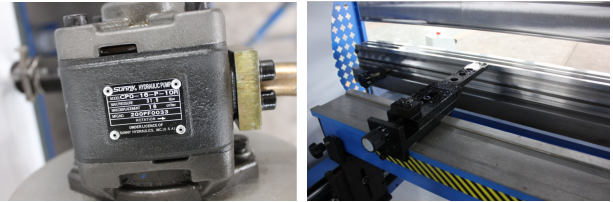

* Slient and reliable internal gear pump of USA brand Sunny

* Integrated hydraulic system allowing rapid approach switching automatically to slow bend.

* Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

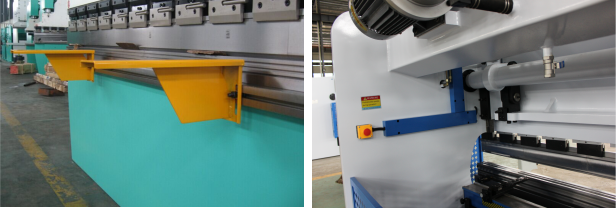

* Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

* The ram is adopted hydraulic top-drive with two cylinders, working smoothly and stably.

* Mechanical stop nuts ensure stable and reliable positioning accuracy.

* The segmented punches of different length are adopted which can be combined into a certain length according to the processing demand to meet the different requirement of special workpieces.

* Back gauge is driven by guide way, quick, convenient and accurate.

* The machine can be adopted with normal clamp devices or quick clamp according to the customer’s requirement to decrease the labors’work intension and increase the work efficiency.

Standard Equipment

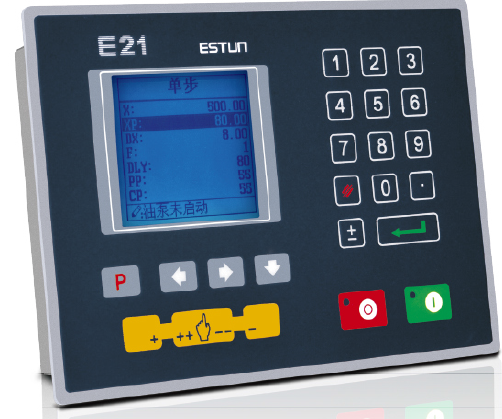

* Estun E21 NC control system
* Germany Rexroth hydraulic valve
* USA brand Sunny gear pump with low voice
* France Schneider electrical components
* Top and bottom tooling(Material:T8, Hardness:43-47)
* Japan VALQUA cylinder seals
* Ball screw for back gauge
* Synchronous belt transmission
* Variable invertordrive of 2 axis FEATURES AT A GLANCE We has chosen the very powerful ESTUN E21 NC Control, which has been specially designed for bending.

Some of the features are:

1. ESTUN E21 is a simple NC control system designed to replace ESTUN E200 with lower price.

2. ESTUN is jointed company by HOLLAND DELEM AND CHINA ESTUN .

3. ESTUN E21can control X axis working into position accurately .

4. ESTUN E21 will work better accompany with FREQUENCY TRANSFORMER. FREQUENCY TRANSFORMER is not the standard components, optional.

5. Can program the software for future usage and has memory

6. Can set up different steps in one program

7. Timer can control the bending time

8. Control X/Y two axis

9. The operation manual is available

10. The install manual

China Stainless Steel Metal Sheet Bending Cnc Hydraulic Press Brake Machine
China Stainless Steel Metal Sheet Bending Cnc Hydraulic Press Brake Machine
China Stainless Steel Metal Sheet Bending Cnc Hydraulic Press Brake Machine
China Stainless Steel Metal Sheet Bending Cnc Hydraulic Press Brake Machine

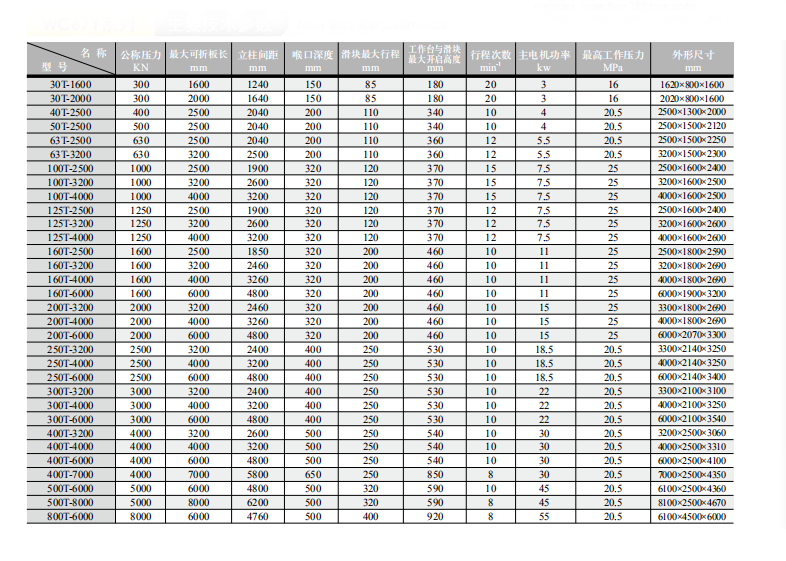

  • Slider Stroke (mm): 3200 mm
  • Automatic Level: Semi automatic
  • Throat Depth (mm): 320 mm
  • Machine Type: Torsion Bar
  • Length of Working Table (mm): 3200
  • Width of Working Table (mm): 240 mm
  • Dimension: 3200*1600*2600MM
  • Condition: New
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: End Forming
  • Year: 2020
  • Weight (KG): 9000
  • Motor Power (kw): 7.5 kw
  • Key Selling Points: Automatic
  • Warranty: 3 years
  • Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Advertising Company
  • Showroom Location: Turkey, France, Germany
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 3 years
  • Core Components: Motor
  • Product name: metal sheet bending CNC hydraulic press brake machine
  • Bending length: 3200-6000 MM
  • Raw Material: Steel Plate
  • Type: Hydraulic Bending Tools
  • CNC System: E21/DA52S/DA66T/E300P
  • Application: Metal Plate Bending
  • Control system: E21 Control System
  • Color: Customer Requirement
  • Hydraulic System: Bosch Rexroth Germany
  • Nominal Pressure (kN): 1250
  • Certification: ce
  • After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
  • Local Service Location: United Kingdom, France, Germany
