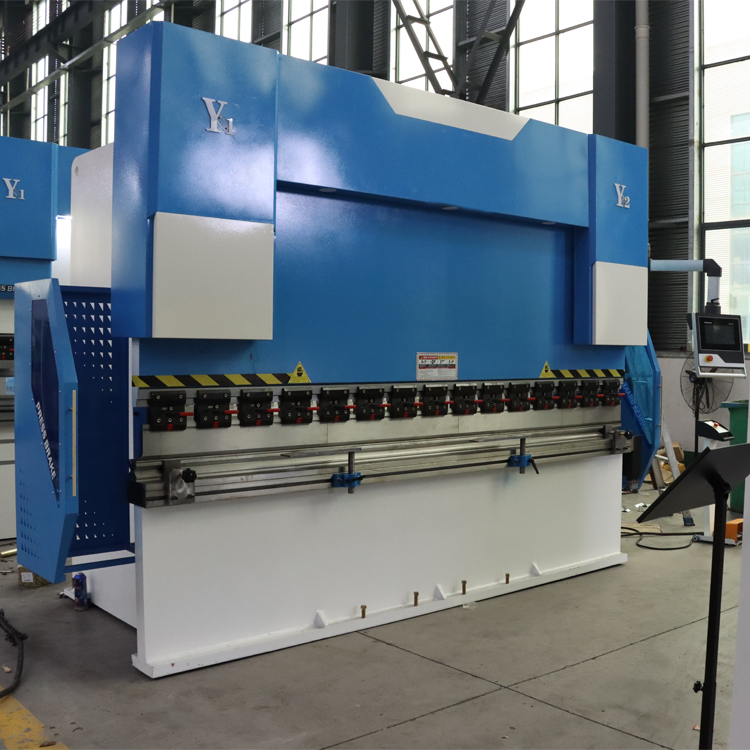

Electric Hydraulic Sheet 4 Axis Cnc Delem Press Brake 63t Metal Bending Machine

Product description

1. The frame adopts whole welding structure, and by the fireplace tempering treatment, machine tool accuracy is good.

2. Hydraulic pressure type, step less pressure adjustment, using high quality imported sealing ring, to ensure the reliability of the machine tool.

3. Mechanical synchronization, using the upper and lower composite compensation structure, improve the machining accuracy of parts. (more than 160 tons for the working table compensation structure)

4. Adjust the slider stroke and adjust the position of the rear gear, use the electric quick adjustment and manual adjustment.

5. The machine tool is a little move, a single, continuous operation standard.

6. The machine tool is equipped with a safety protection bar and open door with power down device, which improves the safety ofoperation. (40 tons or more than 200 tons of no guard rails)

Electric Hydraulic Sheet 4 Axis Cnc Delem Press Brake 63t Metal Bending Machine

Specifications:

Hydraulic press brake (Series WC67Y/K)
ModelPressure
(KN)
Worktable length
(mm)
Distance between columns (mm)Depth of throat (mm)Stroke
(mm)
Max height between
worktable and ram (mm)
Main motor (KW)Weight
(KG)
Dimension
(LxWxH)
(mm)
WC67Y/K-40/25004002500192522080300430002650x1100x1950
WC67Y/K-50/250050025002015220100340437502650x1250x2100
WC67Y/K-63/2500630250020152501003405.543002650x1300x2200
WC67Y/K-80/2500800250020102501203805.552002560x1350x2250
WC67Y/K-80/3200800320025102501203805.560003260x1350x2280
WC67Y/K-100/25001000250020503201504207.567002550x1360x2270
WC67Y/K-100/32001000320025503201504207.572003260x1365x2520
WC67Y/K-100/40001000400030503201504207.585004060x1365x2720
WC67Y/K-125/32001250320025503201504207.578003260x1465x2600
WC67Y/K-125/40001250400030503201504207.590004060x1460x2800
WC67Y/K-160/320016003200259032020047511105003260x1580x2775
WC67Y/K-160/400016004000304032020047511125004060x1580x2925
WC67Y/K-160/600016006000480032020048011195006060x1580x3480
WC67Y/K-200/320020003200258032020047518.5132003260x1650x2800
WC67Y/K-250/400025004000313040025053018.5190004060x1840x3150
WC67Y/K-250/500025005000393040025053018.5240005060x1840x3450
WC67Y/K300/320030003200253040025058018.5180003300x2100x2980
WC67Y/K-300/400030004000320040025058018.5220004060x2040x3330
WC67Y/K-400/400040004000318040032063030300004060x2220x3630
WC67Y/K-400/6000400060004700400320630304500060602x2203x980
WC67Y/K-500/60005000600046005003207030550006080x2760x4000
WC67Y/K-800/600080006000460050040090037720006100x3250x4300

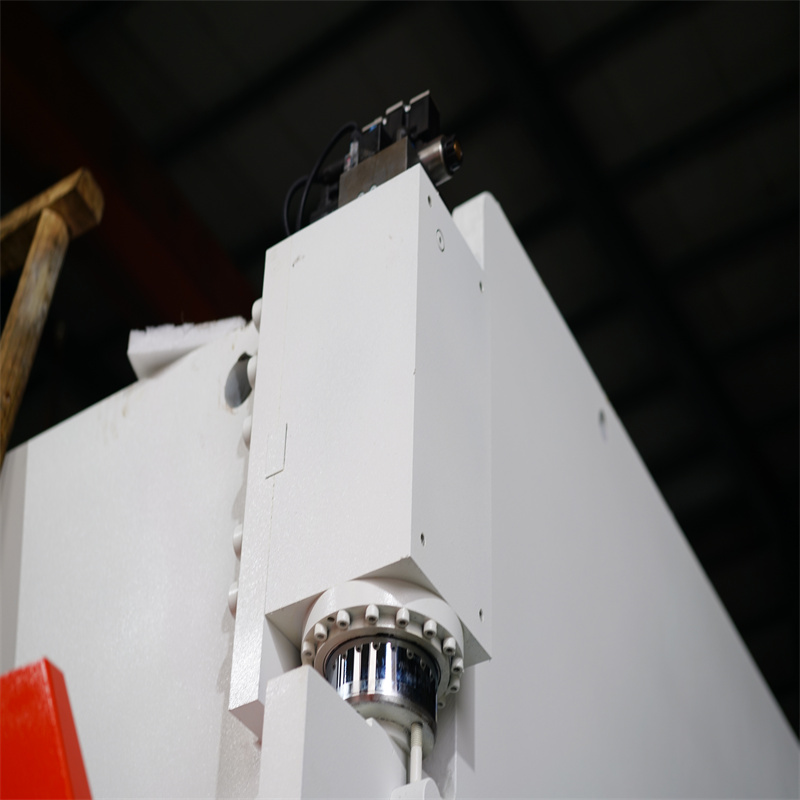

Detailed Images

Electric Hydraulic Sheet 4 Axis Cnc Delem Press Brake 63t Metal Bending Machine

FAQ

1. What is the payment Terms ?

A : T/T , 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight .When we receive the advance payment, we will start to make production. when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

3. How can I choose the most suitable machines ?

A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

4. What is your trade terms?

A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?

A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?

A: The machines standard packed by iron pallets with plastic films

Details

  • Slider Stroke (mm): 120 mm
  • Automatic Level: Semi-automatic
  • Throat Depth (mm): 200 mm
  • Machine Type: Torsion Bar
  • Length of Working Table (mm): 2500
  • Width of Working Table (mm): 1600 mm
  • Dimension: 2600*1700*2320
  • Condition: New
  • Material / Metal Processed: Stainless Steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
  • Automation: Automatic
  • Extra Services: Cut To Length
  • Year: 2022
  • Weight (KG): 5000
  • Motor Power (kw): 5.5 kw
  • Key Selling Points: Competitive Price
  • Warranty: 2 years
  • Applicable Industries: Machinery Repair Shops, Retail, Construction works
  • Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
  • Marketing Type: New Product 2022
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Bearing
  • Opening Height: 350mm
  • Raw Material: Sheet Metal Plate
  • Name: Hydraulic Cnc Press Brake
  • Product name: Magnetic Bending Machine
  • Type: Hydraulic Bending Tools
  • Function: Steel Metal Bending
  • Keyword: Bending Machine Metal Steel Sheet
  • Application: Stainless Plate Bending
  • Table length: 2000/2500/3000/4000/5000mm
