Cnc Metal Steel Hydraulic Bending Machine Press Brake

Product Structure

1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity.

2. Mechanical torque system makes sure the synchronization of cylinders.

3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.

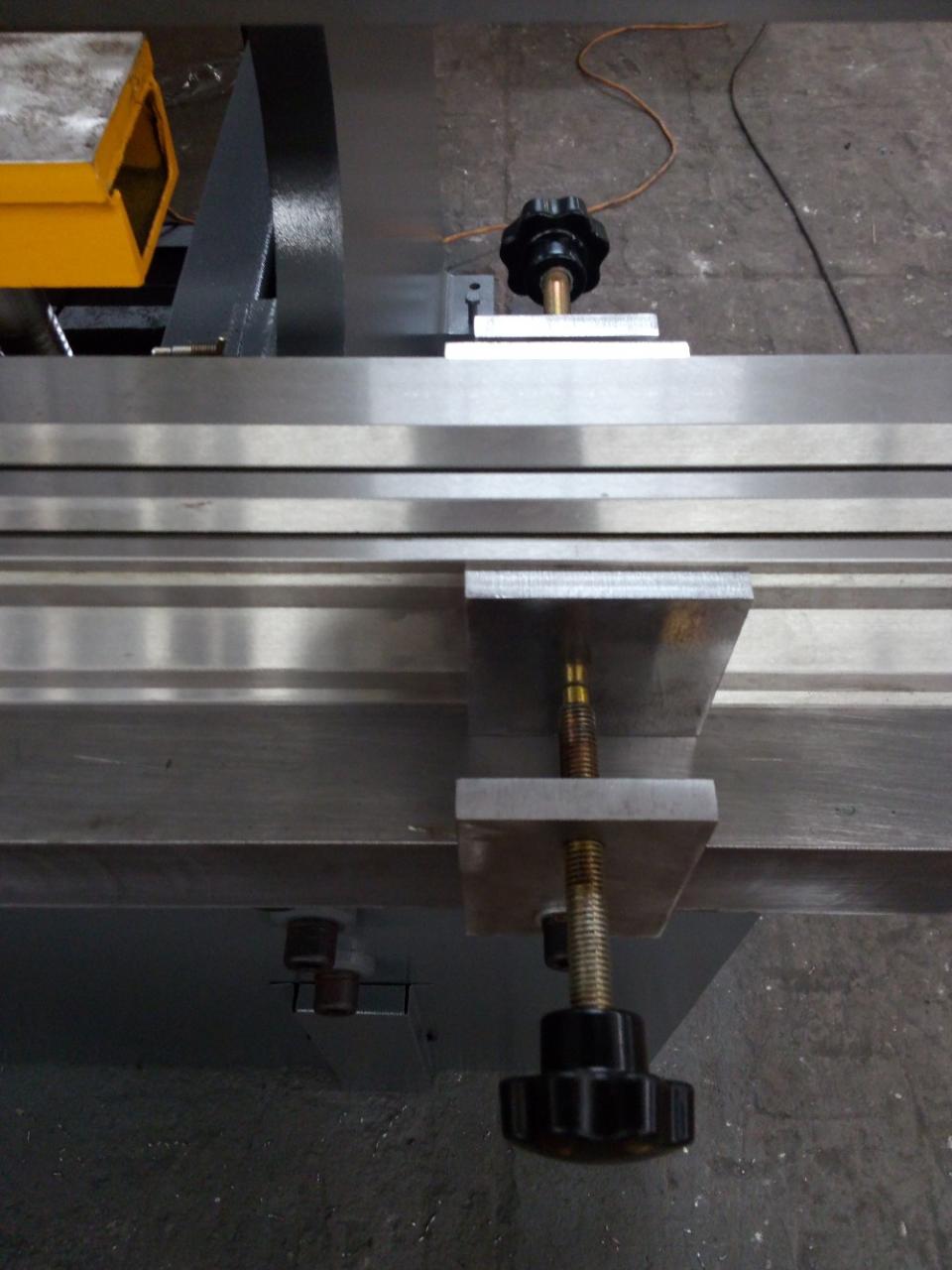

4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically.

5. Easy Install and Use CE approved hydraulic press brake machine

Press Brake Manufacturer With Rich Export Experience

Professional comes from sincerely service, welcome to inform us your expected configuration and target price, most cost effective plan will provide with competitve price.

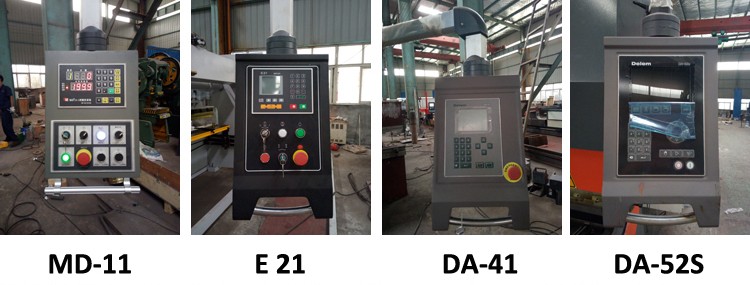

Low Cost Press Brake Controller System: could be customized to meet your requirements;

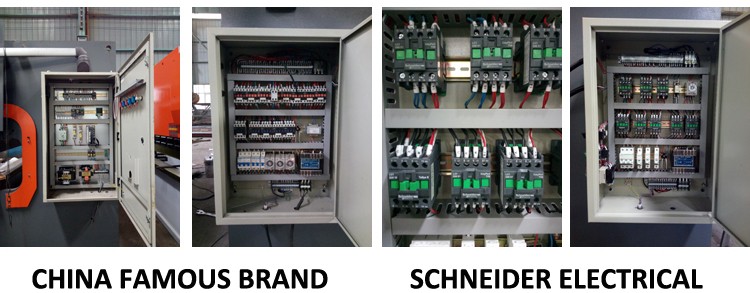

CNC Power Hydraulic Bending Machine Electrical System: China famous brand or Schneider system to guarentee our quality;

Ultra-precision technical process;

It ensure the straightness of the plate;

Strictly quality control;

Every machine must be tested about 8 working hours before package;

Our service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use    the machine.
* Engineers available to service machinery overseas.

Extra sincerely service:

1. Machine is simple, generally, user can understand how to operate. There is operation instruction.

2. Welcome to our factory to learn how to operate our machine, we will give good training .

3. Our engineer is available for user. If there is requirement, our engineer can go to user factory,  and adjust machine, give good training to user .

Details

• Slider Stroke (mm): 140 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 250 mm
• Machine Type: Torsion Bar, Beading Machine
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 2500 mm
• Condition: New
• Material / Metal Processed: ALLOY
• Automation: Automatic
• Extra Services: End Forming
• Weight (KG): 6000
• Motor Power (kw): 7.5 kw
• Key Selling Points: High Safety Level
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
• Showroom Location: Egypt, United Kingdom, Viet Nam, India, Mexico, Thailand, Sri Lanka, Malaysia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 24 months
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
• Raw Material: Steel Bar
• Power: Hydraulic
• After-sales Service Provided: Engineers available to service machinery overseas
• Size: 3300*1725*2405 mm
• Keyword: low cost press brake
• Throat Depth: 250 mm
• Type: Metal Bender Tools
• Application: Die Making Die Cutting Bending Machine
• Available bend profiles: Flat Bar
