A machine that presses workpieces into different shapes according to requirements and bends thin plates. It is an important equipment for bending workpieces in the sheet metal industry. The bending machine is composed of a worktable part, a sliding block part, a back gauge part, an oil cylinder part and so on.
Parameters and specifications
|Seri-al NO.||Name||Unit||Remark /Number|
|6||Slider Travel Adjustment|
|7||The max. Opening height between worktable and slider|
|8||Oil Cylinder diameter|
|9||The max.work pressure of the hydraulic system||Mpa|
|10||Speed of the slide stroke||Full Load-speed||mm/sec|
|12||Slide stroke adjustment motor||Type|
|13||Back-gauge adjustment motor||Type|
|16||Power requirement||380V (-15%,+15%) 50Hz ,3PH|
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- 17″ high resolution colour TFT
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- User specific application support within the controllers multitasking environment
- Sensor bending & correction interface
- Profile-TL offline software
Oil Pump: Sunny From USA Amazing low noise, made of high strength cast iron and unique design for inner noise reduction, Low sensitivity to oil pollution and assure of long service life

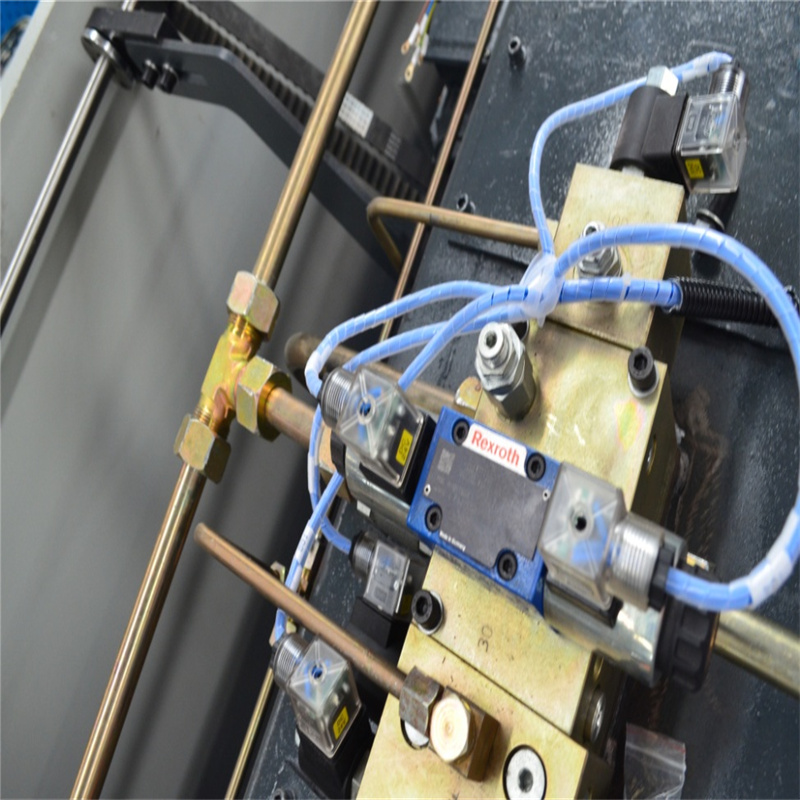

Hydraulic System: Our press brake machine uses Hoerbiger integrated hydraulic control system that make it more reliable and easy for maintenance.
Germany Valve: Adopt Germany's Bosch Rexroth integrated structure of oil pump and hydraulic valve to ensure the bending accuracy.
Electrical System: Our press brake adopt Schneider electrical components. The high quality electric parts can make the machine performing well even the electricity is not stable and customers can easily get the replacement anywhere in the world.
Fast Clamp: The standard equipped fast clamp will help you replace the top punch in very short time. Convenient and time-saving. Fast intermediate loading and unloading function to improve work efficiency.
Upper Punch And Down Die: The standard top punch and dual-V bottom die are specially designed for bending sheet metals. More press brake toolings can be selected as per your practical use. Material and HRC47 degree values are marked on it.
Main Motor: Compared to traditional stepper motors, the advantages of using servo motors include: improve the accuracy to ±0.01mm, the noise decrease to 25 decibels, reduce energy consumption by 60%, consump 70% less hydraulic oil and 30% higher efficiency.
Back Gauge: We using the Taiwan PMI ball screw and linear guide to ensure the moving of X-axis with higher accuracy than using rod. And the backgauge adopt timing belt & wheel mechanism which controlled by servo motor instead of step motor. The height of the backgauge finger can be adjusted manually. Totally there're THREE pcs of backgauge fingers for positioning.
Front Support Arm: Our standard front support arm is 180° adjustable. Adopted with two Linear to keep the heavy duty plate working
