The fuselage adopts integral welding and integral processing structure.
The main components of the fuselage are analyzed by ANSYS finite element analysis software to ensure the reliability and accuracy of the fuselage.
Adopting the closed-loop control method composed of German electro-hydraulic servo valve and grating ruler, the slider position feedback accuracy is high, the operation is accurate and stable, the synchronization performance is good, and the bending accuracy is high.
The numerical control system can realize the functions of bending angle graphic programming, angle correction compensation, automatic calculation and automatic adjustment of bending pressure, automatic calculation of the deformation compensation amount of the worktable, the unfolded length of the work piece, and the automatic back gauge of the back gauge.
1. Quick, one page programming
2. Hotkey navigation
3. 7" widescreen color TFT
4. Up to 4 axis
5. Crowning control
6. Tool/material/product library
7. USB, peripheral interfacing
8. Advanced Y-axis control algorithms for closed loop as well as open loop valves
9. Panel based controller with optional housing.

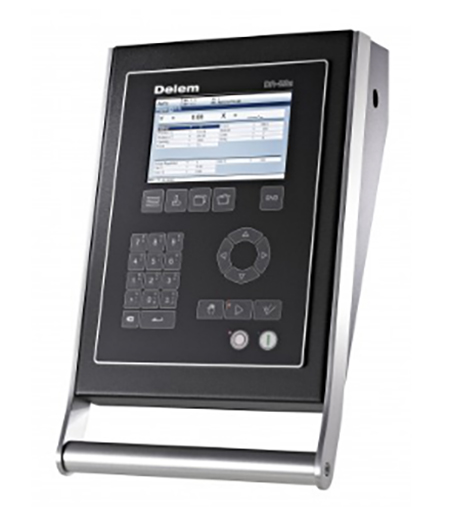

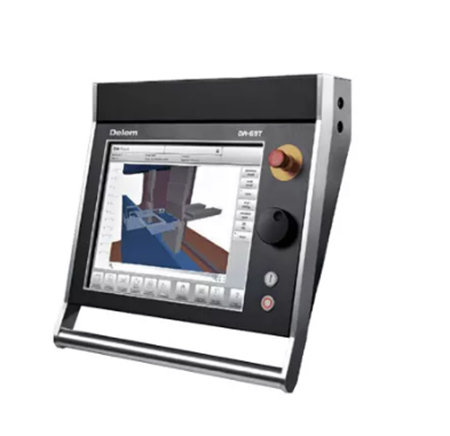

1. 2D and 3D graphical touch screen programming mode.
2. 3D visualization in simulation and production
3. 17" high resolution color TFT
4. Full windows application suite
5. Delem modusys compatibility
6. USB, peripheral interfacing
7. Open system architecture
8. Sensor bending & correction interface.
1. Large touch screen, bright color, high contrast.
2. Convenient interface, clear display and large icon buttons.
3. Visual, friendly and easy to operate man-machine interface.
4. Perfect programming can improve the efficiency of batch multi-step bending.
5. One-step bending of the page is very convenient.
Using Siemens motor guarantee the machine service life and improve the machine working stability.
Using Germant Voith Oil Pump guarantee the oil service life and reduce noise during working.
Germany Bosch Rexroth integrated hydraulic valve block,hydraulic transmission with high reliablity,integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid.

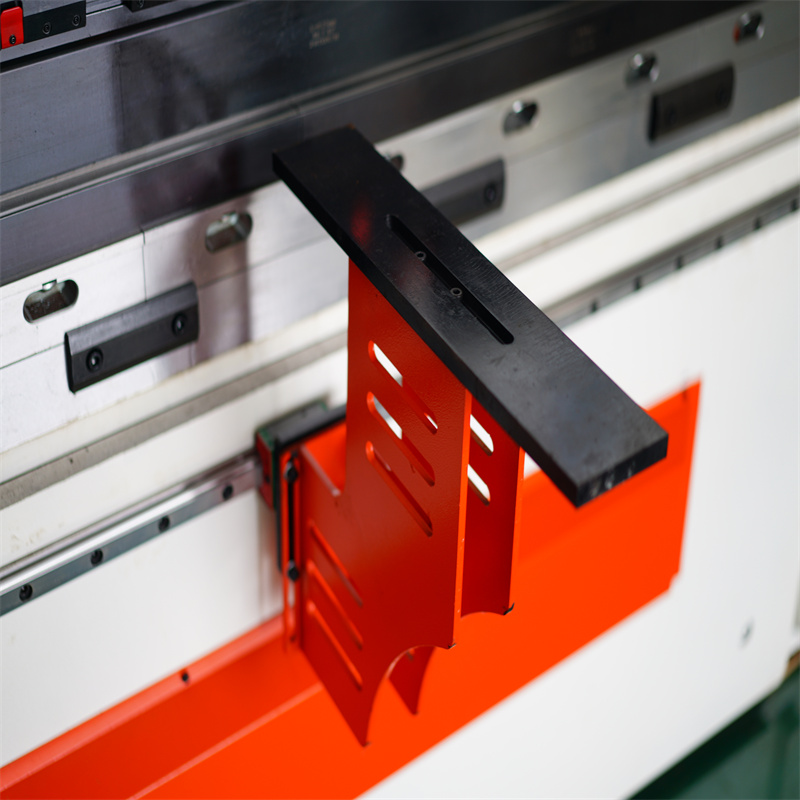

Ball Screw And Guide Rall
Using HIWIN ball screw and linear guider to improve the machine backguage accurancy.
We will help you confirm the model of our machine according to your offered pipe information.
You are very welcome to see our machine how to work in the factory before you place an order with us.
1. Our machine is easy to use. Operation manual and teaching video will be sent out with machine.We also offer free training in our factory, the following is our training contents: Detailed function of our machine, 1 hour; NC control using, 0.5 hour; Tooling installation and adjustment, 0.5-1 hours; Maintenance and repair, 0.5-1 hours; Real operation according client products, 1-2 hours. During the training period, we offer free pick-up, hotel and food.
2. We guarantee machine quality for 13 months, during this period, if spare parts of the machine are not man-made damage, we can send the component to the customer by DHL, TNT freely.
3. Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.
- Slider Stroke (mm): 160 mm
- Automatic Level: Fully Automatic
- Throat Depth (mm): 320 mm
- Machine Type: Synchronized
- Length of Working Table (mm): 2500 mm
- Width of Working Table (mm): 190 mm
- Dimension: 2700*1340*2000mm
- Condition: New
- Material / Metal Processed: Stainless Steel, Aluminum
- Automation: Automatic
- Extra Services: Machining
- Year: 2021
- Weight (KG): 8500
- Motor Power (kw): 11 kw
- Key Selling Points: High-accuracy
- Warranty: 2 years
- Applicable Industries: Manufacturing Plant, Construction works
- Showroom Location: Canada, United States, Viet Nam, Philippines, Indonesia, Mexico, Russia
- Marketing Type: Ordinary Product
- Machinery Test Report: Provided
- Video outgoing-inspection: Provided
- Warranty of core components: 1 Year
- Core Components: Bearing, Motor, Pump, PLC, Pressure vessel
- Optional digital display: DA52S, DA58T, DA66T
- Back-GaugeRange: 10-600mm
- Valve: Rexroth, Germany
- Color: Blue&white/cutomized
- Nominal force: 400KN
- poles distance: 2700mm
- throat depth: 350mm
- Slider travel: 150
- Item: ton large tandem da-69t smart hydraulic cnc brake press brake machine
- Certification: ce
