15t 40t 80t 100t Hydraulic Press Brake Cnc Bending Machine

Press Brake/Bending Machine

hydraulic press brake cnc bending machine with precision backgauge, servo motor,safety protection, fast clamp, ball screw and linear guide. All from Germany, USA, Holland, Italy Brand parts.The bend thickness and length can be manufactured customized.

Cuttable graphics

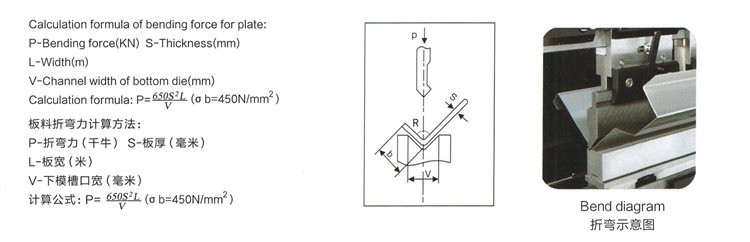

Force Chart for Press Brake

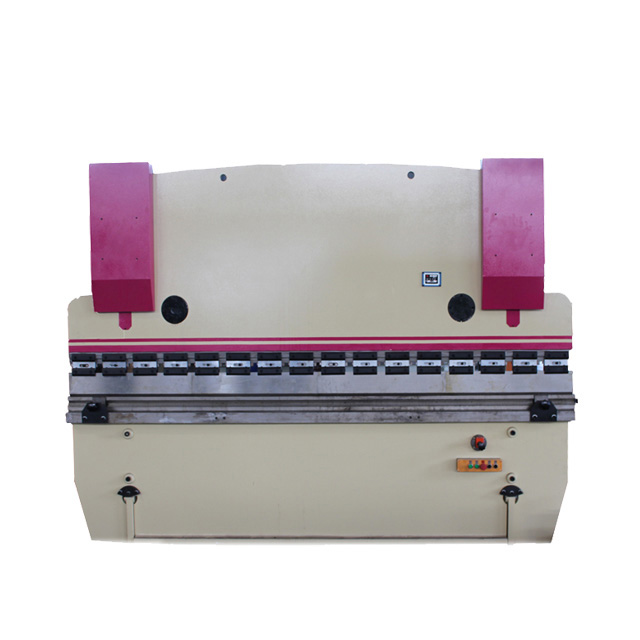

WC67Y/K press brake

WC67Y/K press brake

●Servo motor control

●Store up to 100 programs

●Up to 25 bends per program

●Tool library & Tool program

●Automatic Bending angle program

●Higer ram and backgahge speed

●Higer bending and positioning accuracy

WC 67Y/K Features

The whole welded machine structure achieves high rigidity; the machine is designed by ANSYS software which can ensure the reliability and precision of the press brake.

The motors for backgauge are controlled by inverter, which can achieve high positioning accuracy of the backguage and ram by changing the frequency and voltage of motor.

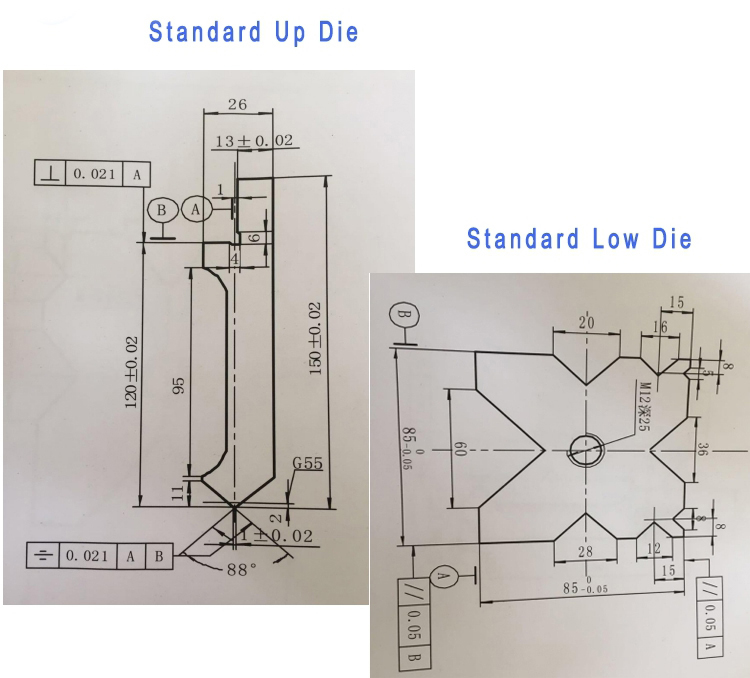

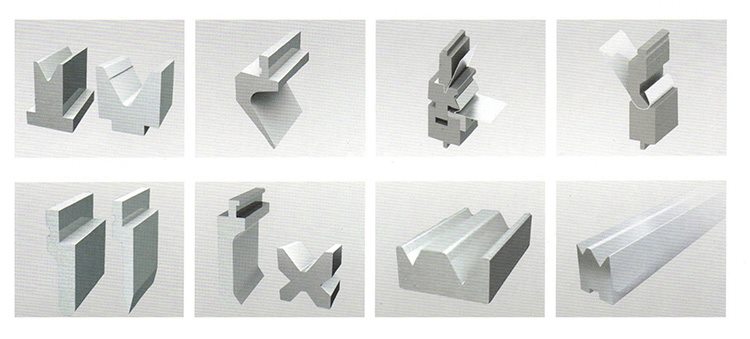

Different punch and dies are optional according to customer' s requirements,such as Multi-V die,radius die,gooseneck die, etc.One set of complete standard punch and die will be included for free.

X axis(Backgahge) and Y axis(Ram stroke or cylinder stroke) can be programmed by E21 system controller,which can store up to 40 groups of programs.Side and rear metal safety guard meets European safety standard.

Hydraulic overload can be protected by overflow valve,System pressure can be regulated by pressure switch easily.

Foot switch with emergency button can stop the machine immediately when accident happens.

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open	Motor Power	Dimensions
	（KN）	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
WC67Y- 40t/2200	400	2200	1775	250	100	320	5.5	2300×1500×2000
WC67Y- 40t/2500	400	2500	1975	250	100	320	5.5	2600×1500×2000
WC67Y- 63t/2500	630	2500	2095	250	120	360	5.5	2600×1600×2300
WC67Y- 63t/3200	630	3200	2570	250	120	360	5.5	3300×1600×2300
WC67Y- 80t/3200	800	3200	2565	320	120	360	7.5	3300×1700×2300
WC67Y- 80t/4000	800	4000	3165	320	120	360	7.5	4100×1700×2300
WC67Y- 100t/3200	1000	3200	2560	320	120	360	7.5	3300×1800×2400
WC67Y- 100t/4000	1000	4000	3165	320	120	360	7.5	4100×1800×2500
WC67Y- 125t/3200	1250	3200	2550	320	120	360	7.5	3250×1920×2450
WC67Y- 125t/4000	1250	4000	3450	320	120	360	7.5	4100×1920×2500
WC67Y- 160t/3200	1600	3200	2540	320	180	440	11	3300×1600×2600
WC67Y- 160t/4000	1600	4000	3140	320	180	440	11	4100×2000×2600
WC67Y- 160t/6000	1600	6000	4740	320	180	440	11	6100×2000×2600
WC67Y- 200t/3200	2000	3200	2540	320	250	530	11	3300×2100×2800
WC67Y- 200t/4000	2000	4000	3140	320	250	530	15	4100×2100×2900
WC67Y- 200t/5000	2500	5000	3120	400	250	530	15	5100×2100×3000
WC67Y- 250t/4000	2500	4000	3120	400	250	560	18.5	4100×2200×3500
WC67Y- 250t/5000	2500	5000	3920	400	250	560	18.5	5100×2200×3500
WC67Y- 250t/6000	2500	6000	4720	400	250	560	18.5	6100×2200×3500
WC67Y- 300t/5000	3000	5000	39100	400	250	560	22	5100×2600×4000
WC67Y- 300t/6000	3000	6000	4710	400	250	560	22	6100×2600×4000
WC67Y- 300t/7000	3000	7000	5620	400	250	560	22	7100×2600×4400
WC67Y- 350t/6000	3500	6000	5100	400	250	560	30	6100×2600×4200
WC67Y- 350t/7000	3500	7000	5620	400	250	560	30	7100×2600×4500
WC67Y- 400t/4000	4000	4000	3100	400	300	620	30	4100×2700×3800
WC67Y- 400t/6000	4000	6000	4280	400	320	630	30	6100×2800×4200
WC67Y- 500t/5000	5000	5000	4100	400	320	630	37	5100×3000×4400
WC67Y- 500t/6000	5000	6000	4820	400	320	630	37	6100×3000×4700
WC67Y- 500t/7000	5000	7000	5620	400	320	630	37	7100×3000×4900
WC67Y- 600t/6000	6000	6000	4820	400	320	630	45	6100×2965×4700
WC67Y- 600t/7000	6000	7000	5620	400	320	630	55	7100×2965×4900

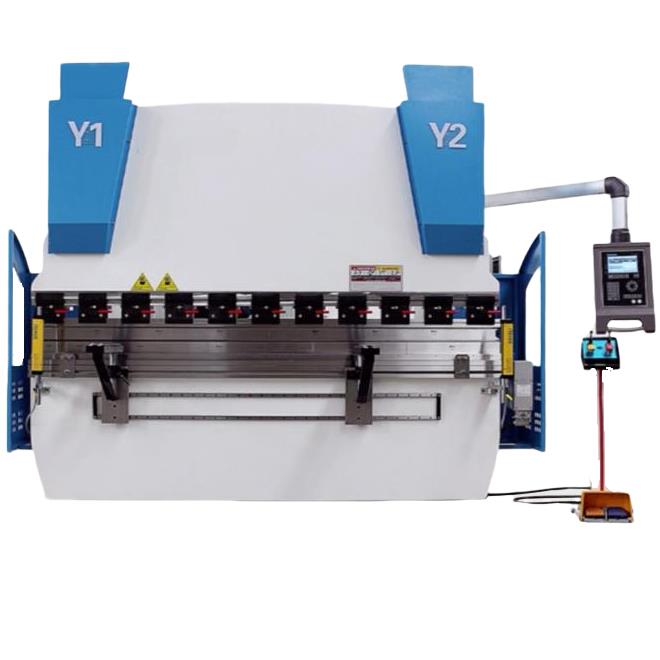

WE67K Series Electro-hydraulic Servo Press Brake CNC Bending Machine

WE67K Series Electro-hydraulic Servo Press Brake CNC Bending Machine adopts integral welding and integral processing structure.

The main components of the body are analyzed with ANSYS finite element analysis software, which ensures the reliability and
overall accuracy of the machine tool.

The main oil cylinder on both sides breaks through the stroke control mode of the traditional mechanical baffle type bending
machine and adopts the closed-loop control mode consisting of the electro-hydraulic servo valve imported from Germany and thegrating ruler imported from Germany.

WE67YK Features

●Advanced Configuration,high precision and high eficiency CNC hydraulic press brake

●Holistic welding structure

●Electro-hydraulic servo system,the closed-loop cotrol the slider synchronization

●Double crowning mechanism

●Standard configuration with 3 1axes:
Y1(upward-downward of left cylinder)
Y2(upward-downward of right cylinder)
X(forward-backward of backguge)
V(hydraulic crowning)

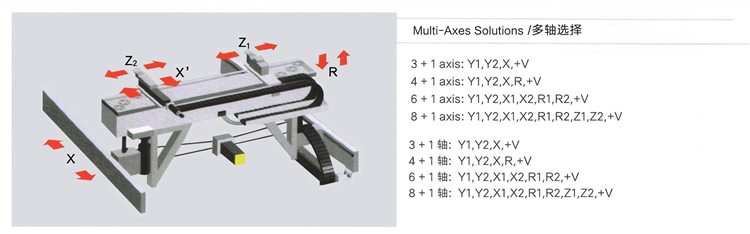

●Backgauge System Optional:
4axes Backgauge(X. R,Z1. Z2)
5axes Backgauge(X. R. Z1. Z2,X')
6axes Backgauge(X1. X2. R1. R2,Z1. Z2)

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open	Motor Power	Dimensions
	（KN）	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(mm)
WE67K-40t/2200	400	2200	1775	250	175	320	5.5	2300×1500×2000
WE67K-40t/2500	400	2500	1975	250	175	320	5.5	2600×1500×2000
WE67K-63t/2500	630	2500	2095	250	175	360	5.5	2600×1600×2300
WE67K-63t/3200	630	3200	2570	250	175	360	5.5	3300×1600×2300
WE67K-80t/3200	800	3200	2565	320	175	360	7.5	3300×1700×2300
WE67K-80t/4000	800	4000	3165	320	175	360	7.5	4100×1700×2300
WE67K-100t/3200	1000	3200	2560	320	215	360	7.5	3300×1800×2400
WE67K-100t/4000	1000	4000	3165	320	215	360	7.5	4100×1800×2500
WE67K-125t/3200	1250	3200	2550	320	215	360	7.5	3250×1920×2450
WE67K-125t/4000	1250	4000	3450	320	215	360	7.5	4100×1920×2500
WE67K-160t/3200	1600	3200	2540	320	215	440	11	3300×1600×2600
WE67K-160t/4000	1600	4000	3140	320	215	440	11	4100×2000×2600
WE67K-160t/6000	1600	6000	4740	320	215	440	11	6100×2000×2600
WE67K-200t/3200	2000	3200	2540	320	215	530	11	3300×2100×2800
WE67K-200t/4000	2000	4000	3140	320	215	530	15	4100×2100×2900
WE67K-200t/5000	2500	5000	3120	400	215	530	15	5100×2100×3000
WE67K-250t/4000	2500	4000	3120	400	215	560	18.5	4100×2200×3500
WE67K-250t/5000	2500	5000	3920	400	215	560	18.5	5100×2200×3500
WE67K-250t/6000	2500	6000	4720	400	250	560	18.5	6100×2200×3500
WE67K-300t/5000	3000	5000	39100	400	250	560	22	5100×2600×4000
WE67K-300t/6000	3000	6000	4710	400	250	560	22	6100×2600×4000
WE67K-300t/7000	3000	7000	5620	400	250	560	22	7100×2600×4400
WE67K-350t/6000	3500	6000	5100	400	250	560	30	6100×2600×4200
WE67K-350t/7000	3500	7000	5620	400	250	560	30	7100×2600×4500
WE67K-400t/4000	4000	4000	3100	400	300	620	30	4100×2700×3800
WE67K-400t/6000	4000	6000	4280	400	320	630	30	6100×2800×4200
WE67K-500t/5000	5000	5000	4100	400	320	630	37	5100×3000×4400
WE67K-500t/6000	5000	6000	4820	400	320	630	37	6100×3000×4700
WE67K-500t/7000	5000	7000	5620	400	320	630	37	7100×3000×4900
WE67K-600t/6000	6000	6000	4820	400	320	630	45	6100×2965×4700
WE67K-600t/7000	6000	7000	5620	400	320	630	55	7100×2965×4900

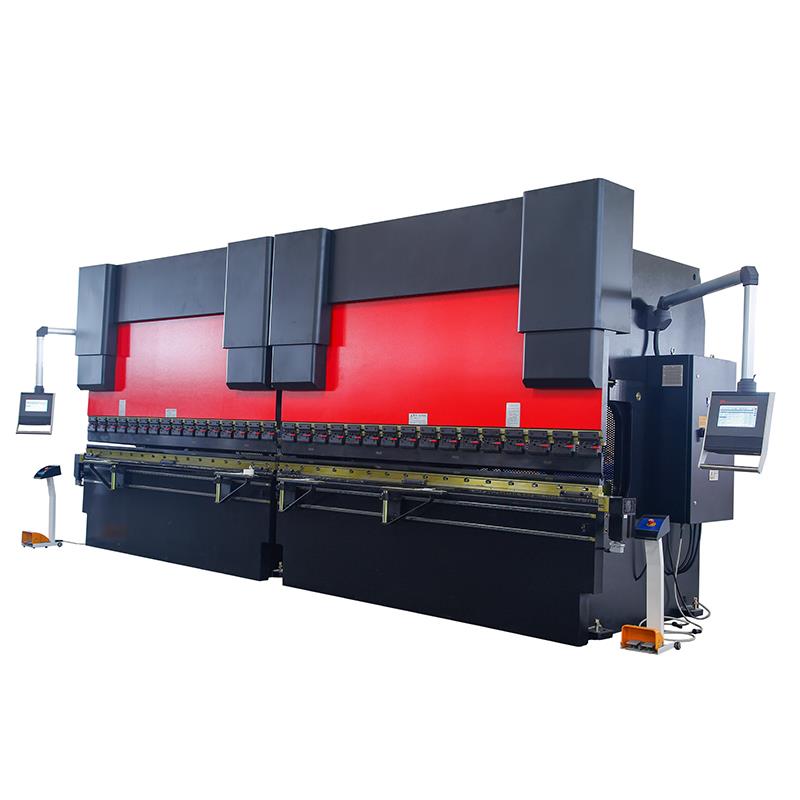

Double press brake

Two (WC67Y/WE67K) mainframes were selected to configure the dual-machine linkage synchronous equipment.

The double-machine combined bending machine can process super long workpiece, especially suitable for city construction, highway light pole, electric pole and so on.

The two types of machine tools can also be used separately to improve production efficiency and are equipped with a deflection
compensation mechanism.

The synchronous mechanism adopts mechanical liquid servo and mechanical block. ●This machine was combined by two sets of 400 tons press brake.

Tandem control achieve synchronous working. Single machine was combined by working table , right and left wall board.

Due to the transportation, we adopt assembled structure. The rack has strong rigidity, two cylinders were installed on right and left wall board, hydraulic system was under the action of electrical system, drive ram working down. On the ram, there are upper dies, when upper dies and lower dies touched, system will raise pressure and forming the workpieces.

With different dies and under different bending types, it can get different shapes of workpieces. The quality is stable and
reliable.

Type	Nominal Pressure	Worktable Length	Column spacing	Throat Depth	Slide Stroke	Max Open
	（KN）	(mm)	(mm)	(mm)	(mm)	(mm)
WE67K-500t/5000	5000	5000	4100	400	320	630
WE67K-500t/6000	5000	6000	4820	400	320	630
WE67K-500t/7000	5000	7000	5620	400	320	630
WE67K-600t/6000	6000	6000	4820	400	320	630
WE67K-600t/7000	6000	7000	5620	400	320	630
WE67K-700t/8000	7000	8000	5300	400	320	630
WE67K-700t/10000	7000	10000	5300	400	320	630
WE67K-800t/8000	8000	8000	5300	400	320	630
WE67K-1000t/10000	10000	10000	5300	400	320	630
WE67K-1000t/12000	10000	12000	5300	400	320	630
WE67K-1200t/12000	12000	12000	5300	400	320	630
WE67K-1200t/14000	12000	8600	5300	400	320	630

FAQ

1. Does your company accept customized offer, we have special need.

RAYMAX is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.

2. What certificate the machine in your company get?

We’ve passed the ISO9001 Quality System Approval and CE Certification.

3. Do you have price list for optional configuration?

We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.

4. Does your company accept CIF price?

CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.CIF price also includes marine premium which is 2‰ of 1.1*total amount.

5. If your engineer come to our country to fix the machine and do some training, how much will it cost?

The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as v isa fee. Staff cost is
100USD/day/person, normally, it’s a two person job. But it will depends for a large equipment or installation and debugging of the whole line.

6. What’s the warranty?

Warranty is 12 months which begins from the day when the machine has arrived at the importer’s port.

7. What’s your methods of transportation?

For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.

8. If the machine is out-of-warranty, how to charge the cost of accessories?

For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.

9. What I would do for the machine failure?

If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.

10. How to define the machine warranty? When did you start timing?

We identify the warranty based on the factory number. Warranty timing counted starting after equipment commissioning and acceptance. If you have any questions, please email us for consultation.

11. How long is the warranty period of machine tool?

We commitment to client machines are one-year warranty. For the purchase of the user, registered as a member in this website,with the factory number of the machine, you can enjoy extended warranty of 3 months. For details, please refer to membership service.

12. Does MC have maintenance manual and operation manual?

Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)

Details

• Slider Stroke (mm): 320 mm
• Automatic Level: Semi-automatic
• Throat Depth (mm): 450 mm
• Machine Type: Torsion Bar, Beading Machine
• Length of Working Table (mm): 4000
• Width of Working Table (mm): 400 mm
• Dimension: 6060*3100*3800mm
• Condition: New
• Material / Metal Processed: Stainless Steel
• Automation: Automatic
• Extra Services: Cut To Length
• Year: 2021
• Weight (KG): 1850
• Motor Power (kw): 37 kw
• Key Selling Points: Automatic
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works , Advertising Company
• Showroom Location: United States, Germany, Viet Nam, Brazil, Peru, Mexico, Russia, Thailand, Morocco, Kenya, Chile, Algeria, South Africa
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor
• After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
• Raw Material: Steel Bar
• Power: Hydraulic
• Usage: Metal Sheet Bending
• Voltage: 220V/380V/400V
• Processing material: Steel Aluminum
• Using: Square steel I-beam ect.
• Material Processed: Mild Steel Sheet Plate bending
• Materials: Aluminum plate bending
• Certification: ISO 9001:2000
• After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
