Steel Sheet Aluminum Bending Hydraulic Press Brake Machine

Product Overview

Product Specifications

NO.	Details	Original Manufacturer	Brand Name
1	NC system	Holland	DELEM DA-53 series（Matching）
1	NC system	Switzerland	CYBELEC CT8（Standard）
2	Sealed linear encoder	Turkey	OPKON
3	Hydraulic system	German	REXROTH/ ARGOS-HYTOS
4	Oil pump	America/Japan	SUNNY/ NACHI
5	Ball screw	Taiwan	HIWIN/ PMI
6	Straight guide rail	Taiwan	HIWIN/ PMI
7	Seal	Japan	Japan NOK
8	Air switch	France	Schneider
9	Miniature relay	France	Schneider
10	Ac contactor	France	Schneider
11	Button	France	Schneider
12	Electrical components	Japan	Omron
13	Socket joint	USA	EATON

Technical Parameters & Specification with 130 Ton
Workbench length		3200	mm
Distance between columns		2700	mm
Slider stroke		200/250	mm
Open height		450/500	mm
Throat depth		400	mm
Axis number of NC		Y1、Y2、X、R、V	axes
Main motor power		11	kw
Speed of slide	Fast down	180	mm
	Work	10	mm
	Return	160	mm
Back gauge X axis	Stroke	600	mm
	Max speed	350	mm/s
	Re-position accuracy	≤0.05	mm
Back gauge R axis	Stroke	200	mm
	Max speed	200	mm/s
	Re-position accuracy	≤0.05	mm
Machine Dimensions	Length	3800	mm
	Width	1850	mm
	Height	2750	mm
Machine weight	/	9000	kg

Product Configuration

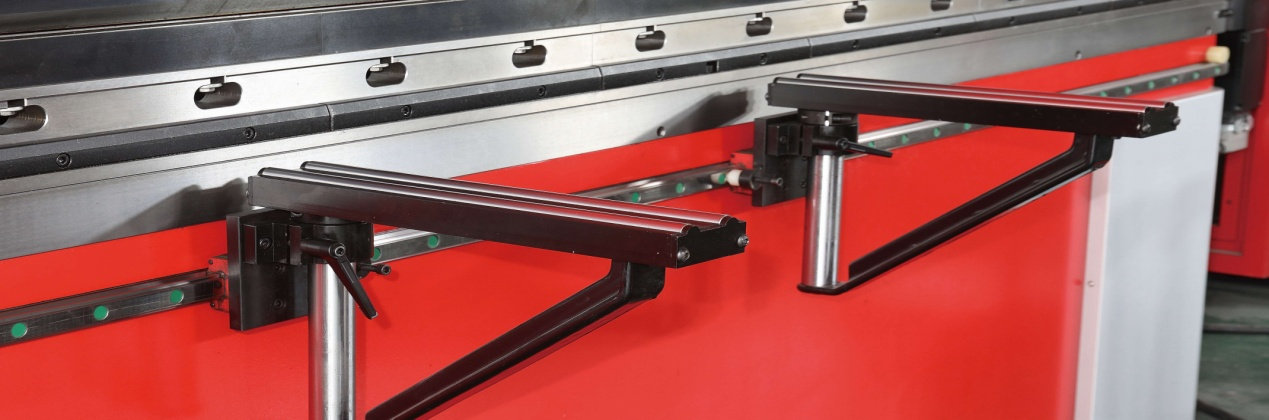

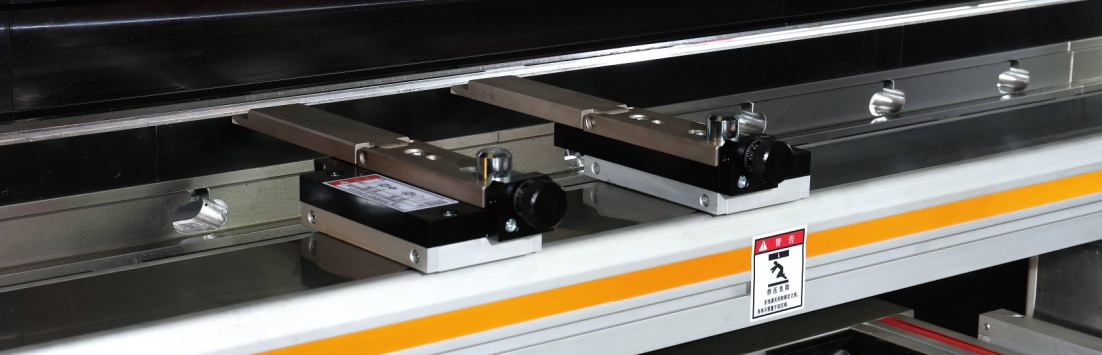

Moving front support frame: It moves along the linear guide rail and can be parked at any position to assist your bending work and make the work comfortable and efficient.

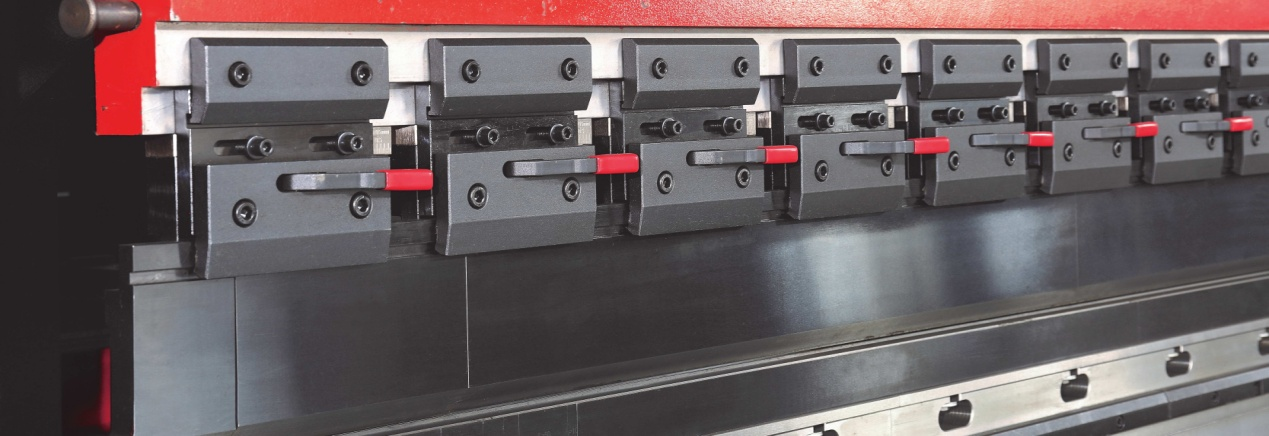

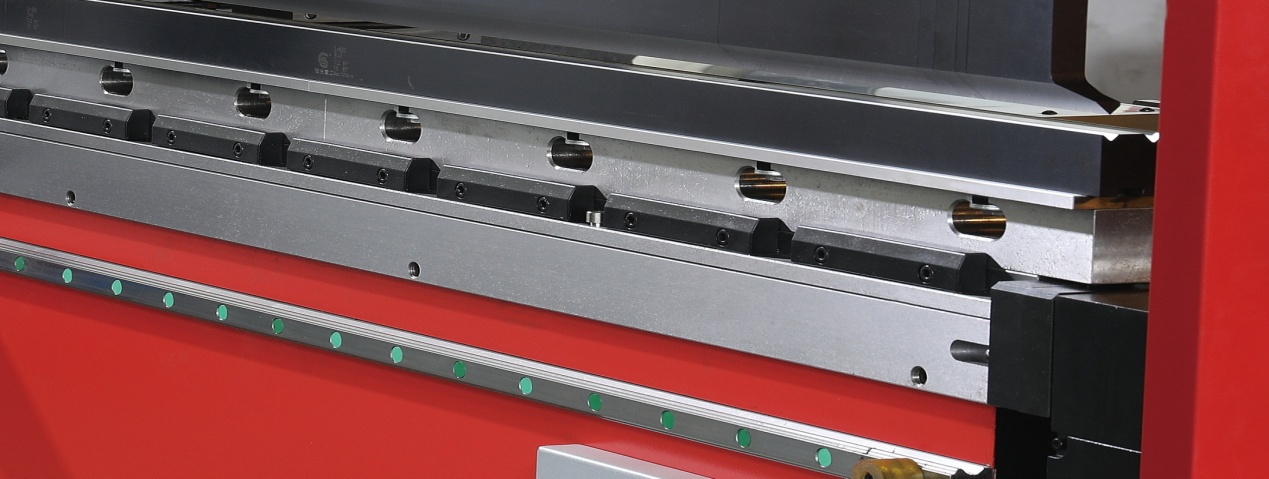

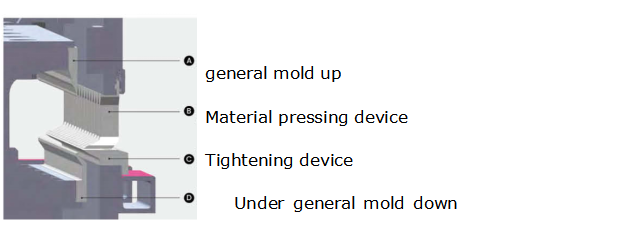

High Precision and fast clamping system: fast and easy to change the tooling, decreasing labour strength and enhance productivity.

Higher quality press brake tooling:whole hardened high precision CNC press brake tooling it is durable.

High precision and stable back gauge system(Optional): New and unique double linear guide constrction,To ensure the good positioning accuracy.Design of multistage stops, to increase the positioning range, above the price in value.

Easy to operate cnc control system can help you save time to improve working efficiency.

Cast machine body (featuring stable structure, small deformation and high precision

Machine tool technology

Vibration aging stress relief

Vibration aging stress relief

To eliminate the internal stress of workpiece, ensure that the machine works for a long time with high precision.

Finished machining

Finished machining: Owned large horizontal gantry milling machines for meeting Ragos precise machining requirements, also ensure high quality installation base.

Natural aging: Machine frames need to be placed naturally for 6 months to release stress from heat treatment, which is to get stable accuracy and higher rigidity.

Below is the machine bedding processing

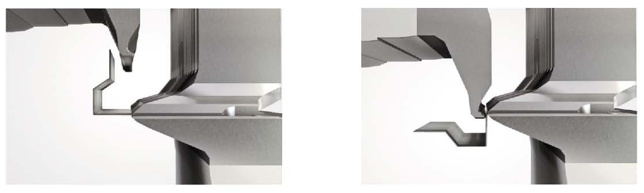

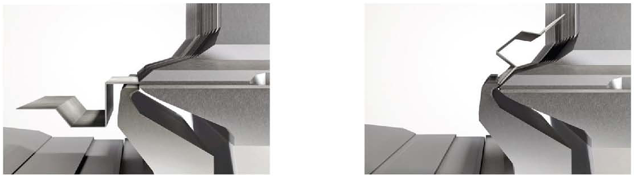

Bend Up

Bend Down

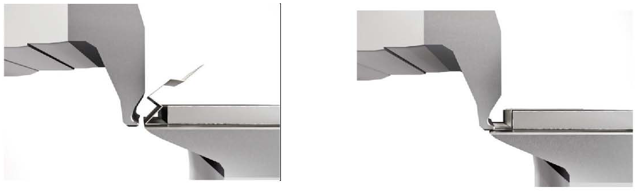

Flattening and bending

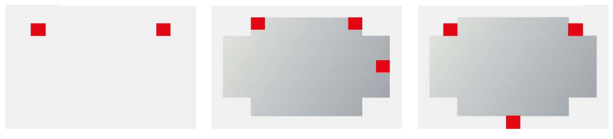

Sheet positioning system

Tail positioning Plate pre-positioning Final positioning

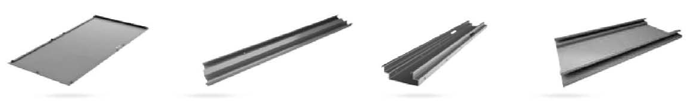

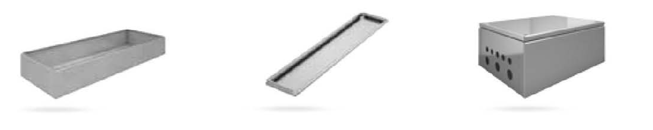

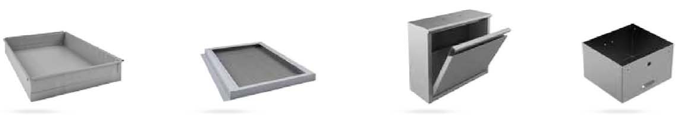

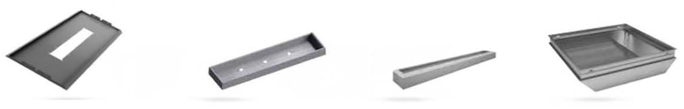

Product samples

Details

Slider Stroke (mm): 300 mm
Automatic Level: Fully Automatic
Throat Depth (mm): 400 mm
Machine Type: Torsion Bar
Length of Working Table (mm): 4000
Width of Working Table (mm): 2500 mm
Dimension: 4000*2500*3600
Condition: New
Material / Metal Processed: Stainless Steel, ALLOY, Carbon steel, Aluminum
Weight (KG): 7000
Motor Power (kw): 25 kw
Key Selling Points: High Safety Level
Warranty: 1 Year
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Advertising Company
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Gear, Engine
Product name: Hydraulic Cnc Bending Machine
Raw Material: Sheet
Power: 7.5kw 10kw 15kw 20kw
Application: Stainless Plate Bending
Function: Steel Metal Bending
Control system: DA69T-DA66T-DA58T-CT8-CT12
CNC System: Delem Holland
Hydraulic System: Bosch Rexroth Germany
Color: White and red
Main Motor: Siemens Germany
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service: Video technical support, Online support
