Wc67y 30t 1600 Hydraulic Press Brake Sheet Metal Hydraulic Folding Machine

Products Description

The hydraulic press brake comprises a bracket, a worktable and a clamping plate, the worktable is placed on the bracket, the worktable is composed of a base and a pressure plate, and the base is connected with the clamping plate through a hinge, the base is composed of a seat shell, a coil and a cover plate, and the coil It is placed in the recess of the seat shell, and the top of the recess is covered with a cover plate. When in use, the coil is energized by the wire, and after the power is applied, the platen is attracted to the platen, thereby clamping the plate between the platen and the base. Thanks to the electromagnetic clamping, the pressure plate can be made into a variety of workpiece requirements, and the workpiece with the side walls can be processed
Wc67y 30t 1600 Hydraulic Press Brake Sheet Metal Hydraulic Folding Machine

Main Features

(1) Hydraulic transmission, the oil cylinders at both ends of the machine are placed on the slider to directly drive the sliding work.

(2) It adopts mechanical block structure, which is stable and reliable.

(3) The slider stroke is maneuvered quickly, manually fine-tuned, and the counter is displayed.

(4) It adopts all-steel welded structure with sufficient strength and rigidity.

(5) The slider synchronization mechanism uses the torsion axis to force synchronization.
Wc67y 30t 1600 Hydraulic Press Brake Sheet Metal Hydraulic Folding Machine

ModelPressure(KN)Table width(mm)Distance of holes (mm)Throat depth (mm)Stroke(mm)Open high(mm)Power(KW)Weight(T)Size(mm)
30T/160030016001300200803005.52.21650*1200*1700
30T/200030020001300200803005.52.52000*1150*1700
40T/2500400250020302501003405.532500*1200*1900
63T/2500630250020502501203405.542500*1350*2100
63T/3200630320021502501203405.553200*1350*2100
80T/2500800250020502501203505.562500*1400*2150
80T/3200800320021503201203505.56.23200*1400*2150
100T/25001000250020503201203807.56.52500*1500*2200
100T/32001000320025103201203807.573200*1500*2300
100T/40001000400031004001203807.58.54000*1500*2400
125T/32001250320025103201203807.57.33200*1600*2350
125T/40001250400031004001203807.594000*1600*2450
160T/25001600250020503202004501192500*1650*2700
160T/320016003200251032020045011113200*1650*2800
160T/400016004000304032020045011124000*1650*2800
160T/500016005000380032020045011145000*1750*3100
160T/60001600600046003202004501119.56000*1750*3300
200T/320020003200260032025054015133200*1900*3100

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer specializing in product development.

Q: How can we get your quotation?

A: Please send us your purchase list, we will attach our best price in it.

Q: How can we order your machines & payment terms & MOQ......?

We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them
quickly.

Q: What is your service & warranty?

We have a professional sales team for answering your question, we also have a exprence after-sales team to do the service, include oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.

Details

  • Slider Stroke (mm): 100 mm
  • Automatic Level: Fully Automatic
  • Throat Depth (mm): 200 mm
  • Machine Type: Torsion Bar
  • Length of Working Table (mm): 1600
  • Width of Working Table (mm): 100 mm
  • Dimension: 1600*1200*1700mm
  • Condition: New
  • Material / Metal Processed: Stainless Steel, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: End Forming
  • Weight (KG): 2000
  • Motor Power (kw): 5.5 kw
  • Key Selling Points: High Productivity
  • Warranty: 2 years
  • Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Construction works , Advertising Company
  • Showroom Location: Egypt, United States, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Thailand, South Africa, Malaysia
  • Marketing Type: Ordinary Product
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 2 years
  • Core Components: Bearing, Motor, Pump, Gear, PLC
  • Product name: Hydraulic Folding Machine

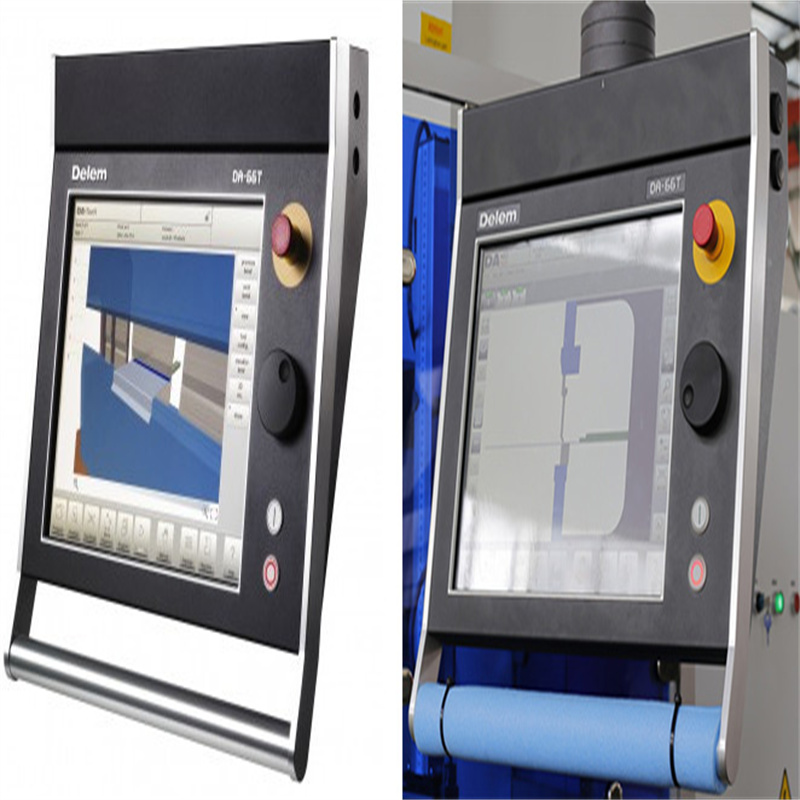

  • Control system: E21/DA41S/Cyb Touch8
  • Motor Brand Optional: Germany Siemens
  • Distance between columns: 1300-5400mm
  • Clip: Quick Clip
  • Open Height: 320-800mm
  • CNC or not: CNC Bender Machine
  • Electrical components: Schneider France Brand
  • After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
  • After-sell service: Life time service
  • Nominal Pressure (kN): 300
  • Certification: ce
  • After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
