Da52s Mini Small Iron Plate Metal Sheet Cnc Hydraulic Press Brake Machine Price

Advantages of WE67K Press Brake

1. Closed-Loop Electro-Hydraulic Servo Control Technology

2. Holland DA52S CNC Controller System

3. Germany Siemens Main Motor

4. Bosch-Rexroth Hydraulic System

5. France Schneider Electrics

6. France Fagor Grating Ruler Control Y1 and Y2 Axis (0.01mm)

7. Taiwan HIWIN Ball Screw and Linear Guide, X Axis up to 0.01mm

8. Mechanical Crowning System Managed By DA52S Controller

9. Germany EMB Oil Tube Connectors

10. SXZG Top & Bottom Tool Clamps
Da52s Mini Small Iron Plate Metal Sheet Cnc Hydraulic Press Brake Machine Price

DELEM DA52S Controller

1. Quick, one page programming

2. 7'' widescreen colour TFT

3. Up to 4 axes control(Y1 Y2 X R)

4. Crowning control;

5. Tool/material/product library

6. USB, peripheral interfacing

7. Support 24 Languages
Da52s Mini Small Iron Plate Metal Sheet Cnc Hydraulic Press Brake Machine Price

Product Description

This press brake features the crowning system for improved quality, a servo driven back gauge system for increased speeds.

Also has increased working speeds, stroke, daylight, and pressing capacities of machines. The future - as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.

This series is fully in accordance with European standards, high precision, high security.



EURO series one step beyond robustness, Engergy-efficient, reliability,precision and performance make Euro an election model.


German famous brand motor improves the lifespan of the and keeps the machine working in low noise environment

Bosch Rexroth hydraulic Valve

Germany Bosch Rexroth integrated hydraulic transmission with high reliability, integrated hydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid

Ball Screw And Linear Guide Rall

Using Taiwan HAWKINGS Ball Screw and linear guider to improve the machine backgauge accurancy

Germany EMB tube

Using Germany EMB tube and connectors reduce the odds against welding slag jam into the valves and affect oil flowing

Mechanical Crowning

Optional electric mechanical crowning, improving the precision of bending angle and linearity

Optional Camponents

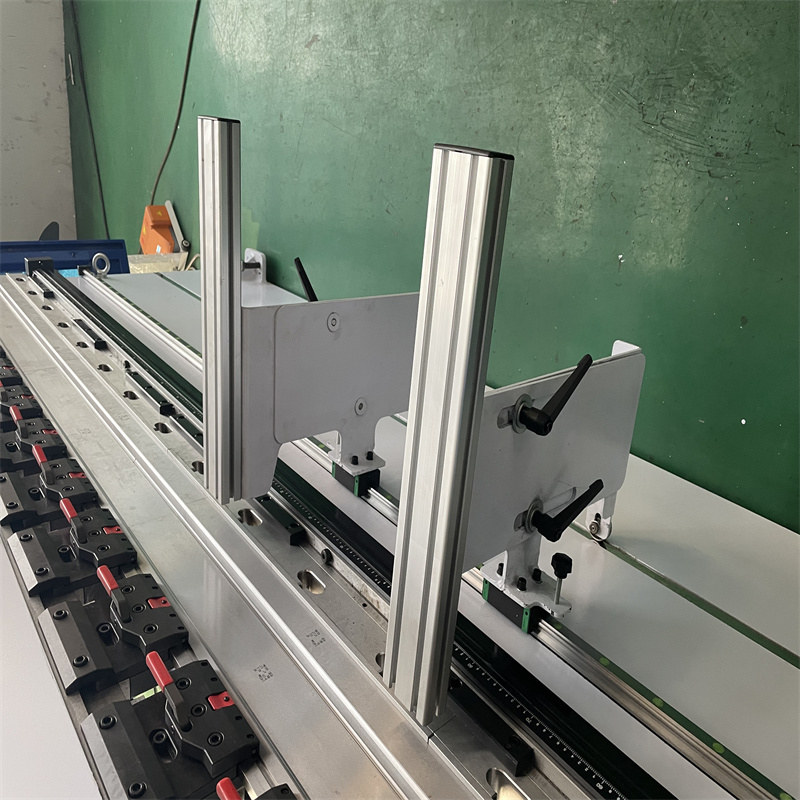

Backgauge up and down

Optional Servo motor drive R Axis-Backgauge up and down

Hydraulic Crowning

Optional hydraulic crowning, improving the precision of bending angle and linearity, can be controlled by DA52S controller(C-AXIS)

Main Motor Sevo Motor

Save electricity costs; Low noise; Low oil temperature, extend the life of the seal

Italy DSP Laser protection

Optional Italy DSP laser protection, protecting the workers' fingers

Optional Segment Die

Press brake segmented die are available for your choice

Motorized Stopper Fingers Z1 and Z2


  • Slider Stroke (mm): 200 mm
  • Automatic Level: Fully Automatic
  • Throat Depth (mm): 200 mm
  • Machine Type: Synchronized
  • Length of Working Table (mm): 3200 mm
  • Width of Working Table (mm): 200 mm
  • Condition: New
  • Place of Origin: Anhui, China
  • Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon steel, Aluminum
  • Automation: Automatic
  • Extra Services: press brake
  • Weight (KG): 11300
  • Motor Power (kw): 15 kw
  • Key Selling Points: High-accuracy
  • Warranty: 5 years
  • Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
  • Showroom Location: United States, Italy, Viet Nam, Saudi Arabia, Indonesia, Pakistan, India, Morocco
  • Marketing Type: New Product 2020
  • Machinery Test Report: Provided
  • Video outgoing-inspection: Provided
  • Warranty of core components: 1 Year
  • Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
  • Voltage: 220V/380V/415V/440V/customized
  • Color: Customized
  • Material: Q235
  • USE FOR: Electromagnetic Sheet Bending Machine
  • Function: Steel Metal Bending
  • Ball Screw: Taiwan
  • Nominal Force: 2000
